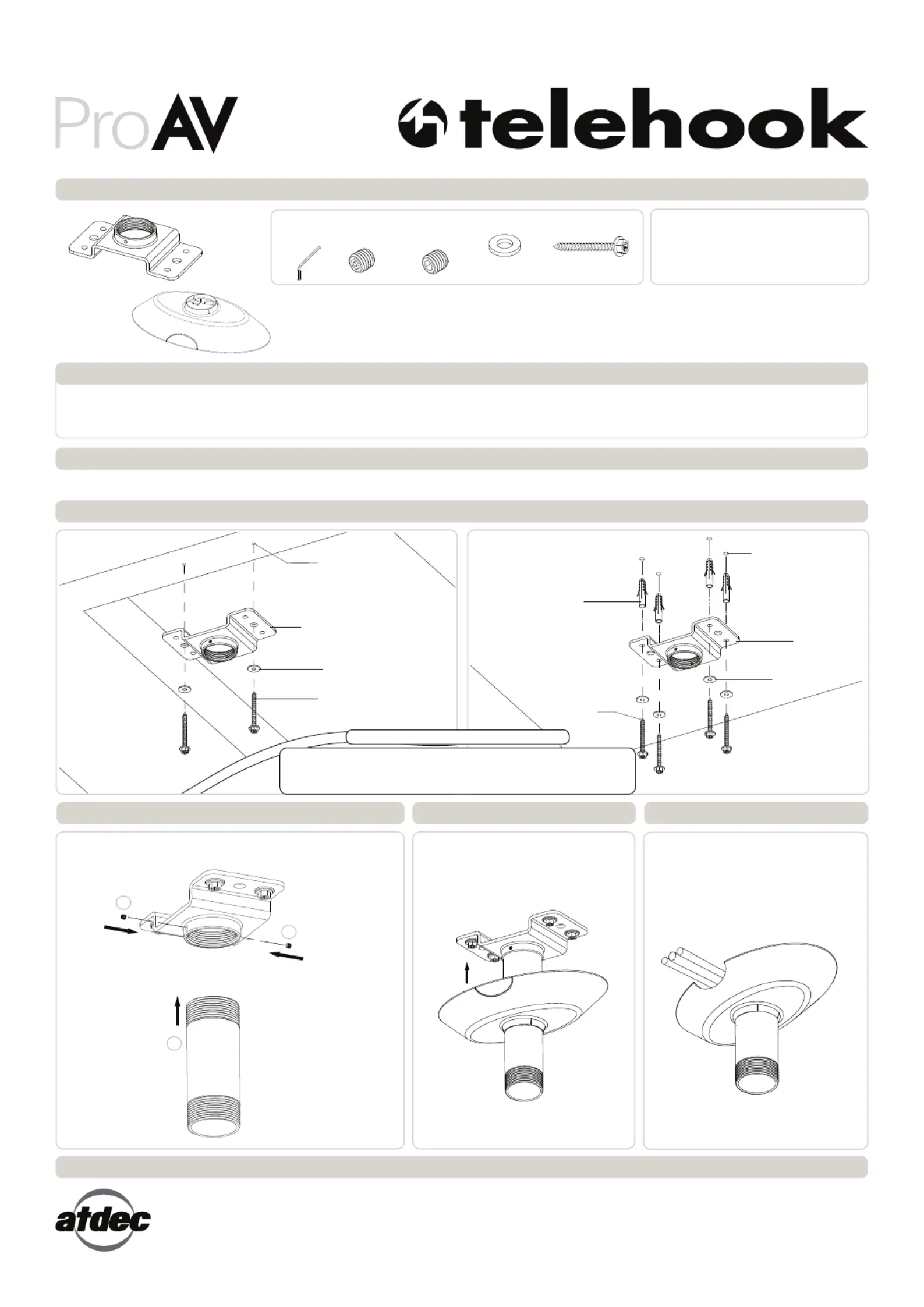

Installation Complete

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 21.03.13 ©

TH-PCP

Component Checklist

Projector Ceiling Plate Accessory

Coach Bolt (x4)

HARDWARE

Tools Required:

• Power Drill

• 4.5mm(0.18”) Drill Bit

• 10mm (3/8”) Socket Wrench Shifter

• Phillips Head Screw Driver

! IMPORTANT - Install Telehook Ceiling Mount as per installation instruction.

! This product supports a maximum load of 100kg (220lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the component checklist and hardware above.

M6 Washer (x4)

Security

Allen Key

Standard Set

Screw (x2)

Security Set

Screw (x2)

Mount

Step 2. Ceiling Mount

Step 3.

Cover

IMPORTANT! Any structural elements must be capable of

supporting the combined weight of all the equipment and devices

being mounted. If in doubt, consult a structural engineer.

Timber Stud Masonry

Coach Bolt

Screw in 1.5 NPT Pole

(Available from ATDEC)

M6 Washer

Mount

TIP: Use Mount as a drilling template.

Coach Bolt

M6 Washer

Mount

Clip on Cover

Holes to Suit Anchors

NYLON ANCHORS

NOT SUPPLIED

Ø4.5mm x 65mm

deep Drilled Hole

Secure pole by

inserting standard

or security set screws

using supplied Allen

key

Side panels can be

snapped off to provide

cable route

Step 4.

Step 5.

Installation Instructions

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	TH-PCP
Bredde:	236 mm
Dybde:	46 mm
Høyde:	132 mm
Produktfarge:	Hvit
Montasjetype:	Tak
Maksimalvekt (kapasitet):	100 kg
Maks avstand til tak:	46 mm
