Side 1/1

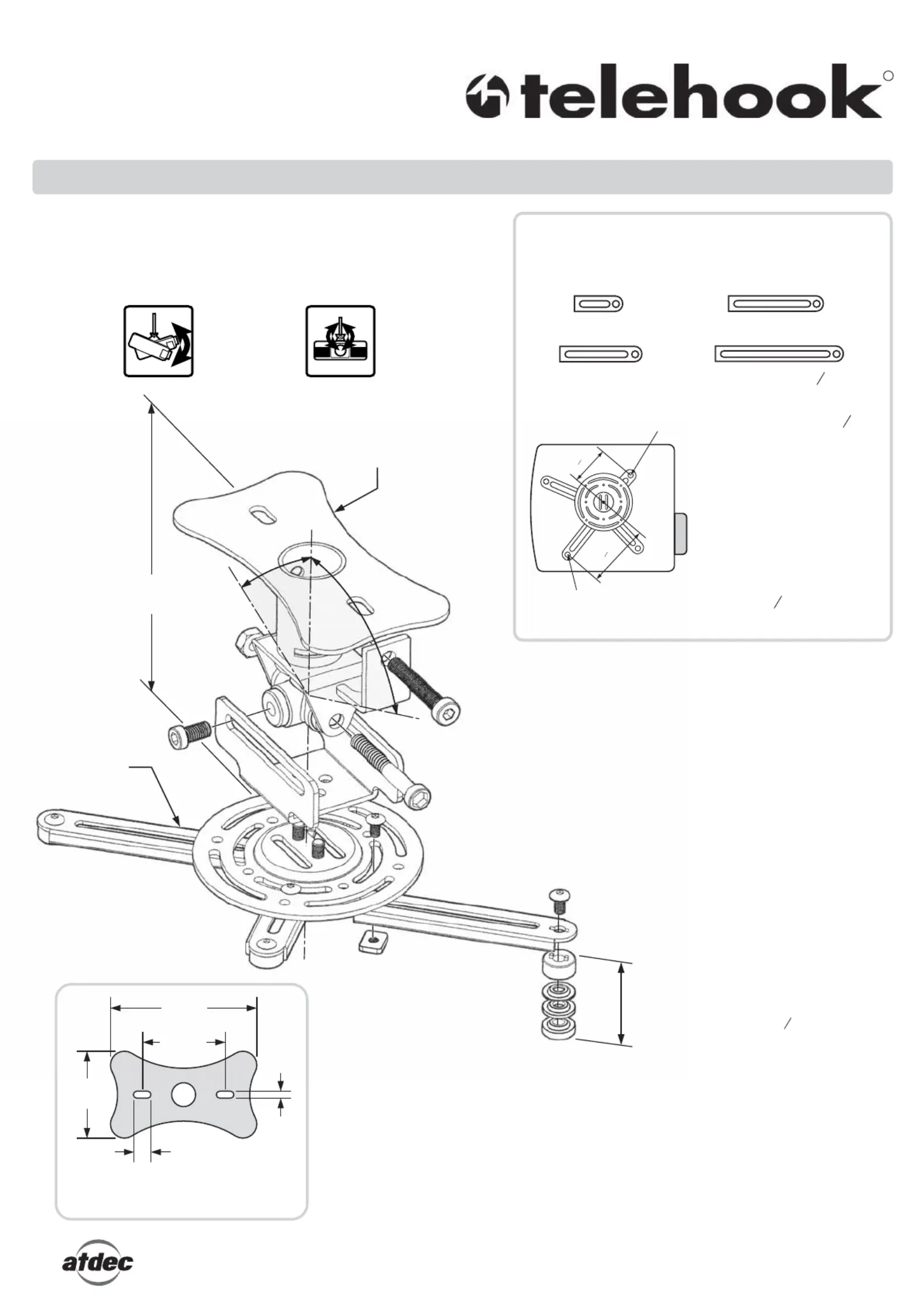

Extension

Bracket

Ceiling

Plate

127 mm

(5”)

Maximum distance bracket

can be secured from top

of projector = 10mm ( ”)

+/- 40º

Pitch

+/- 20º

Roll

Dimensions

Technical Specifications

Projector Ceiling Mount | Flush

Projector

NOTE: 4 sets of Extension Bracket lengths are

included to suit most mounting configurations.

Any combination of these brackets may be used.

2x100mm (4”)

2x50mm (2”)

2x75mm (3”)

Minimum reach = 65mm (2 ”)

(from centre of bracket)

65mm

(2 “)

200mm

(7 “)

Maximum reach = 200mm (7 ”)

(from centre of bracket)

2x150mm (5 ”)

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 09.03.11 ©

Projector mounting screws and washers included:

- M2.5x15 (x4)- M3x15 / M3x20 (x4 each)

- M4x15 / M4x20 / M4x25 / M4x30 - (x4 each)

- M5x15 / M5x20 / M5x25 / M5x30 - (x4 each)

- M6x15 / M6x20 / M6x25 / M6x30 - (x4 each)

- Washer 10mm / 8mm Washer (x4 each)

Mounting hardware included: Warranty:

- Nylon Anchor Plug (x4) 10 years limited

- 14 Guage Coach Screw (x4)

- Washer 20mm (x4)

100 mm

(4")

20 mm

(¾")

85 mm

(3¼")

160 mm

(6¼")

9 mm

(¼")

Ceiling Plate footprint

(not to scale)

NOTE: - This product has been designed to suit

90% of projectors.

- Maximum load =15kg (33lbs).

- Mounting hardware included.

Pitch

+/- 40°

Roll

+/- 20°

TH-WH-PJ-FM

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	TH-WH-PJ-FM/TAA
Produktfarge:	Hvit
Dreietapp/dreiemekanisme:	0 - 360 °
Montasjetype:	Tak
Maksimalvekt (kapasitet):	15 kg
Maks avstand til tak:	127 mm
