Side 1/4

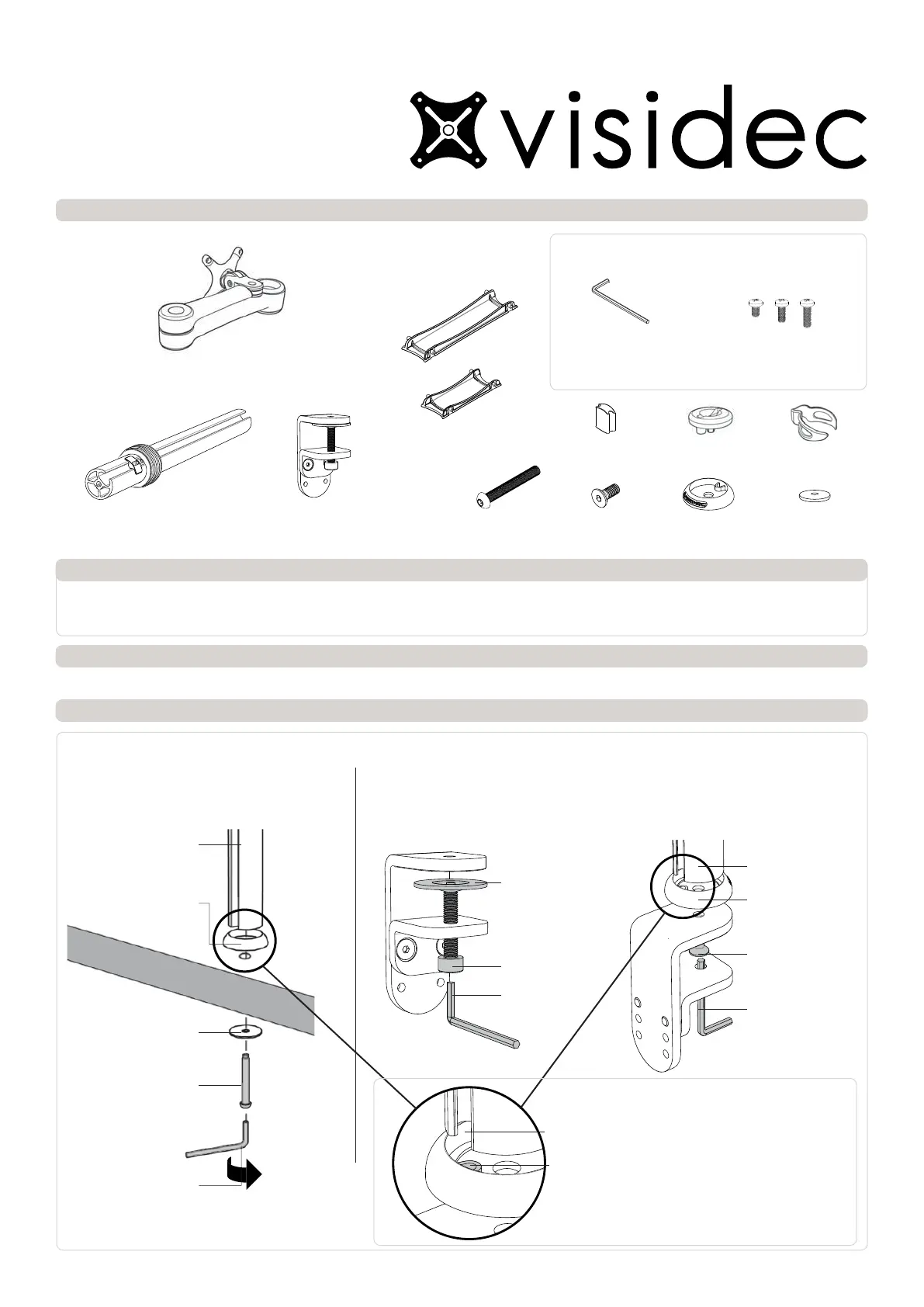

Installation Instructions

VF-AT

Component Checklist

Focus | Articulated Arm

M4x10/12/16mm (x4)

Phillips Head Mounting Screws

Primary Arm

Cable Cover

Cable Stops

(x2)

Pole Top Cap

Cable Clip

Secondary Arm

Cable Cover

M8x30mm

Screw

Bolt Through

Base

Steel Washer

Arm Assembly

Pole Assembly Desk Clamp Assembly

5mm Allen Key

HARDWARE Display Mounting

Screws

! IMPORTANT - Install Visidec Focus Articulated Arm as per installation instruction.

! This product supports a maximum load of 8kg (17.6lbs).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check what you have received against the component checklist and hardware above.

Step 2. Mount Pole Assembly

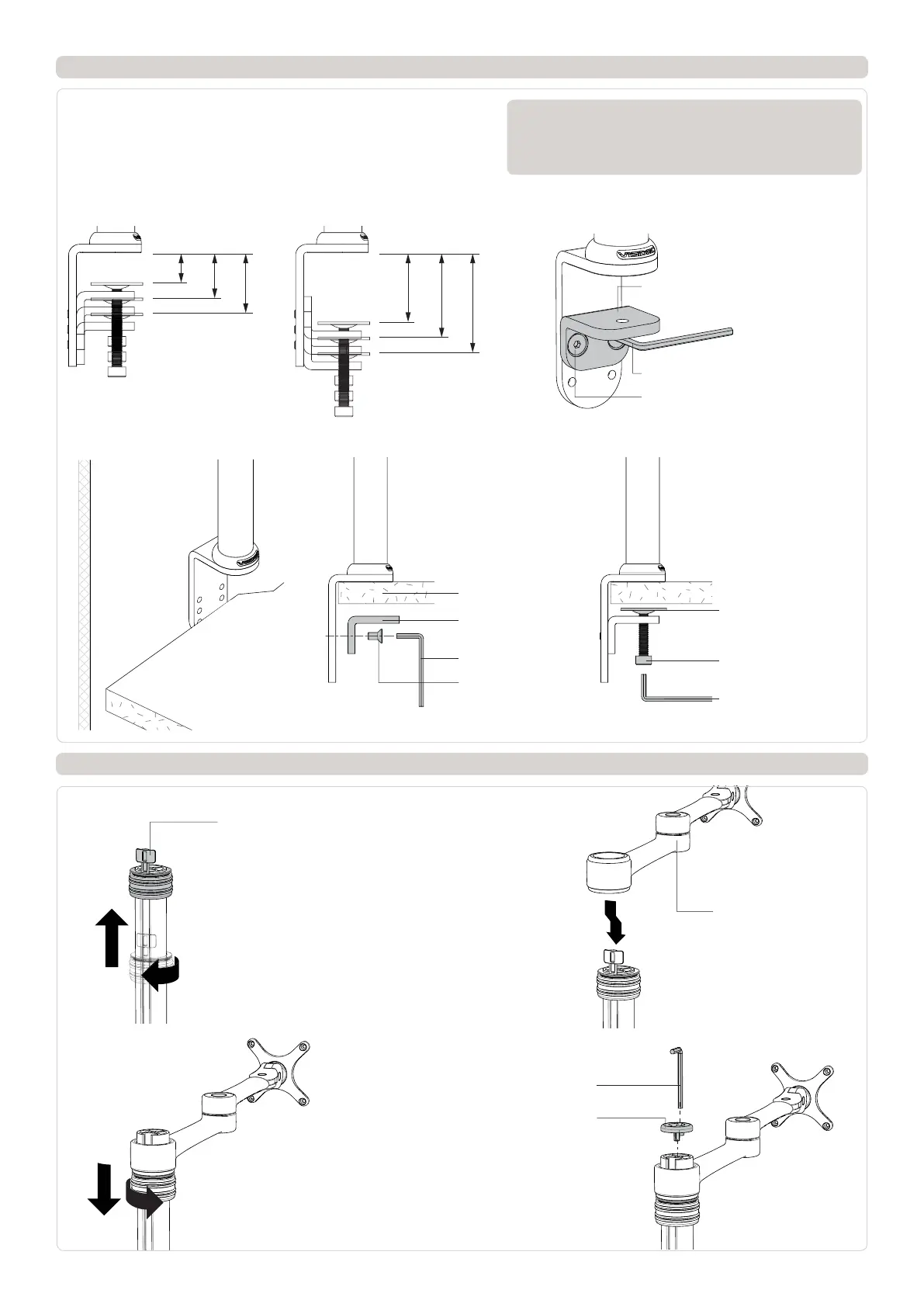

Option 1: Bolt Through Option 2: Mount using Desk Clamp

Pole Assembly

Pressure Plate

2.1 Remove both the Pressure

plate and M10 Desk Clamp

Screw.

2.2 Fasten the Desk Clamp to the Bolt

Through Base & Pole Assembly using the

M8 x 30mm Screw and Tighten Firmly.

M10 Desk Clamp

Screw

M8 x 30mm Screw

Bolt Through Base

Pole Assembly

Slot

Slot Tab

Bolt Through Base

Steel Washer

M8x60mm Screw

5mm Allen Key

It is recommended that the Pole Assembly be

mounted towards the rear edge of the work surface.

Note: Ensure that the Slot Tab in the Bolt

Through Base fits snugly into the Slot on the

Pole Assembly.

The Visidec logo on the Bolt Through Base

must face the front of this assembly.

5mm Allen Key

M8x60mm

Screw

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	VF-AT
Vippevinkelområde:	0 - 70 °
Svingvinkel:	360 °
Panoreringsomfang:	0 - 180 °
Montasjetype:	Bord
Maksimalvekt (kapasitet):	8 kg
