Side 1/4

Owner’s Manual

TSD-RMK

TSD Rack Mount Kit

AtlasIED.com – 1 –

Specifications are subject to change without notice.

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

TSD-RMK

TSD Rack Mount Kit

Owner’s Manual

TSD-RMK

TSD Rack Mount Kit

AtlasIED.com – 2 –

Specifications are subject to change without notice.

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

Description

The AtlasIED TSD-RMK is a 1RU mounting plate for rack mounting up to 4 AtlasIED Time Saving

Devices. This rack kit mounts the TSDs from behind the plate so all LEDs and front controls are easily

accessible, simplifying adjustments and status checks.

The TSD design mandate was to make the installation of any TSD quick and reliable, saving you

valuable time and money. The TSD-RMK Rack Mount Kit along with features such as removable

individual I/O connectors, separate ground terminals, and an included cable management system

allows for quick, precise wiring and cleaner installations.

Features

• Mounts Up To 4 Time Saving Devices

• Compact 1RU Height Saves Rack Space

• Includes 3 Blank Filler Panels

Applications

• Government Buildings

• Medical Facilities

 • OfceEnvironments

• Churches

• Restaurants

• Schools

• Industrial Facilities

• House of Worship

Owner’s Manual

TSD-RMK

TSD Rack Mount Kit

AtlasIED.com – 3 –

Specifications are subject to change without notice.

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: 800.876.3333 • Fax: 800.765.3435

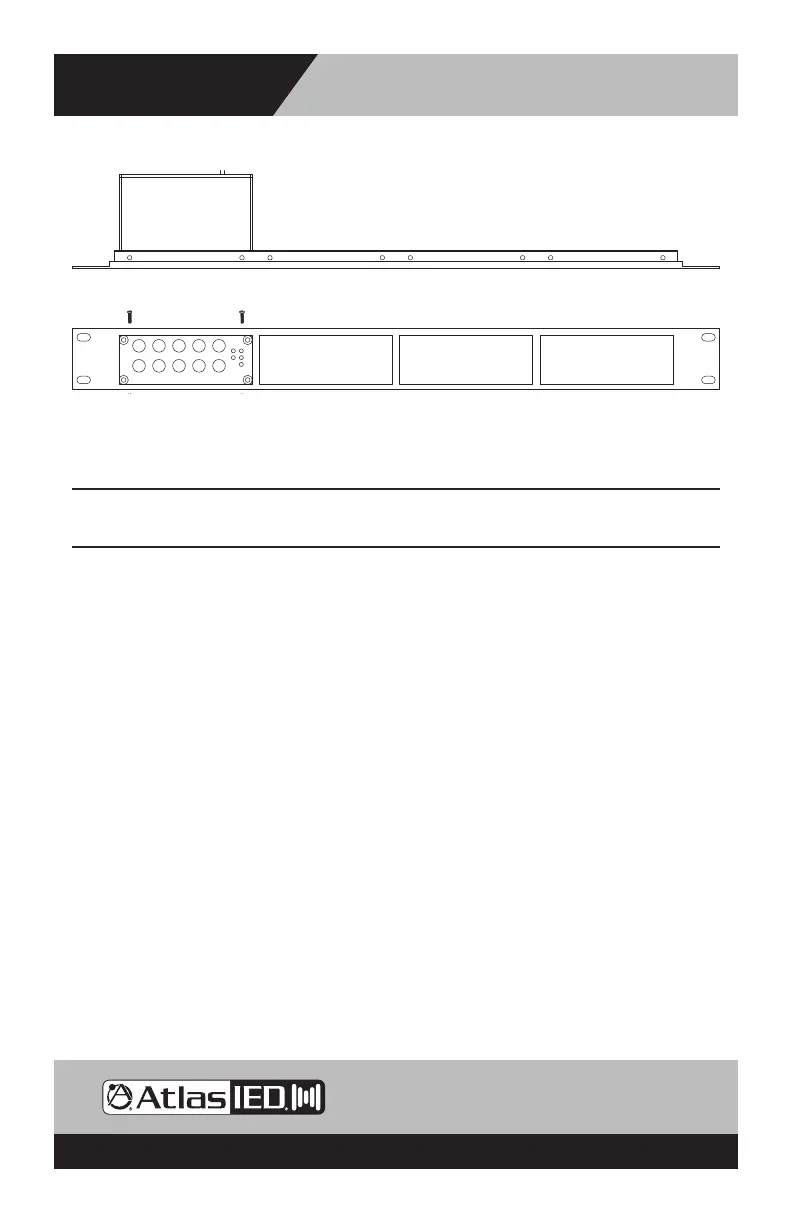

TSD Installation

1. Line up the TSD with the TSD-RMK top clearance holes in the space you want your TSD located.

2. Using two (2) M3 x 4mm Flat Head screws, thread through the top mounting holes into the

threaded inserts on the TSD. Note: Do not over tighten screws or damage might occur.

Note: Use only M3 x 4mm screws. Different size screws may hit internal components causing

electrical damage to the TSD.

3. Repeat the process for any other TSDs you want installed in the TSD-RMK. Use the included blank

panels for any unused spaces.

Specications

Description TSD Rack Mounting Plate

Chassis Color Black

Chassis Material Aluminum

TSD Mounting Hardware

Top Screws Qty 8, M3 x 4mm Flat Head

Blanking Panels Qty 3

Dimensions H 1.75" (44.45mm) x W 19" (482.6mm)

Weight 6oz, .165kg
