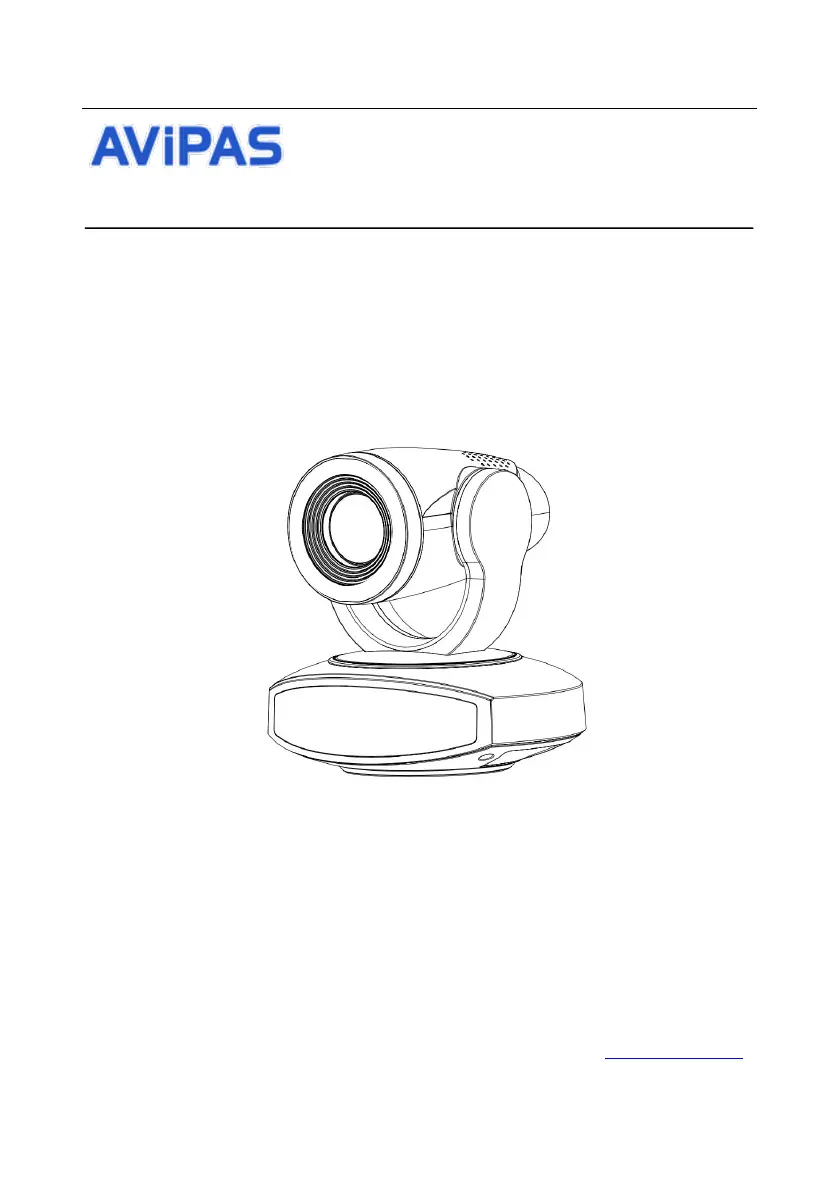

Side 1/48

Model: AV-1250

HD Video Conferencing Camera (SDI) w/ PoE

Model: AV-1251

HD Video Conferencing Camera (HDMI) w/ PoE

User Manual

V1.0

Please read this user manual

thoroughly before using.

www.avipas.com

Preface

Thanks for using this HD Video Conferencing Camera.

This manual introduces the functions, installation process and operation of the HD camera. Prior to

installation and usage, please read the manual thoroughly.

Precautions

This product should only be used under the specified conditions in order to avoid any damage to

the camera:

◼ Do not subject the camera to rain or moisture.

◼ Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of

unintended equipment operation, contact an authorized engineer.

◼ Never operate under unspecified temperature, humidity or power supply.

◼ Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted

neuter detergent; do not use any type of solvents, which may damage the surface.

Note:

This is a class A production. Electromagnetic radiation at certain frequencies may affect the image

quality of TV in home environment.


3
Contents
Attentions ........................................................................................................... 4
Supplied Accessories ......................................................................................... 4
Quick Start ......................................................................................................... 5
Features .............................................................................................................. 8
Product Specifications ....................................................................................... 9
Main Units ....................................................................................................... 11
Dimensions ...................................................................................................... 12
IR Remote Control Menu ................................................................................. 13
RS-232 Interface .............................................................................................. 14
Serial Communication Control ........................................................................ 16
Menu Settings .................................................................................................. 17
Network Connection ........................................................................................ 23
Maintenance and Troubleshooting ................................................................... 36
Appendix .......................................................................................................... 38
