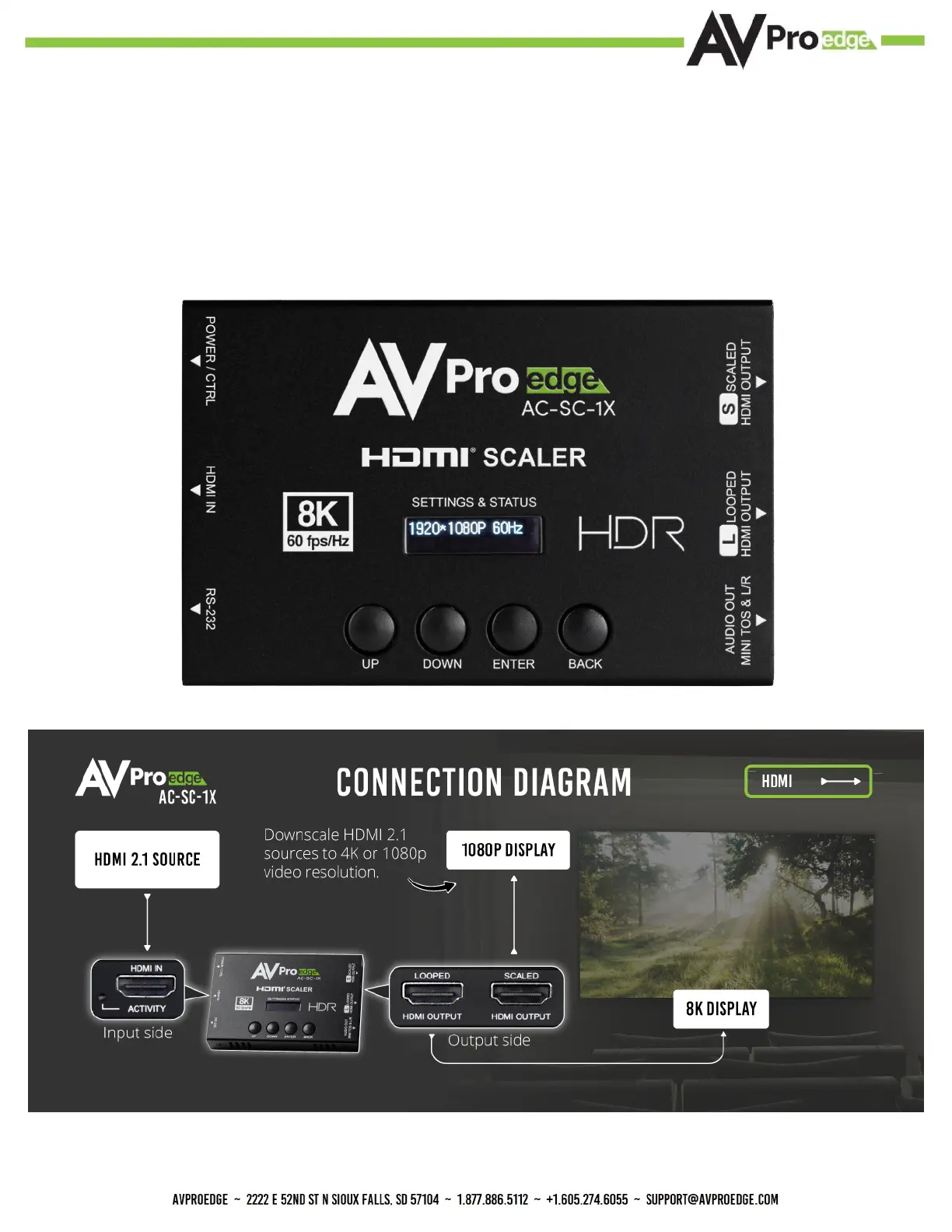

AC-SC-1X
FRL5 40Gbps 8K60 4:2:0/4K120 4:4:4
Down-scaler
User Manual
1
The AC-SC-1X is a single input, 2 output HDMI2.1a Downscaling device capable of supporting VRR, HDCP
2.3, High Frame Rate, and 8K signals up to 40Gbps (FRL5). Equipped with 4K or 1080p downscaling on
Output 1 with an additional Bypassed Output 2, Analog & SPDIF (TOS) Audio Extraction, plus a brand-new
OLED Front Panel for control and diagnostics; the SC-1X seamlessly integrates with today鈥檚 new Gaming
Consoles, Streaming devices, and high-end PC into distribution systems with a combination of audio
processors and displays from over the last 10 years
Features
路 HDMI 2.1
路 FRL (5)
路 HDCP 2.3 and previous versions supported
路 40Gbps Bandwidth Support
路 8K60 4:2:0 Support
路 4K resolutions at 120 frames per second
路 8K resolutions at 60 frames per second
路 Full HDR Support (HDR 10 & 12 Bit)
路 Dolby Vision, HDR10+ and HLG Support
路 HDCP 2.3 (and all earlier versions supported)
路 8K/4K > 1080p or 8K > 4K Down Scaler (Out 2)
路 Perfect AVR Bypass deliver 40Gbps to Display and un-
compressed audio to AVR
路 Advanced EDID Management
路 RS-232 and Front Panel Control Options
路 Toslink Out (7CH PCM, DD, DTS)
路 Balanced Analog Out (2CH PCM)
Whats in the box
路 1 x AC-SC-1X
路 1 x USB-C Cord (for power)
路 1 x 5V 1A Wall PSU
路 1 x 3 Pin Terminal Connector (For RS232)
路 1 x 3.5mm Mini Toslink adapter
路 Mounting Brackets with hardware
Introduction
INTRODUCTION ............................................................................... 3
FEATURES .......................................................................................3
WHATS IN THE BOX .........................................................................3
SPECIFICATIONS .............................................................................4
DEVICE OVERVIEW ..........................................................................5
DEVICE OVERVIEW CONT. ................................................................. 6
EDID MANAGEMENT - FRONT PANEL ................................................... 7
OUT2 SCALER - FRONT PANEL ............................................................ 8
EXTERNAL AUDIO - FRONT PANEL ...................................................... 9
RS-232 CONTROL .............................................................................10
RS-232 COMMAND LIST .................................................................... 11
TROUBLESHOOTING .........................................................................12
HDMI 2.1 BANDWIDTH INNOVATION CHART ........................................ 13
MAINTENANCE ................................................................................15
DAMAGE REQUIRING SERVICE ........................................................... 15
SUPPORT ........................................................................................ 16
WARRANTY .....................................................................................16
32
