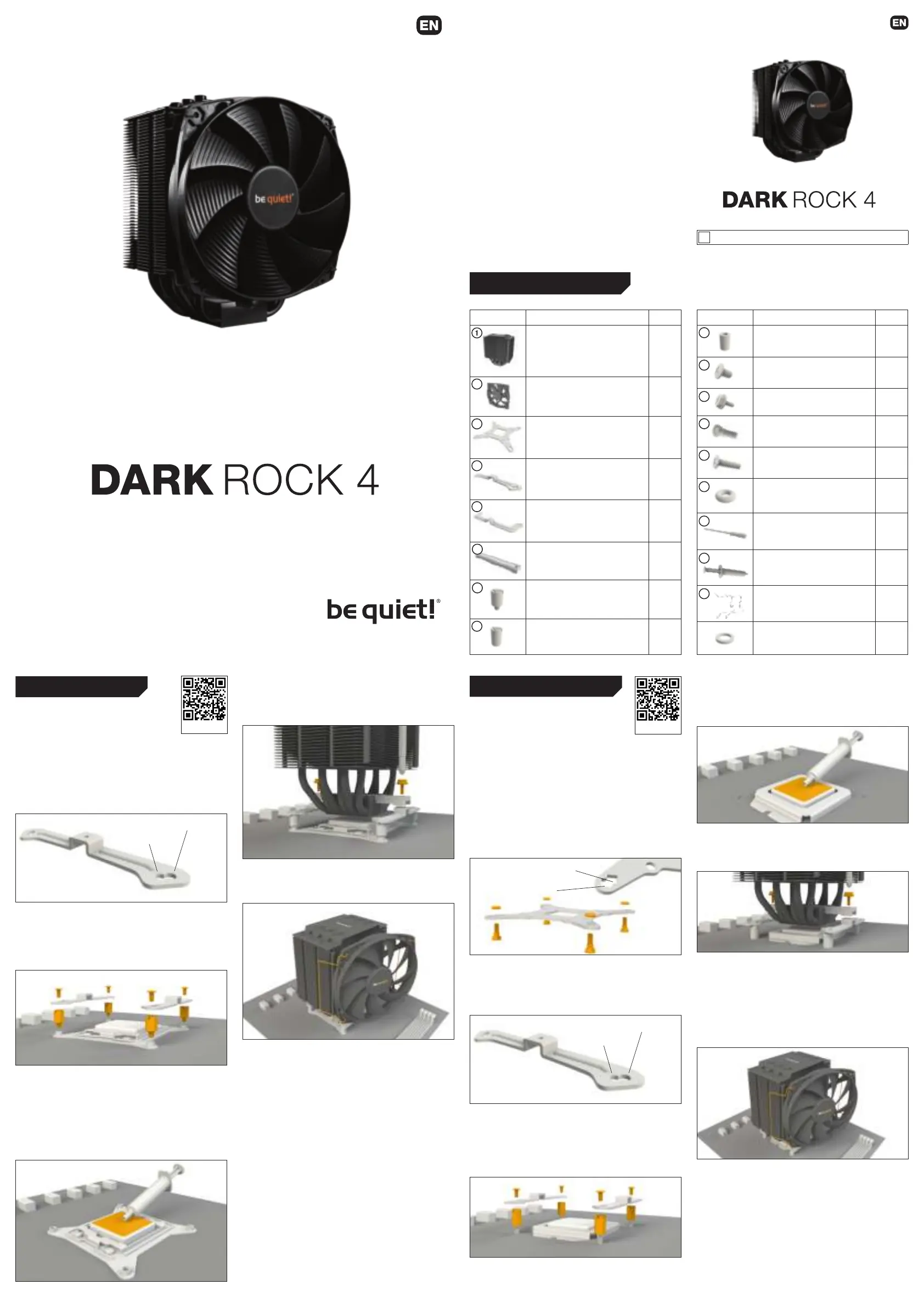

Side 1/2

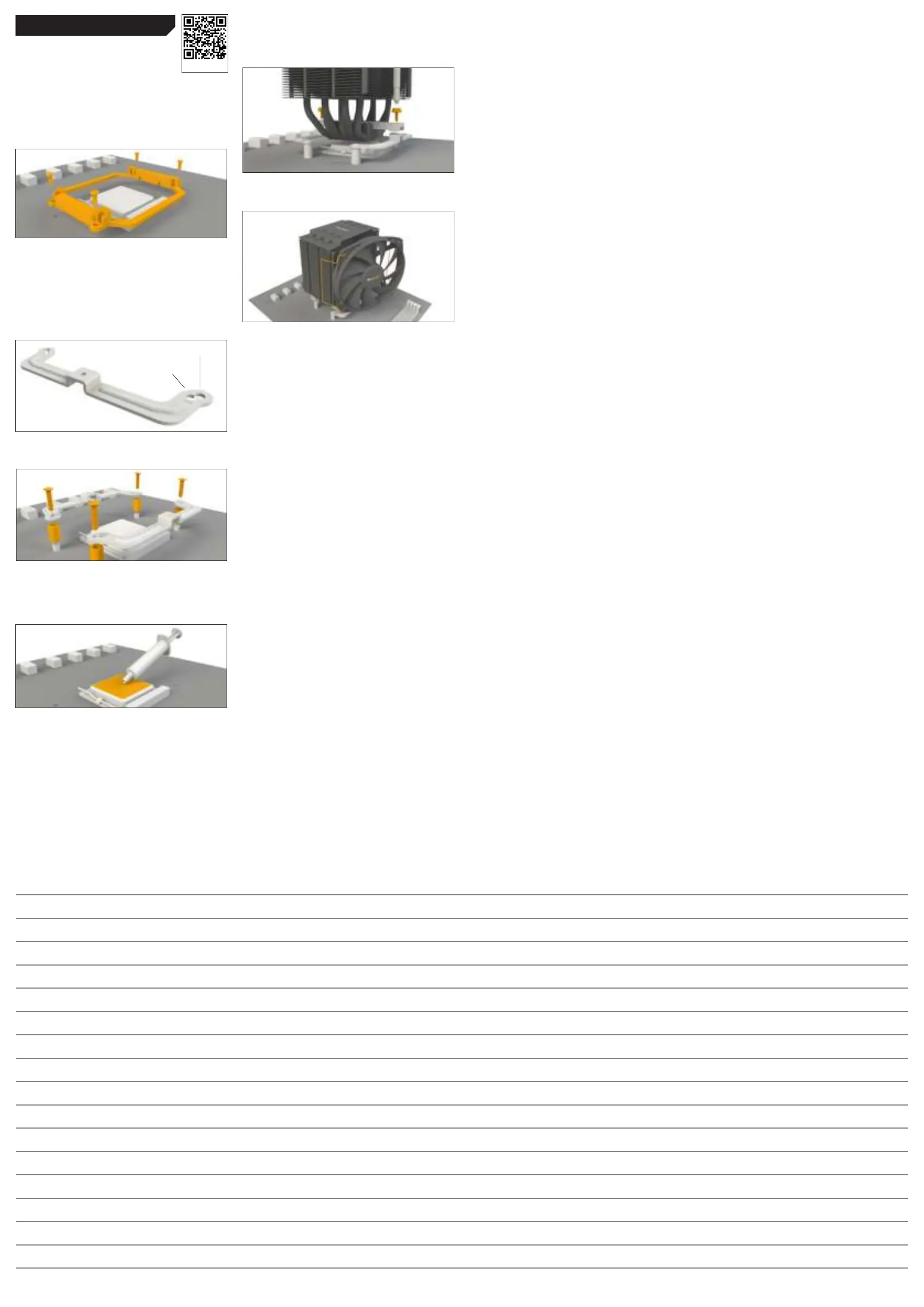

Mounting the CPU cooler

First remove the protective foil from the underside of the

cooler. Spread the thermal paste (16) on the surface of the

CPU. The amount supplied is sufﬁcient for one or two

applications.

Caution: The thermal paste supplied is not suitable for human

consumption. If swallowed, drink lots of water and urgently

seek medical attention. Keep it out of the reach of children.

Avoid contact with skin and eyes.

Position the cooler mounting bridge (6) centrally on the cooler

(1). Next place the cooler unit onto the CPU. Insert the Intel/

AMD mounting bridge fastening screws (11) from above into

the cooler mounting bridge (6) and then screw these alternately

tight. You can use the cross-tip screwdriver (15) for this.

Mount the 135mm fan (2) onto the cooler unit (1) using the

fan clips (17). Connect the fan to the motherboard’s PWM

signal.

When dismantling the 135mm fan (2) push the notches of the

fan clips (17) away from the fan.

Position the cooler mounting bridge (6) centrally on the cooler.

Next place the cooler (1) unit onto the CPU. Insert the Intel/

AMD mounting bridge fastening screws (11) from above into

the cooler mounting bridge (6) and then screw these alternately

tight. You can use the cross-tip screwdriver (15) for this.

Fasten the 135mm fan (2) onto the cooler unit (1) using fan

clips (17). Connect the fan to the motherboard’s PWM

signal.

When dismantling the 135mm fan (2), push the notches of

the fan clips (17) away from the fan.

Introduction: Thank you for deciding to purchase a be quiet!

product. The following instructions will guide you through the

installation process. If you do encounter installation problems,

please don't hesitate to contact our customer services by

mailing service@bequiet.com. Please note that be quiet!

cannot accept liability for damage caused by compatibility

problems.

Warranty:

• 3 years manufacturer guarantee for consumers (original

purchase from authorized be quiet! dealers only)

• Guarantee work can only be processed with an included

copy of the purchase receipt from an authorized be quiet!

dealer

• Manipulation and structural changes of any kind as well

as damages through external mechanical forces lead to a

complete voiding of the guarantee

• Our General Warranty Conditions apply, which can be

viewed on bequiet.com

Listan GmbH & Co.KG . Biedenkamp 3a . 21509 Glinde

Germany

For further information contact us via e-mail:

service@bequiet.com

SCOPE OF DELIVERY

General

We recommend preparatory mounting of the

cooler outside the PC case for subsequent

installation.

The following parts are needed for this:

1x Dark Rock 4 CPU cooler (1), 1x 135mm fan (2), 2x Intel

mounting brackets (4), 1x cooler mounting bridge (6), 4x Intel

spacer nuts (7), 4x mounting bracket fastening screws (10), 2x

Intel/AMD mounting bridge fastening screws (11), 1x cross-tip

screwdriver (15) 1x thermal paste (16), 2x fan clips (17)

Assembly of the cooler mounting frame

First screw the Intel spacer nuts (7) onto the threads of the

socket frame. Place the Intel mounting brackets (4) over the

Intel spacer nuts and screw these tight with the mounting

bracket fastening screws (10). You can use the cross-tip

screwdriver (15) for this.

Mounting the CPU cooler

First remove the protective foil from the underside of the cooler.

Spread the thermal paste (16) on the surface of the CPU. The

amount supplied is sufﬁcient for one or two applications.

Caution: The thermal paste supplied is not suitable for

human consumption. If swallowed, drink lots of water and

urgently seek medical attention. Keep it out of the reach of

children. Avoid contact with skin and eyes.

Installation video

1366, 2011(-3) square ILM, 2066

1150, 1151, 1155, 1156

General

We recommend preparatory mounting of the

cooler outside the PC case for subsequent

installation.

The following parts are needed for this:

1x Dark Rock 4 CPU cooler (1), 1x 135mm fan (2), 1x Intel

backplate (3), 2x Intel mounting brackets (4), 1x cooler mounting

bridge (6), 4x Intel 115X/1366 nuts (8), 4x mounting bracket

fastening screws (10), 2x Intel/AMD mounting bridge fastening

screws (11), 4x Intel backplate screws (12), 4x O-rings (14), 1x

cross-tip screwdriver (15), 1x thermal paste (16), 2x fan clips (17)

Mounting the backplate

Position the Intel backplate screws (12) in the notches situated

on the rear side of the Intel backplate (3). Pay attention in so

doing to align with the holes drilled for each socket.

For ﬁxing the backplate screws onto the Intel backplate use

the O-rings (14). Once assembly of the Intel backplate for the

respective Intel socket is complete, position it under the

motherboard. Make sure that the backplate screws are

precisely positioned inside the motherboard holes.

Installation of the mounting brackets

Screw the Intel 115X/1366 nuts (8) onto the previously

positioned Intel backplate (3). Then position the Intel mounting

brackets (4) over the Intel 115X/1366 nuts (8) and afﬁx these

with the mounting bracket fastening screws (10). You can use

the cross-tip screwdriver for this (15).

1366, 2011(-3) square ILM, 2066

1150, 1151, 1155, 1156

1366

1150, 1151,

1155, 1156

Intel LGA 2011(-3) square ILM / LGA 2066

Intel LGA 1150 / 1151 / 1155 / 1156 / 1366

We recommend removal of the cooler prior to transportation.

January 2018

Part name Quantity

be quiet! Dark Rock 4 cooler 1

135mm fan 1

Intel backplate 1

Intel mounting brackets 2

Long AMD mounting brackets 2

Cooler mounting bridge 1

Intel spacer nuts 4

Intel 115X/1366 nuts 4

Part name Quantity

AMD spacer nuts 4

Mounting bracket fastening

screws

Intel/AMD mounting bridge

fastening screws

Intel backplate screws 4

AMD backplate screws 4

O-rings 4

Cross-tip screwdriver 1

Thermal paste 1

Fan clips 2

AM3 washers 4

Installation video

Produkspesifikasjoner

Merke:	Be Quiet!
Kategori:	CPU kjøler
Modell:	Dark Rock 4
Vekt:	920 g
Bredde:	136 mm
Dybde:	159.4 mm
Høyde:	74.3 mm
Støynivå (lav hastighet):	10.5 dB
Pakkevekt:	1170 g
Materiale:	Kopper
Egnet plassering:	Prosessor
Antall finner:	51
Antall varmerør:	6
Lagertype:	Fluid Dynamic Bearing (FDB)
Nominell spenning:	12 V
Kabellengde:	0.22 m
Produktfarge:	Sort
Pakkedybde:	149 mm
Pakkehøyde:	214 mm
Pakkebredde:	205 mm
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	84733080
Modell/Type:	Kjøler
Skruer inkludert:	Ja
Viftetilkobling:	4-pin
Krav til strømforsyning:	1.32 W
Viftediameter:	135 mm
Støynivå (høy hastighet):	21.4 dB
Antall vifter:	1 vifter
Støttede prosessorkontakter:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Viftedimensjoner (BxDxH):	135 x 135 x 22 mm
Rotasjonshasrighet (max):	1400 RPM
Nominell linjestrøm:	0.11 A
Thermal Design Power (TDP):	200 W
Pulsbreddemodulerings- støtte (PWM):	Ja
Varmerør, diameter:	6 mm
Finnemateriale:	Aluminium
Mulighet for ekstra vifte:	Ja
