Side 1/26

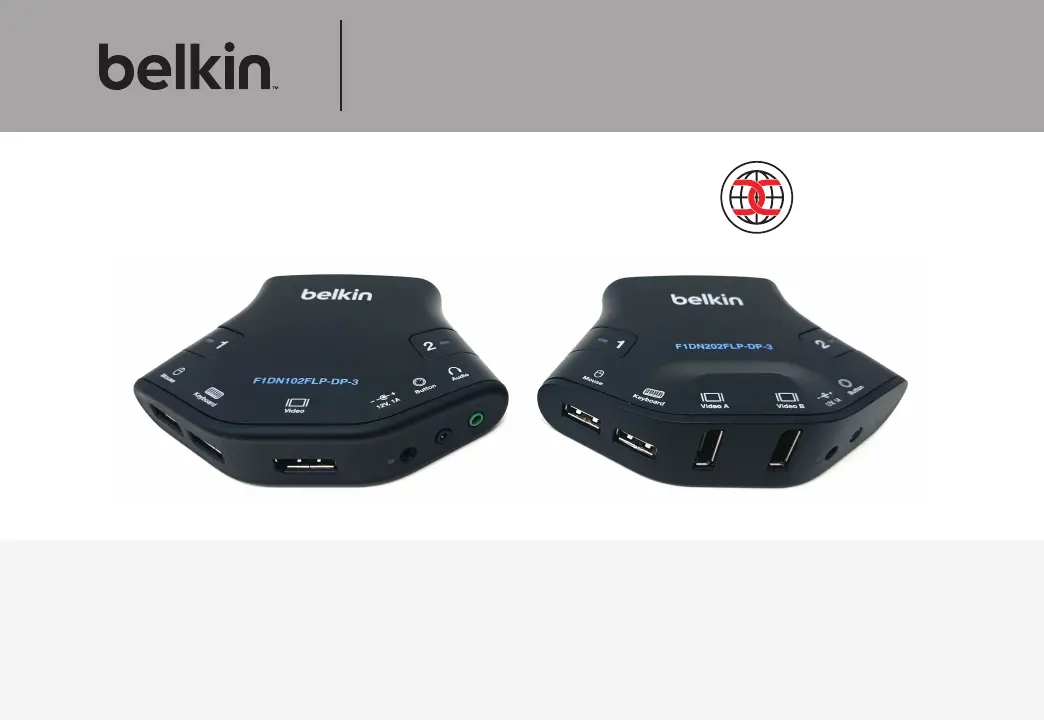

Advanced Secure 2-port DP to DP

Flip KVM Switch

User Manual

F1DN102FLP-DP-3 – Secure 2-port Flip DP-to-DP KVM with Audio, PP 3.0

F1DN202FLP-DP-3 - Secure 2-port Flip DP-to-DP Dual Head KVM with Digital Audio, PP 3.0

Document Number -

LNKPG-00543 Rev. A02

This Belkin product is compliant

with latest NIAP Protection Proﬁle

PSS Ver. 3.0, which exceeds EAL4

and PP PSS Ver. 3.0.

Belkin Advanced Secure 2-port DP to DP Flip KVM Switch User Manual

TABLE OF CONTENTS

SECTIONS

1 2 3 4 5 6

Table of Contents

Introduction ..............................................1

Package Contents.........................................1

Overview.................................................2

Security Features .........................................2

Operational Features ......................................4

Flip KVM ................................................5

Equipment Requirements ...................................6

Safety Precautions ........................................8

User Guidance & Precautions ...............................9

Tamper Evident Labels ....................................10

Product Specifications ....................................11

F1DN102FLP-DP-3 Features ...............................12

F1DN202FLP-DP-3 Features ...............................13

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Before Installation ........................................14

Setup ..................................................16

Operation ...............................................17

Operating the Belkin Secure Flip KVM Switch .................17

Troubleshooting .........................................18

Information..............................................21

Belkin Advanced Secure 2-port DP to DP Flip KVM Switch User Manual

INTRODUCTION

SECTIONS

Table of Contents

2 3 4 5 61

Thank you for purchasing this Belkin Secure Display Port 2-port Flip

KVM Switch. This Switch is designed for use in secure environments

comprised of sources with different security levels. Providing the

highest security safeguards and features, this product meets all

required cyber prevention requirements.

This User Manual provides all the details you’ll need to install and

operate your new product and to troubleshoot it in the unlikely event

of a problem.

Why use the Belkin Secure Flip KVM Switch?

Belkin’s Secure Display Port 2-port Flip KVM Switch is the first secure

KVM in the industry specifically designed for 2-computer scenarios.

Many users in large organizations are required to switch between two

isolated networks and call for a KVM solution that is both secure and

cost-effective.

Most secure KVMs are high cost and require desktop space. Belkin’s

Flip KVM Switch addresses both the form factor and the price level

issues. It is both compact and low cost and arrives with all cables

integrated.

It is designed and tested to integrate seamlessly with systems and

peripherals used by government, agencies, defense, intelligence,

finance and any other high-security profile company.

Package Contents

• Belkin Secure Display Port Flip KVM Switch

• 12V 1.5A DC Power Supply with Worldwide interchangeable heads

• Remote Control Unit

• User Manual

Please note: Belkin Secure KVM Products cannot be upgraded,

serviced or repaired.

Important Security Note: If you are aware of potential security

vulnerability while installing or operating this product, we encourage

you to contact us immediately at the following email address:

gov_security@belkin.com

Important: This product is equipped with an always-on active anti-

tamper system. Any attempt to open the enclosure may activate the

anti-tamper system and render the unit permanently inoperable. If

the unit’s enclosure appears disrupted or if all the port LEDs flash

continuously, please call Belkin Technical Support at 1 (800) 282-2355

Revision

A – Initial Release, 02 Apr 2018

A01 – 30 May 2019

A02 – 20 Aug 2019

Produkspesifikasjoner

Merke:	Belkin
Kategori:	kabler for datamaskiner og annet
Modell:	F1DN202FLP-DP-3
Opprinnelsesland:	USA
Maksimal videooppløsning:	3840 x 2160 piksler
Konsollport:	USB
Tilkobling 1:	DisplayPort
Tilkobling 2:	DisplayPort
Kabellengde:	1.8 m
Produktfarge:	Sort
Bærekraftsertifikater:	RoHS
Video tilkoblingstype:	DisplayPort
Connector 1 kjønn:	Hankjønn
Connector 2 kjønn:	Hankjønn
Tastatur tilkoblingstype:	USB
Mus tilkoblingstype:	USB
