Side 1/20
Art. 82-414
© 2008 Biltema Nordic Services AB
1

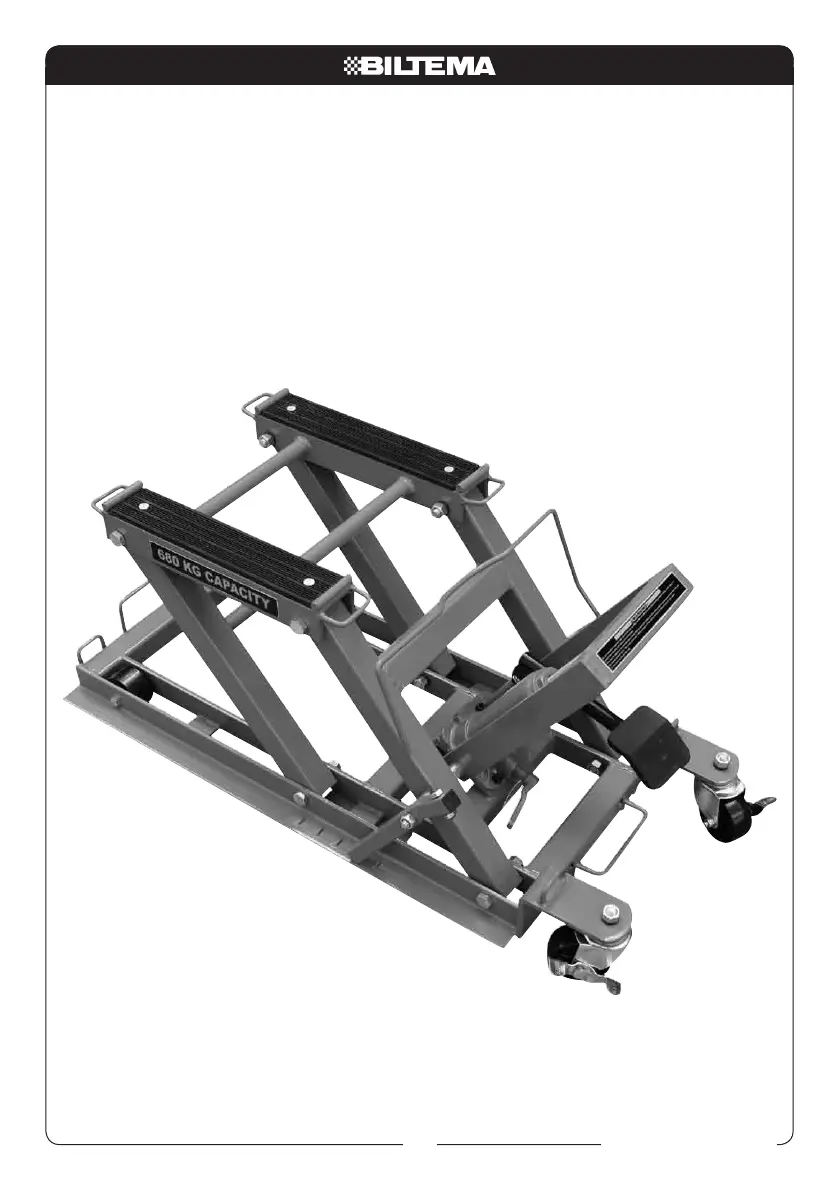

MC-lyft
MC-lØfter
Moottoripyörän nosturi
MC-donkratf
680 kg
Art. 82-414
© 2008 Biltema Nordic Services AB
CE-
sertikat
Art. 82-414
© 2008 Biltema Nordic Services AB
3
8. Foot pedal
2. OP E N/C L OS E brake
1. Moveable roller
9. B olt
3. Allen key
10. C ylinder
4. R od
11. Notches
5. P latform
12. S afety support
6. B leed screw
13. C ylinder bas e plate
7. C ylinder guide
14. Filling hole with rubber nipple
15. Towing / retaining eyelets
16. S upport bracket
17. S afety straps (4 pieces)
18. S crew bolt for connector of pressure gauage
IL L U S T R AT IO N S
O
P
E
N
CLO
S E
1
2
4
3
5
15
15
15
7
8
6
12
9
10
13
16
15
11
14
17
15
15
18
R U L E S F O R O P E R AT IN G
The user shall work in accordance with the instruction handbook;
It is neces sary that the operator can watch the lifting device and the load during all
movements;
It is not allowed to work under the raised load until it is s ecured by suitable means ;
The operator shall be provided with all neces sary information about training and about
pumping and trans lating forces.
M AINT E NANC E AN D R E P AIR
L IM IT AT IO N O F R A N G E OF AP P L IC AT IO N
When refillig the hydraulic system the characteristics of the hydraulic fluid used in the jack
and the level of the hydraulic fluid as it is given by the manufacturer s hall be observed;
Need to check the state of the markings and that the markings remain as the initial one;
jacks shall be maintained and repaired in accordance with the manufacturers instructions.
S uc
h maintenance and repair s hall be carried- out by qualified persons;
No modifications shall be carried out which adversely affect the compliance fo the jack with
this standard.
Life time of the motorbike jack has been calculated for 22000 cycles of full range under well
operation and cleaning and care.
Prohibition of lifting of pers ons.
H AN D L IN G O F L O AD S
Any failure operation against safety instruction could leads to dangerous situations (e.g.
molten metal, acids, radiating materials, es pecially brittle loads)
Hazards occuring during decommissiong: if any failure usage against the safety instruction
will lead to damage of motorcycle lift, the accident of operation like the body harm, hurt,
injury.... or even if any undesirable de
creas e . B e careful you are in safety situation for all
the procedure.
S pilla ge of O il
It is obvious for us er to see from outside the spilling of oil or leakage from the pump
cylinder, the refilling hole by missing or broken oil plug. The s eal kits are eas y to broken by
much useage of pumping. In this way, the cylinder is no longer pump the piston , and the
lifter does n't work in this way. The operator should pay more attention for any s pillage of oil
before us e every
time.
. 4 . . 7 .
