Side 1/12

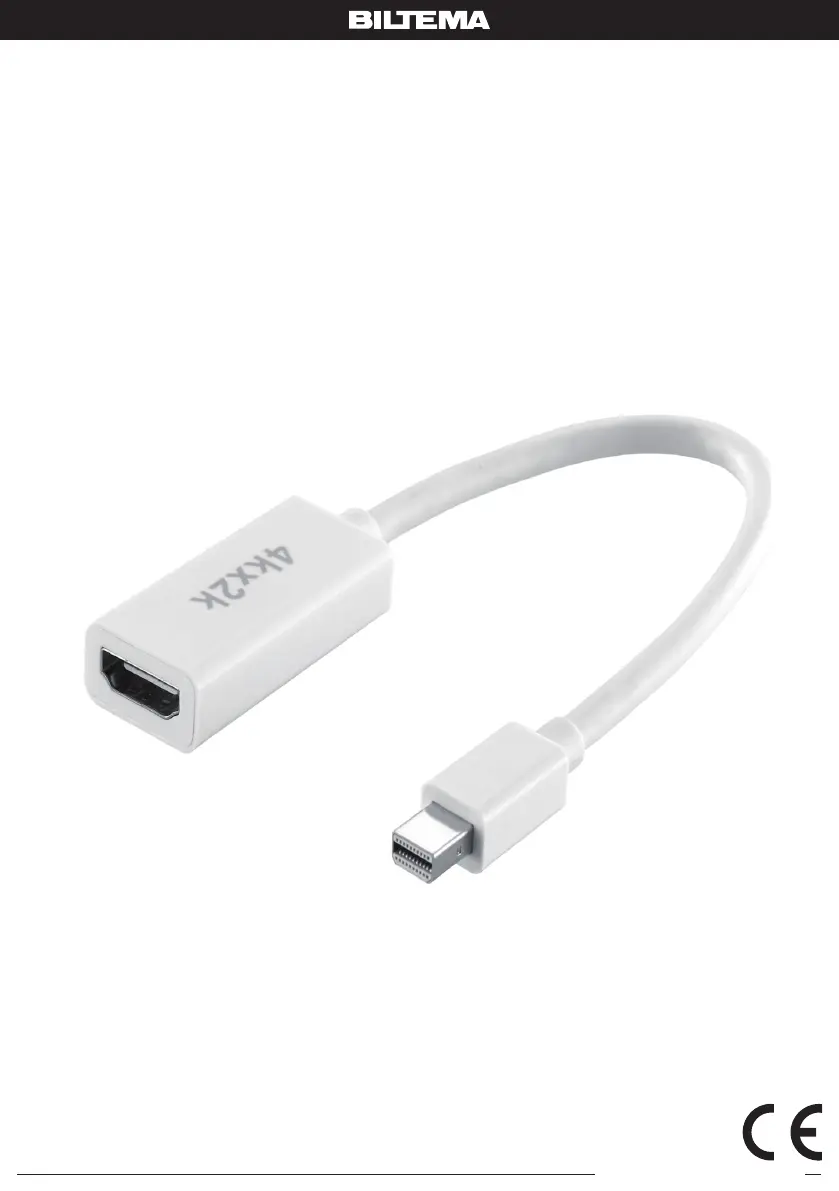

Art. 84-8787

MINI DISPLAYPORT TILL HDMI

MINI DISPLAYPORT TIL HDMI

MINI DISPLAY -PORTTI HDMI

MINI DISPLAYPORT TIL HDMI

Biltema, Garnisonsgatan 26, 2nd FL, SE-254 66 Helsingborg. www.biltema.com

SN/951619

SN951619 Item848787

User Manual

Mini DisplayPort to HDMI Adapter

Item No. : STA-MDPH001

The Mini DisplayPort to HDMI Adapter lets you stream 4K 3840x2160@30Hz high-quality video content from your Mini DP, Thunderbolt 1 or 2 laptop or

tablet to your HDTV and HDMI monitors. You would enjoy lag-free videos with flawless audio pass-thru on a bigger screen.

Specifications:

● Product Name: Mini DisplayPort to HDMI Adapter

● Input: Mini DisplayPort Male(Thunderbolt 2 Compatible)

● Output: HDMI Female

● Resolution: Up to 4K@30Hz 3840x2160P, backward compatibility with 2K / 1080P.

● Mode: Support Audio Video Mirror and Extend Mode

● Material： ABS shell

● Color : White

● Dimensions : 45*21.2*12.5mm

● Cable length : 140mm

● Weight : 19.3g

● Widely Usage: Suitable for connecting a Mini DisplayPort/Thunderbolt interface, it is compatible PC or graphics card to an HDTV, monitor,

or projector with HDMI

● Installation: Plug and Play

● Compact & Lightweight & Durable & Stable.

Operation:

● Connect a Mini DisplayPort/Thunderbolt 2 port compatible LAPTOPS & TABLETS TO 4K MONITORS: Use this mini display port adapter

with an HDMI cable (sold separately) to enhance presentations, watch movies or share photos.

● Supports 4K resolution (3840 x 2160 @ 30 Hz) with no transmission loss and delay.

● Mirror / Extend to a larger screen with a crystal vivid visual experience.

● Compati

ble for early MacBook Air/Pro, Mac Mini, iMac, Surface Pro/Dock, Monitor/TV/Projector.

e.g. Apple MacBook Pro (before 2016), MacBook Air (before 2018), iMac (before 2017), Mac Mini（before 2018) , Microsoft Surface Pro,

Surface laptop, Surface studio/ book/ dock and etc. (NOT surface/surface 2 for Windows RT), and any other laptops and desktops with Mini

DP or Thunderbolt (Not compatible with USB-C

or Thunderbolt 3)

● Plug and Play

Mirror Mode Extend Mode

Mirror Mode: Makes your and favorite films/photos so much more interesting and enjoyable on the big screen, reliable gadget for your video conference and

group presentation.

Extend Mode: Upgrade your work station and boost your efficiency with extended monitor. More screens, more handy in work.

Important Note:

Mini DP & Thunderbolt 2 Compatibl

* Mac computers with Thunderbolt 2

* Windows computers with Mini DisplayPort

* NOT Thunderbolt 3 compatible

1 / 1

Art. 84-8787

MINI DISPLAYPORT TILL HDMI

produkten om någon del är skadad.

• Låt aldrig barn leka med produkten.

• Sänk aldrig ner produkten i vatten eller annan

vätska och skölj den inte under rinnande vatten.

• Rengör inte produkten med starka rengörings-

medel eller slipande produkter.

ÖVERSIKT

SN/951619

SN951619 Item848787

User Manual

Mini DisplayPort to HDMI Adapter

Item No. : STA-MDPH001

The Mini DisplayPort to HDMI Adapter lets you stream 4K 3840x2160@30Hz high-quality video content from your Mini DP, Thunderbolt 1 or 2 laptop or

tablet to your HDTV and HDMI monitors. You would enjoy lag-free videos with flawless audio pass-thru on a bigger screen.

Specifications:

● Product Name: Mini DisplayPort to HDMI Adapter

● Input: Mini DisplayPort Male(Thunderbolt 2 Compatible)

● Output: HDMI Female

● Resolution: Up to 4K@30Hz 3840x2160P, backward compatibility with 2K / 1080P.

● Mode: Support Audio Video Mirror and Extend Mode

● Material： ABS shell

● Color : White

● Dimensions : 45*21.2*12.5mm

● Cable length : 140mm

● Weight : 19.3g

● Widely Usage: Suitable for connecting a Mini DisplayPort/Thunderbolt interface, it is compatible PC or graphics card to an HDTV, monitor,

or projector with HDMI

● Installation: Plug and Play

● Compact & Lightweight & Durable & Stable.

Operation:

● Connect a Mini DisplayPort/Thunderbolt 2 port compatible LAPTOPS & TABLETS TO 4K MONITORS: Use this mini display port adapter

with an HDMI cable (sold separately) to enhance presentations, watch movies or share photos.

● Supports 4K resolution (3840 x 2160 @ 30 Hz) with no transmission loss and delay.

● Mirror / Extend to a larger screen with a crystal vivid visual experience.

● Compati

ble for early MacBook Air/Pro, Mac Mini, iMac, Surface Pro/Dock, Monitor/TV/Projector.

e.g. Apple MacBook Pro (before 2016), MacBook Air (before 2018), iMac (before 2017), Mac Mini（before 2018) , Microsoft Surface Pro,

Surface laptop, Surface studio/ book/ dock and etc. (NOT surface/surface 2 for Windows RT), and any other laptops and desktops with Mini

DP or Thunderbolt (Not compatible with USB-C

or Thunderbolt 3)

● Plug and Play

Mirror Mode Extend Mode

Mirror Mode: Makes your and favorite films/photos so much more interesting and enjoyable on the big screen, reliable gadget for your video conference and

group presentation.

Extend Mode: Upgrade your work station and boost your efficiency with extended monitor. More screens, more handy in work.

Important Note:

Mini DP & Thunderbolt 2 Compatibl

* Mac computers with Thunderbolt 2

* Windows computers with Mini DisplayPort

* NOT Thunderbolt 3 compatible

1 / 1

ANVÄNDNING

• Anslut en Mini DisplayPort/Thunderbolt 2-ports-

kompatibel laptop eller surfplatta till 4k-skärmar.

Använd denna minidisplayportadapter med en

HDMI-kabel för att förbättra presentationer, titta

på lmer eller dela bilder.

• Stöder 4K-upplösning, 3840 x 2160 (30 Hz), utan

överföringsförluster eller fördröjning.

• Spegla/förstora till en större skärm med en kris-

tallklar visuell upplevelse.

• Kompatibel med tidiga MacBook Air/Pro, Mac

Mini, iMac, Surface Pro/Dock, Monitor/TV/Projec-

tor. Till exempel Apple MacBook Pro (före 2016),

MacBook Air (före 2018), iMac (före 2017), Mac

Mini (före 2018), Microsoft Surface Pro, Surface

laptop, Surface studio/ book/dock etc. OBS!

Fungerar inte med surface/surface 2 för Windows

RT eller andra bärbara och stationära datorer

med Mini DP eller Thunderbolt (inte kompatibel

med USB-C eller Thunderbolt 3).

INTRODUKTION

Denna manual innehåller viktig information om hur

produkten används samt eventuella säkerhetsrisk-

er. Användaren uppmanas att läsa manualen före

användning. Vi reserverar oss för att illustrationer och

beskrivningar av enstaka detaljer inte alltid stämmer

helt överens med produkten. Spara manualen för

framtida bruk.

ANVÄNDNINGSOMRÅDE

Denna produkt är avsedd att anslutas till datorns

Mini Display port. Denna adapter låter dig strömma

högkvalitativt videoinnehåll i 4K 3840 x 2160, 30 Hz,

från din Mini DP, Thunderbolt 1 eller 2 laptop eller

surfplatta till din HDTV och HDMI-skärmar. Njut av

ljud och video med perfekt kvalitet utan fördröjning.

MÄRKNING

Manual medföljer och ska läsas innan

användning och sparas för framtida bruk.

TEKNISKA DATA

Typ . . . . . . . . . . . . . . . . . . . . . . .Mini DisplayPort till

HDMI

Ingång . . . . . . . . . . . . . . . . . . . .Mini DisplayPort

(Thunderbolt 2 kom-

patibel)

Utgång . . . . . . . . . . . . . . . . . . . .HDMI (hona)

Upplösning . . . . . . . . . . . . . . . .4K Ultra HD 3840 x

2160 px (30 Hz)

Upplösning . . . . . . . . . . . . . . . .2K Full HD 1920 x

1080 px (60 Hz)

Övrigt. . . . . . . . . . . . . . . . . . . . .Extend mode och SST

Mirror mode

Längd . . . . . . . . . . . . . . . . . . . .45 mm

Bredd . . . . . . . . . . . . . . . . . . . .21 mm

Höjd . . . . . . . . . . . . . . . . . . . . . .12 mm

Vikt . . . . . . . . . . . . . . . . . . . . . .19,3 g

Kabellängd . . . . . . . . . . . . . . . .14 cm

Material . . . . . . . . . . . . . . . . . . .Skal av ABS-plast

SÄKERHETSINSTRUKTIONER

• Läs alltid manualen före användning och spara

den för framtida bruk.

• Produkten är endast avsedd för hemmabruk

inomhus.

• Produkten får inte modieras eller byggas om.

• Produkten får endast användas för avsett bruk.

• Fatta tag i USB-kontakten för att dra ut den från

datorn. Dra aldrig i anslutningskabeln.

• Kontrollera att produkten är hel. Använd aldrig

Art. 84-8787

Mirror Mode

SN/951619

SN951619 Item848781

User Manual

Type-C to HDMI Adapter

Item No. : STA-UCHF01

The HDMI adapter lets you connect to any TV or display with an HDMI port to stream video in up to 4K@30Hz 3840x2160P resolution. Extend/mirror to a

larger screen with a crystal vivid visual experience. It is ideal for screen sharing or extension, games and video streaming.

Specifications:

● Product Name: USB-C to HDMI Adapter

● Input: USB Type-C Male

● Output: HDMI Female

● Resolution: Up to 4K@30Hz, backward compatibility with 2K / 1080P.

● Mode: Support Audio Video Mirror and Extend Mode

● Material： ABS shell

● Color : White

● Dimensions : 45*45*15mm

● Cable length : 125mm

● Weight : 23g

● Compatible Devices: Projector, Monitor, TV, USB C Phone, Laptop, and More

● Installation: Plug and Play, the USB-C source should support video out functions (USB Type-C DP Alt Mode)

● Compact & Lightweight & Durable & Stable.

Operation:

● Turns a USB Type-C port into an HDMI port; great for connecting a USB-C-equipped laptop, tablet, or phone to an HDMI-equipped

monitor, TV, or projector .

● Supports 4K resolution (3840 x 2160 @ 30 Hz) with no transmission loss and delay.

● Mirror / Extend to a larger screen with a crystal vivid visual experience.

● Designed for USB-C devices with video output (compatible with Thunderbol

t 4/3, and USB 4). Compatible with iPhone 15 Pro/Max,

MacBook Pro 2016-2023, MacBook Air 2018-2023, Mac.Mini 2018, i.Mac 2017-2020, Sur.face Book 2, Sam.sung Ga.laxy S23 Ultra/S23/S22

Ultra/S21/S21+/S20/S10/S9/S8, Note 9/8, Hua.wei P60/50/40, Pixel.book, D.ell-XPS 17/15/13, Ga.laxy Book, Chrome.book, Chrome.book

Pixel and More.

● Plug and Play: Instantly turn your laptop or phone's USB-C port into

an HDMI port, with no installation necessary.

Mirror Mode

Mirror Mode Extend Mode

Mirror Mode: Makes your holiday photos and favorite films so much more interesting and enjoyable on the big screen.

Extend Mode: Works like a charm for multitasking.

Important Note:

Make sure the USB-C port of your device supports video signal output (DP Alt Mode).

1 / 1

SN/951619

SN951619 Item848781

User Manual

Type-C to HDMI Adapter

Item No. : STA-UCHF01

The HDMI adapter lets you connect to any TV or display with an HDMI port to stream video in up to 4K@30Hz 3840x2160P resolution. Extend/mirror to a

larger screen with a crystal vivid visual experience. It is ideal for screen sharing or extension, games and video streaming.

Specifications:

● Product Name: USB-C to HDMI Adapter

● Input: USB Type-C Male

● Output: HDMI Female

● Resolution: Up to 4K@30Hz, backward compatibility with 2K / 1080P.

● Mode: Support Audio Video Mirror and Extend Mode

● Material： ABS shell

● Color : White

● Dimensions : 45*45*15mm

● Cable length : 125mm

● Weight : 23g

● Compatible Devices: Projector, Monitor, TV, USB C Phone, Laptop, and More

● Installation: Plug and Play, the USB-C source should support video out functions (USB Type-C DP Alt Mode)

● Compact & Lightweight & Durable & Stable.

Operation:

● Turns a USB Type-C port into an HDMI port; great for connecting a USB-C-equipped laptop, tablet, or phone to an HDMI-equipped

monitor, TV, or projector .

● Supports 4K resolution (3840 x 2160 @ 30 Hz) with no transmission loss and delay.

● Mirror / Extend to a larger screen with a crystal vivid visual experience.

● Designed for USB-C devices with video output (compatible with Thunderbol

t 4/3, and USB 4). Compatible with iPhone 15 Pro/Max,

MacBook Pro 2016-2023, MacBook Air 2018-2023, Mac.Mini 2018, i.Mac 2017-2020, Sur.face Book 2, Sam.sung Ga.laxy S23 Ultra/S23/S22

Ultra/S21/S21+/S20/S10/S9/S8, Note 9/8, Hua.wei P60/50/40, Pixel.book, D.ell-XPS 17/15/13, Ga.laxy Book, Chrome.book, Chrome.book

Pixel and More.

● Plug and Play: Instantly turn your laptop or phone's USB-C port into

an HDMI port, with no installation necessary.

Mirror Mode

Extend Mode

Mirror Mode: Makes your holiday photos and favorite films so much more interesting and enjoyable on the big screen.

Extend Mode: Works like a charm for multitasking.

Important Note:

Make sure the USB-C port of your device supports video signal output (DP Alt Mode).

1 / 1

Spegling till en större skärm. Gör dina semesterbil-

der och favoritlmer så mycket mer intressanta och

njutbara på den stora skärmen. Perfekt till videokon-

ferens och presentationer för stora grupper.

Extend Mode

SN/951619

SN951619 Item848787

User Manual

Mini DisplayPort to HDMI Adapter

Item No. : STA-MDPH001

The Mini DisplayPort to HDMI Adapter lets you stream 4K 3840x2160@30Hz high-quality video content from your Mini DP, Thunderbolt 1 or 2 laptop or

tablet to your HDTV and HDMI monitors. You would enjoy lag-free videos with flawless audio pass-thru on a bigger screen.

Specifications:

● Product Name: Mini DisplayPort to HDMI Adapter

● Input: Mini DisplayPort Male(Thunderbolt 2 Compatible)

● Output: HDMI Female

● Resolution: Up to 4K@30Hz 3840x2160P, backward compatibility with 2K / 1080P.

● Mode: Support Audio Video Mirror and Extend Mode

● Material： ABS shell

● Color : White

● Dimensions : 45*21.2*12.5mm

● Cable length : 140mm

● Weight : 19.3g

● Widely Usage: Suitable for connecting a Mini DisplayPort/Thunderbolt interface, it is compatible PC or graphics card to an HDTV, monitor,

or projector with HDMI

● Installation: Plug and Play

● Compact & Lightweight & Durable & Stable.

Operation:

● Connect a Mini DisplayPort/Thunderbolt 2 port compatible LAPTOPS & TABLETS TO 4K MONITORS: Use this mini display port adapter

with an HDMI cable (sold separately) to enhance presentations, watch movies or share photos.

● Supports 4K resolution (3840 x 2160 @ 30 Hz) with no transmission loss and delay.

● Mirror / Extend to a larger screen with a crystal vivid visual experience.

● Compati

ble for early MacBook Air/Pro, Mac Mini, iMac, Surface Pro/Dock, Monitor/TV/Projector.

e.g. Apple MacBook Pro (before 2016), MacBook Air (before 2018), iMac (before 2017), Mac Mini（before 2018) , Microsoft Surface Pro,

Surface laptop, Surface studio/ book/ dock and etc. (NOT surface/surface 2 for Windows RT), and any other laptops and desktops with Mini

DP or Thunderbolt (Not compatible with USB-C

or Thunderbolt 3)

● Plug and Play

Mirror Mode

Extend Mode

Mirror Mode: Makes your and favorite films/photos so much more interesting and enjoyable on the big screen, reliable gadget for your video conference and

group presentation.

Extend Mode: Upgrade your work station and boost your efficiency with extended monitor. More screens, more handy in work.

Important Note:

Mini DP & Thunderbolt 2 Compatible

* Mac computers with Thunderbolt 2

* Windows computers

with Mini DisplayPort

* NOT Thunderbolt 3 compatible

1 / 1

Förstora till en annan skärm för att kunna göra er

saker samtidigt. Du kan arbeta som vanligt på datorn.

OBS

SN/951619

SN951619 Item848787

User Manual

Mini DisplayPort to HDMI Adapter

Item No. : STA-MDPH001

The Mini DisplayPort to HDMI Adapter lets you stream 4K 3840x2160@30Hz high-quality video content from your Mini DP, Thunderbolt 1 or 2 laptop or

tablet to your HDTV and HDMI monitors. You would enjoy lag-free videos with flawless audio pass-thru on a bigger screen.

Specifications:

● Product Name: Mini DisplayPort to HDMI Adapter

● Input: Mini DisplayPort Male(Thunderbolt 2 Compatible)

● Output: HDMI Female

● Resolution: Up to 4K@30Hz 3840x2160P, backward compatibility with 2K / 1080P.

● Mode: Support Audio Video Mirror and Extend Mode

● Material： ABS shell

● Color : White

● Dimensions : 45*21.2*12.5mm

● Cable length : 140mm

● Weight : 19.3g

● Widely Usage: Suitable for connecting a Mini DisplayPort/Thunderbolt interface, it is compatible PC or graphics card to an HDTV, monitor,

or projector with HDMI

● Installation: Plug and Play

● Compact & Lightweight & Durable & Stable.

Operation:

● Connect a Mini DisplayPort/Thunderbolt 2 port compatible LAPTOPS & TABLETS TO 4K MONITORS: Use this mini display port adapter

with an HDMI cable (sold separately) to enhance presentations, watch movies or share photos.

● Supports 4K resolution (3840 x 2160 @ 30 Hz) with no transmission loss and delay.

● Mirror / Extend to a larger screen with a crystal vivid visual experience.

● Compati

ble for early MacBook Air/Pro, Mac Mini, iMac, Surface Pro/Dock, Monitor/TV/Projector.

e.g. Apple MacBook Pro (before 2016), MacBook Air (before 2018), iMac (before 2017), Mac Mini（before 2018) , Microsoft Surface Pro,

Surface laptop, Surface studio/ book/ dock and etc. (NOT surface/surface 2 for Windows RT), and any other laptops and desktops with Mini

DP or Thunderbolt (Not compatible with USB-C

or Thunderbolt 3)

● Plug and Play

Mirror Mode Extend Mode

Mirror Mode: Makes your and favorite films/photos so much more interesting and enjoyable on the big screen, reliable gadget for your video conference and
