INSTRUCTION MANUAL
Catalog Number
ASI500
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.
ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
VEA EL ESPAÑOL EN LA CONTRAPORTADA.
Thank you for choosing Black & Decker!
Go to www.BlackandDecker.com/NewOwner
to register your new product.
PLEASE READ BEFORE RETURNING THIS
PRODUCT FOR ANY REASON:
If you have a question or experience a problem with your Black & Decker purchase, go to
HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS
If you can’t find the answer or do not have access to the internet,
call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.
Please have the catalog number available when you call.
for instant answers 24 hours a day.
CORDLESS / 12VDC AIR STATION
SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
90564808 AS1500.qxd:??????-00 BDL500 laser 5/18/10 9:56 AM Page 1
WARNING! Read all instructions before operating product. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS
WARNINGS:
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all instructions.
5.) Do not use this apparatus near water. Keep the case dry at all times.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings. Install in accordance with the manuafacturerʼs
instructions.
8.) Do not place near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10.) Protect the cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.) Only use attachments / accessories specified by the manufacturer.
12.) Unplug unit when lightning is in the area or when unit is not in use.
13.) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
14.) Do not expose to dripping or splashing. WARNING: To reduce the risk of fire or
electric shock, do not expose this apparatus to rain or moisture.
15.) Do not operate near flammable materials, fumes or gases.
16.) Do not disassemble product. Incorrect reassembly may result in a risk of electric
shock or fire.
17.) Provide adequate ventilation and refrain from placing items on or around the product
during operation.
18.) Do not incinerate the battery even if it is severely damaged or is completely worn
out. The battery can explode in a fire. Check with local codes for possible special
disposal instructions.
19.) If any leakage of liquid from the battery cells occurs, discontinue use immediately
and return the battery to your local Black & Decker Service Center or authorized
service facility.
20.) Never attempt to open the battery for any reason. If the plastic housing of the
battery breaks or cracks, immediately discontinue use and do not recharge.
21.) Keep this product out of the reach of children.
22.) Since the vibration produced by the inflator may cause it to “walk”, do not operate on
a high shelf or other surface. Operate at ground or bench level only.
GENERAL SAFETY RULES
•KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
•CONSIDER WORK AREA ENVIRONMENT. Donʼt expose power tools to rain. Donʼt use
power tools in damp or wet locations. Keep work area well lit. Do not use tool in presence
of flammable liquids or gases.
•GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces.
For example; pipes, radiators, ranges, and refrigerator enclosures.
•KEEP CHILDREN AWAY. Do not let visitors contact tool or extension cord. All visitors
should be kept away from work area.
•STORE IDLE TOOLS. When not in use, tools should be stored in dry, and high or locked-
up place — out of reach of children.
•DONʼT FORCE TOOL. It will do the job better and safer at the rate for which it was intended.
•USE RIGHT TOOL. Donʼt force small tool or attachment to do the job of a heavy-duty
tool. Donʼt use tool for purpose not intended.
2
90564808 AS1500.qxd:??????-00 BDL500 laser 5/18/10 9:56 AM Page 2
3
•DRESS PROPERLY. Do not wear loose clothing or jewelry. They can be caught in
moving parts. Rubber gloves and non-skid footwear are recommended when working
outdoors. Wear protective hair covering to contain long hair.
•USE SAFETY GLASSES. Also use face or dust mask if operation is dusty.
•DONʼT ABUSE CORD. Never carry tool by cord or yank it to disconnect from receptacle.
Keep cord from heat, oil, and sharp edges.
•SECURE WORK. Use clamps or a vise to hold work. Itʼs safer than using your hand and it
frees both hands to operate tool.
•DONʼT OVERREACH. Keep proper footing and balance at all times.
•MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer
performance. Follow instructions for lubricating and changing accessories. Inspect tool
cords periodically and if damaged, have repaired by authorized service facility. Inspect
extension cords periodically and replace if damaged. Keep handles dry, clean, and free
from oil and grease.
•DISCONNECT OR LOCK OFF TOOLS when not in use, before servicing, and when
changing accessories, such as blades, bits, cutters.
•REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that
keys and adjusting wrenches are removed from tool before turning it on.
•AVOID UNINTENTIONAL STARTING. Donʼt carry tool with finger on switch. Be sure
switch is off when plugging in.
•EXTENSION CORDS. Make sure your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage resulting in loss of power and
overheating. The following table shows the correct size to use depending on cord length
and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
•OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, use only extension
cords intended for use outdoors and so marked.
•STAY ALERT. Watch what you are doing. Use common sense. Do not operate tool when
you are tired.
•CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is
damaged should be carefully checked to determine that it will operate properly and
perform its intended function. Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other conditions that may affect its operation.
A guard or other part that is damaged should be properly repaired or replaced by an
authorized service center unless otherwise indicated elsewhere in this instruction manual.
Have defective switches replaced by authorized service center. Do not use tool if switch
does not turn it on and off.
•DO NOT OPERATE portable electric tools near flammable liquids or in gaseous or
explosive atmospheres. Motors in these tools normally spark, and the sparks might ignite
fumes.
ADDITIONAL SAFETY WARNINGS FOR YOUR INFLATOR
WARNING! FOR HOME AND CAR USE ONLY:
• Inflate car and bike tires, balls, rafts, swimming pool floats, air mattresses, and more
in and around the home.
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
120V 0-25 26-50 51-100 101-150
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
240V 0-50 51-100 101-200 201-300
(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)
Ampere Rating
More Not more American Wire Gauge
Than Than
0 - 6 18 16 16 14
6 - 10 18 16 14 12
10 - 12 16 16 14 12
12 - 16 14 12 Not Recommended
90564808 AS1500.qxd:??????-00 BDL500 laser 5/18/10 9:56 AM Page 3
4
WARNING! RISK TO BREATHING:
•The compressed air from your inflator is not safe for breathing. Never inhale air
from your inflator or from a breathing device connected to the inflator.
WARNING! RISK OF BURSTING:
•Inflate items only to their manufacturerʼs recommendations. Exceeding the pressure
rating could cause them to explode resulting in personal injury.
•Do not leave unit running unattended. Overinflation of tires and other items could result
in serious injury and property damage.
WARNING! RISK OF ELECTRICAL SHOCK:
•Turn off and unplug inflator when not in use, when cleaning, or when changing nozzles.
•Do not expose inflator to rain or wet conditions. Water entering the inflator will
increase the risk of electric shock.
WARNING! RISK OF FALLING:
•Since the vibration produced by the inflator may cause it to “walk”, do not operate
on a high shelf or other surface. Operate at ground or bench level.
WARNING! RISK OF UNSAFE OPERATION:
•Do not modify or attempt to repair. Never drill into, weld, or make any modifications to
the inflator or its attachments.
•Do not operate inflator when car engine is running.
•Operate only with the accessories included or those rated for 160 p.s.i. or higher.
The use of any accessory not recommended for use with this tool could be hazardous.
•Never “horseplay”. High pressure air is dangerous. Donʼt direct air-flow at yourself or others.
WARNING! RISK OF FIRE:
• Inflator can become hot during use. Allow inflator to cool 30 minutes before storing away.
•Never carry the inflator by the hose.
IMPORTANT CHARGING NOTES
1. Longest life and best performance can be obtained if the battery is charged when
the air temperature is between 65°F and 75°F (18°- 24°C). DO NOT charge the
battery in an air temperature below +40°F(+4.5°C), or above +105°F (+40.5°C).
This is important and will prevent serious damage to the battery.
2. The charger and battery may become warm to touch while charging. This is a
normal condition, and does not indicate a problem. To facilitate the cooling of the
battery after use, avoid placing the charger in a warm environment such as in a
metal shed, or an uninsulated trailer.
3. If the battery does not charge properly — (1) Check current at receptacle by
plugging in a lamp or other appliance, (2) Check to see if receptacle is connected
to a light switch which turns power off when you turn out the lights. (3) Move
charger and battery to a location where the surrounding air temperature is
approximately 65°F - 75°F (18°- 24°C). (4) If charging problems persist, take or
send this product to your local service center.
4. Under certain conditions, with the charger plugged into the power supply, the
exposed charging contacts inside the charger can be shorted by foreign material.
Foreign materials of a conductive nature such as, but not limited to, steel wool,
aluminum foil, or any buildup of metallic particles should be kept away from
charger cavities. Unplug charger before attempting to clean.
5. DO NOT immerse charger in water or any other liquid.
WARNING: Don't allow any liquid to get inside charger. Electric shock may result.
6. DO NOT attempt to charge the battery with any chargers other than the ones in
this manual. The charger and battery are specifically designed to work together.
7. The charger is not intended for any use other than charging the battery in the Air
Station. Any other uses may result in risk of fire, electric shock or electrocution.
8. Pull by plug rather than cord when disconnecting charger. This will reduce risk of
damage to electric plug and cord.
9. Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
10. Do not operate charger with a damaged cord or plug.
11. Do not operate the charger if it has received a sharp blow, been dropped, or
otherwise damaged in any way. Take it to an authorized service center.
12. Do not disassemble charger. Incorrect reassembly may result in a risk of electric
shock, electrocution or fire.
90564808 AS1500.qxd:??????-00 BDL500 laser 5/18/10 9:56 AM Page 4
5
13. NEVER attempt to connect 2 chargers together.
14. Never use another products charger to charge this product. Always use identical
replacement parts only.
LIQUID CRYSTAL DISPLAY FLUID (FIRST AID MEASURES)
If liquid crystal comes in contact with your skin:
Wash area off completely with plenty of water. Remove contaminated clothing.
If liquid crystal gets into your eye:
Flush the affected eye with clean water and then seek medical attention.
If liquid crystal is swallowed:
Flush your mouth thoroughly with water. Drink large quantities of water and induce
vomiting. Then seek medical attention.
The label on your tool may include the following symbols.
V ..........................volts A..........................amperes
Hz ........................hertz W ........................watts
min ........................minutes ......................alternating
current
......................direct current no ........................no load speed
..........................Class II Construction ........................earthing terminal
........................safety alert symbol

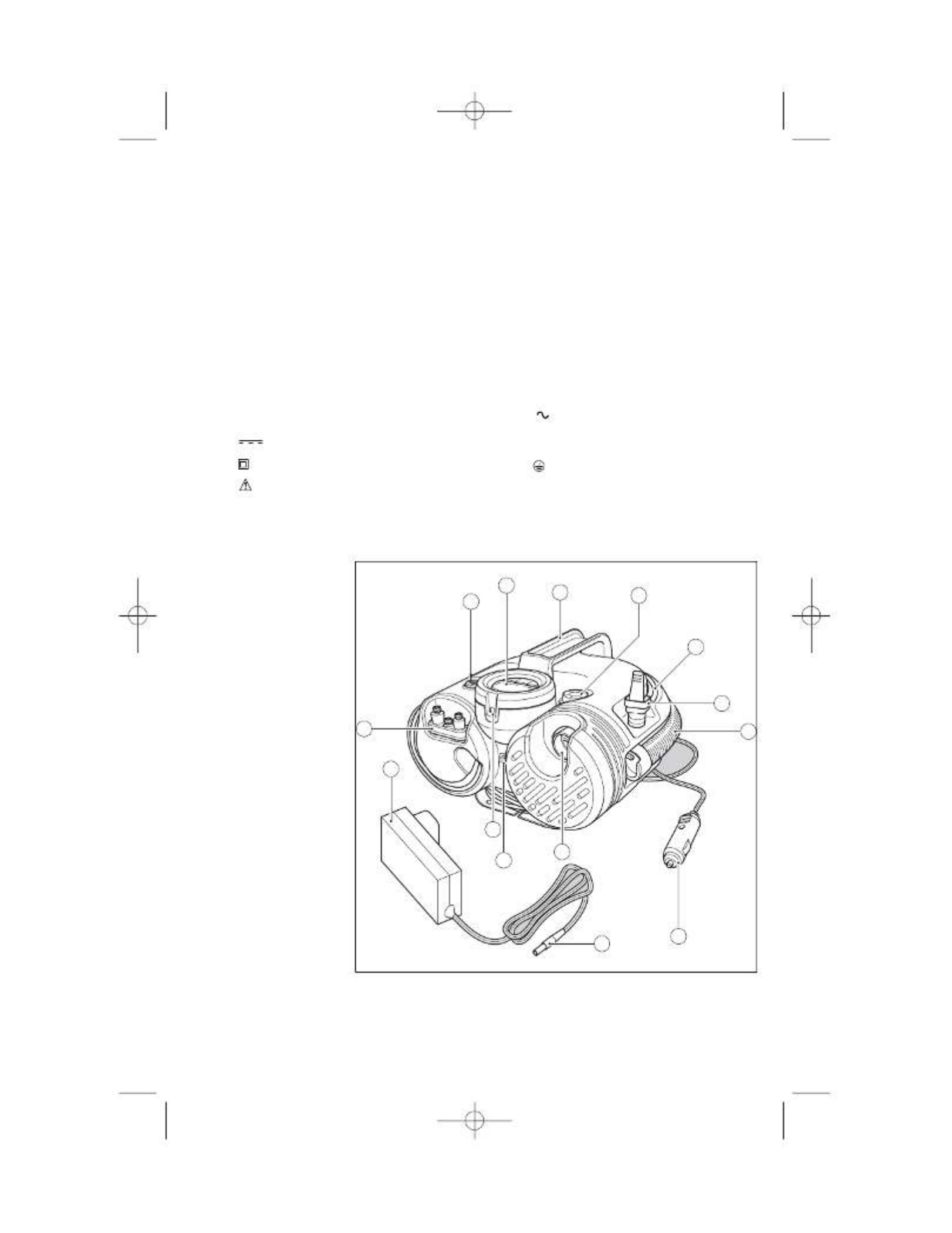

FUNCTIONAL
DESCRIPTION
1. Main power switch
2. LCD
3. Handle
4. High-volume pump
deflate connection
5. Air hose with
universal valve adaptor
6. Universal valve
adapter
7. High-volume hose
(unregulated air
pressure hose, no auto
shut-off)
8. 12 Vdc vehicle
connector
9. Charger jack plug
10. High-volume pump
inflate connection
11. Jack plug socket
12. LED light
13. Charger
14. Accessory storage
1
234
5
6
7
8
9
10
11
12
13
14
90564808 AS1500.qxd:??????-00 BDL500 laser 5/18/10 9:56 AM Page 5
7

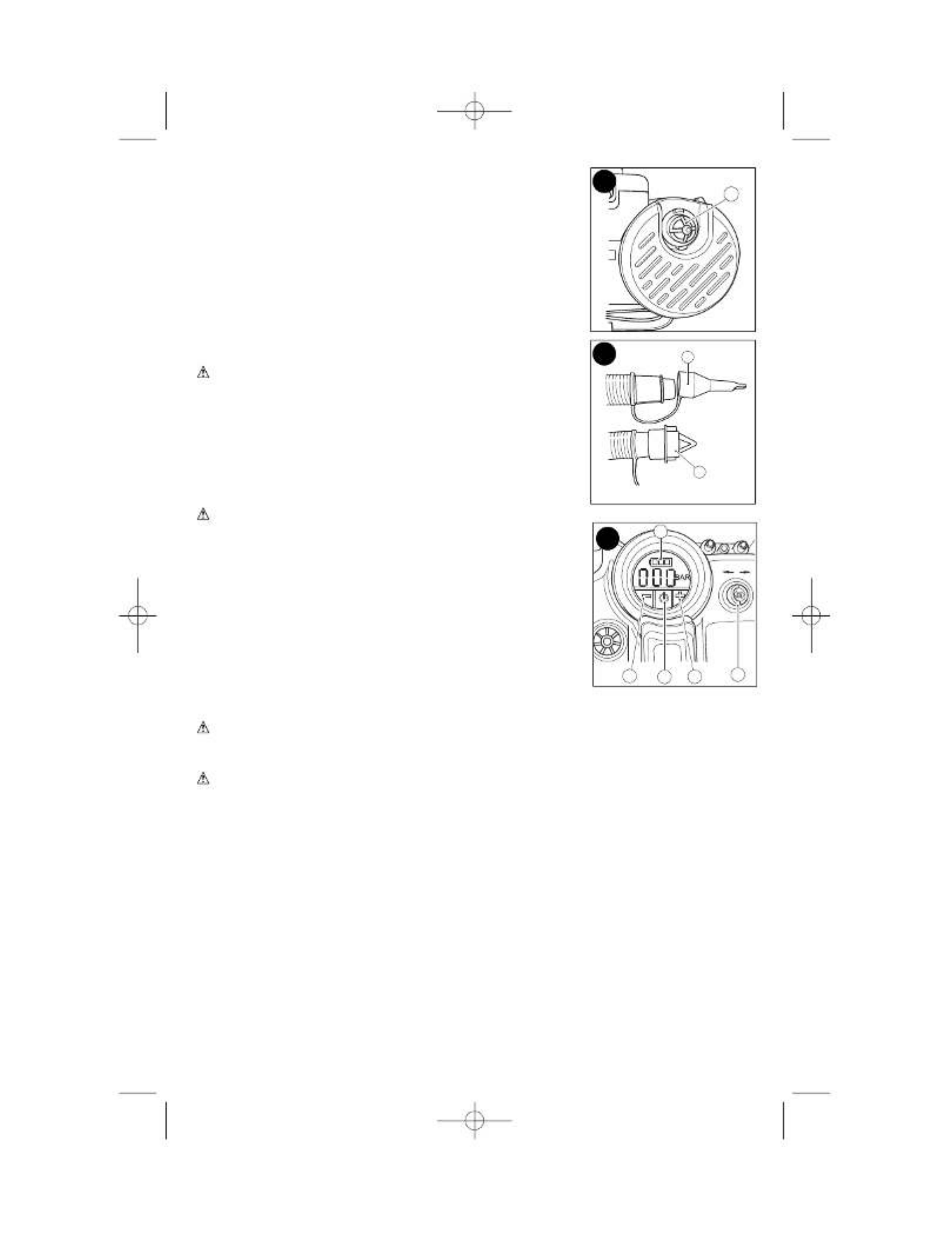

This is stored on the front of the unit (fig. E).
• To use the high volume adaptor (24), remove it from the
high volume inflate connection.
• Remove the high volume hose (7) from the storage location.
• Remove the tapered nozzle (18) from the end of the
high volume hose (7).
• Fit the high volume adaptor (24) to the end of the high
volume hose (fig. F).
Many inflatables have an internal flap that prevents air loss
during inflation, especially air mattresses. Unless this flap is
displaced by the nozzle the inflatable will not inflate. Push
the nozzle firmly into the valve to make sure that you push this
flap out of the way.
WARNING: Risk of Bursting. Excessive air pressure may
cause a hazardous risk of bursting or personal injury. Check
the manufacturer's maximum pressure rating for items being
inflated.
Note: If the pressure rating for the item being inflated is above
100 psi, note that the maximum run time is 10 minutes, leave
to rest for 20 minutes before re-use.
OPERATING THE INFLATOR (FIGURE G)
WARNING: Do not operate the inflator when the car
engine is running.
Note: Make sure that your 12 Volt accessory socket is live. On
some vehicles the accessory socket may only become live
when the ignition key is in the accessory position.
To power the display from the 12Vdc adapter:
• Always fully extend the 12 Vdc cord before each use.
• Connect the 12 Vdc adapter (8) into your vehicles 12 V
accessory socket.
• Switch the main power switch (1) to the inflate position (c) to
power up the LCD.
To power the LCD from the internal battery (cordless
operation):
• Switch the main power switch (1) to the inflate position (c) to power up the LCD.
WARNING: Risk of Bursting. Do not leave unit running unattended. Overinflation of
tires and other items could result in serious injury and property damage.
QUICK START
WARNING: Never leave inflator running unattended in this mode. In can burst car
tires and other items.
To use your inflator immediately you can do so without setting the automatic shut-off
feature.
• Switch the main power switch (1) to the inflate position (c fig. G).
• To switch between the different units (PSI, BAR or KPA) press - & + buttons (21,23)
together until the required units are displayed.
• Connect the universal valve adaptor (6) and an accessory, if required, to the item to be
inflated, making sure that the lever (19) of the valve adaptor is in the down position to
lock it in place.
Note: Make sure that the universal valve adaptor is correctly fitted to the item to be
inflated.
• To start the inflator press the power button (22) on the LCD.
• When the item is inflated as required or to stop the inflator at any time press the power
button (22) on the LCD.
• Remove the hose from the item and store it on the unit.
• Turn the main power switch (1) to the off position (b fig. G).
24
E
18
24
F
20
21 22 23
abc
1
G
90564808 AS1500.qxd:??????-00 BDL500 laser 5/18/10 9:56 AM Page 7
9
OPERATING THE LED LIGHT
To switch on the LED light (12):
• Switch the main power switch (1) to the inflate (c fig. G) or the pump (a fig. G) position.
• Press either of the - or + buttons (21, 23) on the LCD (2) to turn the LED light (12) on.
To switch the LED light (12) off:
• Press either of the - or + buttons (21, 23) again.
• Turn the main power (1) switch to off.
SLEEP MODE TO PRESERVE BATTERY LIFE
• The unit is fitted with a sleep mode function that will help prolong the life of the internal
battery.
• If the unit is left on and unused for more than 2 minutes the unit will drop into sleep mode.
• To power the unit again either switch the main power switch (1) on and off or press any
button on the LCD (2).
Note: After sleep mode, all settings will be lost and will need to be re-entered following the
instructions under the heading 'Setting the automatic shut-off pressure'.
REPLACING THE FUSE IN THE VEHICLE DC ACCESSORY PLUG
• Remove the cap by turning it counterclockwise.
• Remove the center pin.
• Remove the fuse.
• Fit a new fuse of the same type and size (8A/250V).
• Refit the cap and center pin.
• Tighten the cap by turning clockwise onto the plug.

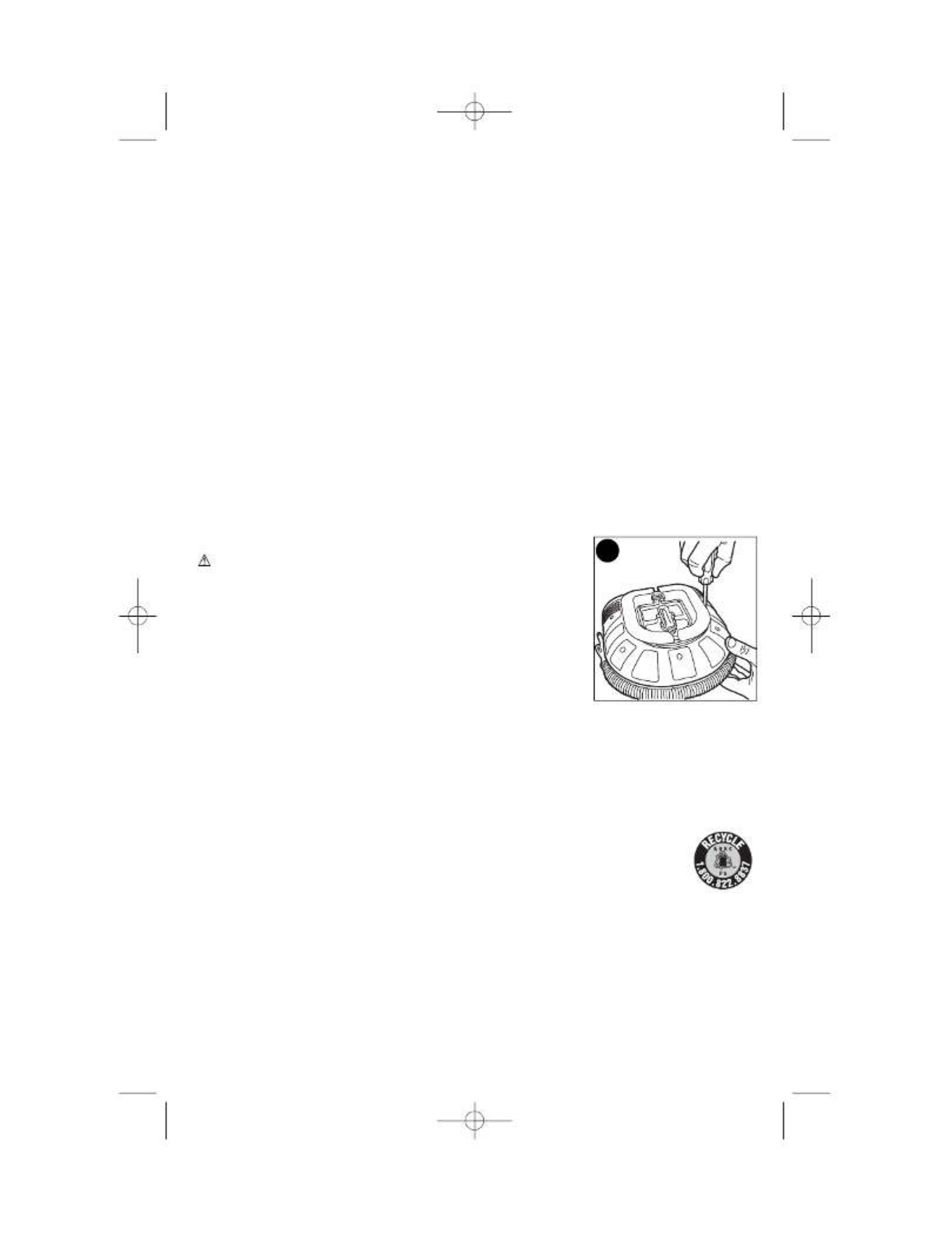

BATTERY REMOVAL (FOR RECYCLING) (FIGURE I)
WARNING: Exercise care when handling batteries in order
not to short the battery with conducting materials such as
rings, bracelets and keys. The battery or conductor may
overheat and cause burns.
Before attempting to disassemble the main body of the
product, turn it on and leave it on until the power is depleted
to ensure a complete discharge of the battery.
Using a phillips screwdriver, remove the screws from the
bottom housing cover shown in . Lift the battery outfigure I
and pull off the terminal clips. See “Service Information” for
battery replacement.
MAINTENANCE
Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the
tool; never immerse any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and
adjustment (other than those listed in this manual) should be performed by authorized
service centers or other qualified service personnel, always using identical replacement parts.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the lead
acid battery (or battery pack) indicates that the costs to recycle the battery (or
battery pack) at the end of its useful life have already been paid by Black &
Decker. In some areas, it is illegal to place spent lead acid batteries in the
trash or municipal solid waste stream and the RBRC program provides an
environmentally conscious alternative.
RBRC in cooperation with Black & Decker and other battery users, has established
programs in the United States and Canada to facilitate the collection of spent lead acid
batteries. Help protect our environment and conserve natural resources by returning the
spent lead acid battery to an authorized Black & Decker service center or to your local
retailer for recycling. You may also contact your local recycling center for information on
where to drop off the spent battery, or call 1-800-8-BATTERY.
I
