Side 1/28

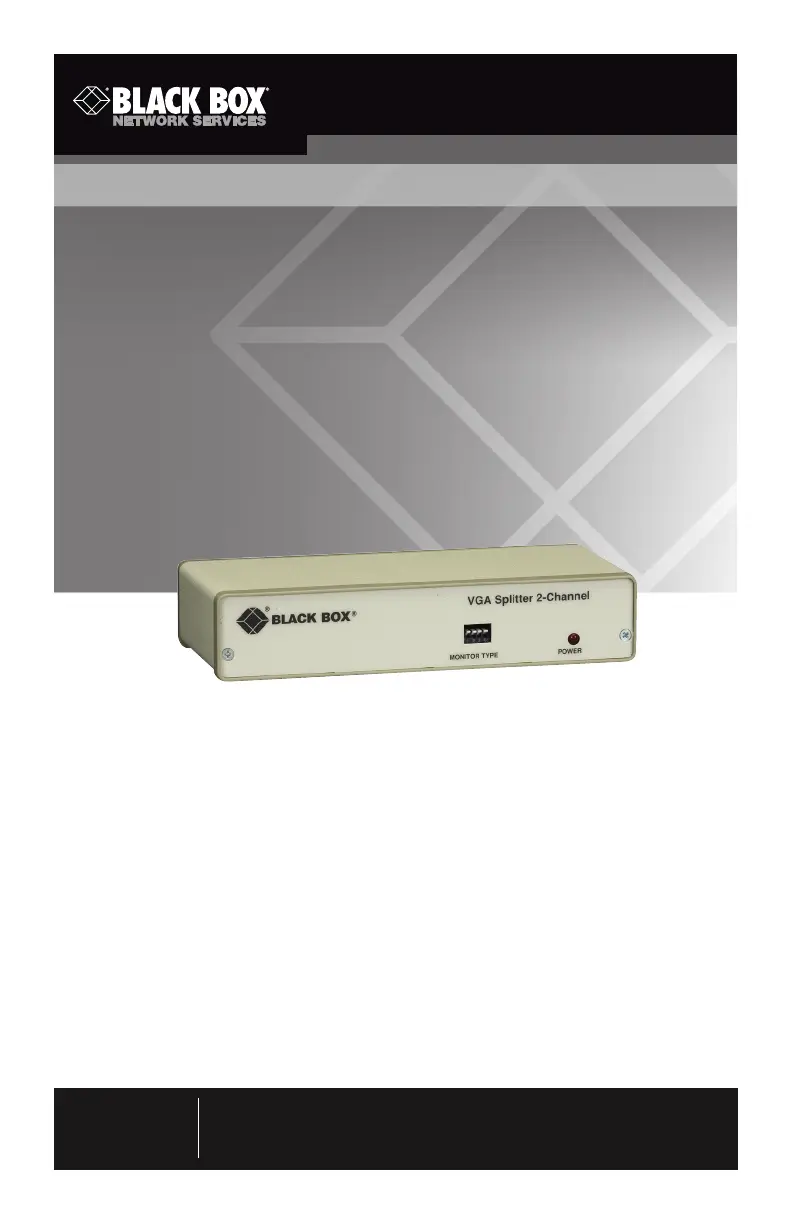

BL A C K B O X

Send VGA output to one local monitor and to as

many as nine remote monitors up to 250 feet

(76.2 m) away.

VGA Video Splitters

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

AC056A-R4 AC057A-K-R4 AC056AE-R3 AC159A-R2

AC056A-K-R4 AC058A-R3 AC057AE-R2 AC159A-R3

AC057A-R4 AC056AE-R2 AC057AE-R3 AC160A-R2

AC160A-R3

Page 2

724-746-5500 | blackbox.com

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause inter ference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emis sion from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

Produkspesifikasjoner

Merke:	Black Box
Kategori:	Splitter
Modell:	AC057A-K-R4
Vekt:	1200 g
Tilkobling:	HD15 F
Sertifisering:	RoHS
Full HD:	Nei
Båndbredde:	300 MHz
Dimensjoner (B x D x H):	185 x 84 x 38 mm
AC-inngangsspenning:	115 V
AC-inngangsfrekvens:	60 Hz
Antall videoporter:	5
Produktfarge:	Hvit
Støttede grafikkoppløsninger:	1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Kabler inkludert:	VGA
Video ut:	4x VGA
USB-strøm:	Nei
Ethernet/bredbåndsforbindelse:	Nei
Videoopptaksgrensesnitt:	1
Strøm-LED:	Ja
Maksimal opereringsrekkevidde:	76.2 m
Video tilkoblingstype:	VGA
