Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

February 2010

MT1000A-85-R4

BL A C K B OX

Detects speed of 0.5–9.8 ft./sec. at -4 to +144° F

with a 150° detection angle.

AlertWerks

™

Motion Detector Sensor

EME1M1-005-R2

Specifications

Detection Angle — 150°

Infrared Sensor — Dual element

Maximum Cable Length — Single motion detector sensor:

1000 ft. (300 m);

Total cable length of a string of 10 motion detector sensors:

150 ft. (45.7 m);

Maximum cable length between each motion detector

sensor: Should be less than 20 ft. (6 m)

Maximum Working Distance — 9 ft. (3 m)

Temperature Tolerance — Operating: +4 to +122° F

(-20 to +50° C)

Power — Powered by AlertWerks hub or base unit

(EME102A, EME108A, or EME134A);

Consumption: Typical 51.40 mWatt, 10.28 mA

Size — 2.6"H x 2.4"W x 1.4"D (6.5 x 6 x 3.5 cm)

Overview

The AlertWerks passive infrared Motion Detector Sensor

detects the presence of movement. It is specially designed to

be integrated with AlertWerks hubs.

Mount the sensor on a wall or ceiling. To prevent false alarms,

the sensor characterizes the optimum detection angle. It’s

compatible with EME102A, EME108A, EME134A, and EME1X8.

You can link up to ten motion detectors together, plugged into

a single RJ-45 sensor port.

Features

• Wall/ceiling mounted design.

• Weatherproof.

• Surface-mount technology.

• High RFI immunity.

• Link up to ten motion detector sensors on a single port.

For a typical application, turn this page over…

BL A C K BOX

FREE, live, 24/7 Tech Support is just 30 seconds away.

724-746-5500 | blackbox.com

and the Double Diamond logo are registered trademarks, and AlertWerks is a trademark, of BB

Technologies, Inc. Any third-party trademarks appearing in this publication are acknowledged to be the property of their respective owners.

EME1M1-005-R2, version 1

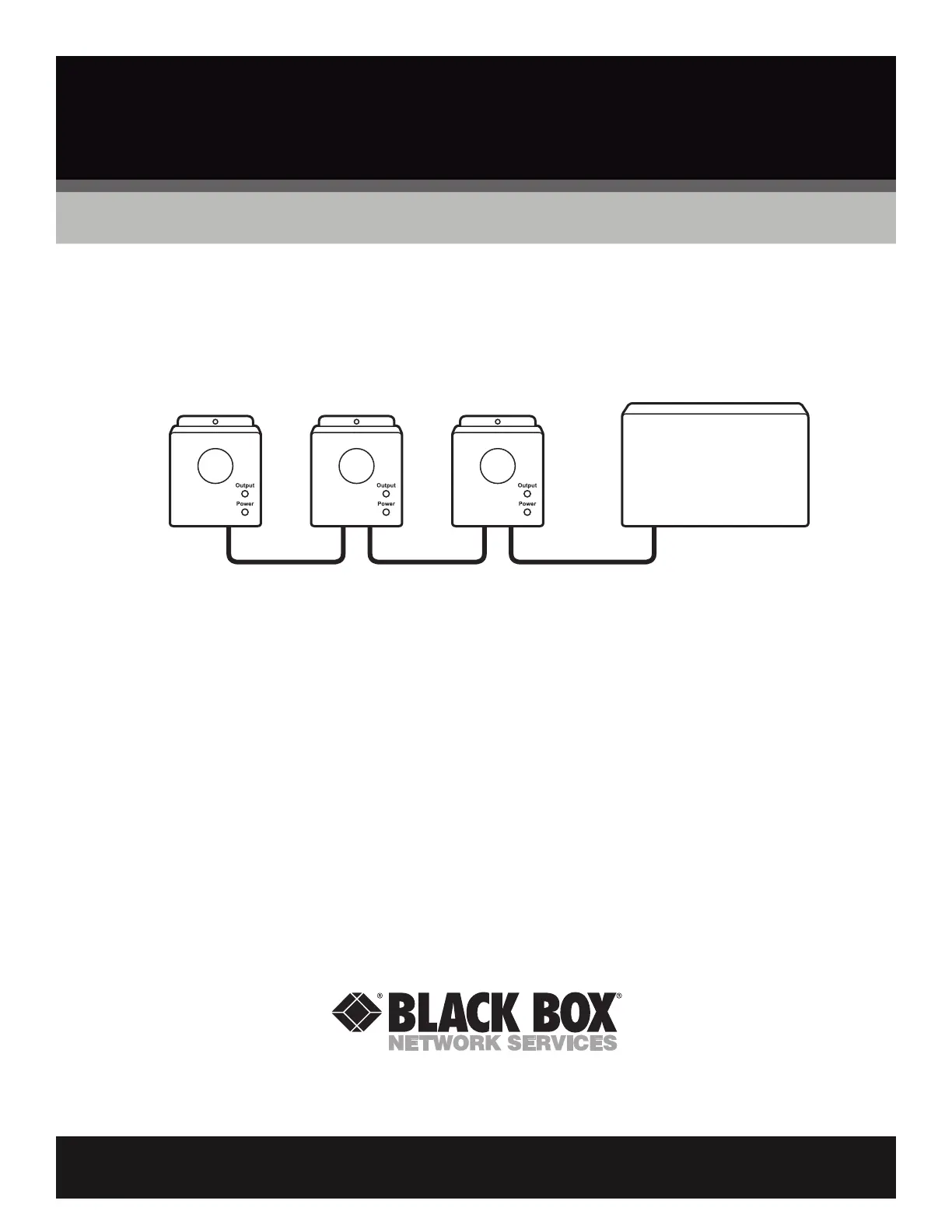

Typical Application

Figure 1 shows a typical application.

EME1M1-005-R2

EME102A, EME108A,

or EME134A

Figure 1. Daisychain up to ten motion detectors.
