Before using this unit, carefully read the sections entitled “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (separate sheet “Read Me First” and Owner’s Manual p. 15). These

sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every

feature of your new unit, read the Owner’s Manual in its entirety. This manual should be saved and kept on hand as a convenient reference.

Owner’s Manual (this document)

Read this rst. It explains the basic things you need to know in order to use the GP-10.

PDF Manual (download from the Web)

• Parameter Guide

This explains the parameters and audio signal ow of the GP-10.

• Sound List

This is a list of the sounds built into the GP-10.

• MIDI Implementation

This is detailed information about MIDI messages.

To obtain the PDF manual

1. Enter the following URL in your computer.

http: //www.roland.com/manuals/

2. Choose “GP-10” as the product name.

Owner’s Manual

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Turning the Power On/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Specifying the Output System (Sys: Output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting Up the GK Pickups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Basic Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Modeling/Poly FX/Alternate Tuning Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Modeling Settings (Mdl: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Electric Guitar (EG: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Acoustic (AC: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Bass (EB: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Synthesizer (Synth: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Poly FX (PolyFx: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Alternate Tuning Settings (AltTune: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

12-String Guitar Settings (12Str: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

String Bend Function Settings (StrBend: ) . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Other Modeling Settings (Mdl: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Eects/Patch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Eects Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preamp (Amp: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FX (FX: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wah (Wah: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Chorus (Chorus: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Delay (Delay: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Reverb (Reverb: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

EQ (EQ: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Noise Suppressor (NS: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Foot Volume (FV: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Settings for Normal Pickup (Nrml PU: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Volume Balance of the Modeling and the Normal Pickup (Mixer: ) . .11

FX Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Patch Settings (Patch: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Patch Volume (Patch: Level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Patch Tempo Settings (Patch: Tempo) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

GK Set Selection for the Patch (Patch: GK Set) . . . . . . . . . . . . . . . . . . . . .11

Pedal and Switch Settings for Each Patch (Ctl: ) . . . . . . . . . . . . . . . . . . . .11

Assign Settings (Asgn 1–8: ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Specifying the Output System (Sys: Output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Settings of the GK Pickups (GK: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

System Settings for the Pedals and Switches (SysCtl: ) . . . . . . . . . . . . . . . . . . . .13

USB Audio Settings (USBAudio: ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Guitar Performance MIDI Output Settings (MIDI: ) . . . . . . . . . . . . . . . . . . . . . . . .13

Tuner Settings (Tuner: ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Adjusting the Display’s Contrast (Sys: Contrast) . . . . . . . . . . . . . . . . . . . . . . . . . .14

Panel Lock Settings (Sys: Knob Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Auto O Settings (Sys: Auto O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Limiting the Patches Selectable in the Play Screen (Sys: Patch Extent) . . . . .14

Adjusting the Expression Pedal (Calibration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Restoring the Factory Settings (Factory Reset) . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Patch Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Exchanging Patches (Exchange) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Inserting a Patch (Insert) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Initializing a Patch (Initialize) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

USING THE UNIT SAFELY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

IMPORTANT NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Error Message List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Main Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Cutting-edge modeling guitar powered by COSM

The GP-10 provides a wide range of modeling guitars powered by COSM technology, including Stratocaster, Telecaster, Les Paul, Jazz Guitar, Acoustic Guitar, and Sitar. In

addition, it can also create new dimensions of sound that are unavailable from conventional electric guitars, such as a Wide Range model that gives you a fat sound while

preserving the wide range of a single-coil pickup, and a Bright Humbucker model that keeps the rich mid- and low-range of a humbucker while oering a crisp high end.

A variety of alternate tunings

You can choose from alternate tunings such as Drop-D, Open-G, and D-MODAL. Without swapping guitars or changing the string tension, you can instantly switch between

a wide variety of alternate tunings. There’s also a 12-string guitar mode. You can even use “USER” to specify your own tuning.

Powerful eects and amp modeling

High quality eects and amp modeling are built in. There is also a dedicated “Poly FX” specically for the GK pickup, which allows you to extract an independent string

signal for each string. This lets you experience completely new sounds that were impossible for a guitar of the past, equipped with a conventional pickup.

EXP 2/CTL 3, 4 jack (Connecting to External Pedals)

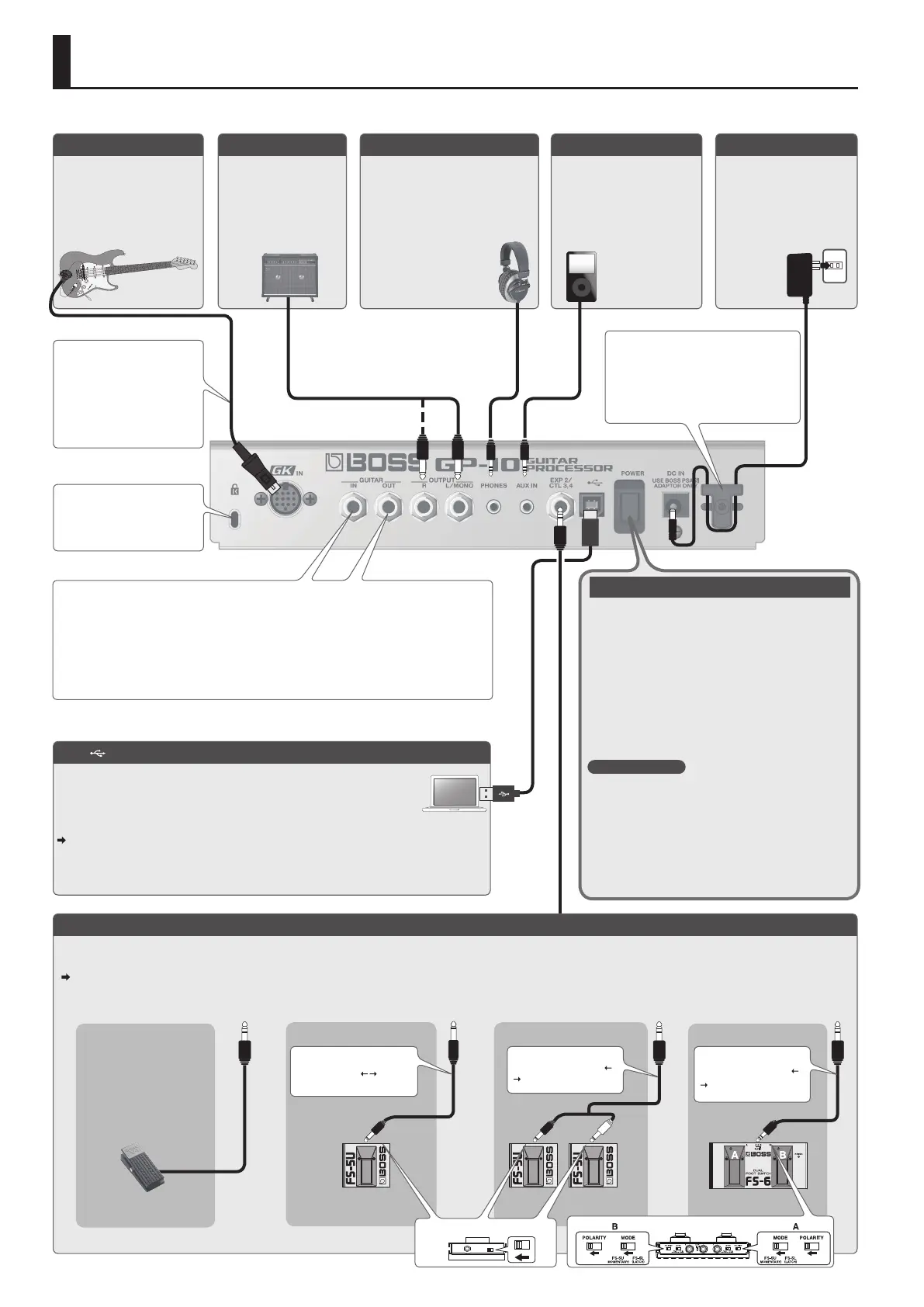

Connections

OUTPUT jacks

Connect these jacks to

your guitar amp or to PA

(LINE).

* If your system is monaural,

use only the L/MONO jack.

USB ( ) port

Use a commercially available USB 2.0 cable to connect this port to your

computer. It can be used to transfer USB MIDI and USB audio data. You must

install the USB driver before connecting the GP-10 to your computer.

Download the USB driver and the GP-10 special software from the Roland

website. For details, refer to Readme.htm which is included in the download.

http: //www.roland.com/support/

AUX IN jack

Use a stereo mini-plug cable

to connect your audio player

here.

* To adjust the input level of the

AUX IN jack, adjust the volume

of the connected device (audio

player, etc.).

PHONES jack

Connect a set of headphones (sold

separately) here.

* When you connect a stereo-mini plug

to this jack, the internal guitar amp

simulator will be automatically on so

that you can also enjoy the powerful

guitar sound with your

headphones. In this case,

the sound from OUTPUT

jacks will have the same

eect.

* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.

DC IN jack

Connect the included AC

adaptor here.

* Use only the included

AC adaptor. Using any

other adaptor may cause

overheating and malfunction.

Turning the Power On/O

This turns the power on/o.

* After you’ve made connections correctly, be sure to turn on

the power in the order of the GP-10 rst, and then the

connected system. Powering-on in the incorrect order may

cause malfunctions or damage. When turning the power o,

power-o the connected system rst, and then the GP-10.

* This unit is equipped with a protection circuit. A brief interval (a

few seconds) after turning the unit on is required before it will

operate normally.

* Before turning the unit on/o, always be sure to turn the

volume down. Even with the volume turned down, you might

hear some sound when switching the unit on/o. However, this

is normal and does not indicate a malfunction.

Auto O function

The power to this unit will be turned o automatically after a

predetermined amount of time has passed since it was last used

for playing music, or its buttons or controls were operated (Auto

O function).

If you do not want the power to be turned o automatically,

disengage the Auto O function (p. 14).

* Any settings that you are in the process of editing will be lost

when the power is turned o. If you have any settings that you

want to keep, you should save them beforehand.

* To restore power, turn the power on again.

If you connect an expression pedal (sold separately: Roland EV-5, FL-500H/L) or footswitch (sold separately: FS-5U, FS-6) to the EXP 2/CTL 3,4 jack, you can use a pedal to

control the volume or to turn eects on/o.

For details on the settings, refer to “Pedal and Switch Settings for Each Patch (Ctl: )” (p. 11), “System Settings for the Pedals and Switches (SysCtl: )” (p. 13).

POLARITY switch

When Connecting an FS-5U When Connecting Two FS-5Us When Connecting an FS-6When connecting EV-5

Cable:

Stereo 1/4” phone type

1/4” phone type x 2

MODE/POLARITY switch

Cable:

1/4” phone type

Ctl 3 Ctl 4 Ctl 3 Ctl 4 Ctl 3Exp 2

Connect the GK-compatible

guitar only with dedicated GK

cable (supplied with Roland GK-

compatible devices and optional

GK cables). Use of any other

cable may result in damage or

malfunction.

To prevent the inadvertent disruption

of power to your unit (should the plug

be pulled out accidentally), and to avoid

applying undue stress to the DC IN jack,

anchor the power cord using the cord hook,

as shown in the illustration.

Security slot (N)

http: //www.kensington.

com/

GUITAR IN jack

Use this control if you’re directly inputting a conventional guitar.

* If you use a 1/4” phone plug to make connections, the modeling and alternate tuning functions will

not operate. Only the eect functions will operate.

GUITAR OUT jack

Normal pickup signals of the guitar are output.

* Use only the specied

expression pedal (Roland EV-5,

FL-500H/L; sold separately).

By connecting any other

expression pedals, you risk

causing malfunction and/or

damage to the unit.

GK IN connector

Connect a guitar equipped

with a GK pickup (Roland

GK-3/GK-2A) or a GK-

compatible guitar such as the

Roland V-Guitar GC-1 to this

connector.

Cable:

Stereo 1/4” phone type
