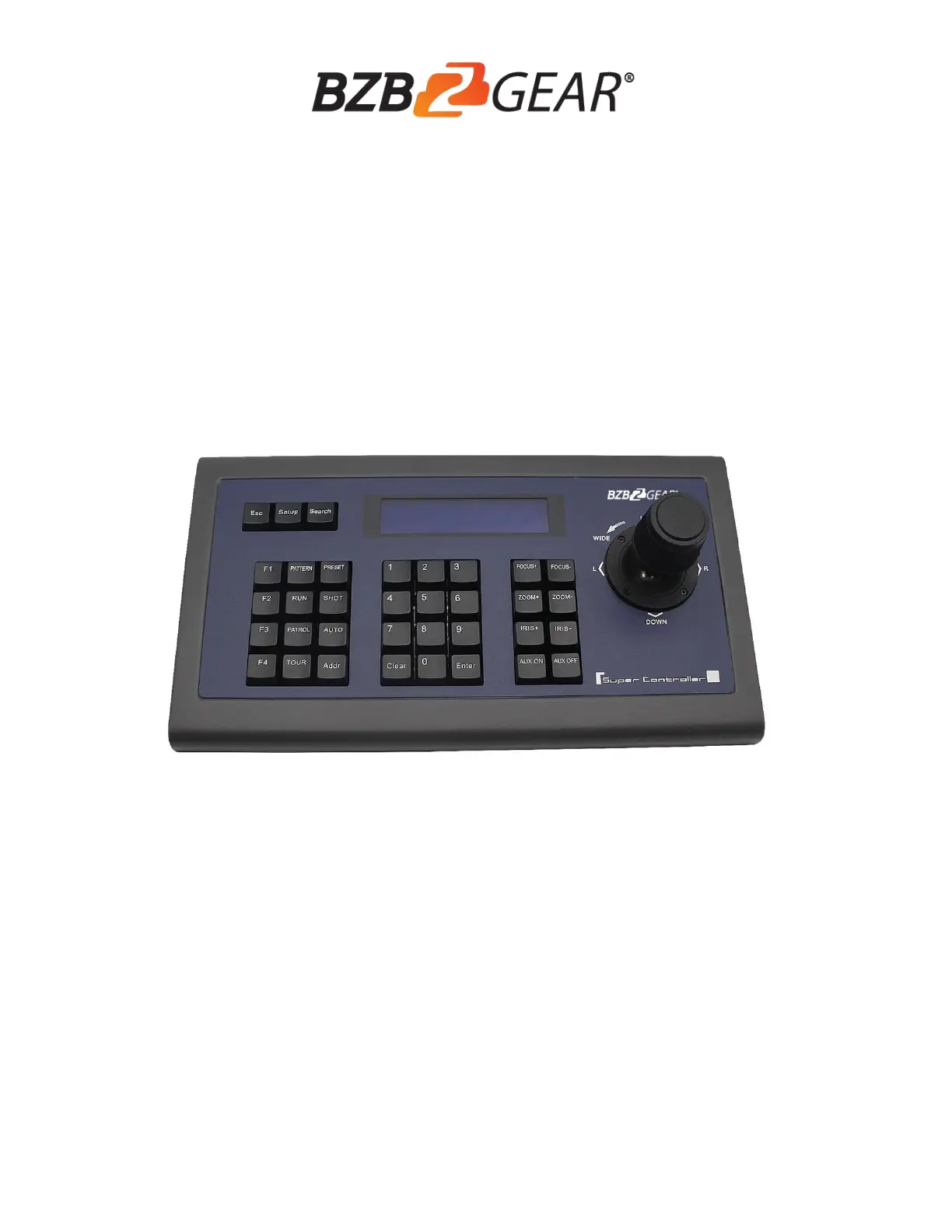

Model Number: BG-CJ-RS
Joystick Keyboard Installation & Operation Manual
Easy pan, tilt & zoom controls for any RS-232, RS485, RS422 VISCA, Pelco-P or
Pelco-D protocol camera!
Controls pan & tilt with variable speed.
Uses 3-Dimensional joystick with “twist” control for variable zoom.
Page 2 of 11
Key Product Features
• All Metal housing.
• VISCA, PELCO-D and PELCO-P protocol support.
• Large LCD Menu display.
• Key-press “BEEP” confirmation (optional – set on or off).
• Pan, tilt, zoom, iris and focus control.
• Variable speed control of pan, tilt, zoom, focus, and presets.
• Auto/Manual Focus and Iris.
• Cameras #1-6 ‘Quick Key’ Select buttons.
• Quick preset set & call (1 – 9)
• Preset Save, Call and Clear.
• Real time display of the current status.
• Short circuit and overcurrent protection.
• Automatic recovery program for the communication port(s).
Key Technical Specifications
• Control Interfaces:
RS232 full-duplex, RS485 semi duplex, RS422 full-duplex.
• Variable Baud Rate 1200 to 19200 bps.
• Maximum communication distance: RS485: 3,937ft [1200m] using 24
gauge twisted pair cabling
• Can control a maximum 255 cameras via Pelco-D/P.
• Voltage: 12VDC.
• Power Consumption: 6W Max.
• Display: LCD.
• Working Temperature: 14°F ~ 122°F [-10° ~ +50° C].
• Working Humidity: 10 ~ 90% (non-condensation).
• Weight 3.3 lbs. [1.5 kg]
• Dimensions: 12.6”(W) x 7.1”(D) x 4.3”(H) [320mm x 181mm x 110mm].
