User Manual
Frozen
Beverage
Dispenser
#382SMM1
#382SMM2
#382SMM3
12/22
2
Info@CarnivalKingSupplies.com | CarnivalKingSupplies.com
Frozen Beverage Dispenser
User Manual
Table of Contents
Safety ...............................................................................................................................................................................2
Components, Features & Controls ................................................................................................................................3
Main Components ...................................................................................................................................................................... 3
Technical Features ......................................................................................................................................................................3
Serial Plate ................................................................................................................................................................................... 3
Main Control ................................................................................................................................................................................ 3
Bowl Control ................................................................................................................................................................................ 3
Installation ...................................................................................................................................................................... 4
Unpacking .................................................................................................................................................................................... 4
Positioning ...................................................................................................................................................................................4
Electrical Safety .......................................................................................................................................................................... 4
Main Safety Information ............................................................................................................................................................ 4
Operation .........................................................................................................................................................................5
Preparation .................................................................................................................................................................................. 5
Slush Production ........................................................................................................................................................................ 5
Thickness Control ....................................................................................................................................................................... 5
Cold Drink Production ............................................................................................................................................................... 5
Cleaning .......................................................................................................................................................................... 6
Disassembly................................................................................................................................................................................. 6
Washing & Sanitizing ................................................................................................................................................................. 7
Condenser Cleaning ................................................................................................................................................................... 7
Reassembly..................................................................................................................................................................................8
Rinse Cycle .................................................................................................................................................................................. 9
Replacement ................................................................................................................................................................... 9
Disposal ........................................................................................................................................................................... 9
Troubleshooting ............................................................................................................................................................10
Electrical Diagrams ........................................................................................................................................................11
Parts Diagrams .............................................................................................................................................................. 12
Safety
This instruction manual is an integral part of the machine and must be kept for any further consultation.
This machine is a frozen and cold drink dispenser.
This machine should be used only for the purpose for which it was designed. Any other use is inappropriate and
therefore dangerous.
The manufacturer will not be held responsible for any damage caused by improper use.
Before installing and operating the machine, read this instruction manual carefully.
Basic safety rules:
- DO NOT touch the machine when hands or feet are wet.
- DO NOT use the machine when barefoot.
- This appliance should only be used by persons who have the knowledge, experience, and capability to operate it
in a safe way.
- DO NOT allow children to play with or use the appliance, or allow untrained persons to use the appliance.
- DO NOT leave the machine outdoors.
- DO NOT pull on the electrical cord to unplug the machine.
5018325 5018325
3
Info@CarnivalKingSupplies.com | CarnivalKingSupplies.com
Frozen Beverage Dispenser
User Manual

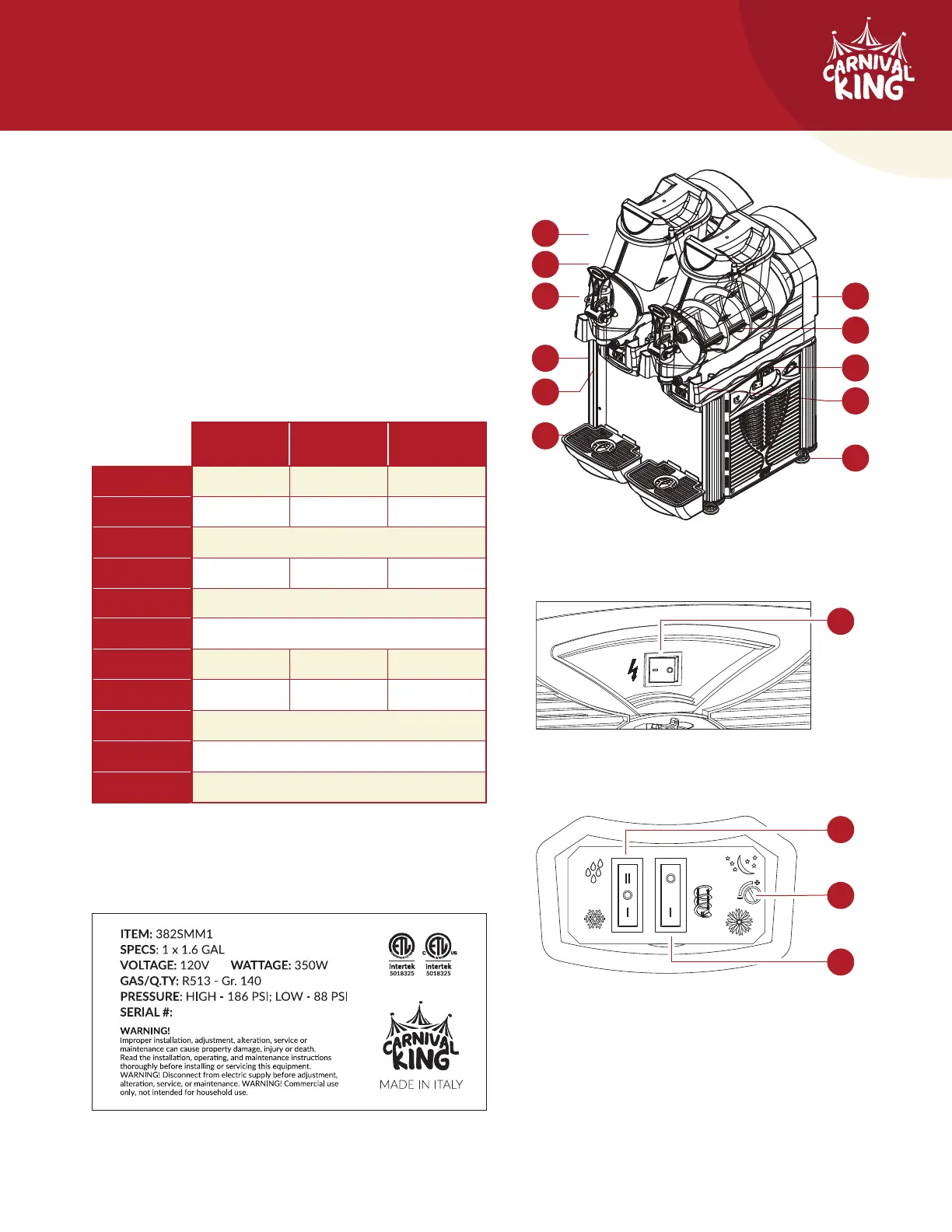

Components, Features & Controls
Main Components
1. Lid
2. Bowl
3. Tap Lever
4. Tap
5. Bowl Switch Box
6. Drip Tray
7. Thickness Control
8. Spiral Blade
9. Main Switches
10. Bowl Fixing Knob
11. Rubber Leg
Technical Features
Serial Plate
The technical features of the machine are reported on the
serial plate aached on the frame.
Main Controls
Positioned on the right side of the machine.
ITEM: 382SMM1
SPECS: 1 x 1.6 GAL
VOLTAGE: 120V WATTAGE: 350W
GAS/Q.TY: R513 - Gr. 140
PRESSURE: HIGH - 186 PSI; LOW - 88 PSI
SERIAL #:
MADE IN ITALY
5018325 5018325
WARNING!
Improper installaon, adjustment, alteraon, service or
maintenance can cause property damage, injury or death.
Read the installaon, operang, and maintenance instrucons
thoroughly before installing or servicing this equipment.
WARNING! Disconnect from electric supply before adjustment,
alteraon, service, or maintenance. WARNING! Commercial use
only, not intended for household use.
7
8
9
10
11
1
2
3
4
5
6
A
SMM SMM SMM
BOWLS
1 2 3
CAPACITY
1 x 1.6 Gal 2 x 1.6 Gal 3 x 1.6 Gal
GAS
R134a
WIDTH
8.6 in 17.3 in 23.9 in
DEPTH
19.2 in
HEIGHT
27.9 in
WEIGHT
53 lb 88 lb 132lb
POWER
350W 850W 1250W
VOLTAGE
120V
ACOUSTIC
PRESSURE
< 70 dB (A)
CLASS
N
Bowl Controls
Positioned underneath each bowl.
B
C
A
A - Beverage Type Control Switch
0: Cooling OFF
I: Slush/Frozen Cream Mode
II: Cold Drink Mode
B - Spiral Blade Switch
0: Spiral Blade OFF
I: Spiral Blade ON
C - Thermostat Control
Controls the temperature of the product when
the Beverage Type Control Switch is set to II.

Produkspesifikasjoner

Merke: Carnival King
Kategori: Ikke kategorisert
Modell: 382RWLL35

Trenger du hjelp?

Hvis du trenger hjelp med Carnival King 382RWLL35 still et spørsmål nedenfor, og andre brukere vil svare deg




Ikke kategorisert Carnival King Manualer

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer
