0807 Form # CC-302-20
Part # 62780
Crathco
®
Powdered Beverage Dispensers
Service Manual
for
PIC 1, 2, 3, 4, 5, 6
PSD 1, 2, 3, 4, 5, 6
PIC 23A, PIC33A, PIC43A, PIC5W
© Grindmaster Corporation™, 1996
PRINTED IN USA
TABLE OF CONTENTS
Prior authorization must be obtained from
Grindmaster Corporation™ for all warranty claims.
Warning Labels....................................... 2
Installation.............................................. 4
Start up Procedures................................. 4
How To Dispense Cappuccino.................. 5
Adjustments............................................ 5
Cleaning.................................................. 7
Preventative Maintenance ..................... 11
Service
Light Bulbs...................................12
Draining the Tank .......................12
Shipment Preparation .................12
Whipper Motors .........................13
Dump Valves .............................. 14
Grommets .................................. 14
Water Tank ............................... 14
Inlet Valve ................................. 16
Thermistor ................................ 17
Auger Motors ............................ 18
Blower Motor ............................ 18
Controller .................................. 18
Heater Relay ......................... ... 18
Transformer .............................. 18
Soluble Conversion .................. 19
Troubleshooting..................................... 20
Exploded Views......................................22
Wiring Diagram.....................................50
Grindmaster Corporation™
4003 Collins Lane
Louisville, Kentucky 40245 USA
(502) 425-4776
(800) 695-4500
(USA and Canada only)
(800) 568-5715 (Technical Service only)
FAX: (502) 425-4664
www.grindmaster.com
PIC 33A
PIC 1
PIC 2
PIC 5 PIC 6
Warning Labels
The following warning labels were on your dispenser when it was shipped from the factory. They should remain on
your dispenser in good, readable condition at all times. If one of your labels is missing or damaged, order a replace-
ment label immediately.

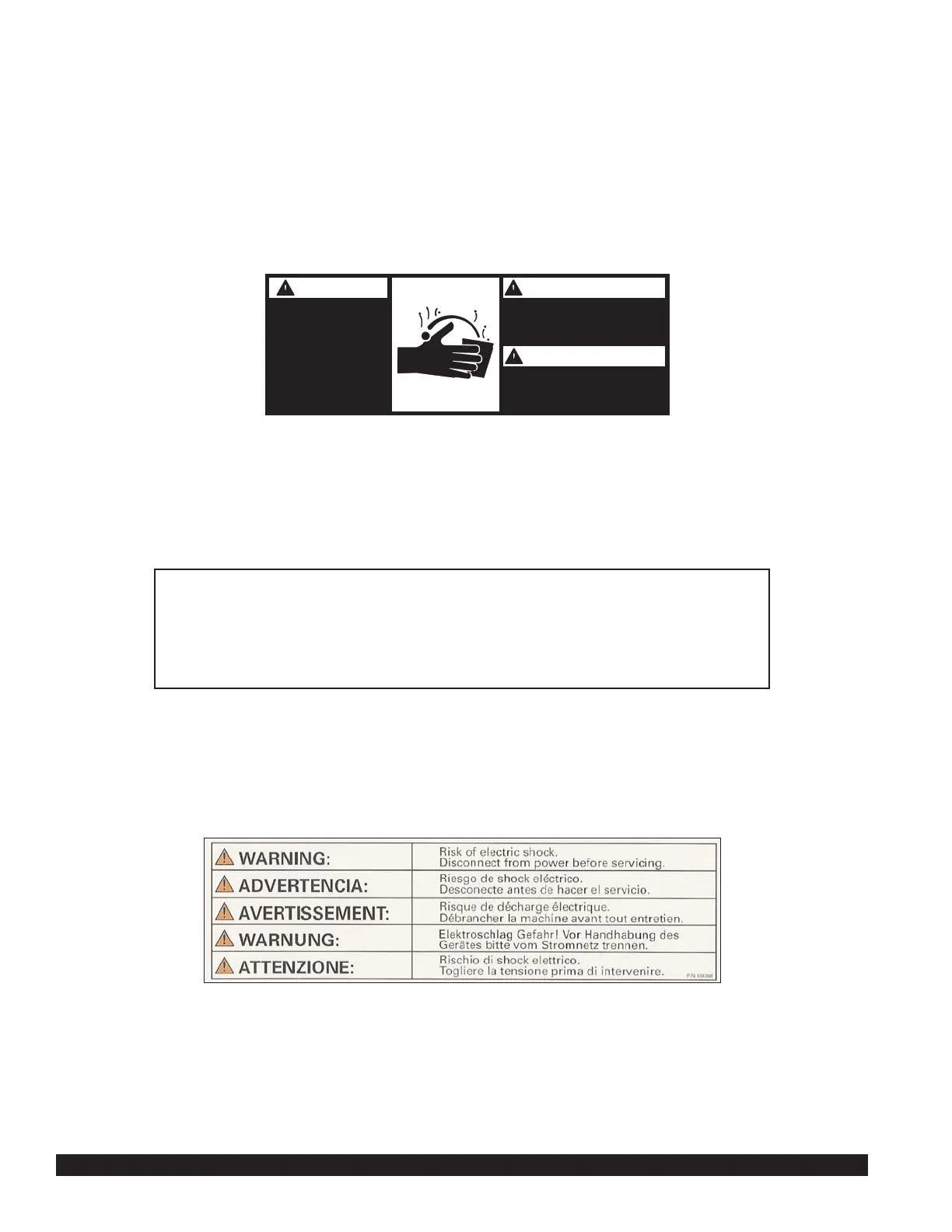

Part #61321 (PIC 1-4) - Located behind the drip pan on the front of the dispenser
WARNING: Risk of electric shock. Disconnect from power before servicing.
Hot parts and surfaces inside and outside machine may cause burns. Tank drain
hose inside machine dispenses very hot water. Will cause burns and/or personal
injury. Must have five gallon heat resistant container to catch hot water. Hot water
may splash. Do not attempt to stop hot water once it begins flowing. Replace plug
and clamp prior to refilling tank.
Page 2 Crathco® Powdered Beverage Dispensers
ADADVERVERTENCIATENCIA
Contenidos pueden causar
quemaduras severas si el
uso es inadecuado.
AAVERVERTISSEMENTTISSEMENT
Contenu peut provoquer
des brûlures grâves si il est
manipulé incorrectement.
WWARNINGARNING
Contents can cause
severe burns if
handled improperly.
PN# 62981

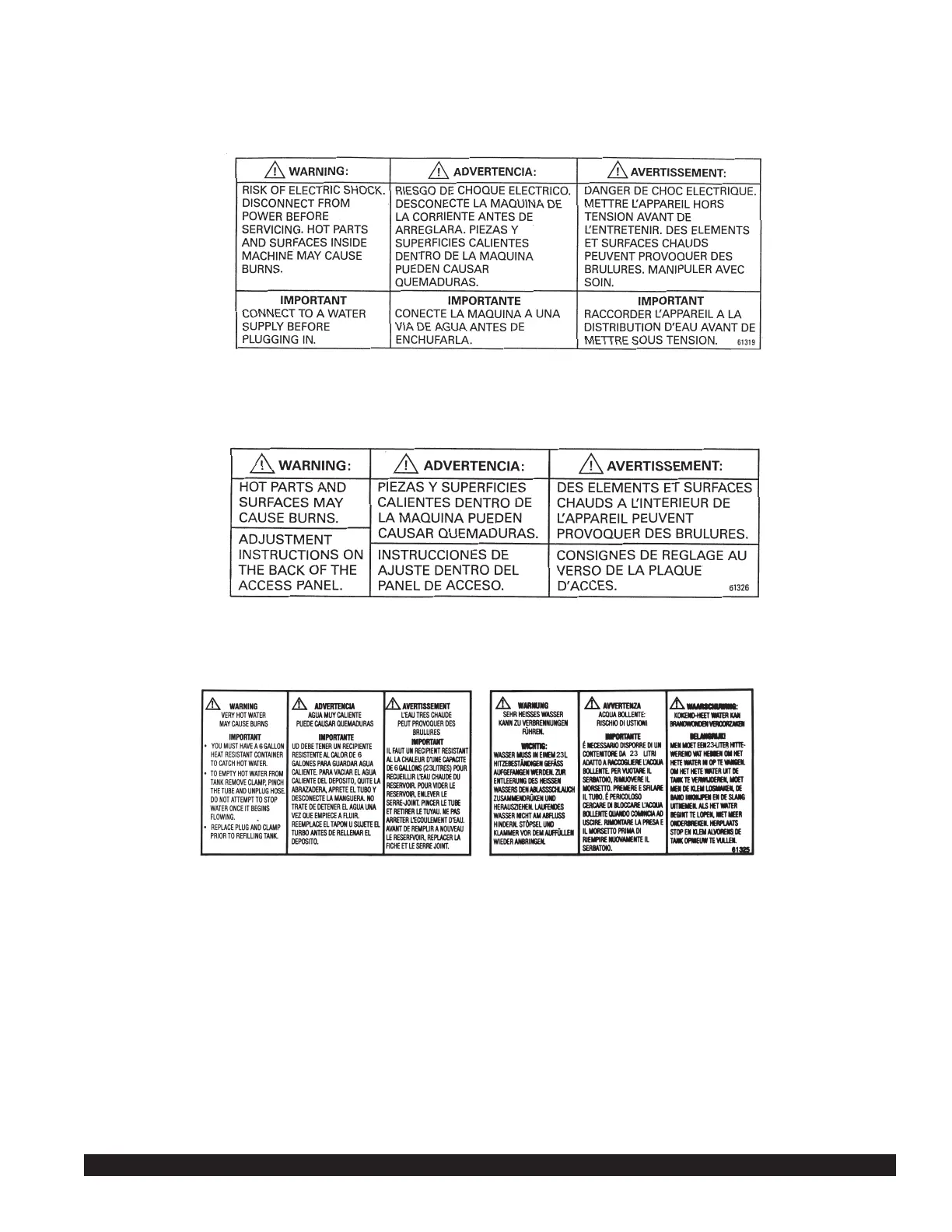

Part #62981 (PIC 5-6) - Located on the upper splash panel on the front of the dispenser
Part #100268 (PIC 5-6) - Located behind the drip pan on the front of the dispenser
Part #61319, Located on the outside on the back of the dispenser
Part #61326, Located on the outside on the left of the dispenser
Part #61325, Located on the drain hose inside the dispenser
Crathco® Powdered Beverage Dispensers Page 3
Warning Labels (cont.)
