Side 1/60
Model Number:
CBCS5913
CBCB5913
www.ciarraappliances.com
EN
1
Dear customer:
Thank you so much for your purchase, please read
this instruction manual carefully before installation
& use.
If you have any question, please contact us at:
E-mail: info@ciarraappliances.com
EN
Safety
! WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug or disconnect the
cooker hood from the power supply.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3
EN
Specifications
5
Voltage 220V-240V~ 50Hz
Power of Motor 1 x 85W
Power of lamps 2 x 1W
Appliance Dimension
520/750*280*254mm
(W
x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior
notice.
CBCB5913
CBCS5913
CBCB7913
CBCS7913
EN
Prepare for Installation
Prepare for Installation:

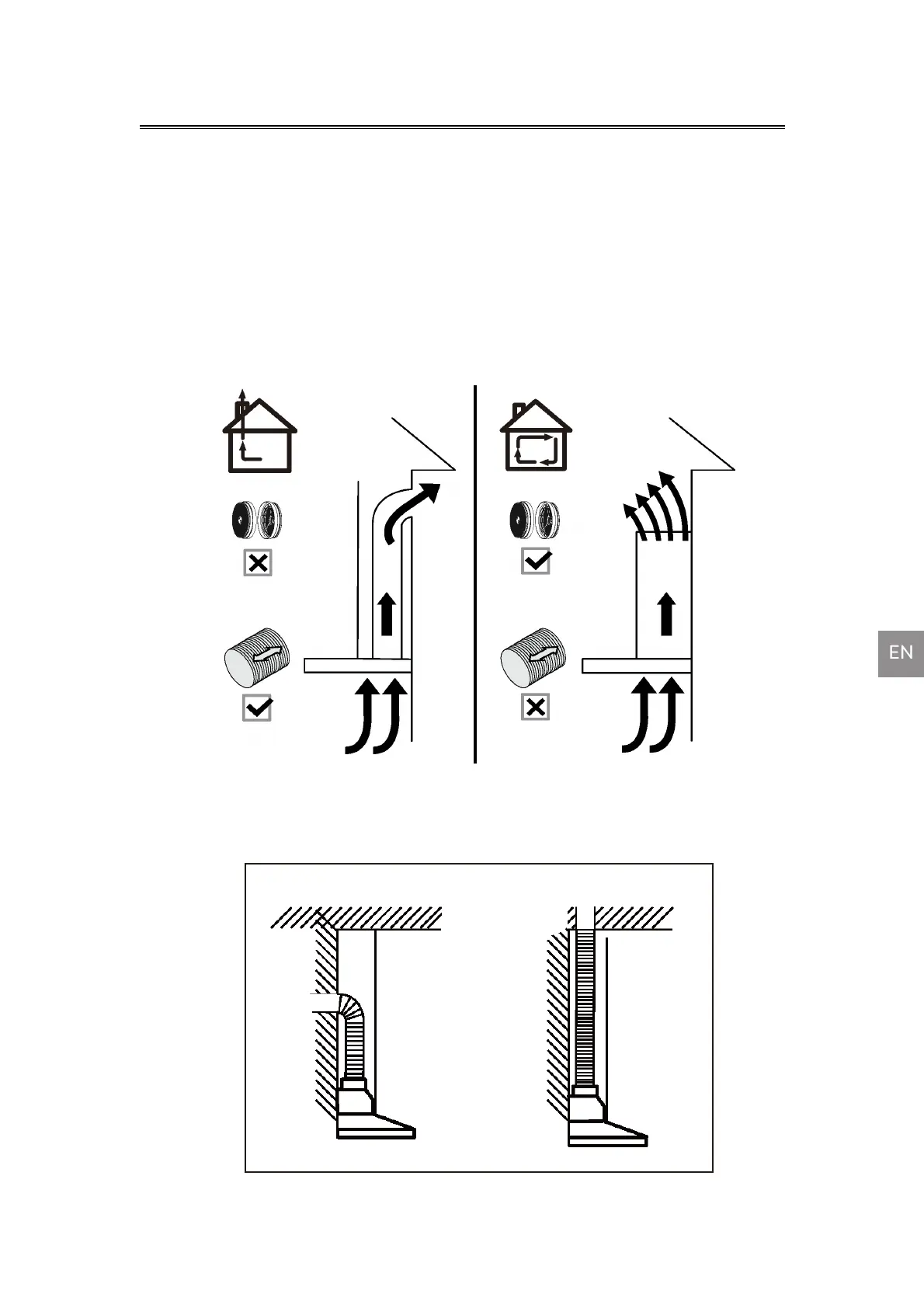

a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top vented
hole and the exhaust pipe is not required.
Extraction Mode: You can install the 1.5m long and 120mm diameter
aluminum exhaust pipe for extracting.
b) When possible, use at least 60cm straight runs before any turns.
Larger duct work may be required for best performance with longer
duct runs.
c) Before installation, don't connect the power.
7
EN
Installation
Install the Hood（Extrac
tion）:
1) Remove all protective poly film from the hood and/or parts.

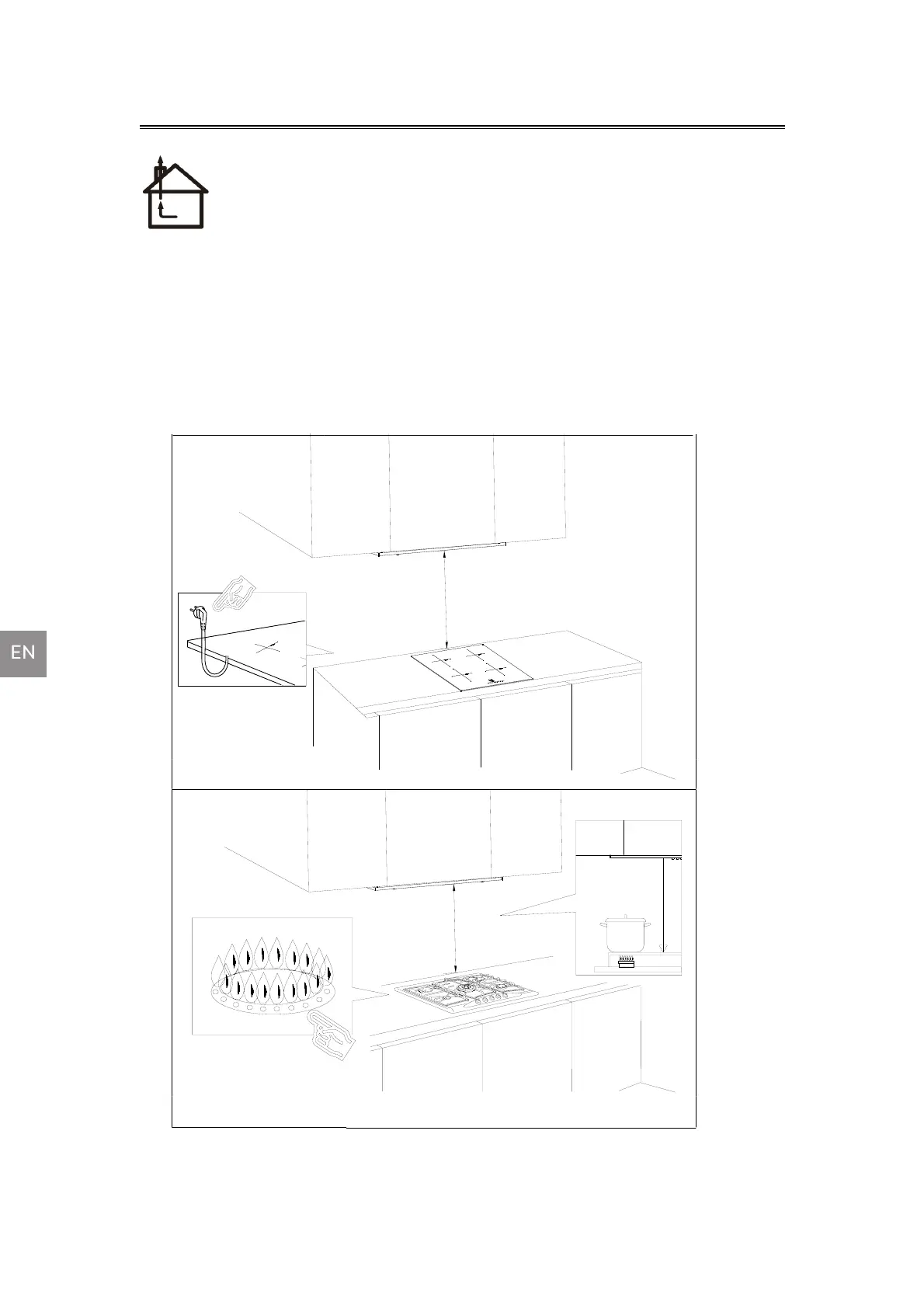

2) Recommend installation height: 65~75cm above the cooktop for
best extraction.
Required height over gas hob: 750mm;
Required height over electric hob: 650mm.
650mm
750mm
8
EN
Installation
7) Insert the plug of LED light into the power protection box and close
the cover. Then install the front panel and drill 2 pieces of setscrews.
Then install the aluminum grease filter back.
8) Connect the power and turn the LED lights on/off in order to test
whether the functions are working properly.
NOTE:
Make sure you remove the tape on the outlet and check if the
damper opens and closes freely, otherwise it make noises, and the
cooker hood will be shaking.
11
EN
Operation
13
Always turn your hood on before you begin cooking to establish an
airflow in the kitchen.
Let the blower run for a few minutes to clear the air after you turn off
the hood. This will help to keep the entire kitchen clean and fresh.
Mechanical Push button
Operate the hood as follows:
Off button
It's used to turn off the fan.
Low Speed button
For air ventilation with barely no noise; or simmering with very little
smoke and steam.
Medium Speed button
For your everyday cooking purpose.
High Speed button
High-Speed for stir-fry or cooking with lots of smoke and grease
produced.
Light button
When lights are OFF, press this button once to turn ON the lights. Press
this button again to turn OFF the lights.
EN
Cleaning and Maintenance
Proper maintenance of th
e Cooker Hood will assure proper performance
of t
he un
it.
Before cleaning unit, unplug or disconnect the cooker hood
from the power supply.
GREASE
FILTERS
The grease filters should be cleaned frequently. Can be cleaned in
dishwasher
un
der
hi
gh temperature
w
ithout
using any detergent.
CARBON FILTER
The carbon filter should be changed every 2-4 months depending on the
conditions of use. Replace more often if your cooking style generates lots
of greases, such as stir frying. These filters are not washable and cannot
be reused. Refer to installation instructions included with a carbon filter.
STAINLESS STEEL CLEANING
Do:
Regularly clean it with a
cloth
or rag soaked
with warm water and
mild soap or liquid dish
detergent.
You may
al
so use
a
s
pecialized
hous
ehold
stainless
s
teel
cleaner.
Don't:
Use any steel o
r
stainless-steel wool or any other scrapers to remove
stubborn dirt.
Use any harsh or abrasive cleansers.
Let plaster dust or any other construction residues reach the hood.
During construction/ renovation, cover the cooker hood to make sure no
dust sticks to the stainless-steel surface.
Avoid when choosing a detergent:
Any cleaners that contain bleach will attack stainless steel.
Any products containing: chloride, fluoride, iodide, bromide will
deteriorate surfaces rapidly.
Any combustible products used for cleaning such as acetone,
alcohol, ether, benzol, etc., are highly explosive and should never
be used close to a range.
PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration occurs,
use a finish polish such as automotive polish. (DO NOT use a rough
abrasive cleaner or porcelain cleaner.)
14
EN
Cleaning and Maintenance

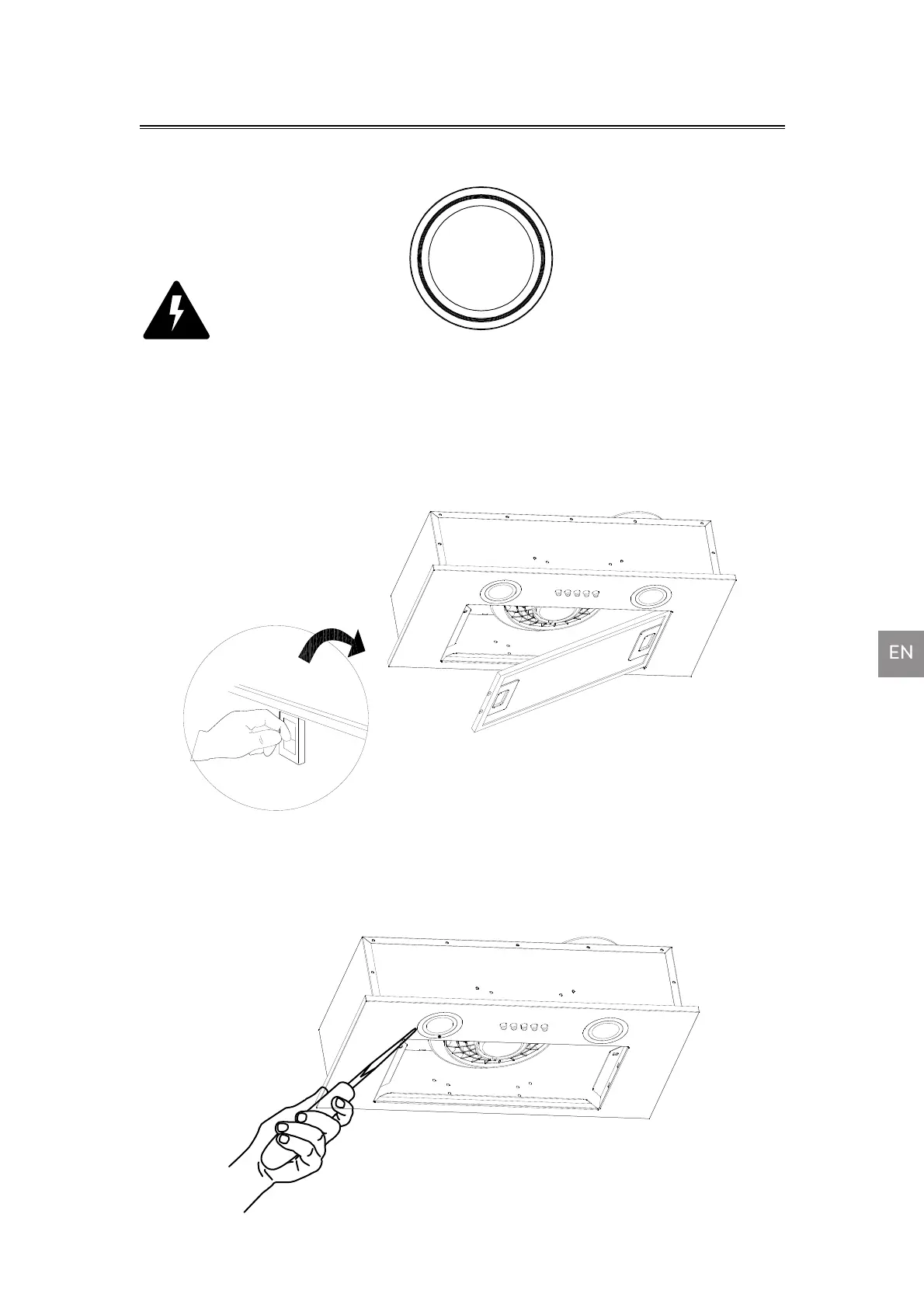

LED REPLACEMENT
Circular LED lamp:
CAUTION
：
Before cleaning or repairing and replacing accessories, please make
sure to shut down the power before operation, so as to avoid electric
shock, damage to human body and even endanger life safety!
1. Turn off the hood and unplug the power outlet. Detach the
aluminum grease filter in order for you to replace the LED lamp.
2. Push the LED lamp holder out from the cabinet by hand, or use
slotted screwdriver to prize up the LED lamp around the edges, pull
out the LED lamp and the wire together.
15
EN
Cleaning and Maintenance

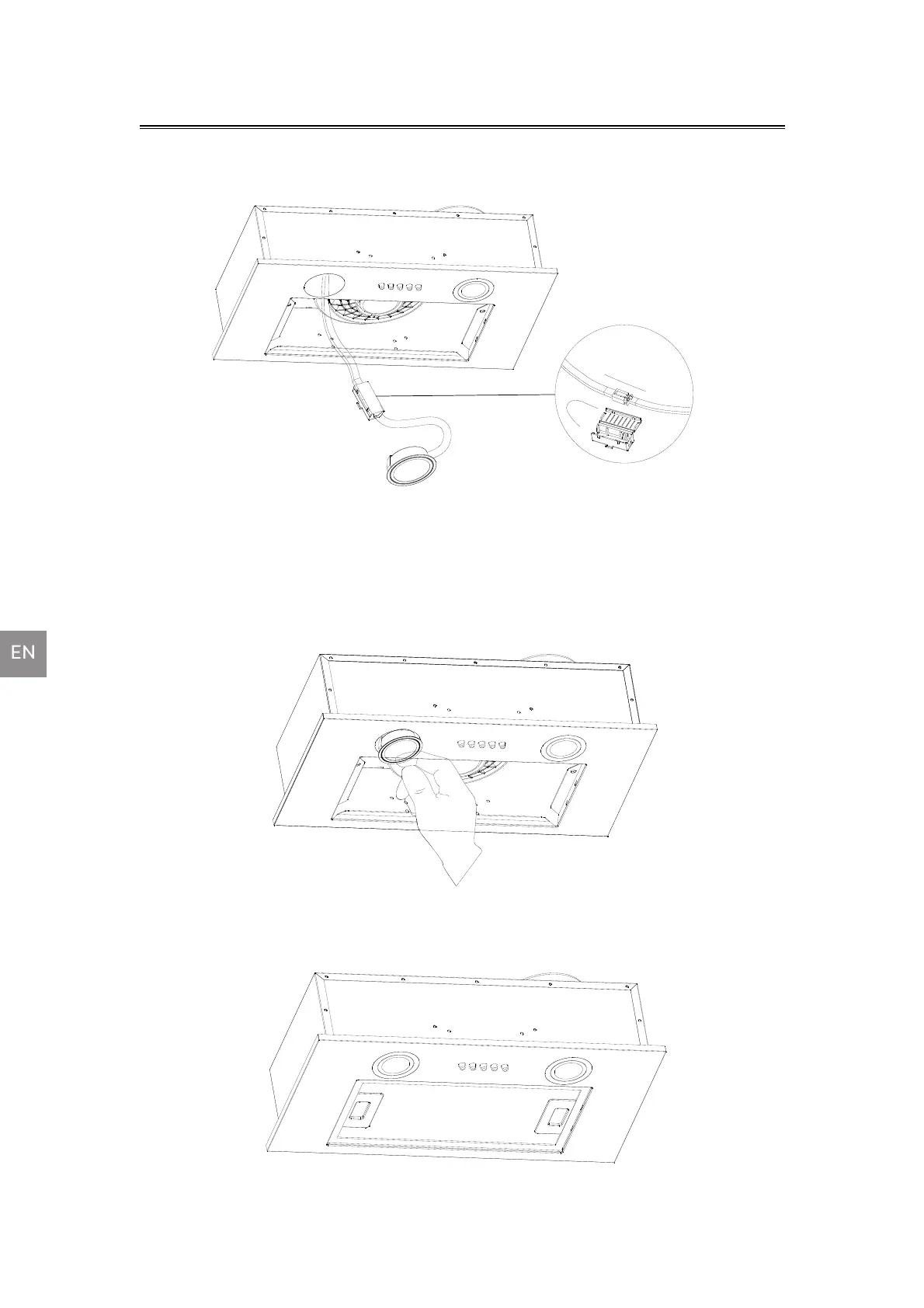

3. Open the power protection cover, pull out the plug and replace the
corresponding model of the LED lamp.
4. Turn the power on and test all blower and light functions to ensure
they are operating properly.
Insert the new LED light gently into the light socket, please make
sure you aim at the grooves on the lighting panel when installing.
Push the LED light in until it is flushed with the light panel.
5. Put the grease filter back on, you are good to go.
PULL OUT
OPEN
16
