Side 1/28

Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco 10-Gigabit XFP Transceiver Modules

Installation Note

Revised: February 3, 2012

Product Numbers:

This installation note provides the installation instructions for the 10-Gigabit XFP transceiver modules,

which are hot-swappable input/output (I/O) devices that plug into a 10-Gigabit port. The XFP transceiver

modules connect the system module port with a fiber-optic network.

This document contains these sections:

• Overview, page 2

• Safety, page 11

• Required Tools, page 17

• Installing the 10-Gigabit XFP Transceiver Module, page 17

• Removing the 10-Gigabit XFP Transceiver Module, page 19

• Translated Safety Warnings, page 21

• Related Documentation, page 26

• Obtaining Documentation and Submitting a Service Request, page 27

XFP-10G-MM-SR= XFP-10GLR-OC192SR= XFP10GLR-192SR-L=

XFP-10GER-OC192IR= XFP-10GER-192IR+= XFP10GER-192IR-L=

XFP-10GZR-OC192LR= DWDM-XFP-xx.xx= DWDM-XFP-C=

XFP10GLR192SR-RGD= XFP10GER192IR-RGD= XFP10GZR192LR-RGD=

Cisco 10-Gigabit XFP Transceiver Modules Installation Note

OL-24246-01

Overview

The 10-Gigabit XFP transceiver module is a hot-swappable I/O device that plugs into 10-Gigabit ports.

(See Figure 1.) The XFP transceiver module connects the electrical circuitry of the system with the

optical network.

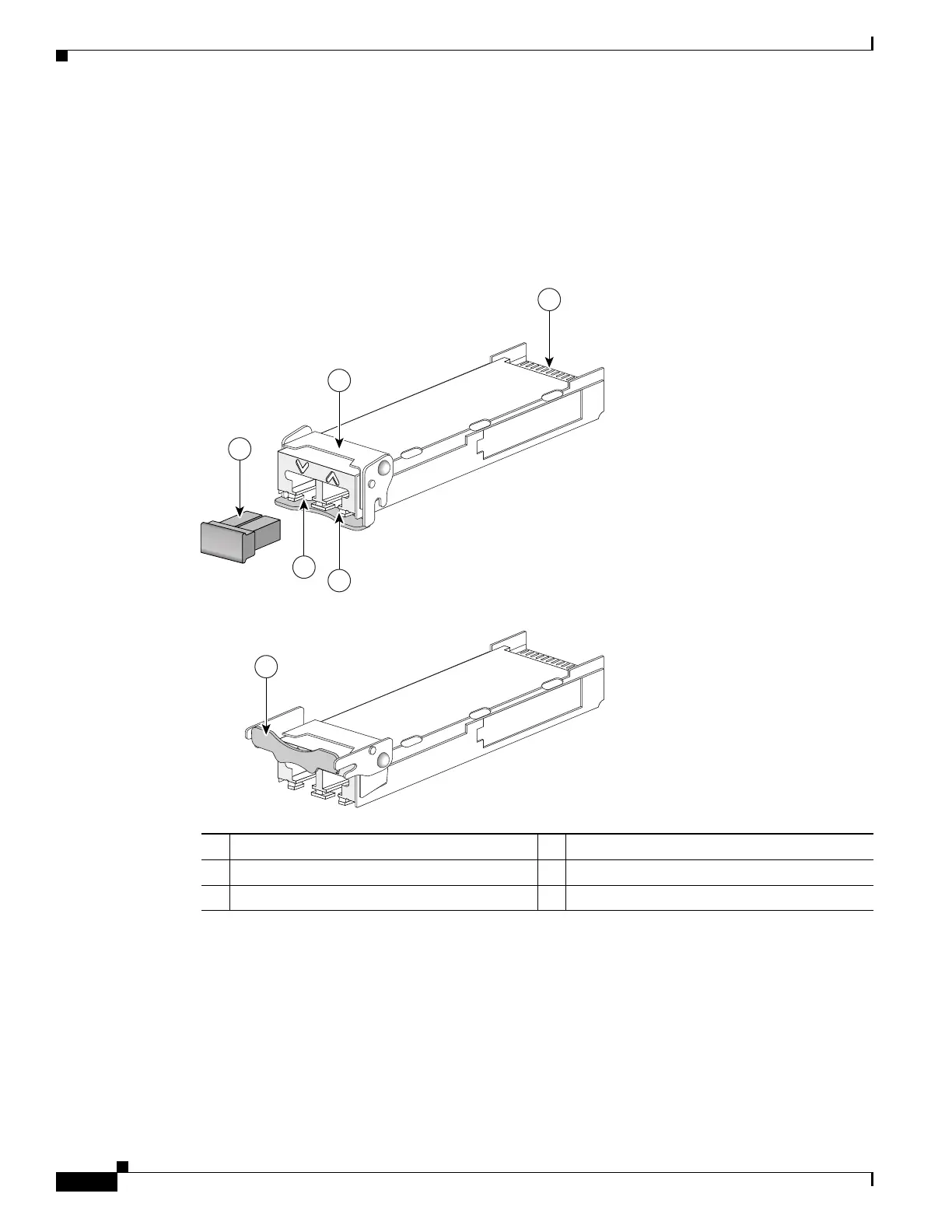

Figure 1 10-Gigabit XFP Transceiver Module

The different XFP transceiver module types are listed in Table 1 and Table 2.

1 Transmit optical bore 4 Bail clasp (locked position)

2 Receive optical bore 5 Dust plug

3 Transceiver socket connector 6 Bail clasp (unlocked position)

144375

Produkspesifikasjoner

Merke:	Cisco
Kategori:	netverkskort/adapter
Modell:	XFP10GLR192SR-RGD
Vekt:	300 g
Bredde:	18.5 mm
Dybde:	71 mm
Høyde:	8.5 mm
Bølgelengde:	1310 nm
Maksimal dataoverføringshastighet:	10000 Mbit/s
Fiberoptisk kontakt:	XFP
Rx-effekt (maks.):	14.4 dBmW
Rx bølgelengde (min):	1260 nm
Produktfarge:	Sølv
Strømforbruk (vanlig bruk):	3.5 W
Driftstemperatur (T-T):	-40 - 85 °C
Fibre Channel-porter:	1
Maksimal overføring avstand:	10000 m
Tx effekt (min.):	-8.2 dBmW
Tx effekt (maks.):	0.5 dBmW
Type grensesnitt:	XFP
SFP-transceivertype:	Fiber optisk
Rx-effekt (min.):	0.5 dBmW
SFP-sender standard:	LR
Tx bølgelengde (max):	1260 nm
Tx bølgelengde (min):	1355 nm
Rx bølgelengde (max):	1565 nm
