SWRNS-63A
Radio Replacement with Steering Wheel Control Retention
for Select 2012-2019 Nissan Vehicles
1 of 2
RAD IO REPL ACEMENT
SWC RETENTIO N
+
R
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Medium Speed CAN-Data Bus Steering Wheel Controls.
- Includes antenna adapter.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRNS-63A Harness
Antenna Adapter
SWRNS-63A MODULE
SWC Cables

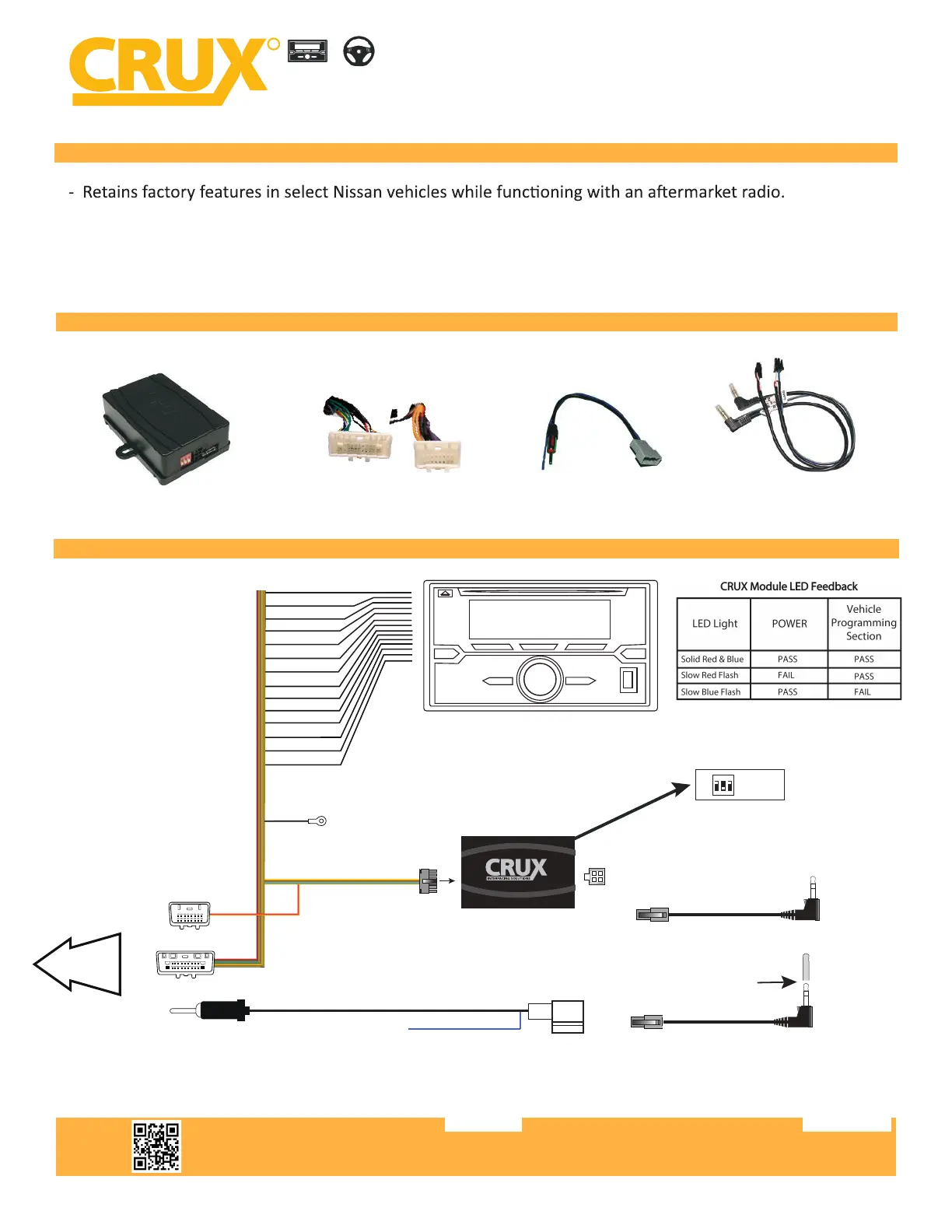

INSTALLATION DIAGRAM FOR NON-AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal) Brown/White
Chassis Ground Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
BLUE/ Power Antenna
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
16 PIN
20 PIN
