Side 1/36

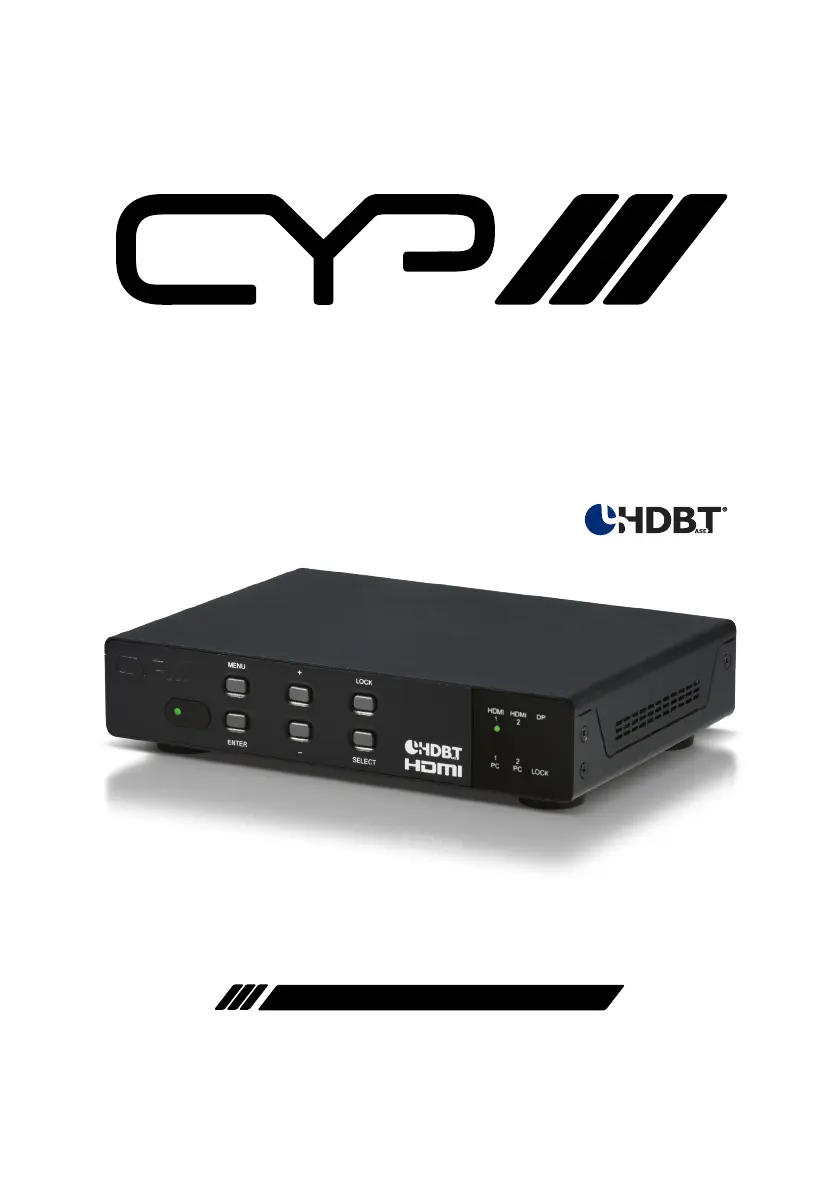

EL-5400-HBT

HDMI / VGA / Display Port Presentation Switch & Scaler

with HDMI & HDBaseT™ LITE Outputs

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer file, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Produkspesifikasjoner

Merke:	CYP
Kategori:	Ikke kategorisert
Modell:	EL-5400-HBT
Bredde:	156 mm
Dybde:	219 mm
Høyde:	43 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Antall HDMI-porter:	3
HDCP:	Ja
Materiale:	Metall
HDMI-versjon:	1.4
Antall DisplayPorts:	1
Antall per pakke:	1 stykker
HDMI inn:	2
Antall HDMI-utganger:	1
Produktfarge:	Sort
AC-adapter utgangsspenning:	24 V
AD-adapter utgangsstrøm:	3.75 A
Støttede grafikkoppløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
RS-232-port:	2
Strømforbruk (vanlig bruk):	22 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Antall VGA (D-Sub)-porter:	2
Lydinngang (V/H) inn:	3
Fjernkontroll medfølger:	Ja
RJ-45-inngangsporter:	1
Video ut:	1
Videoopptaksgrensesnitt:	5
Lydutgang (venstre/høyre):	1
AC-adapter bunt:	Ja
Video tilkoblingstype:	HDMI/VGA/DisplayPort
RJ-45-utgangsporter:	1
