RCS-1000
QUICK START GUIDE
NOVEMBER 2017 - VERSION 2.1.4
INTRODUCTION
The RCS-1000 is an app for either iPad (iOS) or Android (Google) tablets which can be downloaded from
the App Store (iOS) or Play Store (Google). RCS-1000 is designed to control certain Datavideo products
including the SE-1200MU (6-input switcher), up to 4 PTC-150/PTC-150T cameras (HD PTZ cameras) and as
HDR-60/70 (HD recorder). Once RCS-1000 and Datavideo devices are connected to a “network” you
will be able to switch an event, control the cameras with presets as well as start/stop recording - all from
one interface.
1. All of the datavideo devices must be connected to the same network via a LAN (RJ-45 cable connection)
with the exception of the recorder. For this example we will be using two datavideo PTC-150 cameras
along with an SE-1200MU switcher and one HDR-70 recorder. The RCS-1000 software will be running
on IOS however, the Android conguration is similar. In this quick start, we will explain how to congure
each device.
CONNECT

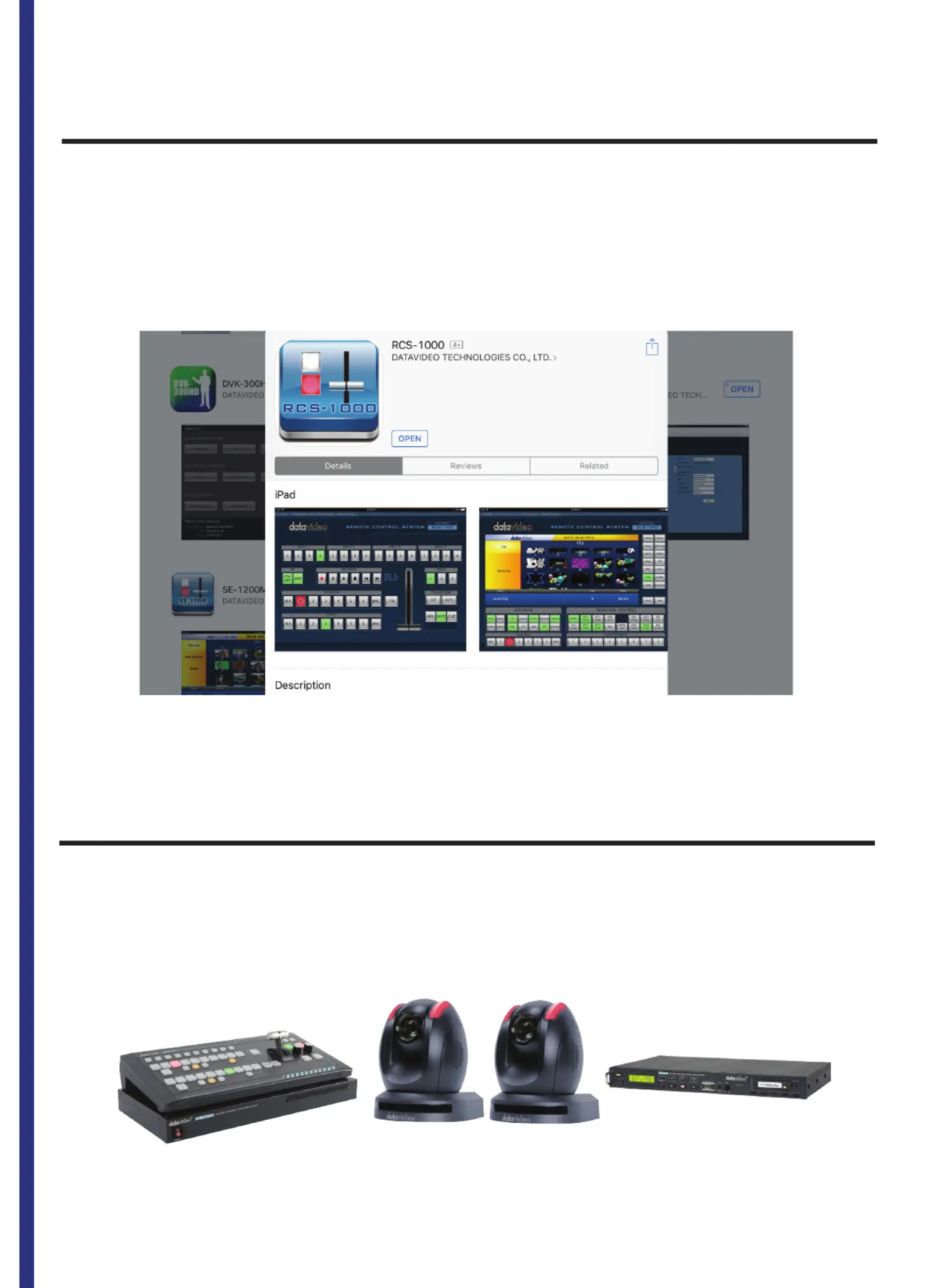

Fig 1. Application Download
Fig 2. SE-1200MU & RMC-260, PTC-150s, HDR-70
2.
3.
2. Once the RCS-1000 is installed on a tablet, make sure you’re connected wirelessly to the same network
as the cabled devices.
3. Make sure the dip switches 1 and 4 on the bottom of the PTC-150(T) have been moved to the on (Top)
position as show below in Fig 3:
Fig 4. DVIP Input
4. Connect the DVIP output of the camera to the router using a network cable as shown below in Fig 4:
Fig 5. DVIP Input
5. Press “Menu” on the cameras included IR remote to access the on screen display menu of the PTC-
150(T). Arrow down to option “4 Remote Control” and press enter. Arrow down to “4: SET DVIP” and
press enter, make sure the DVIP Baud rate is set to 115200 as shown below in Fig 5:
Fig 3. Dip Switches
