De Dietrich DFW814W Bruksanvisning

De Dietrich Vaskemaskin DFW814W

Les nedenfor 📖 manual på norsk for De Dietrich DFW814W (6 sider) i kategorien Vaskemaskin. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/6

click

EURO

2.7 Adjusting the clock time. Set the clock

at the correct time. Turn the control knob

and the two hour digits will appear. Press

the control to select it (2.7.1). Turn the

control knob and the two digits

corresponding to minutes will appear.

Press the control to select it (2.7.2).

LOADING THE WASHING MACHINE

2.8 Opening the hatch. Press .

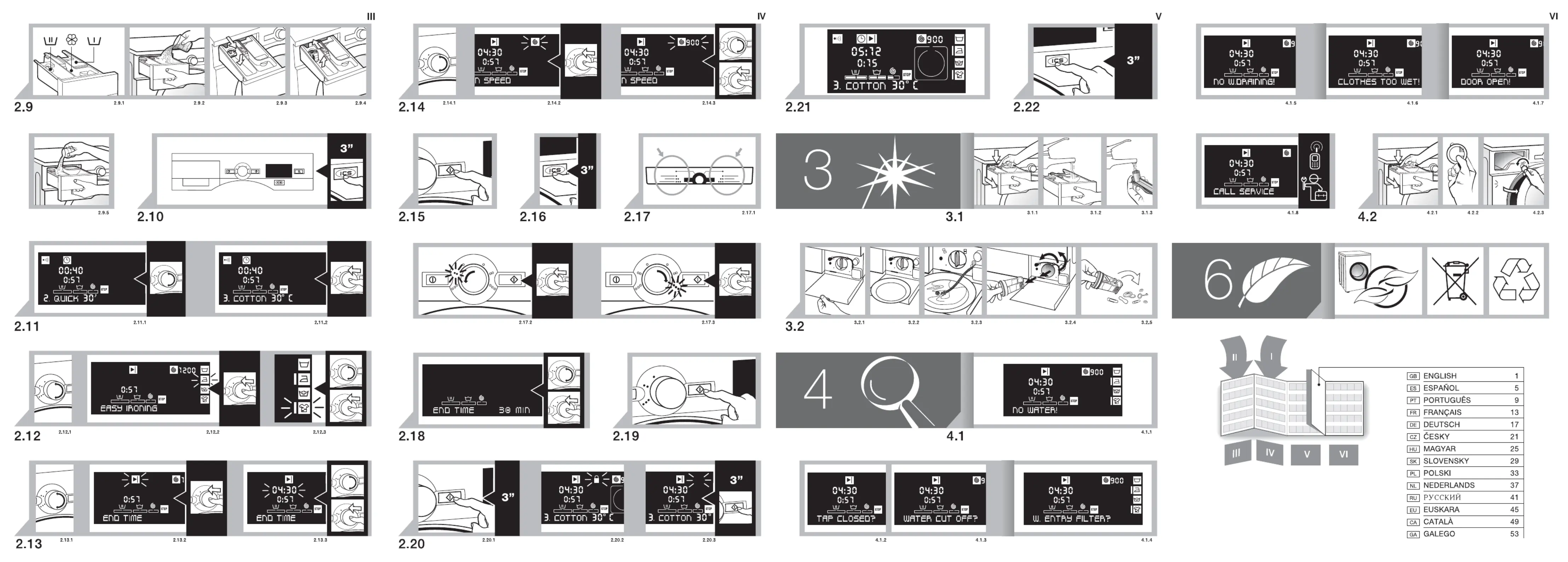

2.9 Detergents and additives. Load the

clothes into the washing machine after

having separated them according to

colour, level of dirt and type of fabric.

The tub contains the following

compartments: wash , prewash

and softener (2.9.1).

All washing machines are prepared for

powdered detergents (2.9.2).

If you wish to use liquid detergent

(2.9.5), you will find a blue latch (2.9.3)

in the wash compartment. Pull it

outwards as far as it will go, release it

and it will remain in the vertical position

(2.9.4). This prevents the liquid detergent

from escaping. To go back to using

powdered detergent, move the blue

latch to the horizontal position and

push it backwards as far as it will go

to open the door.

Remember that you should not exceed

the MAX level marked on the softener

compartment.

1.2 Connection to the mains water (1.2.1,

1.2.2 and 1.2.3). Always use the new

hose supplied with the appliance. Remove

any previously used supply tubes.

1.3 Draining. Install the elbow supplied, in

accordance with the measurements

shown in the diagram.

1.4 Levelling. Correctly level the washing

machine to prevent any noise or shifting.

The recommended order is as follows: 1.

Position the rear legs and fix them in place

(1.4.1). 2. Place the washing machine in

its final location (1.4.2). 3. Position the

front legs and fix them in place (1.4.3).

1.5 Connection to the mains electric. Refer

to the plate data.

Use

2.1 Before using the washing machine.

Find the label with your language (2.1.1.)

and stick it on to the tub (2.1.2., 2.1.3

and 2.1.4.).

CONFIGURATION MENU

2.2 Switching on. Press .

2.3 Configuration menu. Press .

2.4 Selecting the language. You can

choose the language by turning the

control knob (2.4.1 and 2.4.2). Press the

control to select it (2.4.3 and 2.4.4).

Produkspesifikasjoner

Merke:	De Dietrich
Kategori:	Vaskemaskin
Modell:	DFW814W
Vekt:	83000 g
Bredde:	590 mm
Dybde:	590 mm
Høyde:	850 mm
Energieffektivitetsklasse (gammel):	A+
Vannforbruk per syklus:	59 l
Antall vaskeprogrammer:	16
Nominell kapasitet:	8 kg
Vaskeprogrammer:	Hygiene/anti-allergy, Black
Produktfarge:	Hvit
Skjermtype:	LCD
Lastetype:	Frontmatet
Strømforbruk (vanlig bruk):	2200 W
Aquastop-funksjon:	Ja
Plassering av innretning:	Frittstående
Krav til strømforsyning:	220-230 V, 50 Hz, 10 A
Gjenværende tid angis:	Ja
Maksimal sentrifugeringshastighet:	1400 RPM
Skumkontrollsystem:	Ja
Belastningsbalansering:	Ja
Energiforbruk ved vask per syklus:	1.36 kWh
Vaskeklasse:	A
