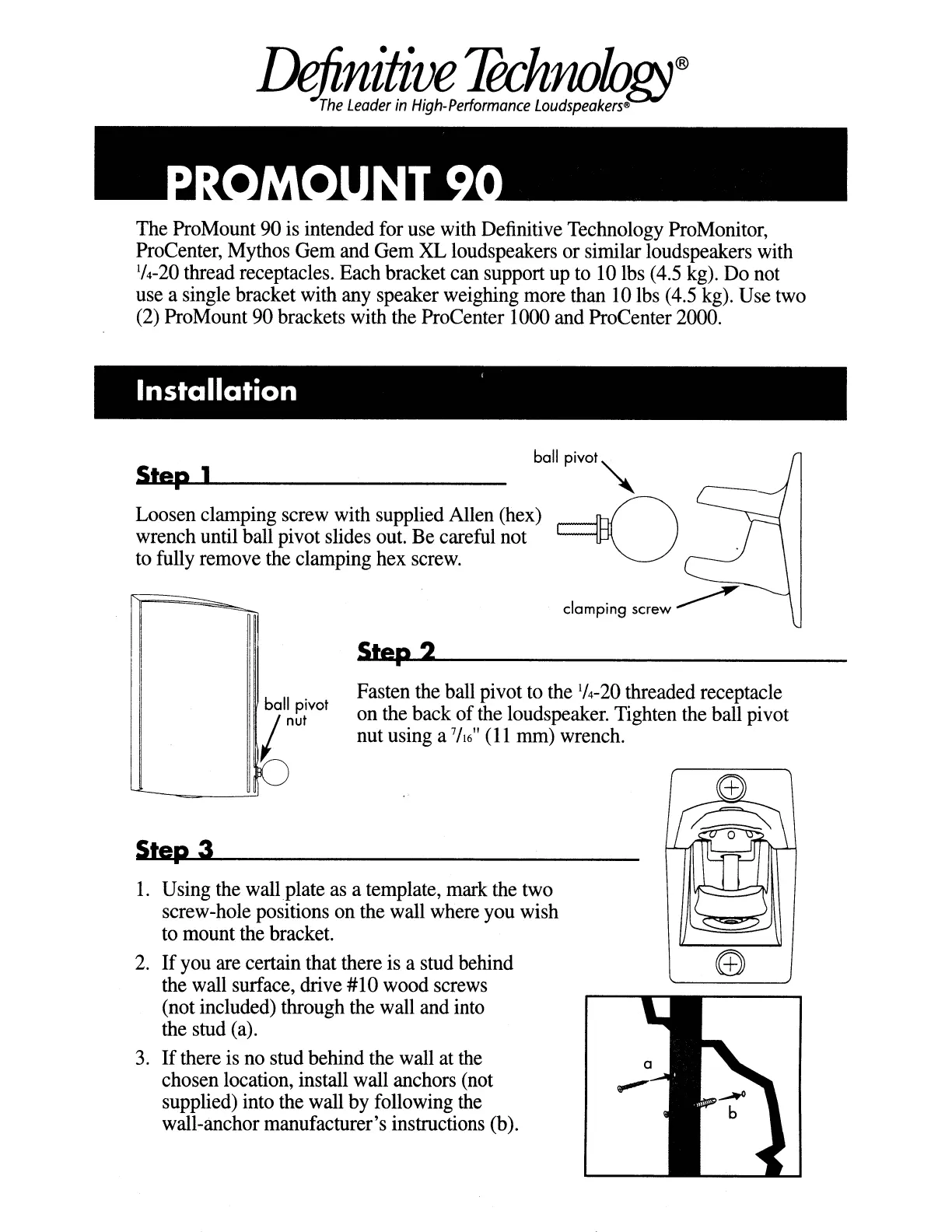

The ProMount 90 is intended for use with Definitive Technology ProMonitor,

ProCenter, Mythos Gem and Gem

loudspeakers or similar loudspeakers with

4-20 thread receptacles. Each bracket can support up to 10 lbs (4.5 kg).

not

use a single bracket with any speaker weighing more than 10 lbs (4.5 kg). Use two

(2) ProMount 90 brackets with the ProCenter 1000 and ProCenter 2000.

Installation

clamping screw

Loosen clamping screw with supplied Allen (hex)

wrench until ball pivot slides out. Be careful not

to fully remove the clamping hex screw.

SIep.J---------

ball

Pivot~

~---------------

Fasten the ball pivot to the

4-20 threaded receptacle

on the back

the loudspeaker. Tighten the ball pivot

nut using a

(11

mm) wrench.

SbQl.3~------------

Using the wall plate as a template, mark the two

screw-hole positions on the wall where you wish

to mount the bracket.

you are certain that there is a stud behind

the wall surface, drive #10 wood screws

(not included) through the wall and into

the stud (a).

there is no stud behind the wall at the

chosen location, install wall anchors (not

supplied) into the wall by following the

wall-anchor manufacturer's instructions (b).

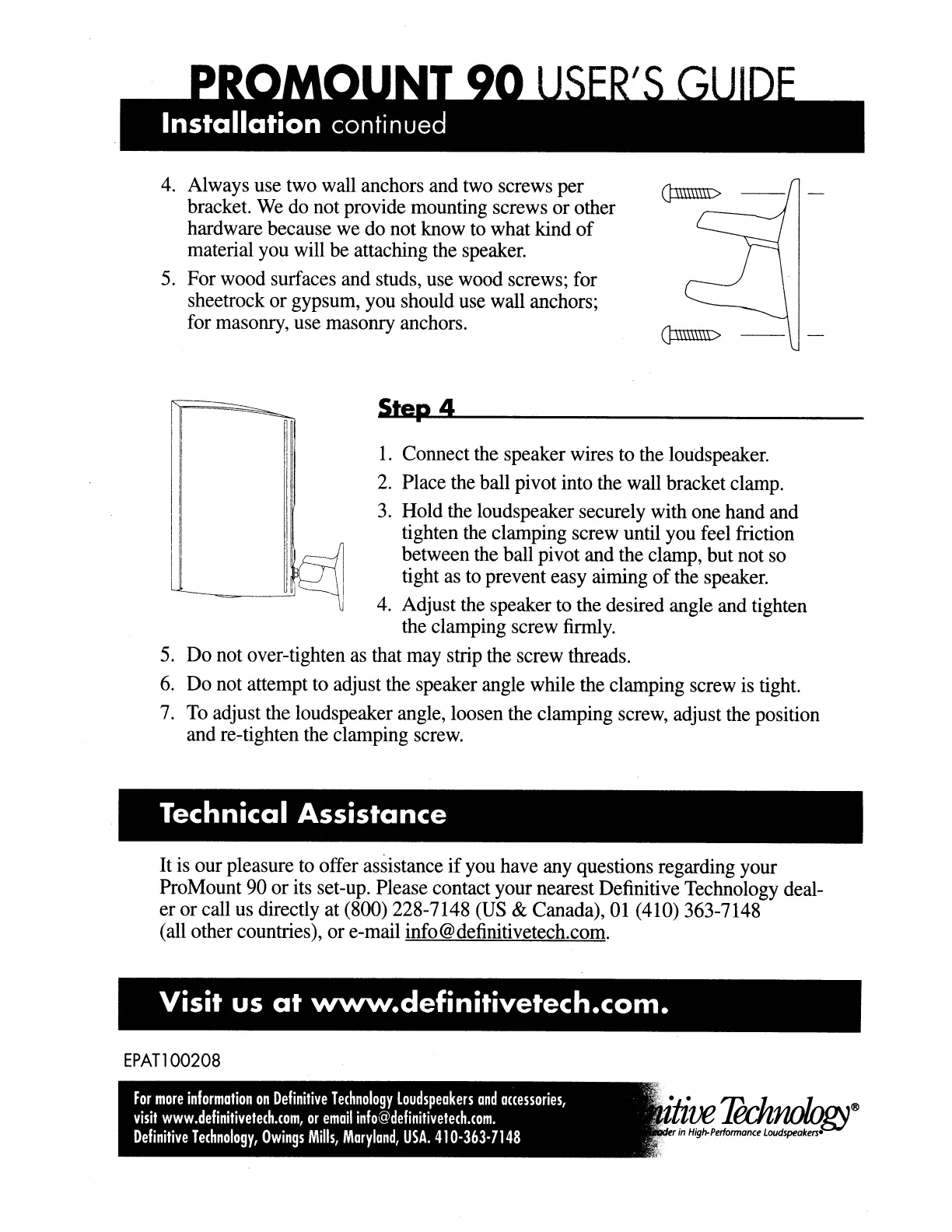

4. Always use two wall anchors and two screws per

bracket. We do not provide mounting screws

other

hardware because we do not know to what kind

material you will

attaching the speaker.

5. For wood surfaces and studs, use wood screws; for

sheetrock

gypsum, you should use wall anchors;

for masonry, use masonry anchors.

Q:mmm>

- -

Step

----~-~

I. Connect the speaker wires to the loudspeaker.

2. Place the ball pivot into the wall bracket clamp.

Hold the loudspeaker securely with one hand and

tighten the clamping screw until you feel friction

between the ball pivot and the clamp, but not so

tight as to prevent easy aiming

the speaker.

Adjust the speaker to the desired angle and tighten

the clamping screw firmly.

not over-tighten as that may strip the screw threads.

not attempt to adjust the speaker angle while the clamping screw is tight.

7. To adjust the loudspeaker angle, loosen the clamping screw, adjust the position

and re-tighten the clamping screw.

Technical

Assistance

It is our pleasure to offer assistance

you have any questions regarding your

ProMount 90

its set-up. Please contact your nearest Definitive Technology deal-

call us directly at (800) 228-7148 (US & Canada),

(410) 363-7148

(all other countries), or e-mail info@definitivetech.com.

Visit

www.definitivetech.com.

EPAT100208

For

information

Definitive

Te(hnology

Loudspeakers

and

a«essories,

visit

www.definitivete(h.com.

info@definitivete(h.(om.

Definitive

Te(hnology,

Owings

Mills,

Maryland,

USA.

410-363-7148

-tive

Techt!fJ!ngy®

High-Performance

Loudspeakers
