Ceiling mount bracket for vandal dome, vandal ball and
vandal fisheye cameras
Quick Start Guide
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results
for applicable part numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
DWC-VACM DWC-VFCMW DWC-VFZCM
WHAT’S IN THE BOX
Camera Mounting Screws
5
sets
Mounting Pad
1
Mounting Template 1
Quick Setup Guide 1
Hexagonal Wrench 1 Screws and Plastic Anchors 4
M3.0x 23mm
M3.0x 20mm
with Rubber
Gasket
M3.0x 35mm
Quick Start Guide
Rev: 10/22
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.

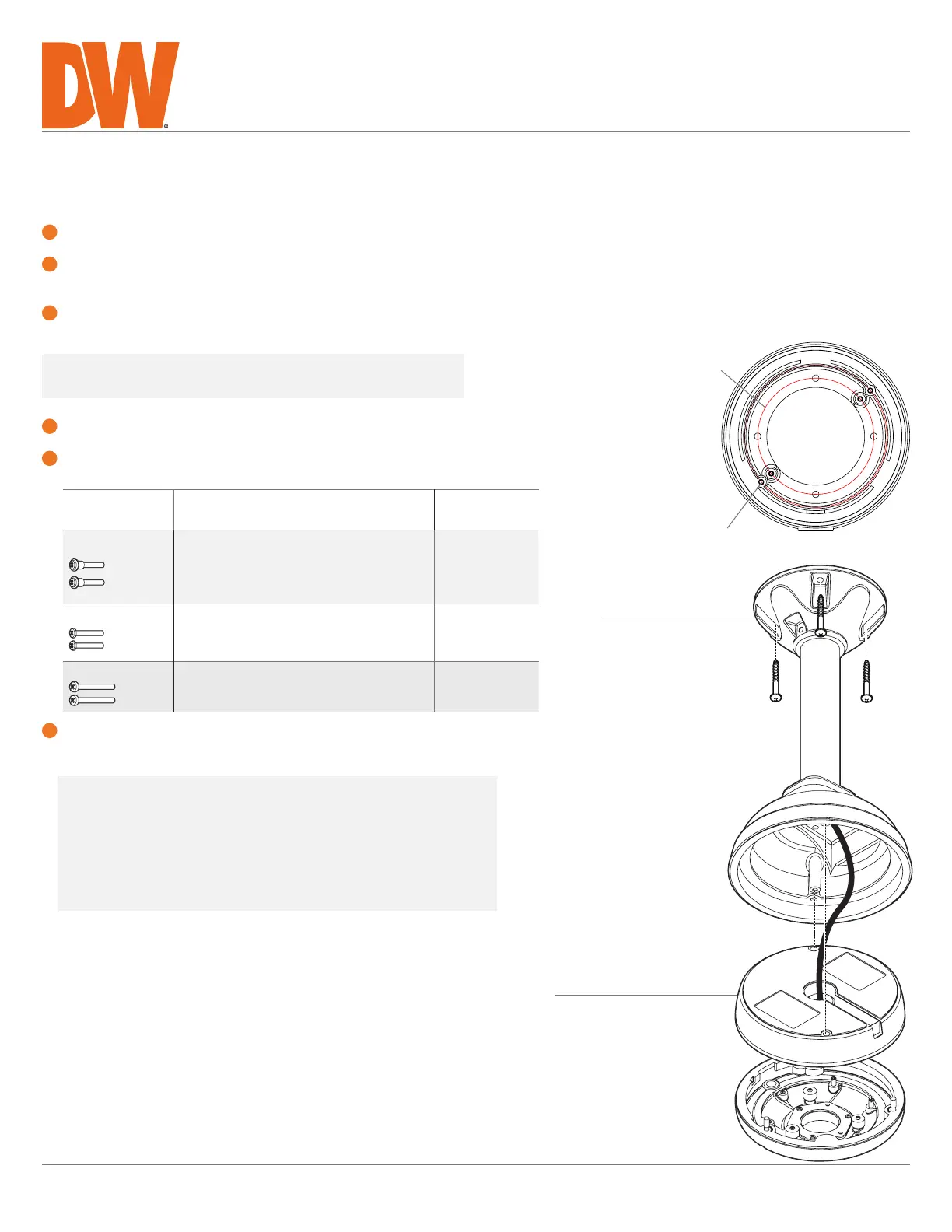

1
Using the mounting template or the mounting bracket itself, mark and drill the necessary holes on the mounting surface.
2
Secure the mounting bracket to the mounting surface using the screws and anchors that were included with the mount. Use the
mounting pad between the bracket’s arm and mounting surface as needed.
3
To mount the camera to the mounting accessory, remove the dome from the camera base using the wrench included with the
camera.
NOTE: Do not touch the lens when handling the camera.
4
Pass wires through and make all necessary connections.
5
Secure the camera to the mounting bracket using the included screws. See the
table below for the length of the screws and compatible cameras.
Screw size Compatible camera
Installation
Option
20mm screws
DWC-MV8 and DWC-MPV8 models
DWC-MVC and DWC-MPVC models
DWC-PVF and DWC-PPVF models
DWC-MF and DWC-MPF models
Installation
option A/B*
23mm screws
DWC-VA models
DWC-MVA models
DWC-MPVA models
Installation
option B
35mm screws
DWC-MVD and DWC-MPVD models
Installation
option A
6
Adjust the camera’s lens position and angle and place the cover dome
on the camera base to complete the installation.
Ceiling mount
Camera module
Camera dome
cover
INSTALL ATION
* NOTE: How to tell what MF, V8 or PVF hardware you have:
If the camera’s mounting holes are located on the outer edge
of the camera’s base, use the 20mm screws WITHOUT the
rubber gaskets and installation option A.
If the camera’s mounting holes are located on the inner edge
of the camera’s base, use the 20mm screws with the rubber
gaskets included and installation option B.
For type A installations
Ø4.29” (Ø109mm)
For type B installations
Ø3.5” (Ø89mm)
