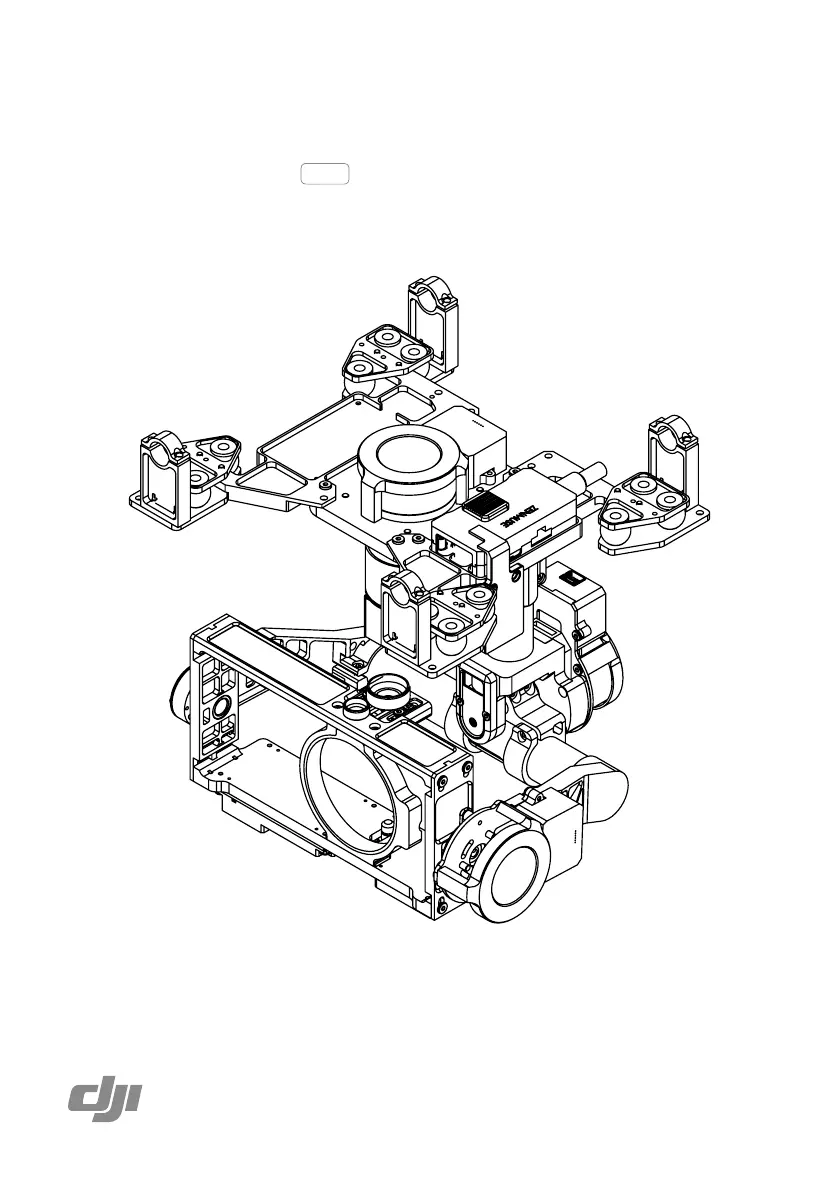

Zenmuse Z15-BMPCC

2015.09

V1.4

User Manual

Warning & Disclaimer

Do not modify or adjust the Z15-BMPCC.

The Z15-BMPCC has been calibrated specically for the designated Camera and Lens before it

leaves the factory. Please mount only the designated camera and lens to the Z15-BMPCC. No

adjusting or amending is allowed to the Z15-BMPCC. Do not modify or add any other component/

device (such as filters, lens hood, etc.) to the camera. Make sure to use the original camera

battery, otherwise performance may be hindered and also possibly cause internal malfunctions and

damage to the gimbal. The Z15-BMPCC can only work with Flight Control Systems developed by

DJI (A2/ WooKong M:

please upgrade to the latest Flight Control System rmware

), so as to

ensure the highest amount of stability and precision. Please download the corresponding Assistant

Software and upgrade the Flight Control System’s MC rmware, otherwise the Z15-BMPCC will

work abnormally. Make sure the Flight Control System operates in the safest manner when the

main battery power is connected. We strongly recommend users to remove all propellers and use

the power supply from the R/C system or ight pack battery and keep children away during gimbal

calibration and parameter setup. Follow these steps to mount and connect the gimbal to your

aircraft as well as during the installation of the Assistant Software on your computer. Please respect

the AMA’s National Model Aircraft Safety Code.

As DJI has no control over use, setup, nal assembly, modication (including use of non-specied

DJI parts i.e. motors, ESCs, propellers, etc.) or misuse, no liability shall be assumed nor accepted

for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all

resulting liability. DJI assumes no liability for damage(s) or injuries incurred directly or indirectly

from the use of this product.

DJI and Zenmuse are registered trademarks of DJI as names of product, brand, etc., appearing

in this manual are trademarks or registered trademarks of their respective owner companies.

manual shall be reproduced in any form without the prior written consent or authorization of DJI.

Specied Camera and Lens Type List for Z15-BMPCC

Camera Type

Blackmagic Pocket Cinema Camera (BMPCC)

Lens Type

OLYMPUS M.ZUIKO DIGITAL ED 12mm f/2.0

Firmware Versions of Supporting DJI Flight Control Systems

WooKong

: V5.26

A2:

V2.1 or above

Manual Tips

Legends

Important Tips

Product Proile

The Z15-BMPCC is a sophisticated, technologically advanced, class leading gimbal designed

specifically for aerial creativity. It has a built-in independent IMU module, special servo drive

module, HDMI HD/AV module, and more. The Z15-BMPCC performs well in all modes, including

Orientation-locked, Non orientation-locked and FPV (Reset).

Working Modes

Orientation-locked Non orientation-locked FPV (Reset)

Gimbal Direction Gimbal pans with aircraft nose.

Gimbal pan and aircraft

nose move separately.

Gimbal pan and

aircraft nose are

synchronized.

Gimbal and Aircraft

Nose Relative Angle

Gimbal keeps the same relative

angle with aircraft nose.

Relative angle between

gimbal direction

and aircraft nose is

controllable.

The relative angle

between gimbal

direction and aircraft

nose is 0°.

TX Control Controllable Controllable Uncontrollable

Attitude Stability* YES YES YES

Vibration Reduction YES YES YES

Stick Movement

Denition

ROLL is locked level in 0~2/3

stick command and rotates in

2/3 ~endpoint; stick command

moves the rotation angle which

is limited to 360 °in PAN; stick

command moves the TILT

rotation velocity of the gimbal.

Stick command for

gimbal rotation velocity

is relative to total stick

movement. Stick’s

center position is 0°/s.

Its endpoint moves to

the maximum velocity.

———

Command Linearity YES YES ———

Note*: Attitude stability means that gimbal’s ROLL/TILT will not follow the aircraft’s ROLL/PITCH

movement.

Product Proile

Produkspesifikasjoner

Merke:	DJI
Kategori:	Ikke kategorisert
Modell:	Zenmuse Z15-BMPCC
Vekt:	1260 g
Bredde:	227 mm
Dybde:	210 mm
Høyde:	212 mm
Kompatible produkter:	BMPCC
Produktfarge:	Sort
Rotering:	Ja
