8100 Series
MasterFlush™
Toilets
Macerator Toilet
Operation manual . . . . . . . . . . . . . . . 3
EN
Elektrische Toilette
Bedienungsanleitung. . . . . . . . . . . . . 13
DE
WC dilacérateur
Mode d’emploi . . . . . . . . . . . . . . . . . 22
FR
Inodoro triturador
Manual de funcionamiento . . . . . . . . 31
ES
Toilet met versnijdingspomp
Bedieningshandleiding 40 . . . . . . . . . .
NL
WC di macerazione
Manuale di operativo. . . . . . . . . . . . . 48
IT
Silppuripumppu-wc
Ohjekirja...................... 56
FI
Macerator-toalett
Bruksanvisning . . . . . . . . . . . . . . . . . 64
SV
Findelingstoilet
Betjeningsvejledning 72. . . . . . . . . . . .
DA
Macerator-toalett
Brukerhåndbok. . . . . . . . . . . . . . . . . 80
NO
2
Dometic 8100 Series MasterFlush Toilet
A
A
B C
D
E
F
B
D
E
F
G
H
J
K
I
C
1
2
3
1
2
7
8
3
4
5
6
3
2.1 Warnings – marine applications
The following statements must be read and understood before installing, servicing and/or
operating this product on a boat. Modification of this product may result in property damage.
Dometic recommends that a qualied marine technician or electrician install or service this product.
Equipment damage, injury to personnel or death could result from improper installation. DOMETIC
ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR DEATH
TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION
OF THIS PRODUCT.
1 Notes on using the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 General safety instructions 3 - 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6
6 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 7
7 Maintenance and winterizing 8 - 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 12
10 Customer service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1 Notes on using the manual
Note
Supplementary information for operating the device.
fig. 1 A, page 2 : This refers to an element in an illustration. In this example, item A in
gure 1 on page 2.
Caution!
Safety Instruction: Failure to observe this instruction can cause material damage and
impair the function of the device.
EN
Table of contents
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from the following:
• Faulty assembly or connection
• Damage to the unit from mechanical inuences, misuse or abuse
• Alterations to the unit without express written permission from the manufacturer
• Use for purposes other than those described in the operating manual
Dometic 8100 Series MasterFlush Toilet Notes on using the manual
Caution! Hazard of Flooding
If toilet is connected to ANY through-the-hull ttings, ALWAYS close seacocks when
toilet is not in use (even if boat is unattended for a brief period). All passengers MUST be
instructed on how to close valves when the toilet is not in use. Failure to do so can result in
ooding which can cause loss of property and life.
4
Caution! Hazard of Flooding
If the toilet uses fresh water for ushing and is connected directly or indirectly to a shore-
side municipal water system at ANY time, shoreside water connections MUST be discon-
nected if the boat is unattended (even if boat is unattended for a brief period). Failure to do
so can result in ooding which can cause loss of property and life.
Caution! Hazard of Flooding
Before beginning any work on this product, be sure that all electrical power to the unit has
been turned off and that seacocks are in the CLOSED or OFF position. Failure to do so can
result in ooding which can cause loss of property and life.
Caution!
Overlling the holding tank can create serious damage to the sanitation system, such as
rupturing the holding tank and releasing tank contents into the bilge. To prevent this pos-
sibility, Dometic recommends using the “full” tank shut-down relay in the toilet’s electronic
control module. The “full” signal from the holding tank can be generated by an optional
Dometic DTM01C tank monitor or DTM04 four-level tank monitor system.
3 Intended use
The Dometic 8100 series MasterFlush toilet provides an electric-ush toilet that macerates waste
and pumps it to a holding tank or other efuent storage/disposal system. Operated by a wall-
mounted ush switch, the toilet allows the user to add water to the bowl (before or after ushing)
and to ush the toilet by pushing a button.
3.1 Benefits
Convenient electronic flush. Add water or ush with the touch of a button.
Choice of two water consumption settings. “Normal” ush adds water to bowl while button is pushed;
“Dry Bowl” does not use water during a ush – it only operates the macerator pump.
Versatile installation. Powerful macerator pump allows toilet to be located up to 98 ft. (30 m) away or
9.8 ft. (3 m) below holding tank or other discharge line destination.
Automatic “full tank” shut-down (Optional installation - tank level monitor and shut-down relay
required. Available separately). When connected to a holding tank level indication system, the 8100
series toilet system will shut off electrical power to the toilet when the holding tank is full. This safety
feature prevents overlling the holding tank, which may cause damage to the boat.
General safety instructions Dometic 8100 Series MasterFlush Toilet
5
Dometic 8100 Series MasterFlush Toilet Intended use
4 Components
(g. 1 , page 2) (g. 2 , page 2)
5.2 Minimum System Requirements
5 Specications
5.1 Materials
Toilet: vitreous ceramic
Macerator pump body: glass-lled polypropylene
Dometic ush switch panel: powder-coated aluminum
Electrical
Circuit breaker 20 amps/12 V DC; 15 amps/24 V DC
Wiring 12 ga. (up to 20 ft./6.1 m from breaker)
Water
Supply
Fitting 0.5 in. NPT
Flow rate 2.0 gpm/7.6 lpm minimum
Discharge
Inside diameter 1.5 in./38 mm or 1 in./25 mm
Horizontal run 98 ft./30 m maximum
Vertical run 9.8 ft./3 m maximum
Specications are subject to change without notice.
Ref. Description
A Macerator toilet
B Dometic ush switch
C Electrical input wire
D Output wires (2) to toilet
E Input wires (2) from ush switch
F Output wires (2) to
ground connection
G Floor mounting hardware kit
H Floor mounting template
I Flush switch wall template
J Water valve adapter
K Discharge elbow tting
Ref. Description
1 Anti-siphon valve
2 Check valve
3 Discharge loop outlet
4 Discharge adapter tting
5 Discharge hose tting
6 Macerator pump
7 Water valve
8 Water valve tting - 0.5 in. NPT
Refer to complete parts list (packed separately)
for additional information.
6
Specifications Dometic 8100 Series MasterFlush Toilet
5.3 Dimensions (g. 3 , page 2)
Ref. Dimension
A 18.375 in. / 467 mm
B 14.75 in. / 375 mm
C 18.375 in. / 467 mm
D 17 in. / 432 mm - seat height
E 14.875 in. / 378 mm
F 32 in. / 813 mm - seat lid up
Ref. Dimension
A 15 in. / 381 mm
B 14.75 in. / 375 mm
C 18.375 in. / 467 mm
D 13.75 in. / 349 mm - seat height
E 14 in. / 356 mm
F 28 in. / 711 mm - seat lid up
Standard-height models Low-prole models
6.1 Toilet system start-up
1. Turn on water supply to toilet.
2. Press “Flush” switch (2) and hold for at least ve seconds.
3. Toss several sheets of toilet paper into bowl and repeat
cycle. The bowl should completely clear.

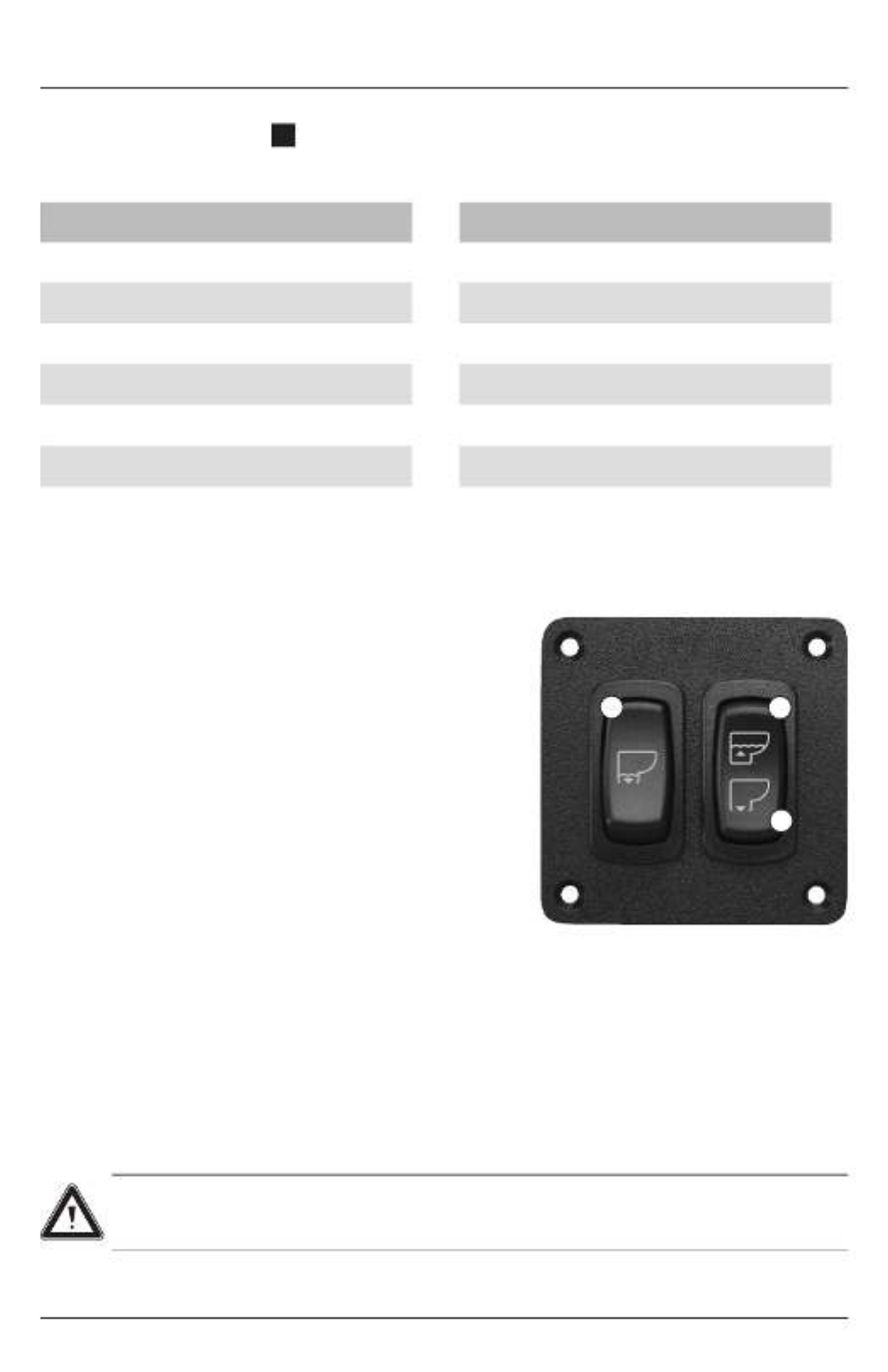

6.2 Normal toilet operation
ADDING WATER TO TOILET BOWL
Press “Add Water” switch (1) and hold until desired water level
is achieved. (Do not press “Add Water” switch too long or
overow may occur.) More water is usually added only when
ushing solids.
FLUSHING TOILET
Press “Flush” switch (2) down and hold for a few seconds after waste drains from toilet bowl (about
ve seconds). This switch activates a powerful macerator pump that siphons water and waste from the
bowl, macerates, and propels the efuent through the discharge line/holding tank. To use less water for
liquid-only ushes, press “Flush” switch for shorter period of time.
“DRY BOWL” OPERATION
During periods of rough travel, water in a toilet bowl can splash out and into the bathroom area. To
avoid this situation, press “Dry Bowl” switch (3) to drain water completely from toilet bowl. Water is not
added to bowl during or after pressing the “Dry Bowl” switch.
6 Operation
Caution – Do Not Flush Waste with “Dry Bowl” Switch!
To maintain proper cleanliness and operation of the toilet and macerator pump, water
should be used with every ush.
12
3
