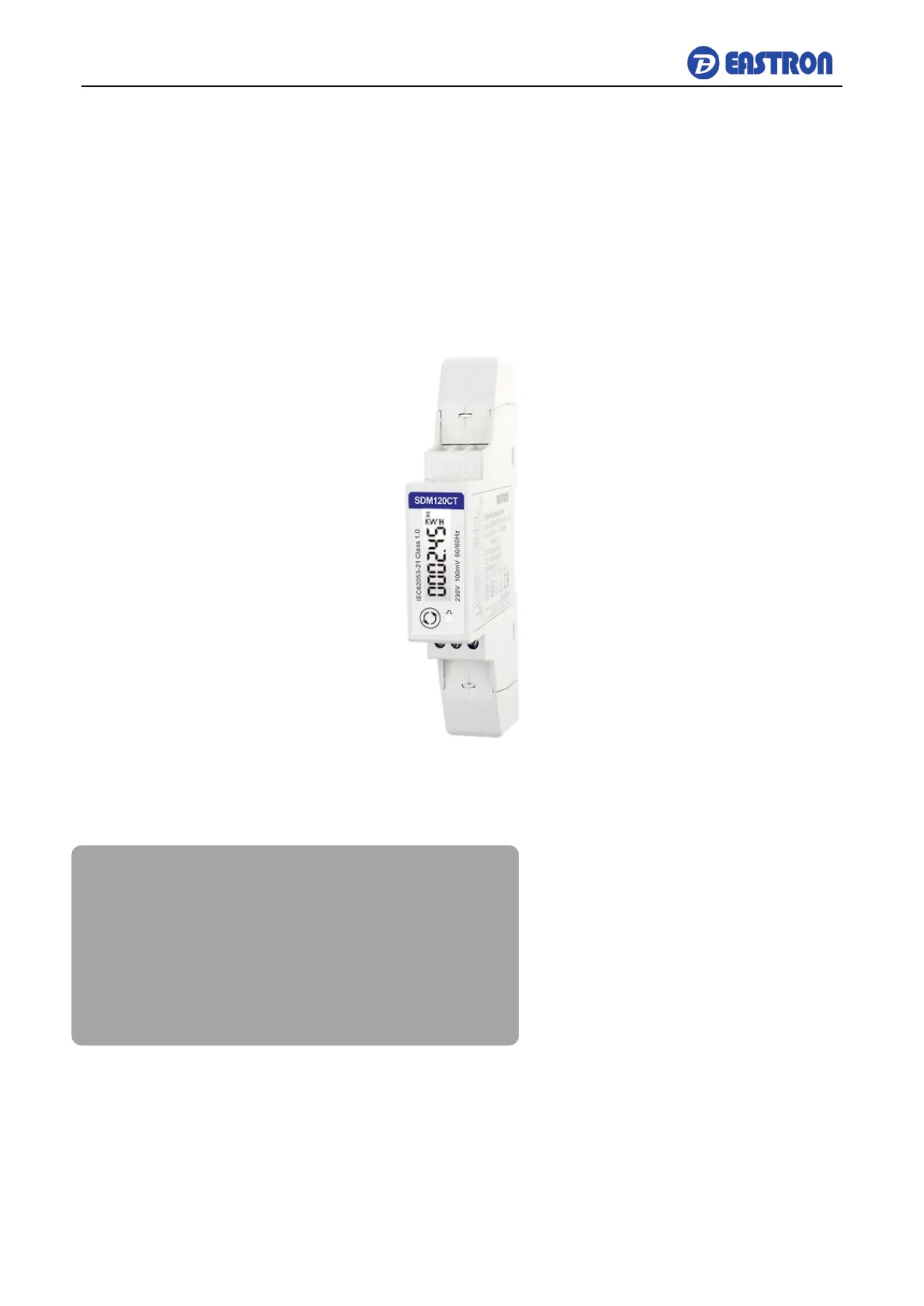

Eastron SDM120CT-MV User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn E mail: sales@eastrongroup.com
SDM120CT-MV
Single ail- RPhase Multifunction DIN Meter
Measures kWh, kVArh, KW, VA, PF, Hz, dmd, V, A, etc. kVAr, k
Bi-directional measurement IMP & EXP
Two pulse outputs
RS485 Modbus
Din rail 35mm
0.1V AC CT connection
Better than Class 1 accuracy
User Manual V1.6
Eastron SDM120CT-MV User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn E mail: sales@eastrongroup.com
Application
The energy-meters are used to measure single-phase applications like residential, utility and Industrial. The unit
measures and displays various important electrical parameters. It equipped with a white back-lighted LCD screen
for prefect reading. As well as a RS485 communication port for remote reading and monitoring. Bi-directional
energy measurement makes it a good choice for solar PV energy metering. The compact design and din rail
installation provides an easy and economical solution for your metering demand.
PART 1 Specification
General Specifications
Voltage AC (Un) 230V
Voltage Range 176~276V AC
Base Current (Ib) 0.1V AC
Power consumption <2W/10VA
Frequency 50/ 60Hz(±10%)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand -6KV 1.2uS wave form
Overcurrent withstand 2 5s 0Imax for 0.
Pulse output 1 1000imp/kWh (default)
Pulse output 2 0.001(default) /0.01/0.1/1 kWh/kVA rh (configurable)
Display LCD with white backlit
Max. Reading 999999kWh
Accuracy
Voltage 0.5% of range maximum
Current 0.5% of nominal
Frequency -0.2% of mid frequency
Power factor 1% of Unity
Active power 1% of range maximum
Reactive power 1% of range maximum
Apparent power 1% of range maximum
Active energy - Class 1 IEC62053 21
Class B EN50470- 3 1/
Reactive energy - Class 2 IEC62053 23
Eastron SDM120CT-MV User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn E mail: sales@eastrongroup.com
Environment
Operating temperature - 25℃to +55℃
Storage and transportation temperature to +70 - 40℃ ℃
Reference temperature 23℃±2 ℃
Relative humidity -0 to 95%, non condensing
Altitude 0 up to 2 00m
Warm up time 3s
Installation category CAT II
Mechanical Environment M1
Electromagnetic environment E2
Degree of pollution 2
Output
Pulse Output
The meter provides two pulse outputs. Both pulse outputs are passive type.
Pulse output 1 is configurable. The pulse output can be set to generate pulses to represent total /import/ export
kWh or kVA rh.
The pulse constant can be set to generate 1 pulse per: 0.001(default) /0.01/0.1/1 kWh/kVA rh.
Pulse width: 200/100/60ms
Pulse output 2 is non-configurable. It is fixed to total kWh. The constant is 1000imp/kWh.
RS485 output for Modbus RTU
The meter provides a RS485 port for remote communication. Modbus RTU is the protocol applied. For Modbus
RTU, the following RS485 communication parameters can be configured by the Modbus command.
Baud rate: 1200, 2400, 4800, 9600 bps. Default: 2400 bps
Parity: NONE/EVEN/ODD
Stop bits: 1 or 2
Modbus Address: 1 to 247
Mechanics
Din rail dimensions 18 8 4 x11 x6 (WxHxD) DIN 43880
M ounting DIN rail 35mm
In gress protection IP51 (indoor)
Material -self extinguishing UL94V-0
