Eastron SDM230D User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com
Add:No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314001, China. Web: www.eastrongroup.com
- 1 -
SDM230-D
Single-Phase Two Module DIN rail Meters
Measure Total Energy
One pulse output
100A direct connection
Better than Class 1 / B accuracy
User Manual V1.1
Eastron SDM230D User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com
Add:No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314001, China. Web: www.eastrongroup.com
- 2 -
Application
The energy meters “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase
like residential, Utility and Industrial application.
PART 1 Specification
General Specifications
Voltage AC (Un) 230V
Voltage Range 176~276V AC
Base Current (Ib) 10A
Max. Current (Imax) 100A
Mini Current (Imin) 0.5A
Starting current 0.4% of Ib
Power consumption <2W/10VA
Frequency 50Hz(±10%)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS waveform
Overcurrent withstand 30 Imax for 0.01s
Pulse output rate 1000imp/kWh
Display LCD display
Max. Reading 999999.9 kWh
Accuracy
Active energy Class 1 IEC62053-21
Environment
Operating temperature -25 to +55℃ ℃
Storage and transportation temperature -40 to +70℃ ℃
Reference temperature 23 2℃± ℃
Relative humidity 0 to 95%, non-condensing
Altitude up to 2000m
Warm up time 3s
Installation category CAT II
Mechanical Environment M1
Electromagnetic environment E2
Degree of pollution 2
Output
Eastron SDM230D User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com
Add:No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314001, China. Web: www.eastrongroup.com
- 3 -
Pulse Output
The meter provides one pulse output.
total active energy, constant 1000imp/KWh, pulse width 100ms, non-configurable
Mechanics
Din rail dimensions 36x100x63 (WxHxD) DIN 43880
Mounting DIN rail 35mm
Ingress protection IP51 (indoor)
Material self-extinguishing UL94V-0

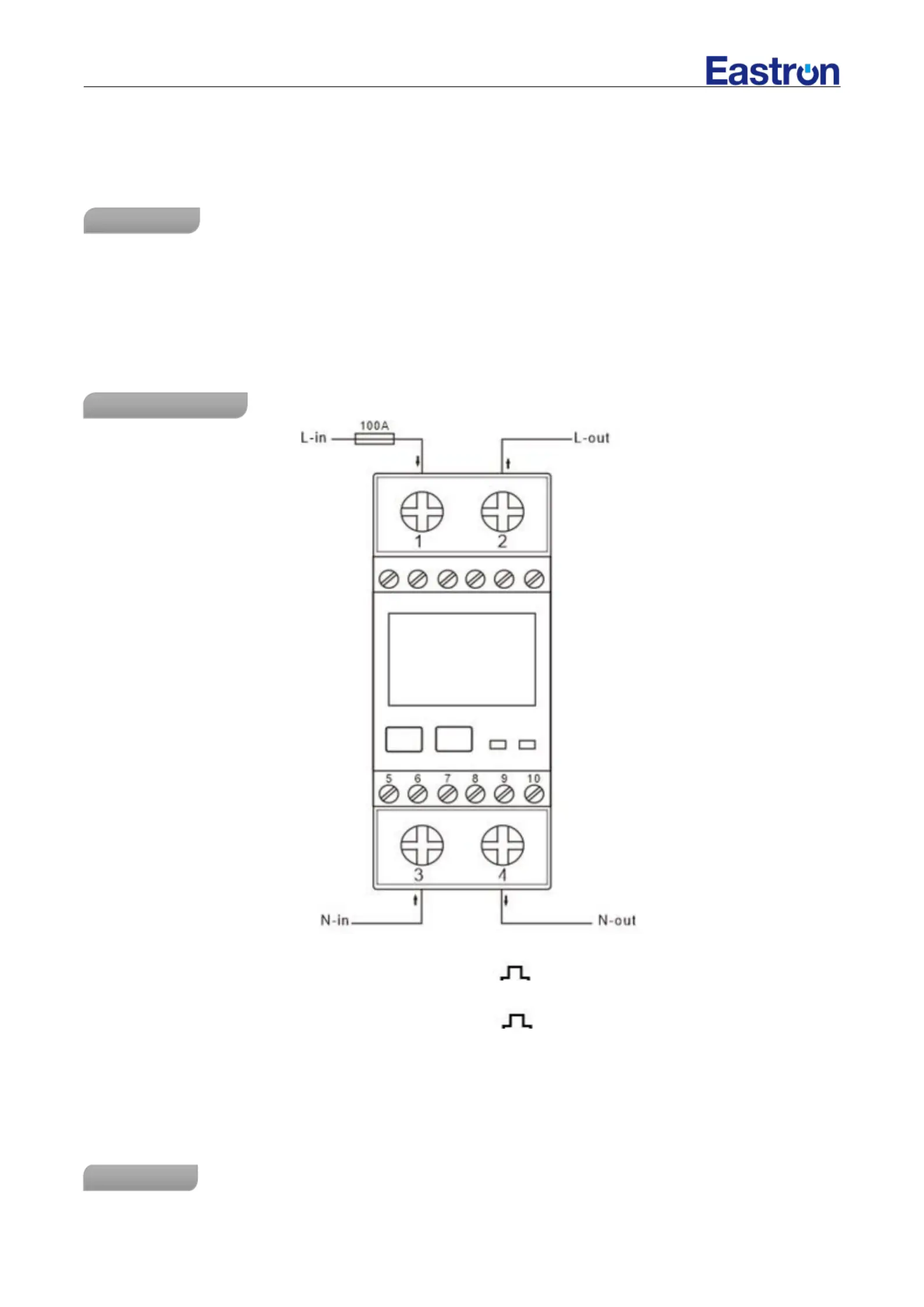

Wiring diagram
Pulse Connect : 7 +
8 -
Dimensions
