Side 1/9

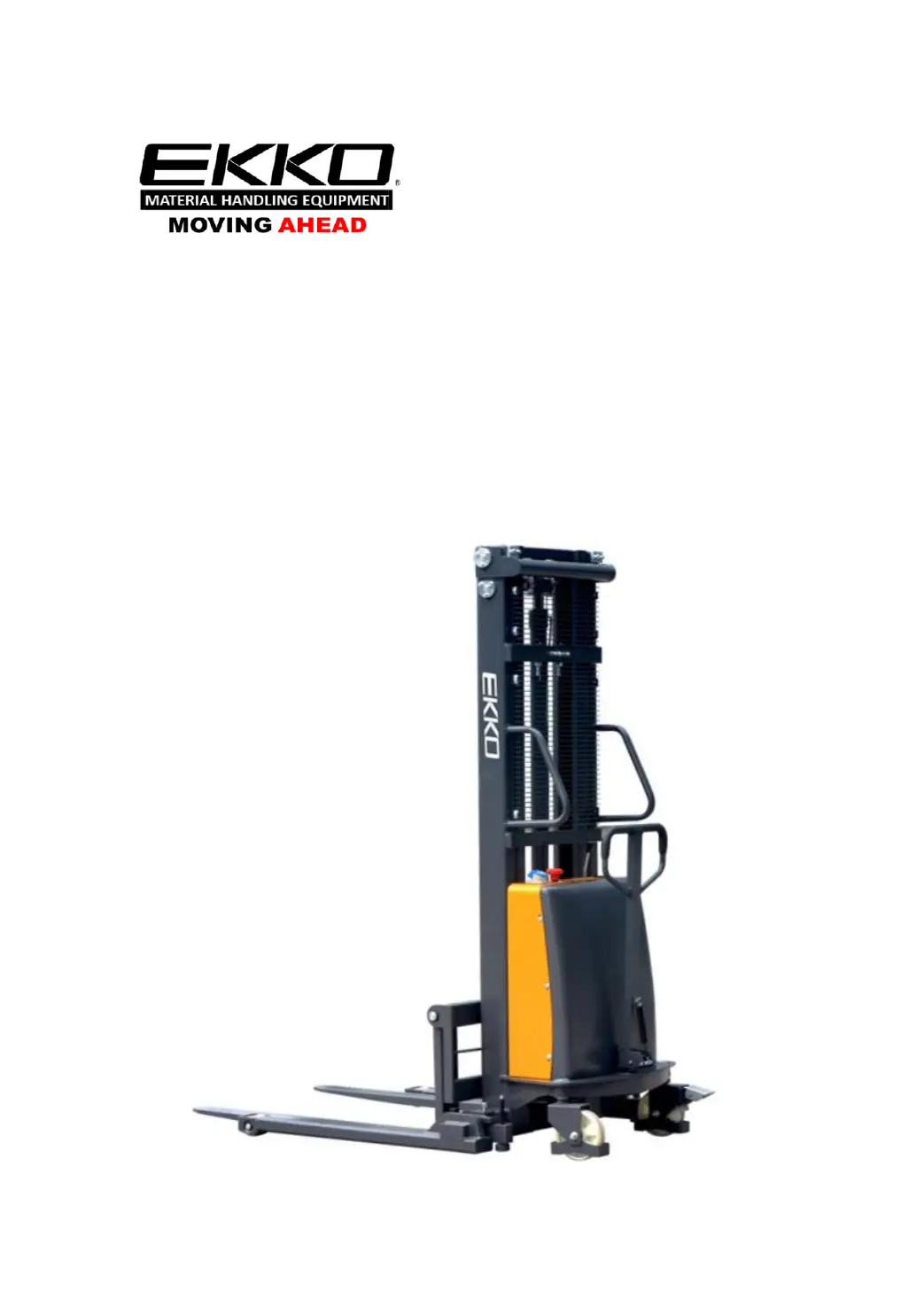

The Specification
EA15B Series Semi-Electric
Stacker
Note: Before using must read this manual and the various warning label!
- 1 -
Contents
Preface ........................................................................................... - 2 -
1. Structural data form ................................................................... - 2 -
2. Safety guidance ......................................................................... - 3 -
3. Maintenance .............................................................................. - 4 -
4. Control panel ............................................................................... 4/5
5. Troubles shooting ...................................................................... - 5 -
6. Parts List .................................................................................... - 6 -
- 2 -
Preface
EKKO Lifts would like to thank you for your recent
purchase of our semi-electric stacker EA15B series. The stacker
is made of high-quality steel and was designed to give you a
durable, reliable and ease of use equipment. For your safety and
correct operation usage, please carefully read this instruction
manual and warnings on this stacker before use.
Note: All the information reported herein is based on data
available at the moment of printing. We reserve the right to
modify our products at any moment without notice and
incurring in any sanction. So, it is suggested to always verify
possible updates.
1. Structural data form
Model
EA15A (EA15B)
Load Capacity
(lb)
3300
Load Capacity on Max. height
(lb)
1980
Lifting height Max.
(in)
119.4
Load center distance
(in)
24
Fork length
(in)
45.3
Single fork width
(in)
3.94
Overall fork width
(in)
8-35
Lowered fork height
(in)
2..35
Fixed leg length
(in)
36.4
Fixed leg width, single
(in)
3.94
Width between fixed legs
(in)
35.4-59
Turning radius
(in)
53.2
Overall length
(in)
74
Overall width max
(in)
59
Extended mast height
(in)
140.5
Lowered mast height
(in)
84.5
Battery Voltage
(in)
12V/120AH
10-12V
Charger
12V/15A
Lift Motor
DC
12V/1.5KW
