Octavix
OCTAVE FUZZ
Congratulations on your purchase of the Electro-Harmonix Octavix, a fuzz pedal with
a frequency doubling circuit. The Octavix produces a range of distortion from light
drive to over the top torn speaker fuzz tone. The frequency doubling circuit yields
classic chime and ring modulated overtones. The Octavix has control over Boost,
Octave, Volume and internal rail voltage. The rail voltage switch enables even more
tonal possibilities not found in other octave fuzz pedals.
WARNING: Your OCTAVIX comes equipped with an Electro-Harmonix 9.6DC-200BI power
®
& Ibanez
®
: 9.6 Volts DC 200mA). The OCTAVIX draws up to
62mA at 9VDC with a center negative plug or runs off a 9Volt battery. Using the wrong adaptor
or a plug with the wrong polarity may damage your OCTAVIX and void the warranty.
GETTING STARTED
Connect the output plug of the supplied power adaptor to the 9V power jack. Plug
your instrument into the INPUT jack; connect your amp to the OUTPUT jack.

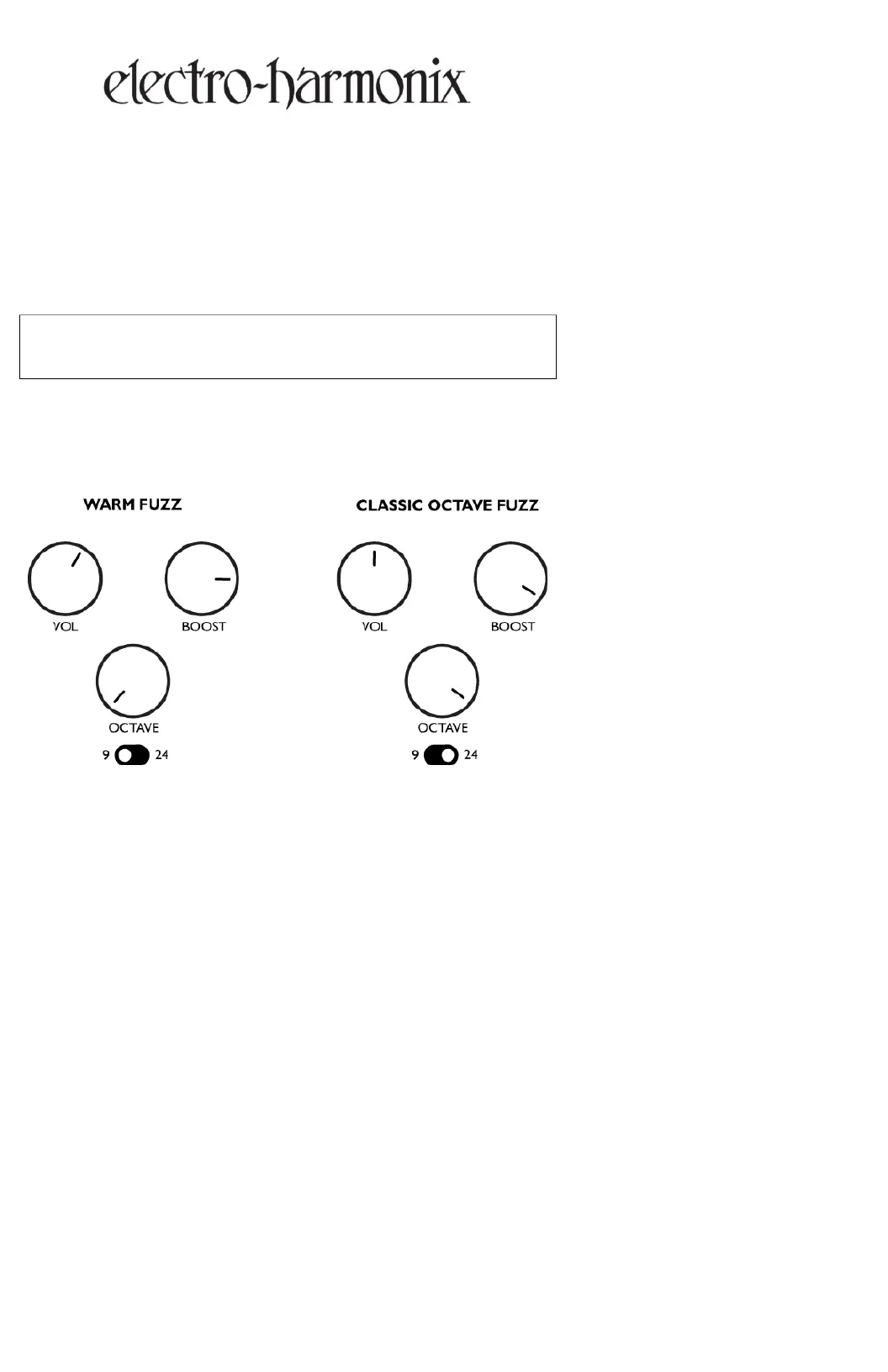

Sample settings:
*Tip: Playing lightly will make the octave above effect more pronounced.
BOOST KNOB
The BOOST knob controls the amount of fuzz.
*Tip: Rolling down the guitar volume with high BOOST settings gives a slightly
broken up fuzz sound.
OCTAVE KNOB
The OCTAVE knob controls the volume of the octave above signal. At fully counter
clockwise the octave above signal is removed from the signal path.
VOLUME KNOB
The VOLUME knob controls the output signal level of the effect.
9/24 TOGGLE SWITCH
The Octavix contains a rail voltage selector switch just below the OCTAVE knob. The
setting of this switch determines the power supply voltage for the entire circuit. When
set to 9, the circuit is powered by 9V, when set to 24 the circuit runs off of 24V. At
9V the pedal behaves like the classic saggy fuzz boxes the of the mid 70’s. At 24V
pedal commands a tighter sound and produces a richer octave tone.
*Note: When switching from 9 to 24 there may be volume drop before the boost in
volume. This is normal as it takes a second or two for the capacitors to charge up to
24V.
*Note: When in 24V mode, all of the controls are at maximum it will produce if
feedback which will translate into a chirping sound. This is normal.
BYPASS FOOTSWITCH & STATUS LED
The Footswitch selects whether the tavix is engaged or in True Bypass mode. Oc
When the effect is engaged, the LED is lit.
INPUT JACK
The ¼” jack is the audio input for the Octavix. The input impedance is 1MΩ.
AMP JACK
The ¼” jack is the audio out for the Octavix.
CHANGING THE BATTERY
To change the 9-volt battery, you must remove the 4 screws on the bottom of the
Octavix. Once the screws are removed, you can take off the bottom plate and change
the battery. Please do not touch the circuit board while the bottom plate is off or you
risk damaging a component. extend battery life, disconnect the INPUT jack when To
the Octavix is not in use. When in 24V mode the battery drain is significantly greater
than 9V mode. in
Current draw
Current draw of the OCTAVIX is 9mA when the toggle switch is set to 9 and 62mA
when the switch is set to . 24
- WARRANTY INFORMATION -
Please register online at http://www.ehx.com/product-registration or complete and
return the enclosed warranty card within 10 days of purchase. Electro-Harmonix will
repair or replace, at its discretion, a product that fails to operate due to defects in
materials or workmanship for a period of one year from date of purchase. This
applies only to original purchasers who have bought their product from an authorized
Electro-Harmonix retailer. Repaired or replaced units will then be warranted for the
unexpired portion of the original warranty term.
If you should need to return your unit for service within the warranty period, please
contact the appropriate office listed below. Customers outside the regions listed
below, please contact EHX Customer Service for information on warranty repairs at
info@ehx.com or +1- - -8300. USA and Canadian customers: please obtain a 718 937
Return Authorization Number (RA#) from EHX Customer Service before returning
your product. Include with your returned unit: a written description of the problem
as well as your name, address, telephone number, e-mail address, and RA#; and a
copy of your receipt clearly showing the purchase date.
United States & Canada
EHX CUSTOMER SERVICE
ELECTRO-HARMONIX
c/o NEW SENSOR CORP.
47-50 33RD STREET
LONG ISLAND CITY, NY 11101
Tel: 718- - 937 8300
Email: info@ehx.com
Europe
JOHN WILLIAMS
ELECTRO-HARMONIX UK
13 CWMDONKIN TERRACE
SWANSEA SA2 0RQ
UNITED KINGDOM
Tel: +44 179 247 3258
Email: electroharmonixuk@virginmedia.com
This warranty gives a purchaser specific legal rights. A purchaser may have even
greater rights depending upon the laws of the jurisdiction within which the product
was purchased.
To hear demos on all EHX pedals visit us on the web at www.ehx.com
Email us at info@ehx.com
