PL33

Dynamic Supercardioid

Kick-Drum Microphone

General Description:

Key Features:

• Frequency contoured for “dialed-in” kick drum sound

• Fast transient response

• Supercardioid polar pattern

• Excellent off-axis rejection

• Powerful Neodymium magnet structure

• Fine mesh Memraflex™ grille

Thank you for purchasing the Electro-Voice® PL33. This product is

a professional-grade supercardioid dynamic microphone designed

to deliver the power, punctuation and snap of kick drums in any size

sound reinforcement system or recording studio. With its tight low

end, kick drum-modified mid-range and high frequency response,

the PL33 delivers all of the percussive impact detail professional

drummers and sound system engineers require. The PL33’s tight

supercardioid polar pattern is designed to minimize off-axis informa-

tion entering the capsule, and allows for a very isolated instrument

sound and higher gain before feedback. Although designed to be a

kick drum microphone, the PL33 also functions quite well as a low

tom and bass guitar speaker cabinet microphone.

Application Notes:

As with most directional microphones, the low frequency response

of the PL33 microphone varies with the distance from the sound

source. Known as “proximity effect”, the bass response of the

microphone increases as the working distance to the microphone is

reduced. This “bass boost” is only audible when working at distances

closer than 6 inches. Therefore, working close to the microphone will

produce a more robust sound. Using this microphone at distances

greater than 6 inches provides minimal coloration from proximity

effect.

Close-up positioning of the microphone will also reduce the poten-

tial for feedback from the sound reinforcement system. Then, the

bass boost provides an increase in overall microphone output level.

The mixer gain may be proportionately reduced, resulting in a reduc-

tion of the system’s sensitivity to feedback caused by sound entering

the microphone from the loudspeakers.

Warranty:

This Electro-Voice® PL33 product is guaranteed against malfunction

due to defects in materials or workmanship for a period of three (3)

years from the date of original purchase. Please refer to the Limited

Warranty card included with your product for further warranty infor-

mation.

Technical Specifications:

Element Type: Dynamic, Neodymium Magnet

Structure

Frequency Response: 20 Hz - 10,000 Hz

Polar Pattern: Supercardioid

Sensitivity, Open Circuit

Voltage, 1 kHz:

0.5 mV/Pa (-66 dBV)

Polarity: Positive pressure on diaphragm

produces positive voltage on pin 2

relative to pin 3

Rated Impedance: 150 ohms

Microphone Connector: 3-pin, XLR-type

Finish: Textured black satin body with

Memraflex

grille

Dimensions: Length = 5.57” (141.5 mm)

Width = 2.33” (59.2 mm)

Shank = 1.01” (25.6 mm)

Accessories Included: Stand adapter with Euro-thread

insert, Soft zippered gig bag

Net Weight: 12.9 oz (364 g)

Shipping Weight: 23.7 oz (672 g)

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number LIT000246 Rev C

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

Electro-Voice

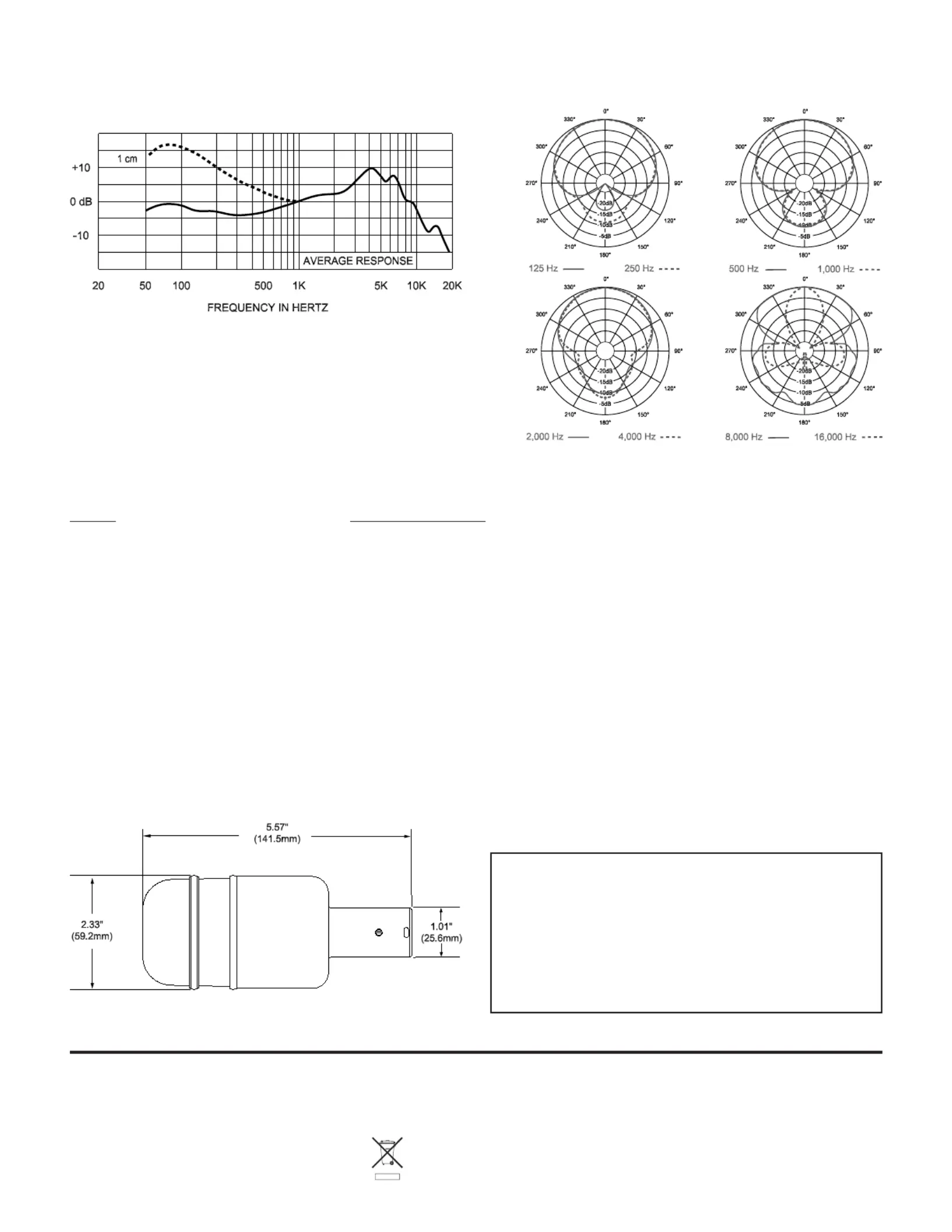

Dimension Drawing:

Frequency Response: Polar Response:

Microphone Use and Placement

Please note that micing techniques are a matter of personal preference. These are merely guidelines to assist in the placement of the

microphone to gain optimal performance.

Usage Optimal Placement

Kick Drum Remove drum head and damp with a pillow or blanket. Position the mic on the pillow or

blanket a few inches in front of the drum beater. As an alternative, position the mic on a

small boom stand with the mic extended into the drum and at a 90° angle to the drum

batter head.

Standard Placement & Use Guidelines

1. Always point the microphone at the desired source of sound, and away from any unwanted sources.

2. The microphone should be located close to the sound source to minimize interference from other potential sound sources.

3. Use the 3-to-1 rule when using multiple microphones. Place each microphone three times farther from other microphones as from

the desired sound source.

4. Minimize over-handling of the microphone to reduce unwanted mechanical noise.

PL33 Part Numbers

PRD000163000 PL33, Dynamic Supercardioid Kick-Drum •

Microphone

ACC000046000 SAPL-2, Replacement Microphone •

Stand Adapter

ACC000049001 WSPL-2, Optional Foam Windscreen, Black•
