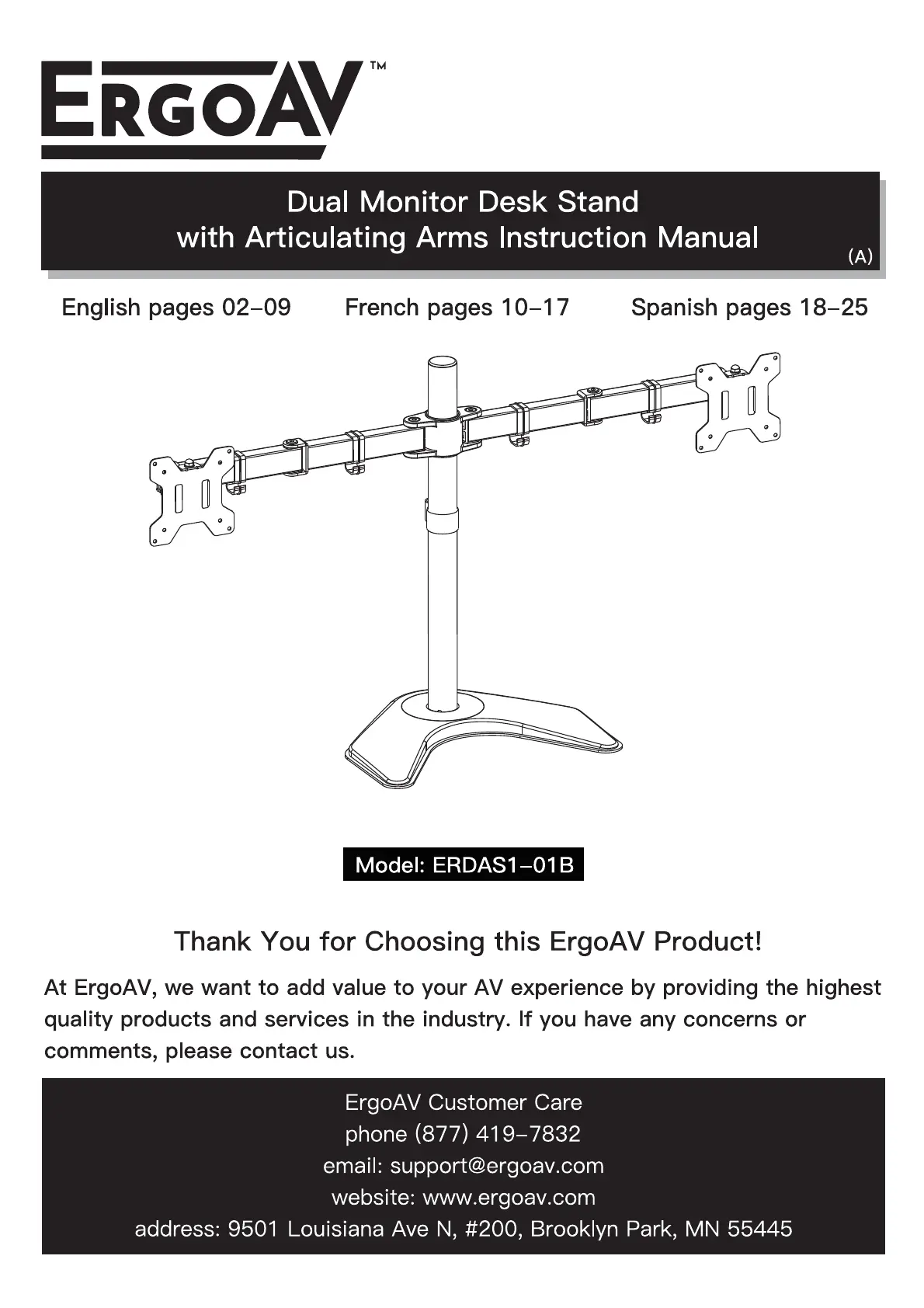

Side 1/10
English pages
02-09
French pages 1 0-1 7 Spanish pages
18-25
Model:
ERDAS1
-01
B
Thank You for Choosing this ErgoAV Product!
At ErgoAV, we want to add value to your AV experience
by
providing the highest
quality products and services
in
the industry. If
you
have any concerns or
comments, please contact
us.
ErgoAV Customer Care
phone(877)419-7832
email: support@ergoav.com
website: .ergoav.com
address: 9501 Louisiana Ave
N,
#200, Brooklyn Park,
MN
55445
IMPORTANT SAFETY INFORMATION
• Please carefully read all instructions before attempting installation. If you
do
not
under-
stand the instructions
or
have any concerns
or
questions, please
contact
Technical Support
at
(877)
419-
7832
or
Customer Service
at
support@ergoav.com.
A CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product
for
any purpose
that
is not explicitly specified in this manual. Do
not
exceed weight capacity. We are not liable
for
damage
or
injury caused by improper
mounting, incorrect assembly
or
inappropriate use.
• Do Not use this product on desks made
of
particle board
or
other
soft
woods.
• The information contained
in
this manual does
not
cover all possible conditions
or
variables in relation
to
the installation
of
this product.
Weight Restrictions
If
your monitor weighs more,
this mount is NOT compatible.
Monitor
should
not
exceed
maximum listed weight.
WARNING
DO
NOT exceed the maximum weight indicated. This
mounting system is intended
for
use only within the
weight range listed. Use with products heavier than
the maximum weight limit may result in failure
of
the
mount, causing potential damage and
or
injury.
It is the responsibility
of
the installer
to
verify the total
weight
of
the monitors and any accessories attached.
Do
Not
exceed the weight limit listed.
Check the VESA Pattern of Your Monitor before the Installation
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
75mm
~
3"
100mm
~
4"
Measure Your Monitor VESA Pattern:
Minimum: 75mm x 75mm /
3"
x
3"
(W x
H)
Maximum: 1 00mm x 1 00mm /
4"
x
4"
(W x
H)
If
your
Monitor's
VESA Pattern is smaller than 75mm x 75mm
or
greater than
100mm
x 100mm,
this
mount
is NOT COMPATIBLE
with
your
Monitor. Please
contact
Technical Support
at
(877)
419-7832
or
support@ergoav.com
to
fmd a
compatible
mount.
02

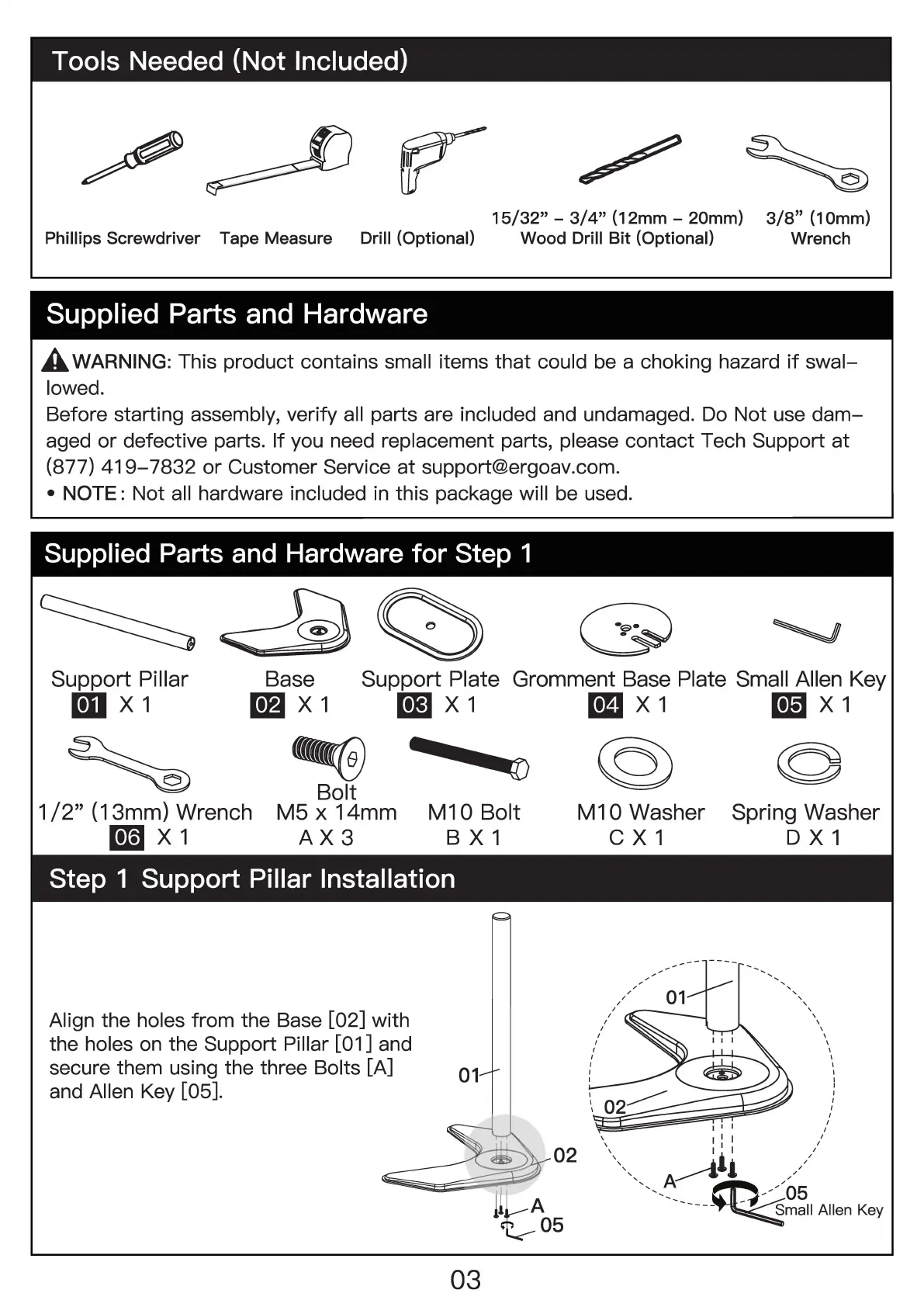

Tools Needed
(Not
Included)
15/32"
-
3/4"
(12mm - 20mm)
3/8"
(10mm)
Phillips Screwdriver Tape Measure Drill (Optional) Wood Drill Bit (Optional) Wrench
Supplied Parts and Hardware
A WARNING: This product contains small items
that
could be a choking hazard
if
swal-
lowed.
Before starting assembly, verify all parts are included and undamaged. Do Not use
dam-
aged
or
defective parts.
If
you need replacement parts, please
contact
Tech Support
at
(877)
419-
7832
or
Customer Service
at
support@ergoav.com.
• NOTE: Not all hardware included in this package will be used.
Supplied Parts and Hardware for Step 1
Support Pillar
DJI
X 1
Base
DB
X1
Support Plate Gromment Base Plate Small Allen Key
Dl]X1
DJIX1
D]DX1
Bolt
1
/2"
(13mm) Wrench M5 x 14mm
lm]X1
AX3
4D
M10
Bolt
BX
1
Step 1 Support Pillar Installation
Align the holes
from
the Base
[02]
with
the holes on the Support Pillar
[01]
and
secure them using the three Bolts [A]
and Allen Key [05].
01
03
02
W
~A
~05
M10
Washer
C X 1
Spring Washer
DX
1
---
----
I
I
I
I
I
I
/
I
I
/
/
/
/
/
01
/-~
',,,,,
'
'
'
\
\
\
\
\
\
I
I
I
