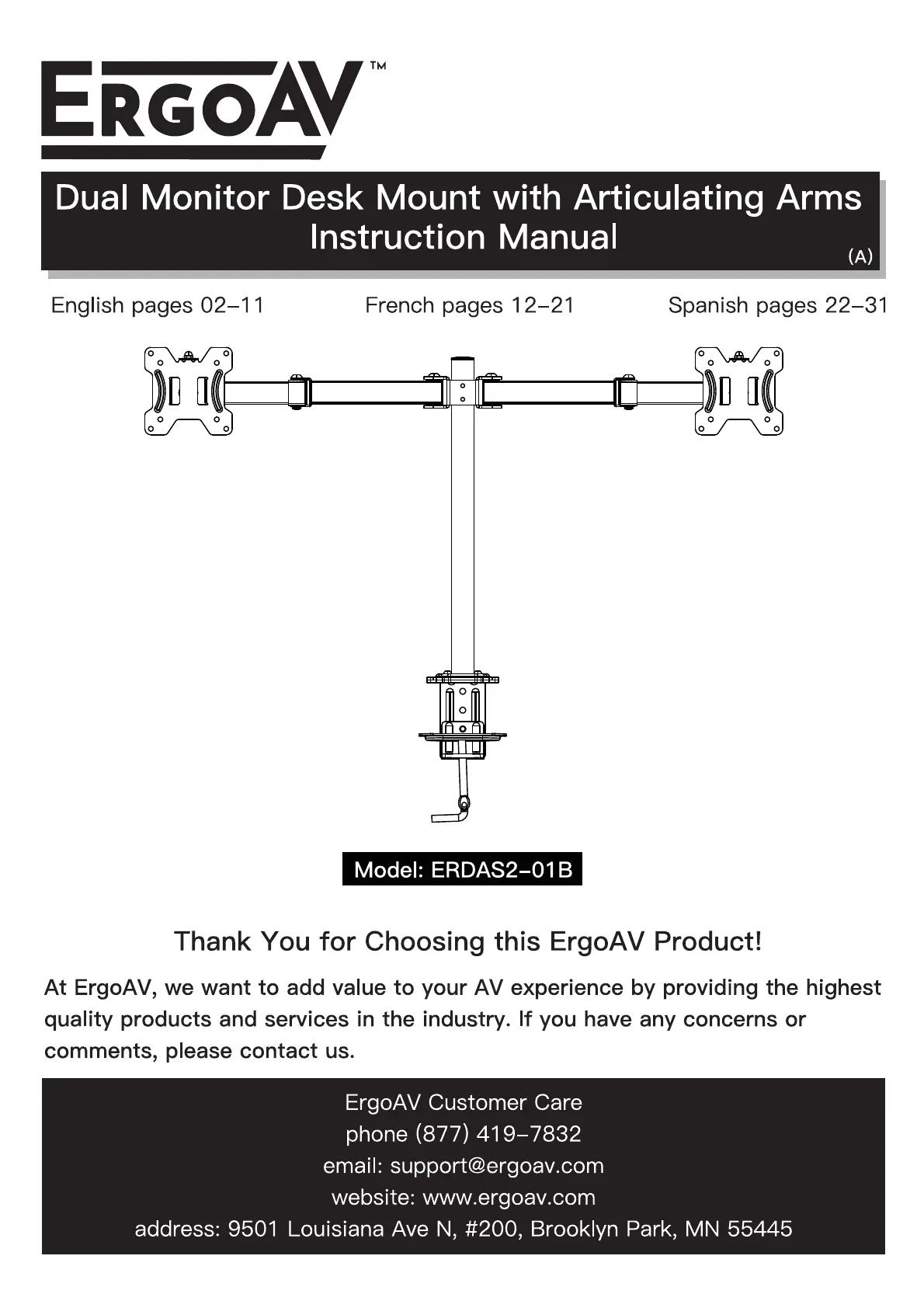

Model: ERDAS2-01 B
Spanish pages 22-31
Thank You for Choosing this ErgoAV Product!
At ErgoAV, we want to add value to your AV experience
by
providing the highest
quality products and services
in
the industry. If
you
have any concerns or
comments, please contact
us.
ErgoAV Customer Care
phone(877)419-7832
email: support@ergoav.com
website: .ergoav.com
address: 9501 Louisiana Ave
N,
#200, Brooklyn Park,
MN
55445

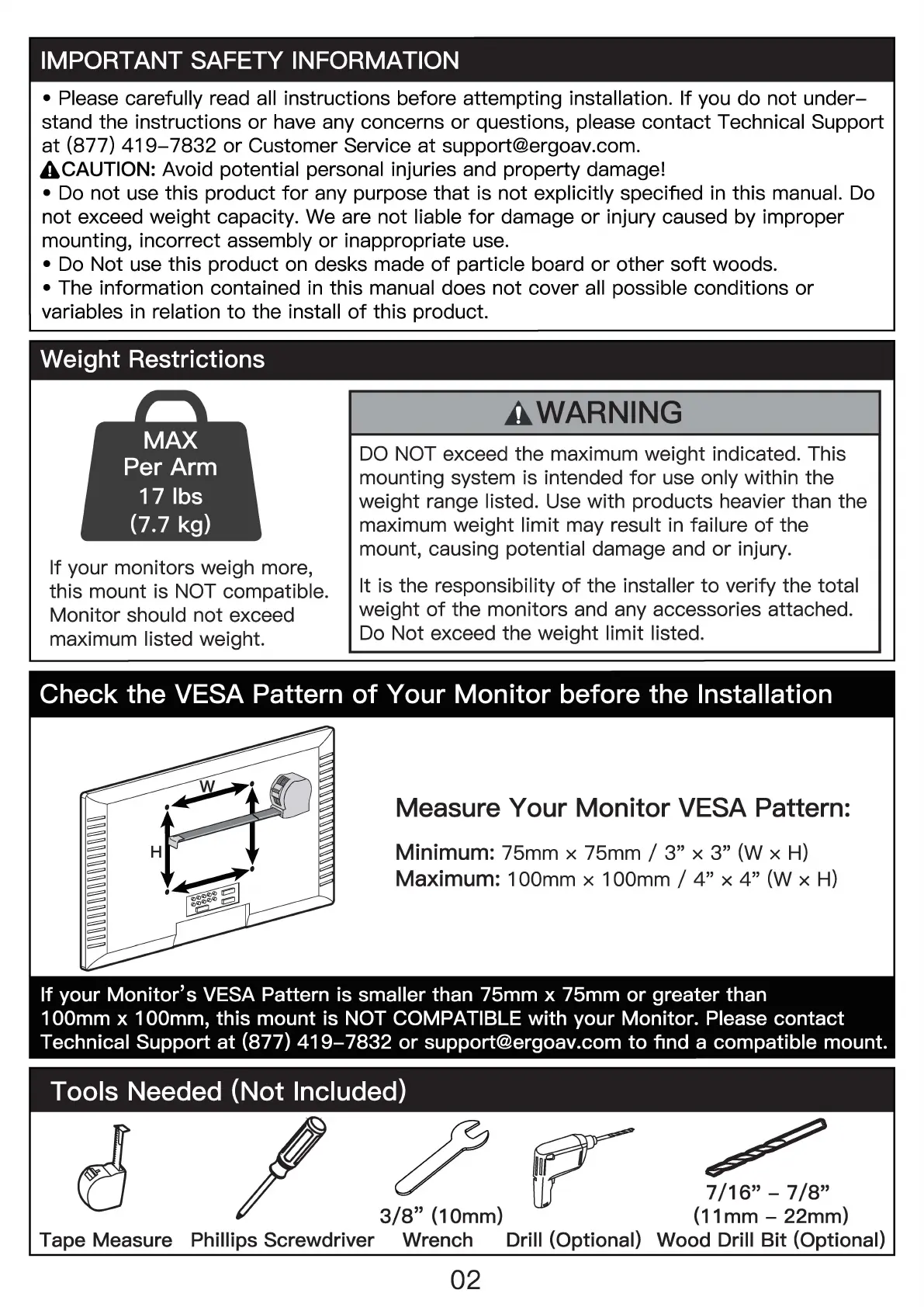

IMPORTANT SAFETY INFORMATION
Please carefully read all instructions before attempting installation. If you
do
not
under-
stand the instructions
or
have any concerns
or
questions, please
contact
Technical Support
at
(877)
419-7832
or
Customer Service
at
support@ergoav.com.
ACAUTION: Avoid potential personal injuries and property damage!
Do not use this product
for
any purpose
that
is not explicitly specified in this manual. Do
not
exceed weight capacity. We are not liable
for
damage
or
injury caused by improper
mounting, incorrect assembly
or
inappropriate use.
Do Not use this product on desks made
of
particle board
or
other
soft
woods.
The information contained
in
this manual does
not
cover all possible conditions
or
variables in relation
to
the install
of
this product.
Weight Restrictions
If
your monitors weigh more,
this mount is NOT compatible.
Monitor
should not exceed
maximum listed weight.
WARNING
DO
NOT exceed the maximum weight indicated. This
mounting system is intended
for
use only within the
weight range listed. Use with products heavier than the
maximum weight limit may result in failure
of
the
mount, causing potential damage and
or
injury.
It is the responsibility
of
the installer
to
verify the total
weight
of
the monitors and any accessories attached.
Do Not exceed the weight limit listed.
Check the VESA Pattern of Your Monitor before the Installation
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
Measure Your Monitor VESA Pattern:
Minimum: 75mm x 75mm /
3"
x
3"
(W x
H)
Maximum: 1 00mm x 1 00mm /
4"
x
4"
(W x
H)
If
your
Monitor's
VESA Pattern is smaller than 75mm x 75mm
or
greater than
100mm
x 100mm,
this
mount
is NOT COMPATIBLE
with
your
Monitor. Please
contact
Technical Support
at
(877)
419-7832
or
support@ergoav.com
to
find a
compatible
mount.
Tools Needed (Not Included)
~
~
3/8"
(10mm)
Tape Measure Phillips Screwdriver
Wrench Drill ( Optional)
02
7/16"
-
7/8"
(11
mm - 22mm)
Wood Drill
Bit
( Optional)

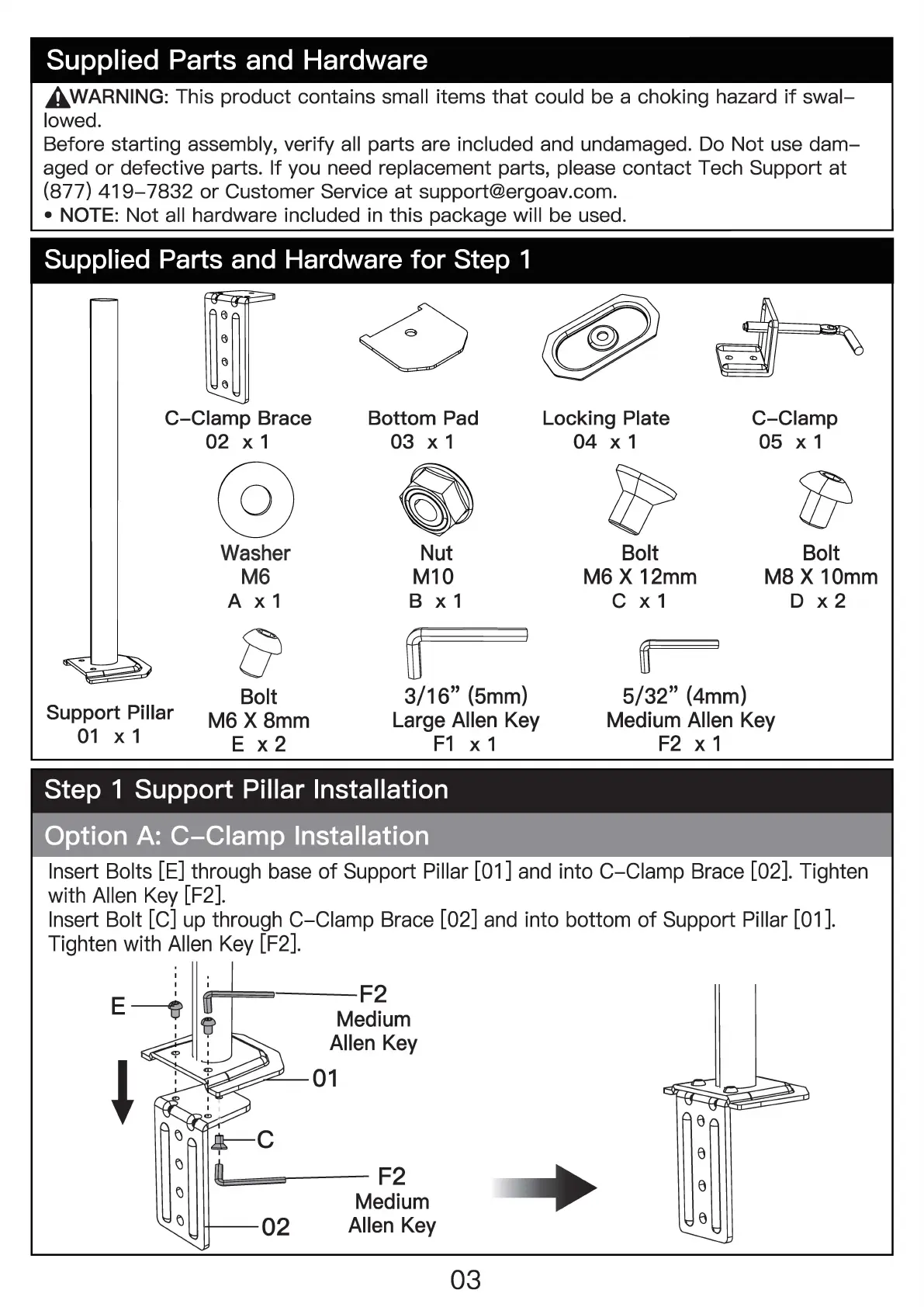

Supplied Parts and Hardware
AWARNING:
This product contains small items
that
could be a choking hazard
if
swal-
lowed.
Before starting assembly, verify all parts are included and undamaged. Do
Not
use
dam-
aged
or
defective parts. If you need replacement parts, please
contact
Tech Support
at
(877)
419-
7832
or
Customer Service
at
support@ergoav.com.
NOTE: Not all hardware included in this package will be used.
Supplied Parts and Hardware for Step 1
C-Clamp
Brace
02
X 1
Support Pillar
01
X 1
Washer
M6
A x 1
Bolt
M6X8mm
E x 2
Bottom
Pad
03
X 1
Nut
M10
B x 1
ffi
3/16" (5mm)
Large Allen Key
F1
x 1
Step 1 Support Pillar Installation
Locking Plate
04
X 1
Bolt
M6
X 12mm
C x 1
fil
C-Clamp
05
X 1
Bolt
MB
X 10mm
D x 2
5/32"
(4mm)
Medium
Allen
Key
F2
x 1
Insert Bolts [E] through base
of
Support Pillar [01] and into C-Clamp Brace [02]. Tighten
with Allen Key [F2].
Insert Bolt
[CJ
up through C-Clamp Brace [02] and into bottom
of
Support Pillar
[01
].
Tighten with Allen Key [F2].
F2
Medium
Allen Key
'
01
C
(j
I
Cl
~
F2
_J
(j
Cl
Medium
02
Allen Key
03
