Ceiling TV Mount Instruction Manual
Thank You for Choosing this ErgoAV Product!
At ErgoAV, we want to add value to your AV experience by providing the
highest quality products and services in the industry. If you have any
concerns or comments, please contact us.
ErgoAV Customer Care
Phone: (877) 419-7832
Email: support@ergoav.com
Website: www.ergoav.com
Address: 9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445
Model: ERMCM1-01B

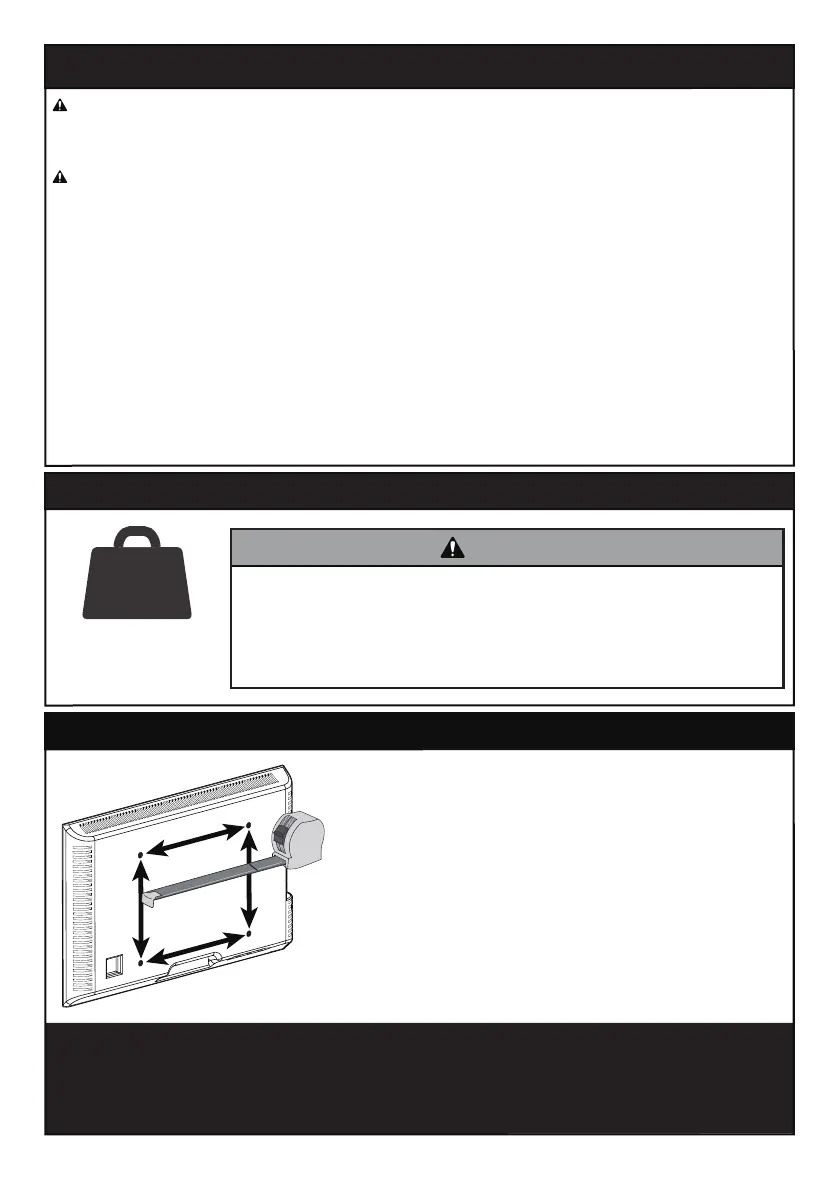

Check the VESA Pattern of Your TV before You Begin the Installation
IMPORTANT SAFETY INFORMATION
If your TV's VESA Pattern is smaller than 100mm x 100mm / 3.9” x 3.9” or
greater than 400mm x 400mm / 15.7” x 15.7”, this mount is NOT COMPATIBLE
with your TV. Please contact our Technical Support at (877) 419-7832 or
support@ergoav.com to find a compatible mount.
Weight Restrictions
99 lbs/
(44 kg)
MAX
If your TV weighs
more, do not use
this product.
W
H
Minimum: 100mm x 100mm / 3.9” x 3.9” (W x H)
Maximum: 400mm x 400mm / 15.7” x 15.7” (W x H)
Measure Your TV VESA Pattern:
DANGER! Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns, please contact our Technical Support at
(877) 419-7832 or Customer Service at support@ergoav.com.
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this manual. Do not
exceed weight capacity. We are not liable for damage or injury caused by improper mounting,
incorrect assembly or inappropriate use.
• This product is designed for use in wood ceiling joist or solid concrete ceilings. – DO NOT
install into drywall alone.
• The ceiling must be capable of supporting four times the weight of the TV and mount combined.
• Use this mounting system only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly to avoid mechanical damage.
• SAVE THESE INSTRUCTIONS.
DO NOT exceed the maximum weight indicated. This mounting
system is intended for use only within the maximum weights
indicated. Use with products heavier than the maximum
weights indicated may result in failure of the mount and its
accessories, causing damage and or injury.
WARNING
02
03
x2
TV Bracket
L2.5mm
[F1]
x8
L10mm
[F2]
x4
L22mm
[F3]
x4
04
M4/M5 Washer
[B1]
x4
M6/M8 Washer
[B2]
x4
05
Spacers
[If necessary]
NOTE: The spacers shown are actual size.
Supplied Parts and Hardware for Step 1
3/8” (10 mm)
Concrete Drill Bit
Hammer
(Needed for concrete installs)(Needed for wood stud installs)
Verify Your Ceiling Construction
If you are not sure of
your ceiling
construction, please
contact our Technical
Support at
(877) 419-7832 or
Customer Service at
support@ergoav.com
CAUTION
DO NOT
install into
drywall alone
Ceiling Joist
(with Drywall)
Solid Concrete
Wall
Phillips
Screwdriver
Tools Needed (Not lncluded)
Stud Finder
Tape Measure
Electric DrillAwl
Pencil
Level

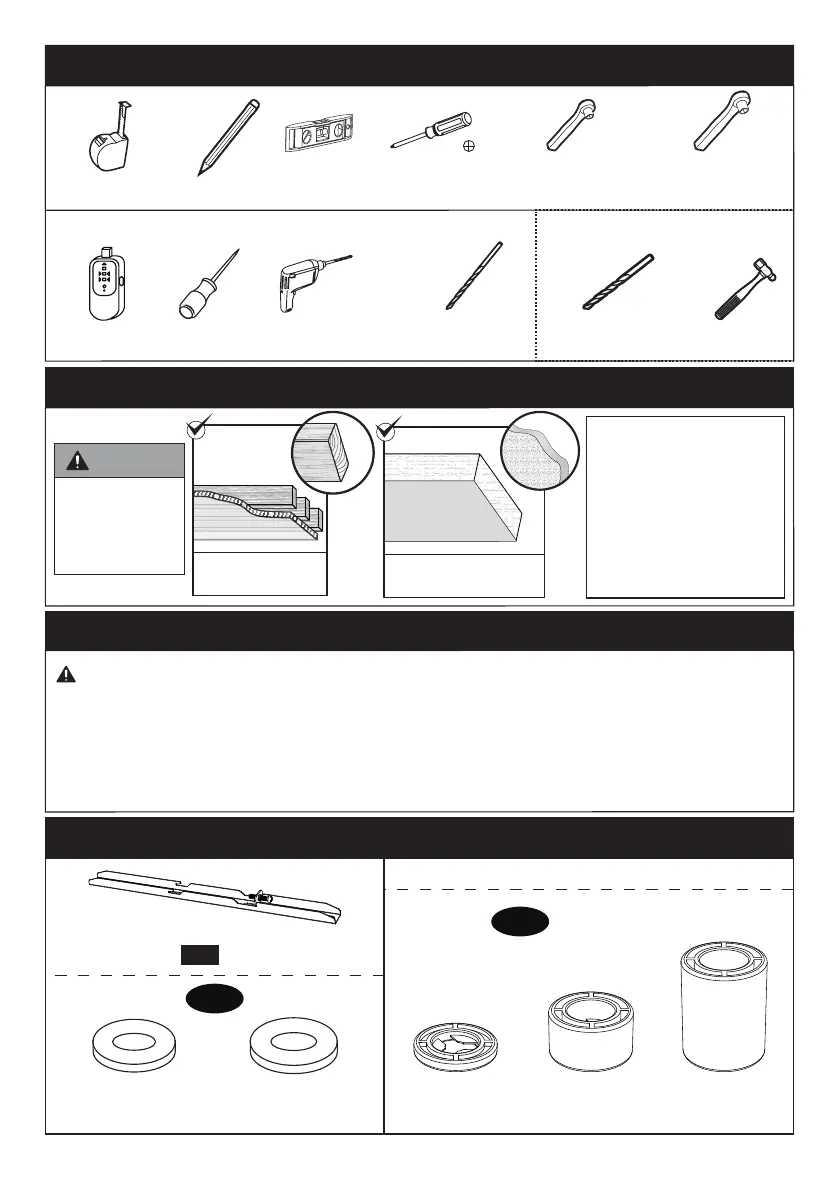

Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged or defective parts. If you require replacement parts, please contact our
Technical Support at (877) 419-7832 or Customer Service at support@ergoav.com.
PLEASE NOTE: Not all hardware included in this package will be used.
7/32” (5.5mm)
Wood Drill Bit
3/8” (10mm)
Socket Wrench
1/2” (13mm)
Socket Wrench
03
