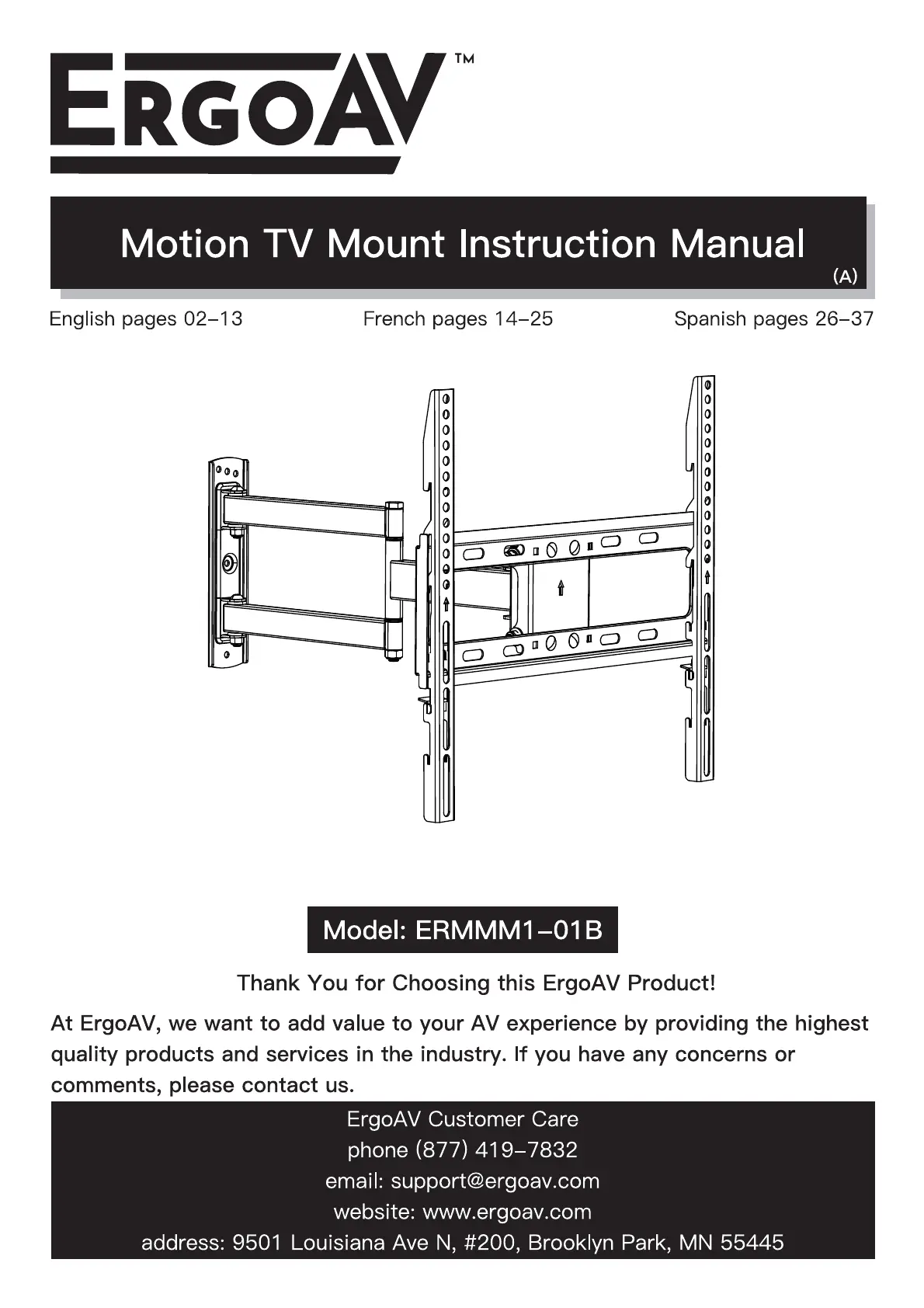

Motion
TV
Mount
Instruction Manual
(A)
English pages
02-13
French pages
14-25
Spanish pages
26-37
()
0
0
0
0
0
0
i
t::::::;::::;~~:=~~~5=7
~~o~~&>~a~G~<J,o..,;;o;....-
....
o_1
G
tr===1
Model: ERMMM1
-01
B
Thank
You
for
Choosing
this
ErgoAV
Product!
At
ErgoAV, we
want
to
add value
to
your AV experience
by
providing
the
highest
quality products and services in
the
industry.
If
you have any concerns
or
comments, please
contact
us.
ErgoAV Customer Care
phone(877)419-7832
email: support@ergoav.com
website: .ergoav.com
address: 9501 Louisiana Ave
N,
#200, Brooklyn Park, MN 55445
IMPORTANT SAFETY INFORMATION
A DANGER! Please carefully read all instructions before attempting installation. If
you do not understand the instructions
or
have any concerns, please contact our
Technical Support at (877)
419-
7832
or
Customer Service
at
support@ergoav.com.
A CAUTION: Use with products heavier than the maximum weights indicated may
result in instability causing possible injury.
Do
not use this product
for
any purpose
that
is not explicitly specified in this manual.
Do
not exceed weight capacity. We are not liable
for
damage
or
injury caused by
improper mounting, incorrect assembly or inappropriate use.
This product is designed
for
use
in
wood stud and solid concrete walls. -
DO
NOT
install into Drywall only.
The wall must be capable
of
supporting
four
times the weight
of
the TV and mount
combined.
Use this mounting system only
for
its intended use as described in these instructions.
Do
not use attachments not recommended by the manufacturer.
Do
not use outdoors.
Route cords and cables properly
to
avoid mechanical damage.
SAVE
THESE INSTRUCTIONS.
Weight Restrictions
MAX
77
lbs/
35
kg
If your TV weighs more,
Do Not use this product.
A WARNING
DO
NOT exceed the maximum weight indicated. This mounting
system is intended
for
use only within the maximum weights
indicated. Use with products heavier than the maximum weights
indicated may result in failure
of
the mount and
its
accessories,
causing damage and
or
injury.
Check the VESA Pattern
of
Your TV before the Installation
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
75mm
~
3"
100mm
~
4"
200mm
~
7 7
/8"
300mm
~
11
3/4"
400mm
~
15
3/4"
Minimum: 75mm x 75mm /
3"
x 3"
(W
x
H)
Maximum: 400mm x 400mm / 16" x 16" (W x
H)
If your TV's
VESA
Pattern
is
smaller than 75mm x 75mm or greater than
400mm x 400mm, this mount is
NOT
COMPATIBLE with your
TV.
Please contact our
Technical Support at (877) 419-7832 or support@ergoav.com to find a compatible
mount.
02
Tools Needed (Not Included)
Stud Finder
/
5/32"
(4mm)
Wood
Drill
Bit
Awl
Tape
Measure
~
Electric
drill
7/16"(11mm)
Socket
Wrench
/
Pencil Level
I
Phillips
Screwdriver
(Needed
for
concrete installs)
~
3/8"
(10mm)
Concrete
Drill
Bit
Hammer
Verify Your Wall Construction
CAUTION
DO
NOT
install into
drywall alone
Wood Studs
(with Drywall)
Solid Concrete
Wall
If
you are not sure
of
the wall construction,
please contact our
Technical Support at
(877)
419-7832
or
Customer Service
at
support@ergoav.com.
Supplied
Parts
and
Hardware
A.
WARNING: This product contains small items that could be a choking hazard
if
swallowed.
Before starting assembly, verify
all
parts are included
and
undamaged.
Do
not
use
damaged or
defective parts. If you
need
replacement parts, please contact our Technical Support at (877)
419-
7832 or Customer Service at support@ergoav.com.
PLEASE NOTE:
Not
all
hardware
included in
this
package
will be used.
Supplied Parts and Hardware for Step 1
TV Bracket
m)x2
NOTE: The washers and spacers shown are actual size.
---------------------
-~
~-;
~-~
;~
-----------------------
-T
-----------------------------------
-s
p-a
ce
rs-
-----------------------------------------------
I
[If
necessary]
~
®@
~
~
M4/
M5
[81]
X 4
M6
/ MB
[82]
X 4
L2.5mm
[F1] X 8
03
L10mm
[F2] X 4
L22mm
[F3] X 4
