Model: ERMMM6-01B
(A)
Motion TV Mount Instruction Manual
Thank You for Choosing this ErgoAV Product!
At ErgoAV, we want to add value to your AV experience by providing the highest
quality products and services in the industry. If you have any concerns or
comments, please contact us.
ErgoAV Customer Care
phone (877) 419-7832
email: support@ergoav.com
website: www.ergoav.com
address: 9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445
English pages 02-15 Spanish pages 30-43 French pages 16-29
Check the VESA Pattern of Your TV before the Installation
IMPORTANT SAFETY INFORMATION
DANGER!Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact Technical
Support at (877) 419-7832 or Customer Service at support@ergoav.com.
CAUTION: Use with products heavier than the maximum weights indicated may result in
instability causing possible injury.
• DO NOT use this product for any purpose that is not explicitly specified in this manual. DO
NOT exceed weight capacity. We are not liable for damage or injury caused by improper
mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud or solid concrete walls. – DO NOT install into
drywall alone.
• The wall must be capable of supporting four times the weight of the TV and mount combined.
• Use this mounting system only for its intended use as described in these instructions. DO NOT
use attachments not recommended by the manufacturer.
• DO NOT use outdoors.
• Route cords and cables properly to avoid mechanical damage.
• SAVE THESE INSTRUCTIONS.
Weight Restrictions
DO NOT exceed the maximum weight indicat-
ed. This mounting system is intended for use
only within the maximum weights indicated.
Use with products heavier than the maximum
weights indicated may result in failure of the
mount and its accessories, causing possible
damage and or injury.
WARNING
If your TV weighs more, this
mount is NOT compatible.
75 lbs /
34 kg
MAX
200 mm ≈ 7 7/8”
400 mm ≈ 15 3/4”
100 mm ≈ 4”
300 mm ≈ 11 3/4”
Minimum: 100mm x 100mm / 4 x 4 (W x H)
Maximum: 400mm x 400mm / 15 3/4 x 15 3/4 (W x H)
If your TV's VESA Pattern is smaller than 100mm x 100mm or greater than
400mm x 400mm, this mount is NOT COMPATIBLE with your TV. Please contact our
Technical Support at (877) 419-7832 or Customer Service at support@ergoav.com to
find a compatible mount.
MAX: 400mm
MAX: 400mm
02 03 04 05 06 07 08 09 10 11 12 13 14
TV Bracket
x 2
01

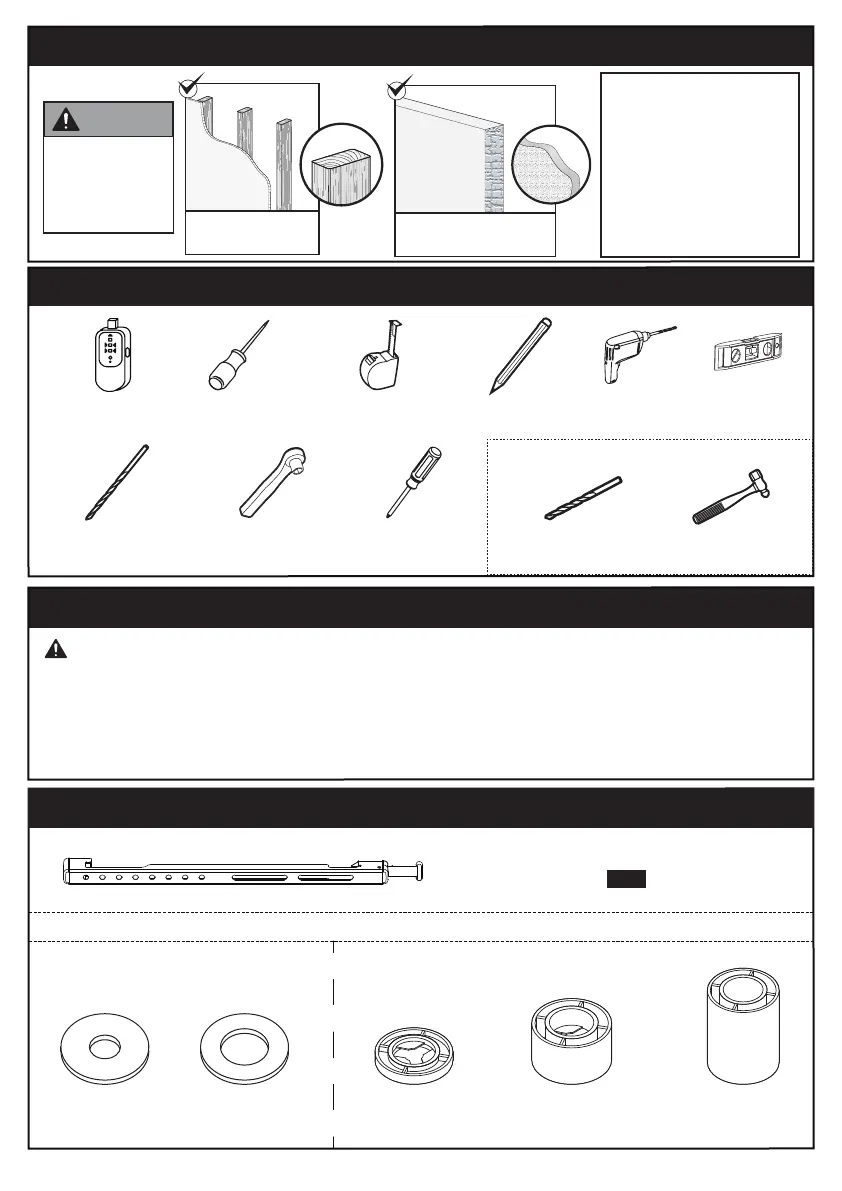

Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Verify Your Wall Construction
If you are not sure of
the wall construction,
please contact
Technical Support at
(877) 419-7832 or
Customer Service at
support@ergoav.com
to find a compatible
mount.
Solid Concrete
Wall
CAUTION
DO NOT
install into
drywall alone.
Wood Studs
(with Drywall)
Stud Finder Tape Measure Pencil Electric Drill Level
7/32” (5.5mm)
Wood Drill Bit
1/2” (13mm)
Socket Wrench
Phillips
Screwdriver
3/8” (10mm)
Concrete Drill Bit
Hammer
Awl
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. DO NOT use
damaged or defective parts. lf you need replacement parts, please contact Technical
Support at (877) 419-7832 or Customer Service at support@ergoav.com.
NOTE: Not all hardware included in this package will be used.
(Needed for concrete installs)
Spacers
[If necessary]
NOTE: The Washers and Spacers shown are actual size.
[F1]
x 8
L2.5mm
[F2] x 4
L10mm L22mm
[F3] x 4
Washers
M4 / M5
[B1] x 4
M6 / M8
[B2] x 4
02 03 04 05 06 07 08 09 10 11 12 13 14
