Side 1/16

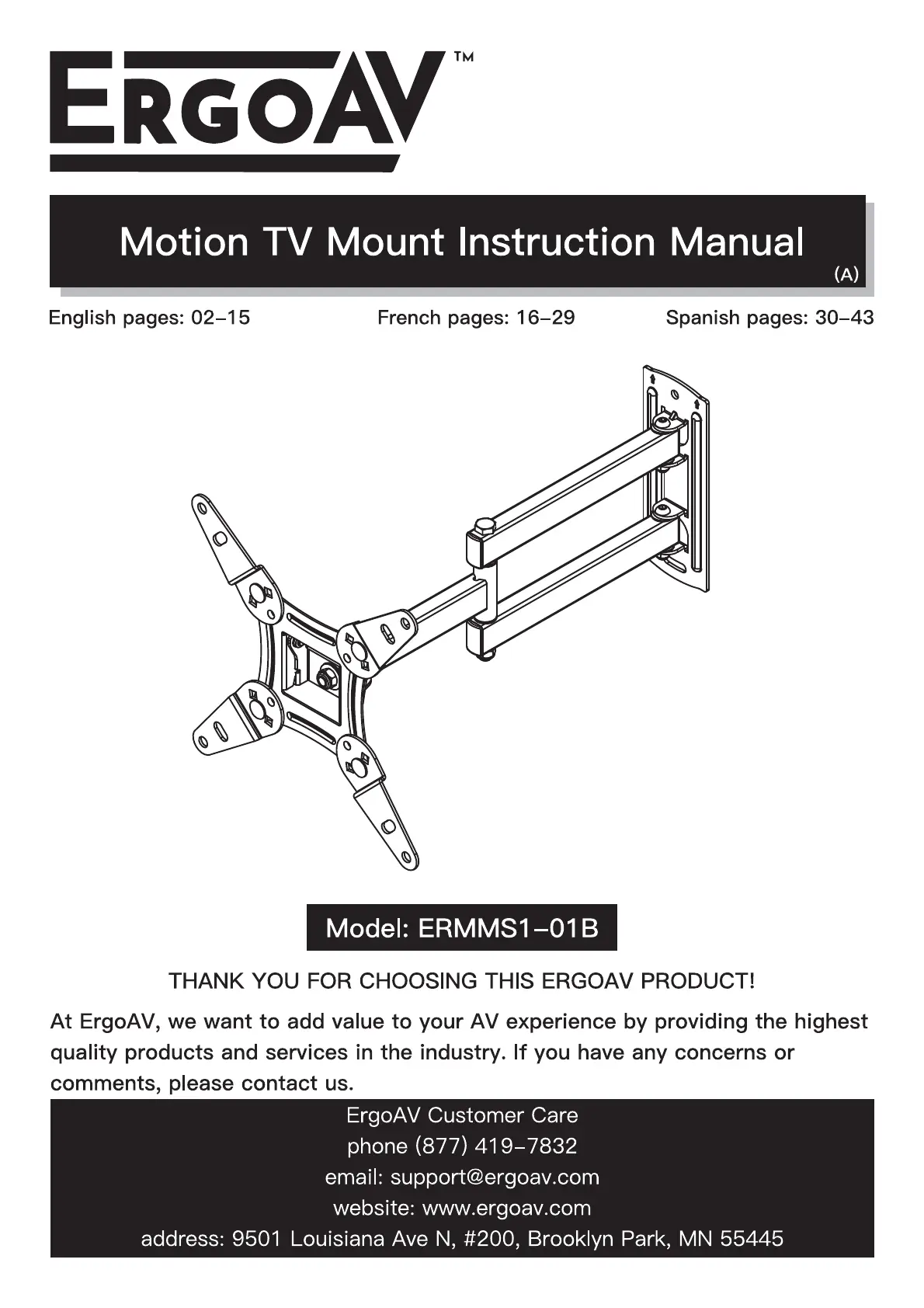

Motion TV Mount Instruction Manual
(A)
English pages:
02-15
French pages:
16-29
Spanish pages:
30-43
Model: ERMMS1
-01
B
THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!
At
ErgoAV, we
want
to
add value
to
your AV experience by providing the highest
quality products and services in the industry.
If
you have any concerns
or
comments, please
contact
us.
ErgoAV Customer Care
phone(877)419-7832
email: support@ergoav.com
website: .ergoav.com
address: 9501 Louisiana Ave
N,
#200, Brooklyn Park,
MN
55445
IMPORTANT SAFETY INFORMATION
A DANGER! Please carefully read all instructions before attempting installation.
If
you do not understand the instructions
or
have any concerns or questions, please
contact our Technical Support line
at
(877)
419-
7832
or
customer service
at
support@ergoav.com.
A CAUTION: Use with products heavier than the maximum weights indicated may
result
in
instability causing possible injury.
• Do not use this product
for
any purpose
that
is not explicitly specified in this
manual. Do not exceed weight capacity. We are
not
liable
for
damage or injury
caused by improper mounting, incorrect assembly
or
inappropriate use.
• This product is designed
for
use
in
wood stud, and solid concrete walls. -
DO
NOT install into drywall alone.
• The wall must be capable
of
supporting
four
times the weight
of
the TV and
mount combined.
• Use this mounting system only
for
its intended use as described in these
instructions. Do not use attachments not recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly
to
avoid mechanical damage.
•
SAVE
THESE INSTRUCTIONS
Weight Restrictions
•
MAX
44
lbs/
19.9
kg
If
your TV weighs more, do
not
use this product.
A WARNING
DO
NOT exceed the maximum weight indicated. This mounting
system is intended
for
use only within the maximum weights
indicated. Use with products heavier than the maximum weights
indicated may result in failure
of
the mount and its accessories,
causing damage and
or
injury.
Check the VESA Pattern of Your TV before the Installation
=
=
~
.
~
E
~
E
~
0
•
~
0
m i .
--·
..-----
75
mm~
3 in
100
mm~
4 in
200
mm
~
7 7
/8
in
Minimum: 75mm x 75mm /
3"
x
3"
(W x
H)
Maximum: 200mm x 200mm / 7 7
/8"
x 7 7
/8"
(W x
H)
If your TV's VESA Pattern is smaller than 75mm x 75mm or greater than
200mm x 200mm, this mount is NOT COMPATIBLE with your
TV.
Please contact our
Technical Support at (877)
419-7832
or support@ergoav.com
to
find a compatible
mount.
02
Tools Needed (Not Included)
I.
Stud Finder Awl Tape Measure Pencil Electric Drill
Phillips
Level Screwdriver
/
7 /32in(5.5mm)
3/8in(
10mm) 1
/2in(
13mm)
Wood Drill Socket Wrench Socket Wrench
Verify Your Wall Construction
CAUTION
DO
NOT
install into
drywall alone
(Needed for concrete installs)
~
3/8in(
10mm)
Concrete Drill
Hammer
Wood Studs
(with Drywall)
Solid Concrete
Wall
If
you
are not sure
of
the wall construction,
please contact our
Technical Support line
at (877) 419-7832 or
customer service at
support@ergoav.com.
Supplied Parts and Hardware
A WARNING: This product contains small items
that
could be a choking hazard
if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged
or
defective parts. If you require replacement parts, please
contact
our
Technical Support line
at
(877)
419-7832
or
customer service
at
support@ergoav.com
to
fmd a compatible mount.
• PLEASE NOTE: Not all hardware included in this package will be used.
Supplied Parts and Hardware for Step 1
ml
x1
DE
x4
Faceplate
Extender Bracket
03
Bolt
M6 x 12mm
[H1]
X4
Nut
M6
[H2]
X4
