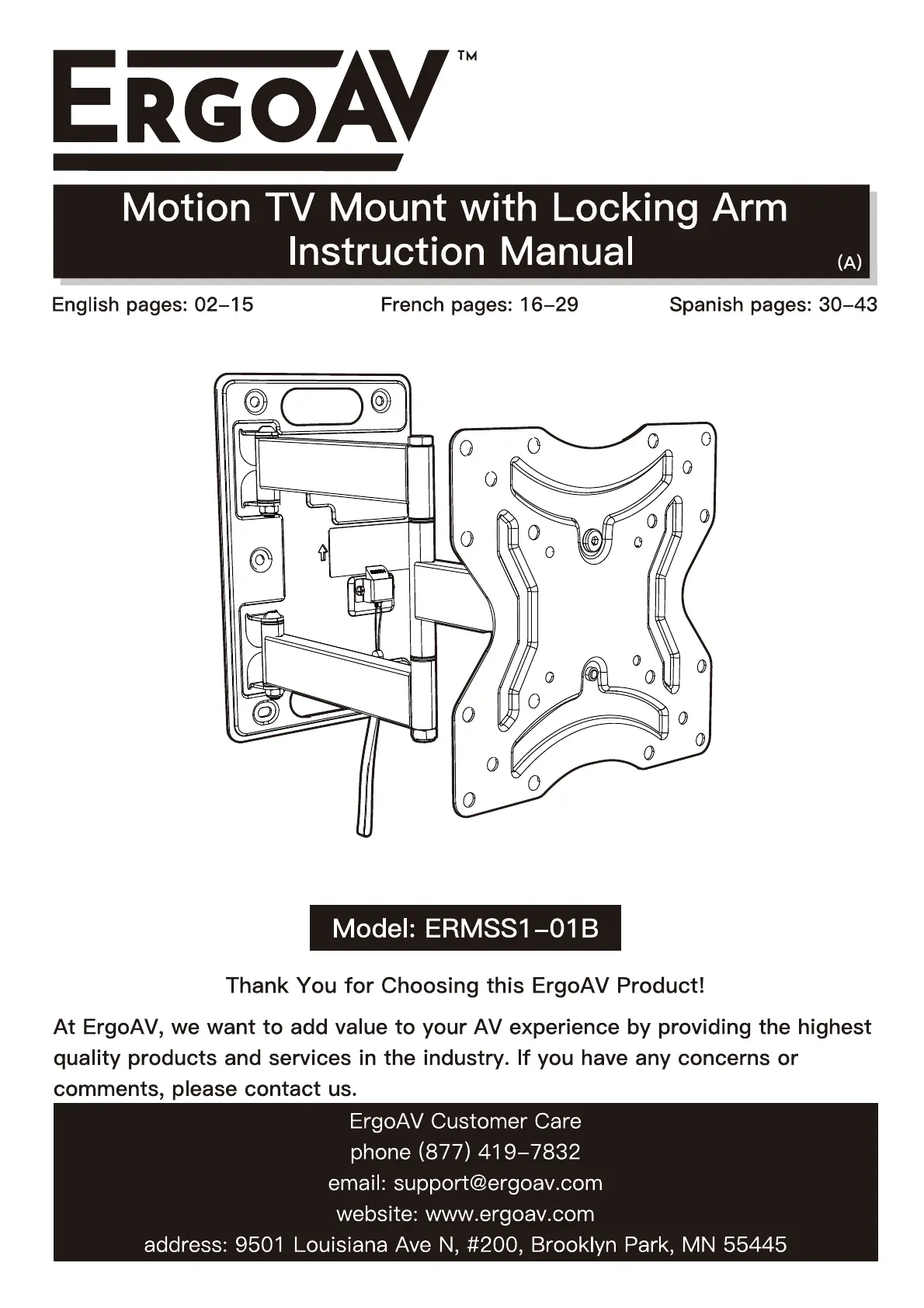

Motion TV Mount with Locking Arm
Instruction Manual
<A>
English pages:
02-15
French pages:
16-29
Spanish pages:
30-43
Model: ERMSS1
-01
B
Thank You
for
Choosing
this
ErgoAV Product!
At
ErgoAV, we
want
to
add value
to
your AV experience by providing the highest
quality products and services in the industry.
If
you have any concerns
or
comments, please
contact
us.
ErgoAV Customer Care
phone(877)419-7832
email: support@ergoav.com
website: .ergoav.com
address: 9501 Louisiana Ave
N,
#200, Brooklyn Park,
MN
55445
IMPORTANT SAFETY INFORMATION
A DANGER! Please carefully read all instructions before attempting installation.
If you
DO
NOT understand the instructions or have any concerns or questions,
please contact our Technical Support at (877)
419-
7832 or Customer Service at
support@ergoav.com.
A CAUTION: Use with products heavier than the maximum weights indicated
may result in instability causing possible injury.
DO
NOT use this product
for
any purpose that is NOT explicitly specified
in
this
manual.
DO
NOT exceed weight capacity. We are NOT liable
for
damage or injury
caused by improper mounting, incorrect assembly
or
inappropriate use.
This product is designed
for
use
in
wood stud, solid concrete, and concrete
block walls -
DO
NOT install into drywall alone. Please note: When installing
into a recreational vehicle, please consult our Customer Service at
support@ergoav.com
to
determine the correct screw depth
to
use
for
your
installation.
The wall must be capable
of
supporting
four
times the weight
of
the TV and
mount combined.
Use this mounting system only
for
its intended use
as
described
in
these
instructions.
DO
NOT use attachments NOT recommended by the manufacturer.
DO
NOT use outdoors.
Route cords and cables properly
to
avoid mechanical damage.
SAVE
THESE INSTRUCTIONS.
Weight Restrictions
MAX
66
lbs/
29
kg
If your TV weighs more,
DO
NOT
use this product.
A WARNING
DO
NOT exceed the maximum weight indicated. This mounting
system is intended
for
use only within the maximum weights
indicated. Use with products heavier than the maximum weights
indicated may result in failure
of
the mount and its accessories,
causing damage and
or
injury.
Check the VESA Pattern of Your TV before the Installation
For
VESA
Patterns:
75mm x 75mm
~
3" x 3"
1 00mm x 1 00mm
~
3.9" x 3.9"
200mm x 1 00mm
~
7 .9" x 3.9"
200mm x 200mm
~
7 .9" x 7 .9"
Minimum: 75mm x 75mm /
3"
x
3"
(W x
H)
Maximum: 200mm x 200mm / 7 7
/8"
x 7 7
/8"
(W x
H)
If
your
TV's
VESA
Pattern
is
smaller
than
75mm
x
75mm
or
greater
than
200mm
x200mm,
this
mount
is
NOT
COMPATIBLE
with
your
TV.
Please
contact
our
Technical
Support at
(877)
419-
7832
or
support@ergoav.com
to find a compatible
mount.
02

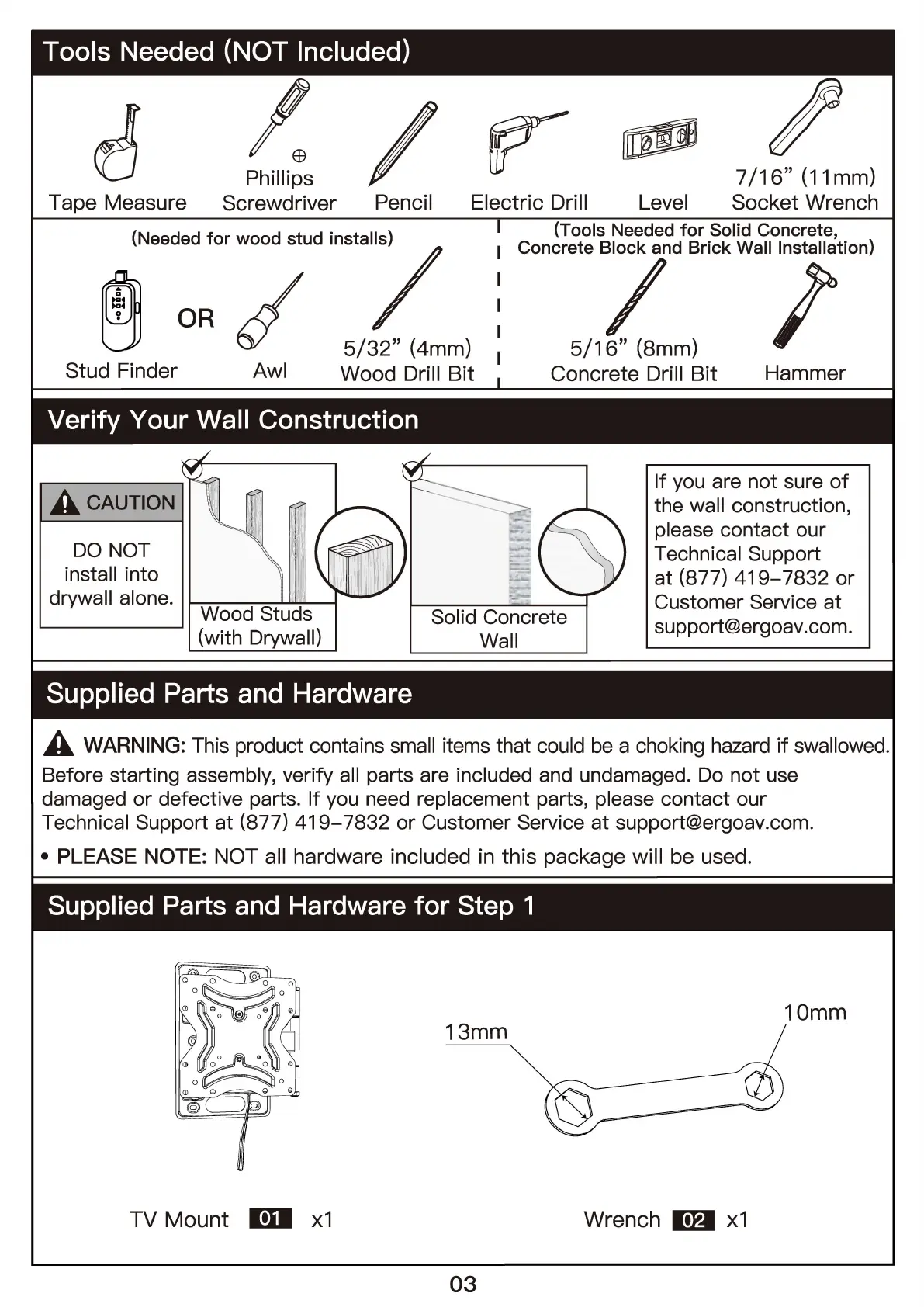

Tools Needed (NOT Included)
Tape Measure
Screwdriver
Pencil Electric Drill Level
7/16"(11mm)
Socket Wrench
(Needed
for
wood stud installs)
~
OR
5/Lm)
(Tools Needed for Solid Concrete,
Concrete Block and Brick Wall Installation)
5/1lrnm)
l
Stud Finder Awl Wood Drill
Bit
1
Concrete Drill
Bit
Hammer
Verify Your Wall Construction
AcAUTION
DO
NOT
install into
drywall alone.
Wood Studs
(with Drywall)
Supplied
Parts
and
Hardware
Solid Concrete
Wall
If you are not sure
of
the wall construction,
please contact our
Technical Support
at (877)
419-7832
or
Customer Service at
support@ergoav.com.
A WARNING: This product contains small items that could
be
a choking hazard
if
swallowed.
Before starting assembly, verify
all
parts are included and undamaged.
Do
not use
damaged or defective parts. If you need replacement parts, please contact our
Technical Support at (877)
419-7832
or Customer Service at support@ergoav.com.
PLEASE NOTE: NOT all hardware included in this package will be used.
Supplied Parts and Hardware for Step 1
"'o
® o( "
0
@ 0 0
10mm
13mm
0 0
G
TV
Mount
Iii
x1
Wrench
IIPJI
x1
03
