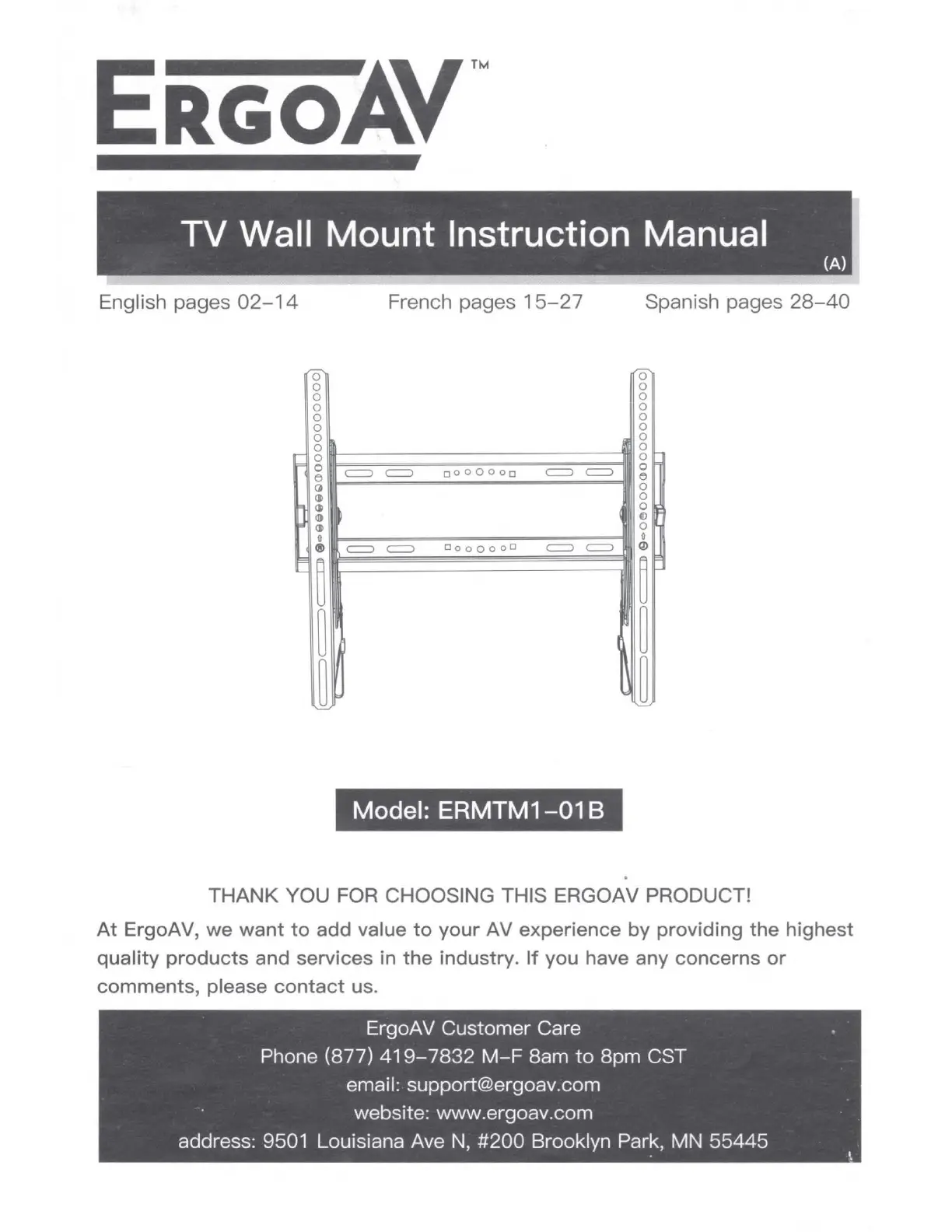

TV Wall Mount Instruction Manual
(A)
English pages
02-14
French pages
15
-
27
Spanish pages
28-40
'o
'o
0
0
0
0
0
0
0
0
0
0
0
0
0
0
~
0
0
=
0
0
e
c::::::::::,
c::::::::::,
0000000
c::::::::::,
c::::::::::,
e
()
0
()
0
..
()
0
<It
()
'"
()
0
0
0
®
c::::::::::,
c::::::::::,
0ooooo0
c::::::::::, c::::::::::,
0
=
~
~
~
~
n.
-
~
'-'
Model:
ERMTM1-01
B
THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!
At ErgoAV, we want
to
add value to your AV experience
by
providing the highest
quality products and services
in
the industry. If
you
have any concerns or
comments, please contact us.
ErgoAV Customer Care
Phone (877)
419-
7832
M-F
8am
to
8pm
CST
email: support@ergoav.com
website: www.ergoav.com
address: 9501 Louisiana Ave
N,
#200
Brooklyn Park, MN
55445

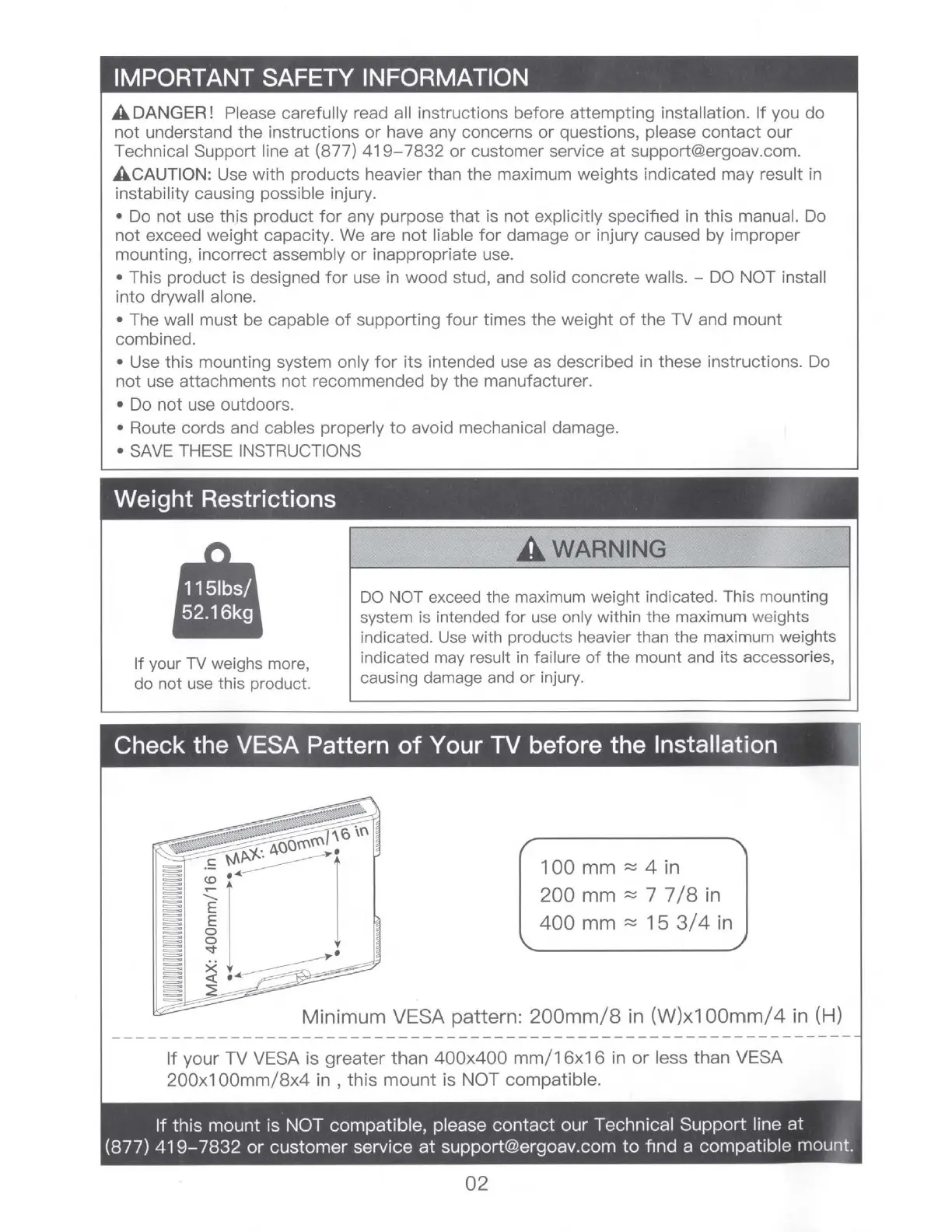

IMPORTANT SAFETY INFORMATION
A DANGER! Please carefully read all instructions before attempting installation.
If
you do
not
understand the instructions
or
have any concerns
or
questions, please
contact
our
Technical Support line
at
(877)
419-7832
or
customer service
at
support@ergoav.com.
A.CAUTION: Use with products heavier than
the
maximum weights indicated may result in
instability causing possible injury.
• Do
not
use this product
for
any purpose that is
not
explicitly specified in this manual. Do
not
exceed weight capacity.
We
are
not
liable
for
damage
or
injury caused by improper
mounting, incorrect assembly
or
inappropriate use.
• This product is designed
for
use in wood stud, and solid concrete walls. -
DO
NOT install
into drywall alone.
• The wall must be capable
of
supporting
four
times the weight
of
the
TV and mount
combined.
• Use this mounting system only
for
its
intended use as described in these instructions. Do
not
use attachments
not
recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly
to
avoid mechanical damage.
• SAVE THESE INSTRUCTIONS
Weight Restrictions
If
your
TV
weighs more,
do not
use
this product.
A WARNING
DO
NOT exceed the maximum weight indicated. This mounting
system is intended
for
use
only within the maximum weights
indicated.
Use
with products heavier than the maximum weights
indicated may result
in
failure
of
the mount
and
its accessories,
causing damage
and
or injury.
Check the VESA Pattern
of
Your
TV
before the Installation
100
mm:::: 4 in
200 mm
::::
7 7
/8
in
400
mm
::::
15
3/4
in
Minimum VESA pattern:
200mm/8
in (W)x1
00mm/
4 in (H)
If
your
TV
VESA
is
greater
than
400x400
mm/16x16
in
or
less
than
VESA
200x1
00mm/8x4
in ,
this
mount
is
NOT
compatible.
If
this
mount
is
NOT
compatible,
please
contact
our
Technical
Support
line
at
(877)
419-
7832
or
customer
service
at
support@ergoav.com
to
fmd
a
compatible
mount.
02

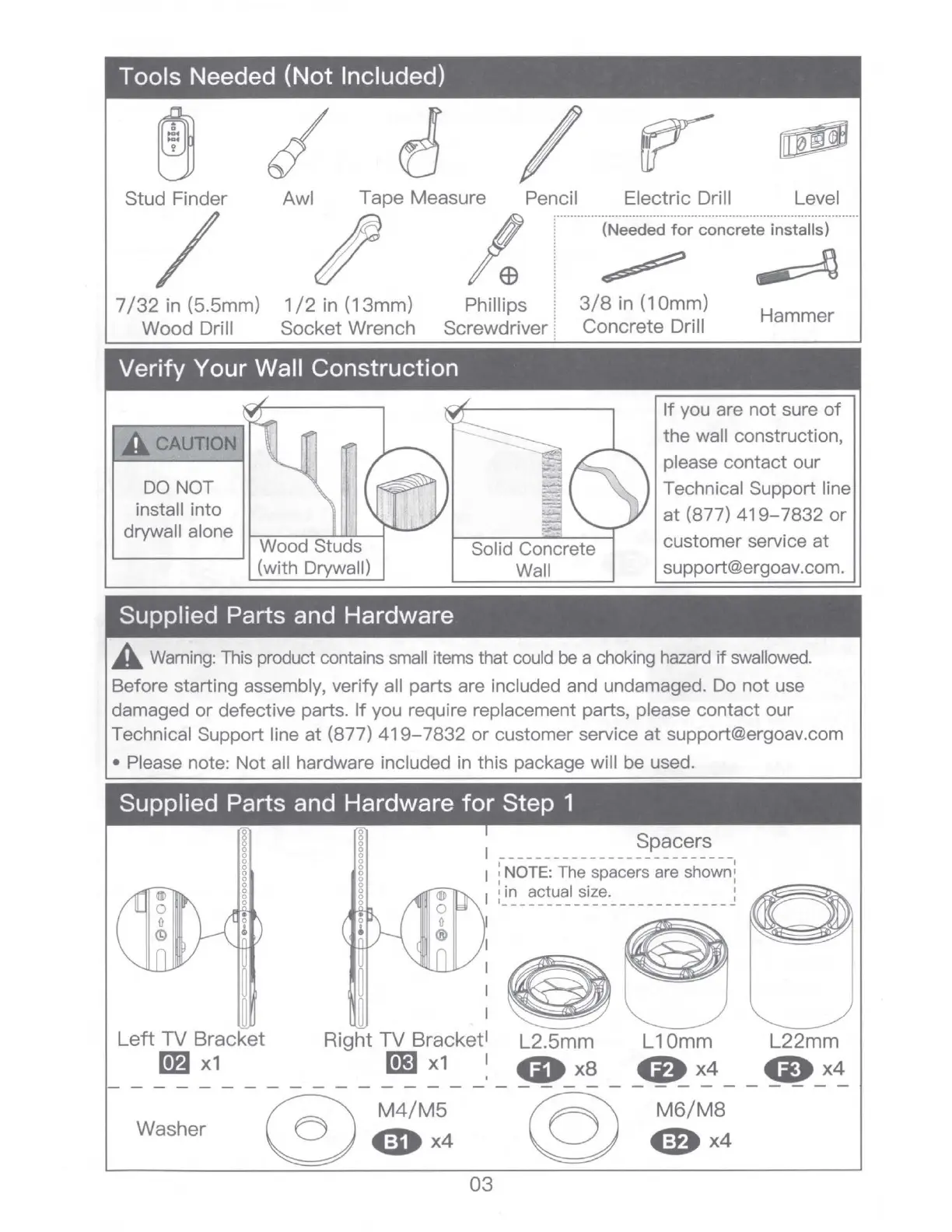

Tools Needed (Not Included)
CT]
/
Stud
Finder A
Tape
Measure
Pencil
Electric
Drill
Level
/
Im
(Needed
for
concrete installs)
7
/32
in
(5
.
5mm)
Wood
Drill
1
/2
in
(13mm)
Socket
Wrench
Phillips
Screwdriver
1
3/8
in
(10mm)
Concrete
Drill
Hammer
Verify Your Wall Construction
DO
NOT
install into
drywall alone
Wood Studs
(with Drywall)
Supplied Parts and Hardware
Solid Concrete
Wall
If
you are not sure
of
the wall construction,
please contact our
Technical Support line
at
(877)
419-
7832
or
customer service at
support@ergoav.com.
A
Warning
:
This
product contains
small
items
that
could
be
a choking
hazard
if
swallowed
.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged
or
defective parts.
If
you require replacement parts, please contact our
Technical Support line
at
(877)
419-7832
or
customer service
at
support@ergoav.com
• Please note: Not all hardware included in this package will be used.
Supplied Parts and Hardware for Step 1
Spacers
I
--------------------------
' I
I
, NOTE: The spacers are shown
1
I I
, in actual size. :
I
'--------------------
------
I
Left
TV Bracket Right TV Bracket
1
L2.5mm L 1 0mm L22mm
__
~
~1-
___
__
_
~
~1-
-~
_.
x8 _
4D
x4
__
4D
x4
Washer
~
M4/M5
~
-x4
03
M6/M8
&x4
