Side 1/16

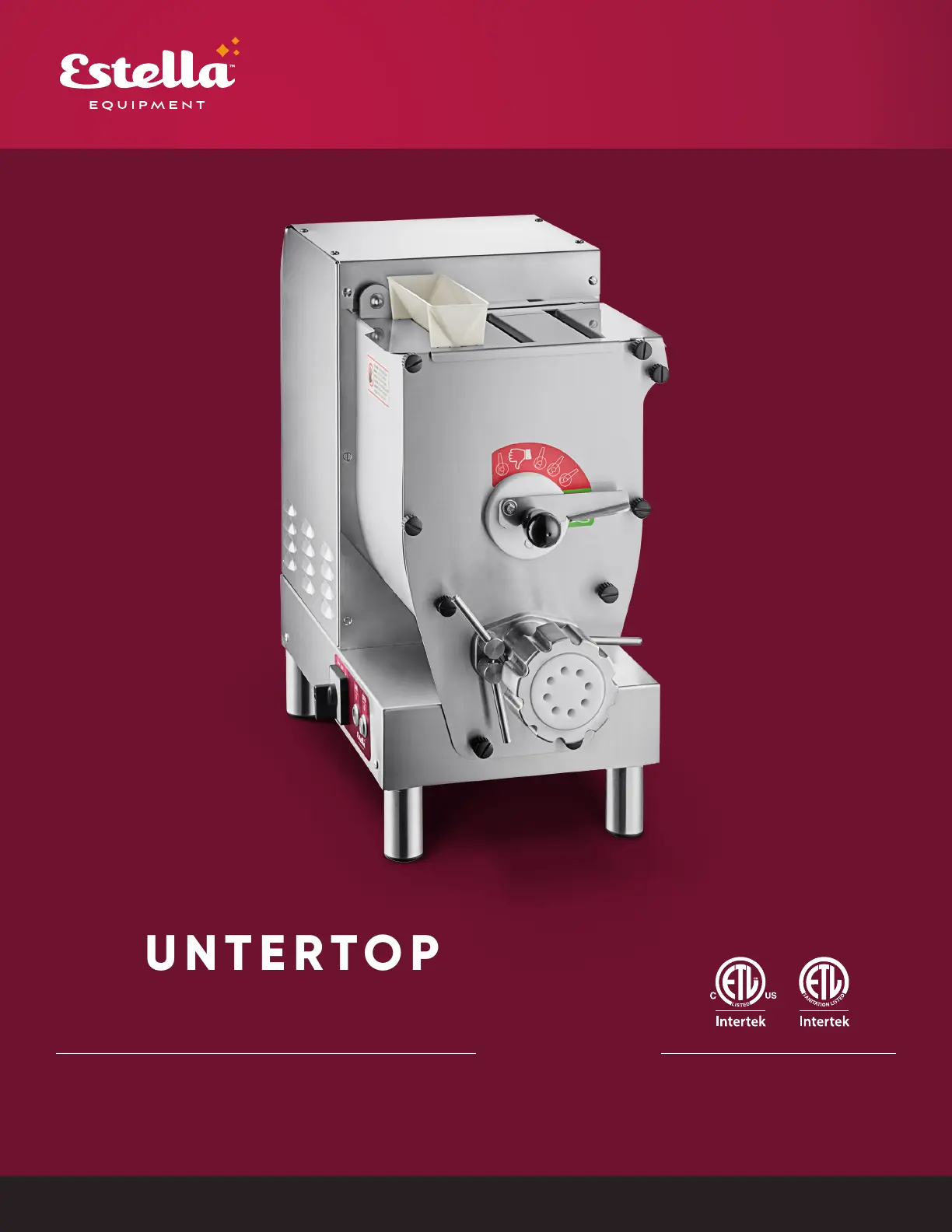

USER MANUAL
www.EstellaEquipment.com
#348PEM4  lb. • 120V • 1/2 HP
#348PEM9  lb. • 120V • 1 HP
COUNTERTOP
PASTA EXTRUDERS
98016149801614
CONFORMS TO UL STD. 763
CONFORMS TO CAN/CSA C.22.2 NO. 195
CONFORMS TO NSF 8
07/2024
www.EstellaEquipment.com2
USER MANUAL
INDEX
Storing and Using This Manual ................. 2
Machine Description .................................... 3
Intended Use ................................................. 3
Improper Use ................................................. 4
Serial Plate ..................................................... 4
Warning and Danger Signs ........................ 5
Guards and Safety Devices ....................... 5
Parts Diagram ................................................ 6
Wiring Diagram ..............................................7
Controls and Indicators ............................... 8
Installation ...................................................... 9
Start Up and Shut Down ............................ 10
Using the Machine .......................................11
Maintenance .................................................12
Troubleshooting ........................................... 16
STORING AND USING THIS MANUAL
This manual uses text and illustrations to familiarize users with the machine and explain the instructions and
essential criteria for its transport, handling, use, and maintenance.
Read this manual carefully before using the machine.
If the machine is transferred to a new owner, the latter’s identification and contact details must be notified to
the manufacturer.
The manual reflects the state of knowledge at the time of sale of the machine and cannot be considered
inadequate in the light of more recent experience and updates.
The manufacturer reserves the right to update the products and manuals without being obliged to update
previous products and manuals, except in exceptional circumstances. In case of doubt, contact your local
service center or the manufacturer.
The manufacturer is committed to continuously improving its products. For this reason, the manufacturer
welcomes any reports or proposals geared towards improving the machine and/or the manual. The machine
is delivered to the customer with the warranty conditions applicable at the time of sale.
Please contact your dealer for any further information.
www.EstellaEquipment.com 3
USER MANUAL
INTENDED USE
MACHINE DESCRIPTION
The machine is designed to produce fresh-made pasta.
The machine must be used in a professional setting by qualified operators who have read and understood
this manual.
Use the machine exclusively when it is securely placed on a solid worktable.
After every work cycle, we recommend leaving the machine to rest for a few minutes before using it again.
The pasta machine you have purchased is a straightforward, compact machine guaranteeing powerful
operation and high performance.
Since it must be used to produce food products, all components that can come into contact with such
products have been carefully chosen to guarantee the utmost hygiene.
The bowl is made of 6060 anodized aluminum alloy and grade AISI 304 stainless steel.
The accessory tool (blade) is made of grade AISI 304 stainless steel.
The mouth and the screw are made of AISI 304 stainless steel and dies of bronze.
Two operating modes: kneading and extruding mode.
348PEM4 Maximum dough capacity – 4 ½ lbs
348PEM9 Maximum dough capacity - 9 ¼ lbs
Compatible with pasta cutter accessory (sold separately).
Single-phase ventilated motors oer the following advantages: Extremely consistent performance and
motor duration; longer actual work time thanks to fewer interruptions.
The models appearing in this manual are manufactured in conformity to Directive UL 763-CSA 22.2 and
subsequent amendments. If any accident occurs, the manufacturer shall not be held liable if the machine was
modified, tampered with, had its safety guards removed, or used for purposes other than the intended use
specified by the manufacturer.
WARNING
The symbols used in this manual draw the readers attention to points and operations that are hazardous to the
operator’s personal safety or that risk damaging the machine.
DO NOT use the machine unless you have read and properly understood these notes.
WARNING
For reasons of clarity, some of the illustrations appearing in this manual show the machine or parts of it with its
panels or guards removed. Never use the machine in this condition; only use it when it is fully equipped with
the guards and in good working order.
The manufacturer forbids the reproduction, even partial, of this manual or the use of its contents for purposes
other than those expressly allowed.
Any breach in this regard shall be punishable by law.
