Side 1/42

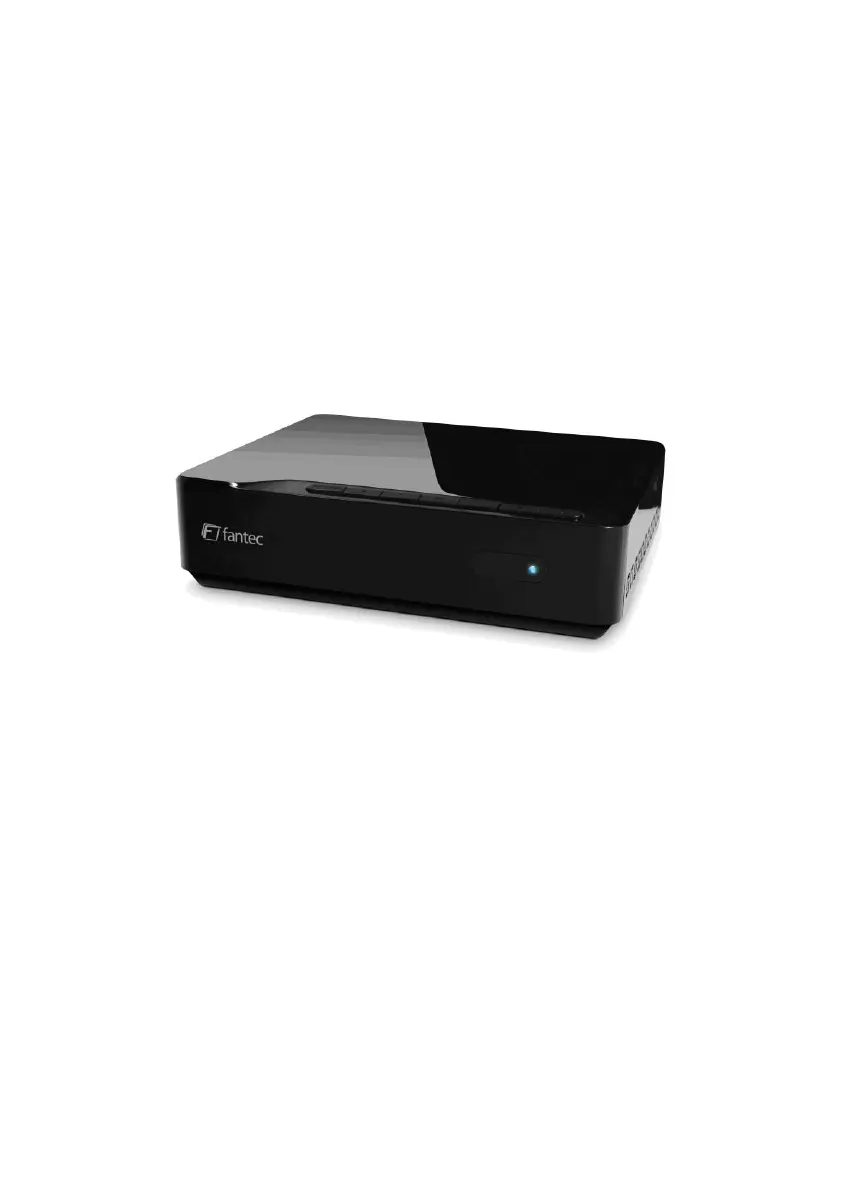

FANTEC RayPlay U3

User Manual

EN -1-

Contents

1. Introduction ..................................................................................... 2

1.1 Preface ...................................................................................... 2

1.2 Packing List ............................................................................... 3

1.3 Cautions .................................................................................... 4

1.4 About the Player........................................................................ 7

2. Remote control ............................................................................... 9

3. Install HDD .................................................................................... 12

3.1 HDD Mounting ........................................................................ 12

3.2 HDD Format ............................................................................ 13

4. Setup............................................................................................. 14

4.1 System .................................................................................... 15

4.2 Audio ....................................................................................... 17

4.3 Video ....................................................................................... 18

4.4 MISC ....................................................................................... 20

5. Main Menu .................................................................................... 20

5.1 File manager ........................................................................... 20

5.2 History ..................................................................................... 23

5.3 Movie ...................................................................................... 24

5.4 Music ....................................................................................... 25

5.5 Photo ....................................................................................... 26

6. Using the Auto Start function ........................................................ 28

6.1. Set the Auto Start folders ....................................................... 28

7. Upgrading the Firmware ............................................................... 28

8. Appendixes ................................................................................... 29

8.1 Specifications .......................................................................... 29

8.2 Frequently Asked Questions ................................................... 31

8.3 Copyrights and Trademarks .................................................... 32

8.4 Warranty .................................................................................. 33

EN -2-

1. Introduction

1.1 Preface

Thank you very much for purchasing FANTEC RayPlay U3. We hope

you will enjoy using it as a great home entertainment partner. This

player has the following functionality.

A/V Output

 HDMI V1.3 for high-definition video and digital audio

 Component video and stereo audio for analogue audio-visual

connection

 S/PDIF coaxial interface for high-fidelity digital audio

 Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p,

1080i, 1080p)

Multimedia Playback

 Supports major audio, video and image file formats (1080p HD

video decoding)

Movie format:

AVI, VOB, MKV, MOV, MP4, MPG, TS, WMV, DAT, IFO, RM,

RMVB, ISO (DVD & BluRay), AVCHD, MTS, M2TS, M4V, ASF,

FLV, XviD, DivX 3/4/5, resolution up to 720p/1080i/1080p

Music format:

MP3, OGG, WMA, WAV, FLAC, DOLBY DIGITAL, DOLBY

DIGITAL PLUS, DOLBY TRUE HD, DTS & Downmix

Produkspesifikasjoner

Merke:	Fantec
Kategori:	Mediespiller
Modell:	RayPlay U3
Innebygd skjerm:	Nei
Vekt:	1500 g
Bredde:	185 mm
Dybde:	145 mm
Høyde:	50 mm
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Garantikort:	Ja
Antall USB 2.0-porter:	1
Antall HDMI-porter:	1
Full HD:	Ja
Maksimal bildeoppløsning:	16000 x 9000 piksler
HDMI-versjon:	1.3
Total lagringskapasitet:	0 GB
Kompatible operativsystemer:	Windows 2000, XP, VISTA, Mac OS X, Linux
HDD-størrelse:	3.5 "
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Støttede filsystemer:	ext3, FAT32, NTFS
Strømforbruk (standby):	0.3 W
Støttede bildeformater:	BMP, GIF, JPEG XR, JPG, PNG, TIF
Støttede lydformater:	FLAC, LPCM, MP3, MS-ADPCM, OGG, WAV, WMA
Produktfarge:	Sort
HD-type:	Full HD
Analogt signalformatsystem:	NTSC, PAL
Kabler inkludert:	USB
Strømforbruk (vanlig bruk):	30 W
Slår seg automatisk av:	Ja
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Hurtigstartsguide:	Ja
DC-inngangskontakt:	Ja
Ethernet/bredbåndsforbindelse:	Nei
Lyd-utgang kanaler:	7.1 kanaler
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	1
Lydutgang (venstre/høyre):	1
Batterier medfølger:	Ja
AC-adapter bunt:	Ja
Videoformat som støttes:	ASF, AVCHD, AVI, DAT, FLV, H.264, IFO, ISO, ISO (Blu-ray), M2TS, M4V, MKV, MOV, MP4, MTS, MTV, RM, RMVB, TS, VOB, XVID
Støttede radiobånd:	Støttes ikke
Innebygd lyddekoder:	Dolby Digital 5.1, Dolby Digital Plus, Dolby Surround, Dolby TrueHD, DTS
Digital koaksialutgang for lyd:	1
Lagringsmedia:	Harddisk
Antall støttede HDDer:	1
S/PDIF-utport:	Ja
Grensesnitt for lagringsdriver:	SATA
Støttede undertekstformat:	ass, smi, srt, ssa, sub, sub+idx
Lagringsstasjonens størrelse:	3.5 "
Innebygd lagring av media:	Nei
