Side 1/30
3-Axis Stabilized Handheld Gimbal for Camera
Guilin Feiyu Technology Incorporated Company
V3.4E NUser Manual
Instructions
10
10
10
5.1 Introduction to functional models
5.2 Handle - Function / Operation
5. AK4000 Function / Operation
16
5.3 Modes
1. Product Overview
1
2
2
2
3
5
5
7
19
19
20
8
2. Installation
3. Gimbal Balancing
3.1 Balance Adjustment of the Tilting Axis
3.2 Balance Adjustment of the Rolling Axis
3.3 Balance Adjustment of the Panning Axis
2.1 Battery Charging
2.2 Battery Installation
2.3 Installation handles
6. Advanced Operation
21
6.1 Gimbal Initialization
6.2 Accessories expansion
6.3 Firmware Upgrade
22
7. How to connect Camera with Wi-Fi
4
2.4 Camera Installation
25
8. Specifications
26
9. Compatible Cameras for Reference
9
9
9
4. App - Download and Connecting
4.1 Download and Install Feiyu ON App
4.2 Connecting App
Catalogue
1
www.feiyu-tech.com
1.Product Overview
Accessories
Extension Rod
X1
Sony shutter release
(3.5 audio to multi)
X1
Charger
X1
Panasonic shutter release
(Shift audio 3.5 to 2.5)
X1
18650 Li-ion Battery
X4
Micro USB Cable
X1
Canon shutter release
RS-80N3)
X1
Tripod
X1
Stable and Extension
Support of Tilting Axis
X1
Roll Axis
Tilt Lock Screw
Roll Lock Screw
Lens Support Frame
Screw
Multifunction Knob
Pan Axis
Vertical Arm
Cross Arm
Handle
Pan Lock Screw
1/4 Inch Thread Hole
Sliding Arm
fixed screw
Shortcut Button
Recording Button
Quick Release Plate
1/4 Inch Thread Hole
Fixed Plate
Retaining Ring
Tilt Axis
Function Button
Power Button
Safety Lock
Joystick
Capturing Button
Mode Button
Touch Screen
1/4 Inch Thread Hole
1/4 Inch Thread Hole
Thumb Screw
(Short)
X1
Nikon shutter release
X1
anti-column

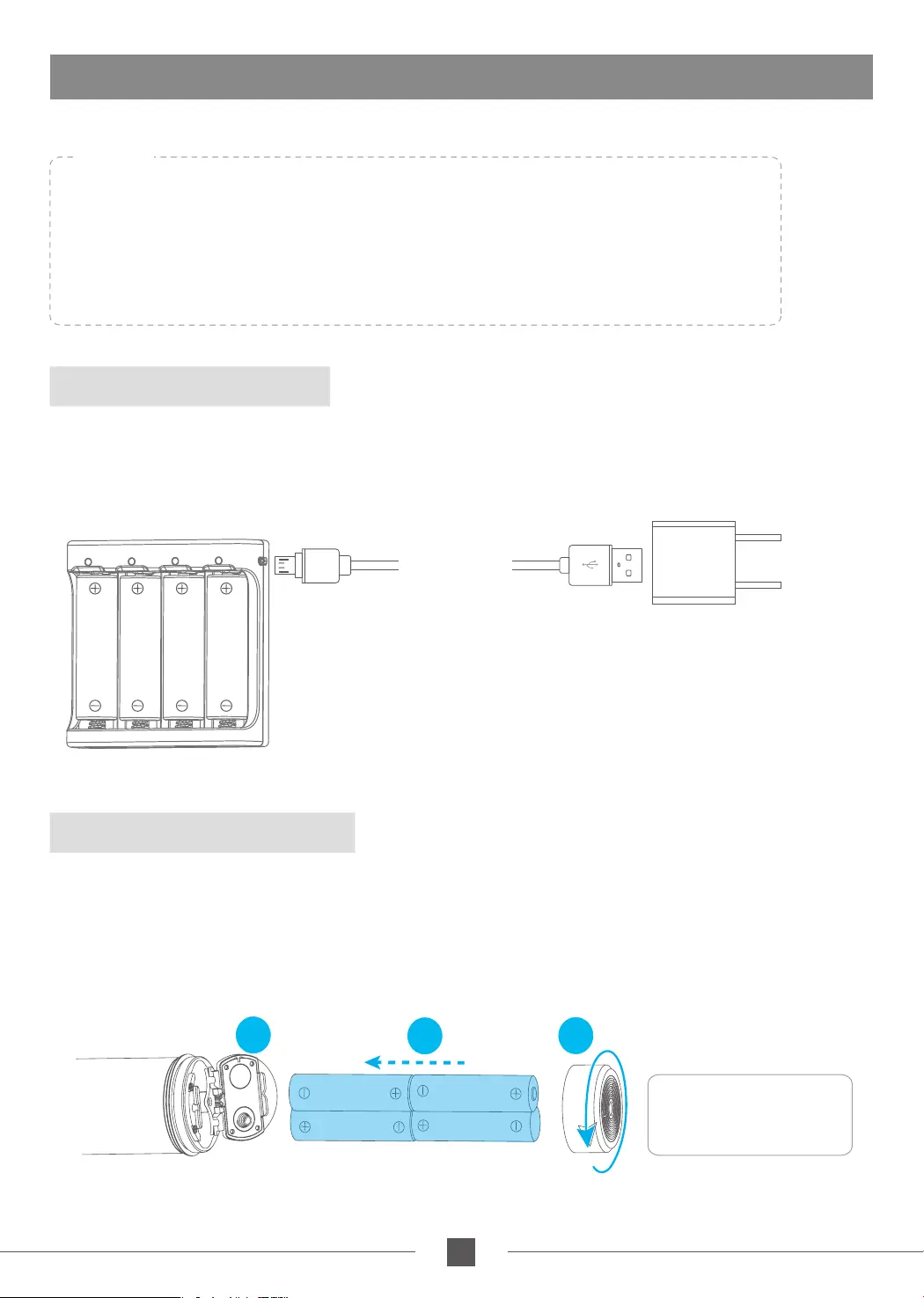

2.1Battery Charging
2
www.feiyu-tech.com
2.Installation
(1) Please mount the camera before powering on the gimbal.
(2) When the battery is low, please charge the gimbal.
(3) When not in use, turn off the gimbal and then remove the batteries.
TIPS
Micro USB
Cable
not included
5V / 3A
Please fully charge the batteries before powering on the gimbal for the first time.
Note: When installing the battery, pay attention to the direction of the battery. If the battery is reloaded,
it will cause the battery to short-circuit.
Charge the batteries with the charger.
2.2Battery Installation
Remove the tail cap, open the batteries compartment, and install the batteries correctly.
Battery Model:
18650 Li-ion Battery
2
1
3
5
www.feiyu-tech.com

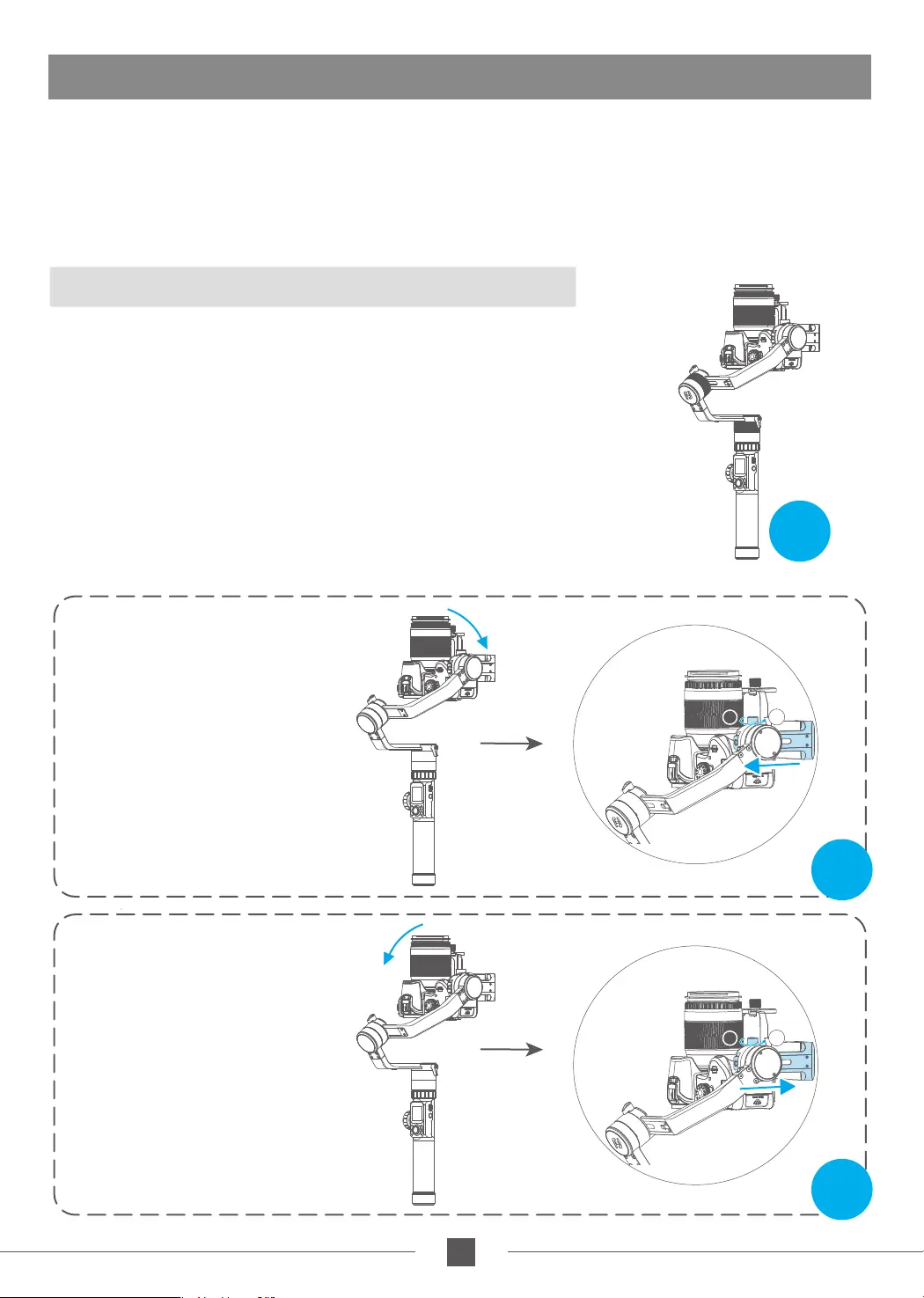

3.1Balance Adjustment of the Tilting Axis
Camera right leaning
slide to left to adjust
Camera
left leaning
silde to right to adjust
Note:
1. Before adjusting the balance, the camera needs to remove the lens cover and insert it into the memory
card to complete all the connections to ensure that the camera is ready to shoot.
2. During the balancing process, ensure that the camera power is turned off and the stabilizer motor is
turned off. It is possible to lock each axis of the stabilizer to the installation posture to facilitate balance
adjustment.
3. Tripods can be installed (refer to 20 pages for installation) for easy balance adjustment.
Unscrew the locking screw of the tilt axis motor and adjust the balance by
adjusting the sliding arm left and right (see Figure 7, Figure 8). When the cross
arm is kept horizontal, the camera lens is placed vertically upwards and stays
in a vertical state with the ground. The sliding arm adjustment is completed,
as shown in Figure 6.
(1)Adjust the position of the camera's tilting axis up and down: Place the
camera lens upright and keep the cross arm horizontal, as shown in Figure
6. After releasing the hand, observe the camera lens rotation state.
Figure6
Figure7
3.Gimbal Balancing
Adjust the center of gravity of the camera in two steps to
the axis of rotation of the tilting axis.
* After adjustment, make sure tighten the lock screw .
T=Tight
L=Loose
T=Tight
L=Loose
Figure8
T
L
T
L
46
www.feiyu-tech.com
Camera backward,slide the adjustment
skateboard up to adjust
Camera forward
,slide the adjustment
skateboard down to adjust
Safety
Lock
Safety
Lock

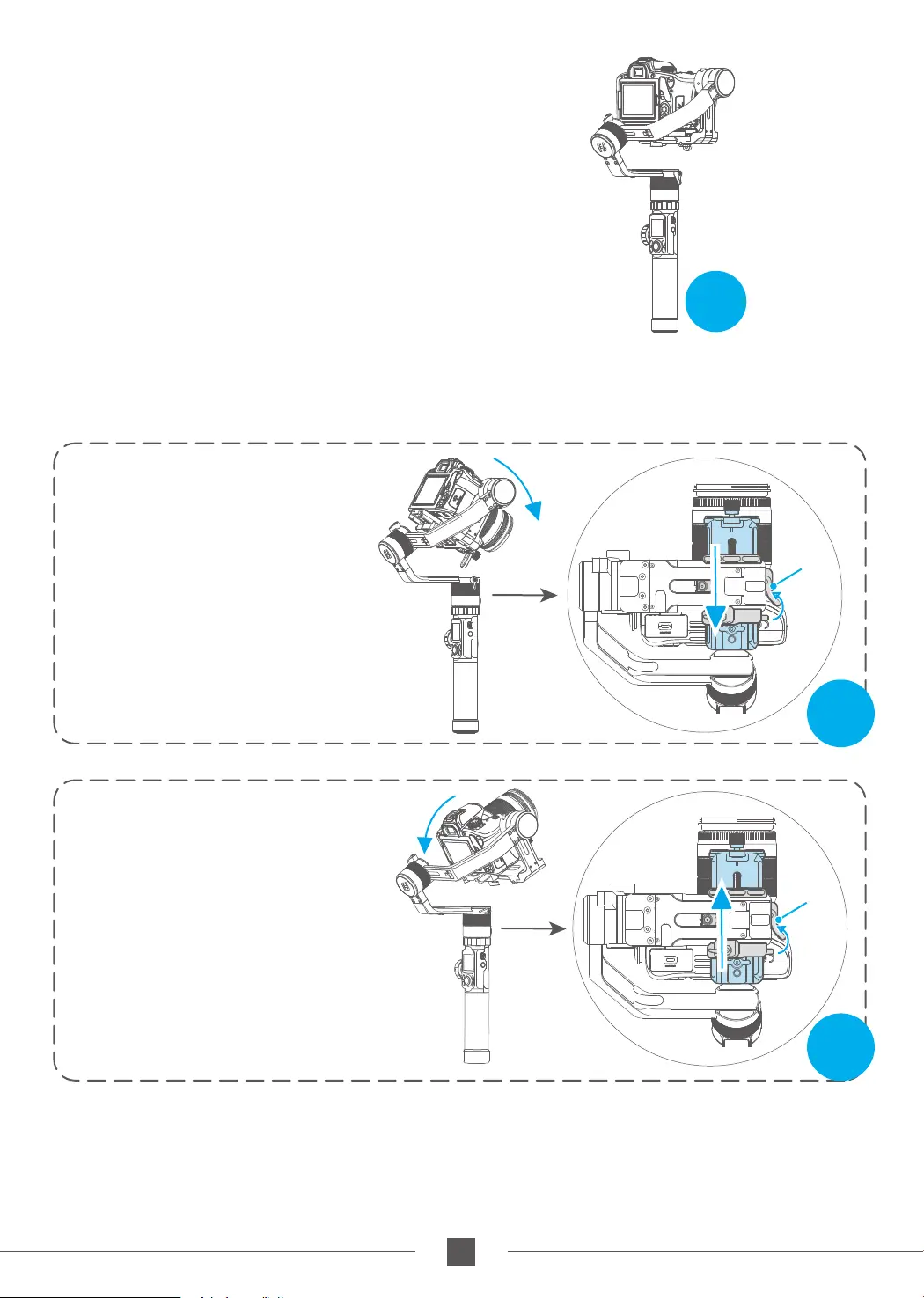

(2)Adjust the center of gravity position of the
tilting axis forward and backward: point
the camera lens horizontal forward, adjust cross
arm to maintain the level as shown
in figure9,let go and observe the state of rotation.
Unscrew the camera safety lock on the right side and adjust
the balance by sliding the quick release plate at the bottom
of the camera back and forth (see Figure 10, Figure 11).
When the cross arm is kept horizontally, the tilt axis can stay
stably at any angle, indicating that the balance adjustment
of the tilt axis is completed.
*Be sure to fasten the safety lock after adjustment.
Figure9
Figure10
Figure11
7
www.feiyu-tech.com

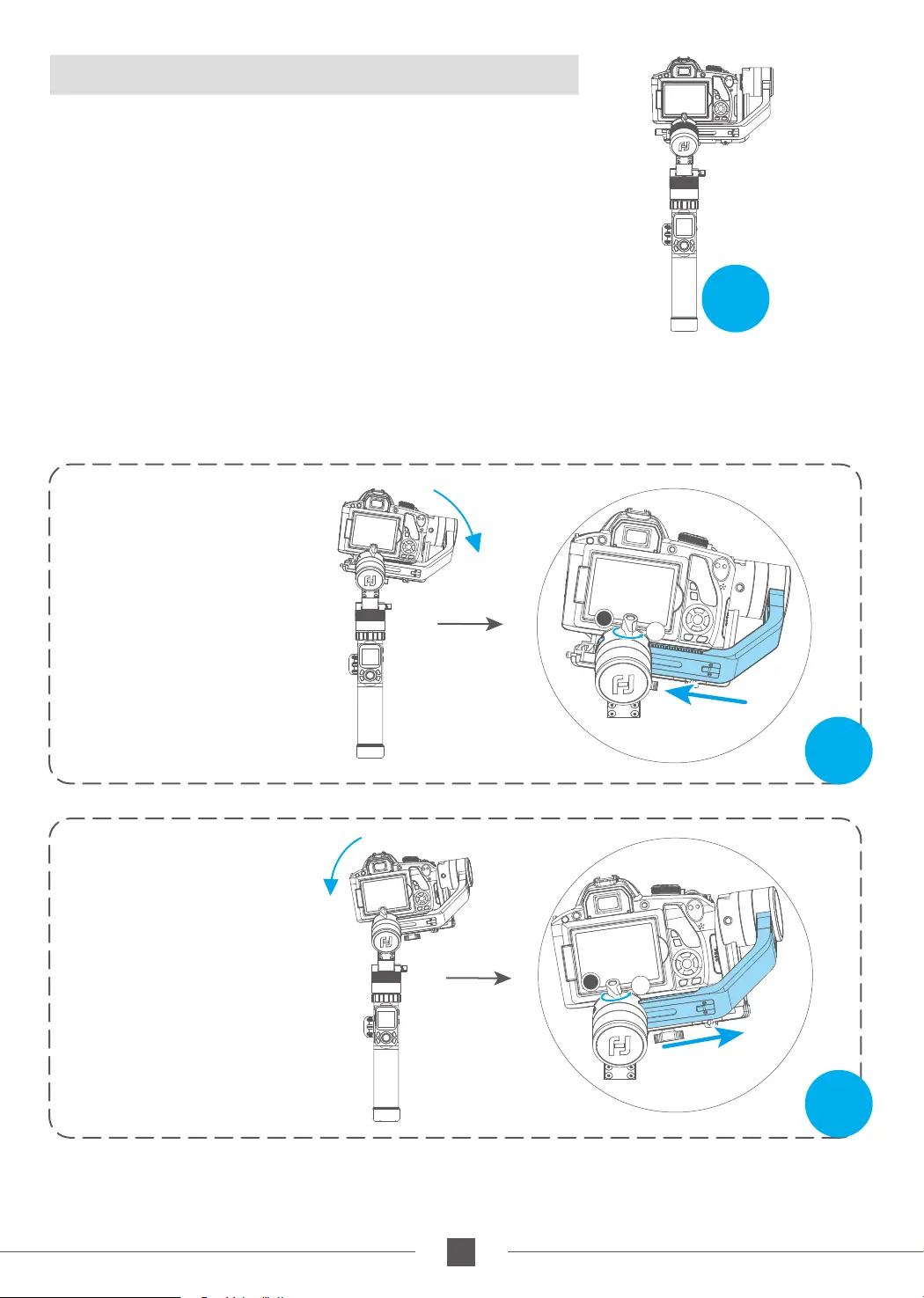

3.2Balance Adjustment of the Rolling Axis
Camera leftward,slide the
cross arm right to adjust
Camera rightward,slide the
cross arm left to adjust
Unscrew the lock screw of the motor of roll axis and adjust the left and
right sliding cross arm (see Figure 13, Figure 14). When the roll axis can
stay stably at any angle, it means that the balance adjustment of the
roll axis is completed.
When the balance adjustment of the tilt axis of the stabilizer is
completed, the balance adjustment of the roll axis can be
performed: the camera lens is placed horizontally forward, the cross
arm is kept horizontally as shown in Figure 12, and the cross arm is
released to make the cross arm in a natural state. Observed camera
tilt state.
* After adjustment, be sure to tighten the lock screw.
T
L
T=Tight L=Loose
T
L
T=Tight
L=Loose
Figure12
Figure13
Figure14
