Side 1/26
USER’S GUIDE & OPERATOR INSTRUCTIONS
FETCO COFFEE BREWER: CBS-1150 EXTRACTOR
®
V+™
CBS-1151-XV+ CBS-1152-XV+
TABLE OF CONTENTS
Specifications and Requirements ................................ 2
Rough-In Drawings ...................................................... 2
Electrical and Output Specifications ............................ 3
Starting The Brew ........................................................ 4
Enter Programming ...................................................... 4
Exit Programming & Save ............................................ 4
PROGRAMMING MENU LAYOUT .............................. 5
A PROGRAM ............................................................... 6
B GENERAL................................................................. 7
C INPUTS .................................................................... 8
D OUTPUTS ................................................................ 8
E OTHER ..................................................................... 8
F SAVE & EXIT ............................................................ 9
Error Codes .................................................................. 9
Operator Training ....................................................... 10
Cleaning & Maintenance ............................................ 10
Installation Guide........................................................ 11
Parts Diagram CBS-1151XV+ .................................... 14
Parts Diagram CBS-1152XV+ .................................... 16
CBS-1151XV+ Tank Assembly .................................. 18
CBS-1152XV+ Tank Assembly .................................. 19
Wiring Diagrams ......................................................... 20
CONTACT INFORMATION
FETCO®
FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
INTERNET: www.fetco.com
©2017-2018 FOOD EQUIPMENT TECHNOLOGIES COMPANY
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000
FAX: (847) 719-3001
EMAIL: sales@fetco.com
techsupport@fetco.com
PATENTS: WWW.fetco.com/patents
P167 REV:000 MARCH 2018
fetco.com
Go to fetco.com for the latest versions of all information Page 2 P167 March 2018
.

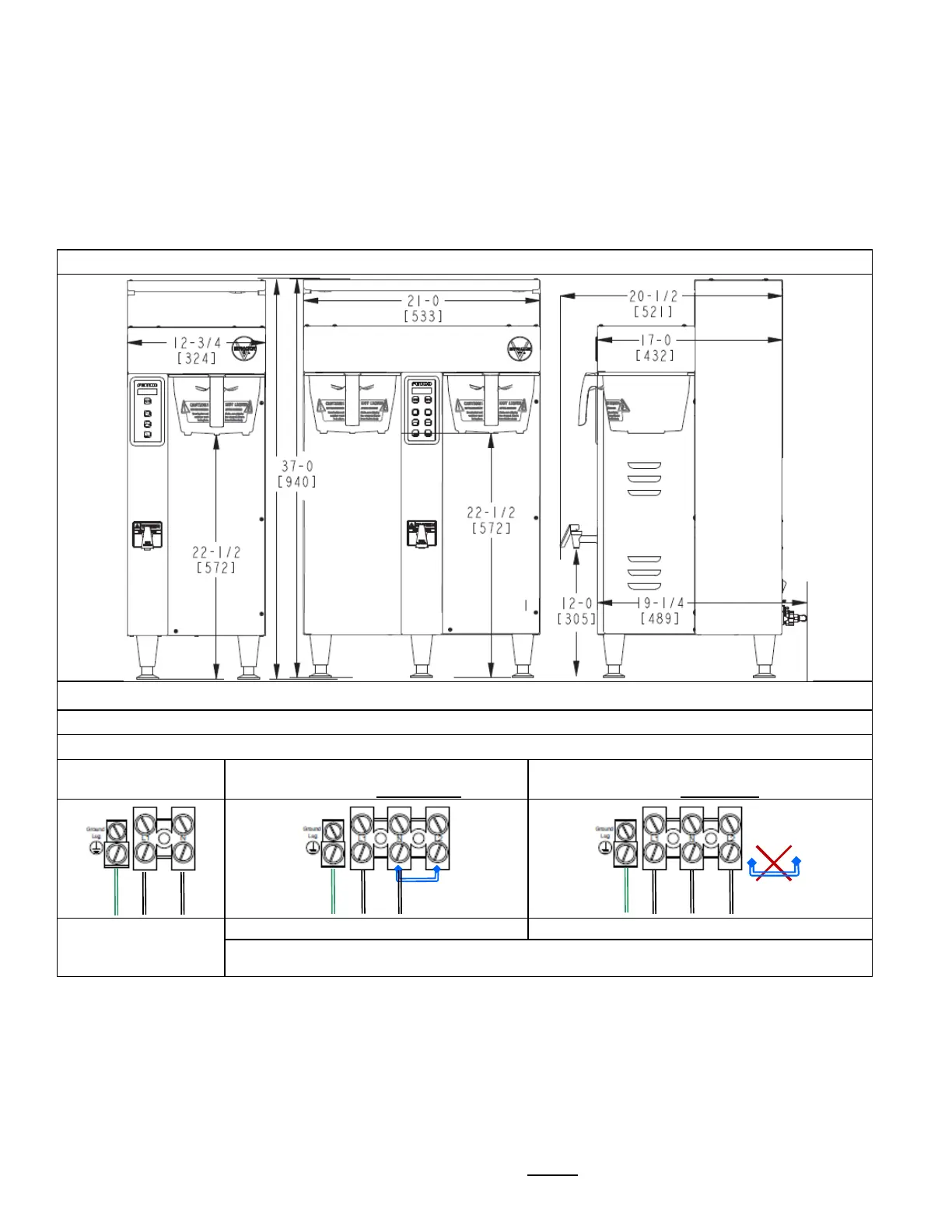

Rough-In Drawings
CBS-1151 XV+ Front CBS-1152 XV+ Front CBS-1151 XV+ & CBS-1152 XV+ Side
WIRING METHODS: REFERENCE ONLY: SEE THE WIRING DIAGRAMS AT BACK OF THIS GUIDE
CBS-1151 XV+
CBS-1152 XV+ factory configuration
208-240 volt single phase
CBS-1152 XV+ *Field installed configuration
208-240 volt three phase connection
Single phase—2 HEATER
Three phase—3 HEATER
Field conversion is to be made only by licensed electrician. Disconnect equipment from
power supply before service. Remove jumper between L2 and L3, and apply power to L3
Specifications and Requirements
Water Requirements:
Coffee Filter Size:
CBS-1150 XV+ 20-75 psig, (138-517kPa) 1½gpm/(5.7lpm)
15” X 5 ½ ”– standard FETCO # F001
Water supplied to hot beverage equipment should be filtered
Water supplied Hardness >100 TDS (5.5 grain)
Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Water inlet fitting: 3/8 inch male flare.
Electrical: See electrical configuration chart.
Brew Volume: Full Batch 1 ½ gallon/ 6 liters
Total Brew Cycle: Factory setting: 5.5 minutes consisting of 4 minute brew time + 1.5 minute drip delay
Brew-Process parameters are user controllable for:
Brew Volume, Brew Time, Prewet Percent and Prewet Delay, Drip Delay
JUMPER
JUMPER
REMOVED
Go to fetco.com for the latest versions of all information Page 3 P167 March 2018
Electrical and Output Specifications
for CBS
-1151 XV+ Single 1½ Gallon-6 Liter Coffee Brewers
Domestic USA and Canada CBS-1151 XV+ Standard-Voltage With cUL/UL & NSF-4 Certification
Configuration
Codes
Heater
Configuration
Voltage Phase Wires
Electrical
Connection
KW
Maximum
Amp Draw
Brew-
Volume/Hour
E115151
2 X 3.0 kW
208-240
1
2+G
Terminal Block
4.6-6.1
22.4-25.8
15.3 gal/58 liters
Domestic & International Versions CBS-1151 XV+ With cUL/UL & NSF-4 Certification
E115190
1 X 4.0 kW
200-240
1
2+G
Terminal Block
4.1
14.2-17.1
9.3 gal/35 liters
E115191
1 X 5.0 kW
200-240
1
2+G
Terminal Block
5.1
17.7-21.3
12.7 gal/48 liters
E115192
2 X 3.0 kW
200-240
1
2+G
Terminal Block
6.1
21.3-25.5
15.3 gal/58 liters
E115193
2 X 2.3 kW
200-240
1
2+G
Terminal Block
4.7-6.1
22.1-25.5
14.0 gal/53 liters
Export CBS-1151XV+ With cUL/UL & NSF-4 Certification
E115180
1 X 5.0 kW
200-240
1
2+G
Terminal Block
3.6
17.7
11.6 gal/44liters
CE With Internal EMI Filter. CBS-1151 XV+ With CE & NSF-4 certification. Not cUL or UL Listed
(CE) E115162
2 X 2.3 kW
230/400
2
2L,N,PE
Terminal Block
5.6
12.4
14.0 gal/53 liters
(CE) E115161
2 X 3.0 kW
230/400
2
2L,N,PE
Terminal Block
6.1
21.3-25.5
15.3 gal/58 liters
.
Electrical and Output Specifications-for CBS-1152 XV+ Twin 1½ Gallon-6 Liter Coffee Brewers
USA and Canada CBS-1152 XV+ Field Selectable Electrical With cUL/UL & NSF-4 Certification
Configuration
Codes
Heater
Configuration
Voltage Phase Wires
Electrical
Connection
KW
Maximum
Amp Draw
Brew-
Volume/Hour
E115251
Selectable
Sold as1 phase
2 X 3.0 kW 200-240 1 2+G Terminal Block 4.6-6.1 22.4-25.8 15.3 gal/58 liters
3 X 3.0 kW 200-240 3 3+G Terminal Block 6.9-9.1 19.5-22.5 22.5 gal/85 liters
E115252
Selectable
Sold as1 phase
2 X 5.0 kW 200-240 1 2+G Terminal Block 7.6-10.1 36.9-42.5 25.3 gal/97 liters
3 X 5.0 kW 200-240 3 3+G Terminal Block 11.4-15.1 32.0-36.9 38.3 gal/145 liters
Domestic & International Versions CBS-1152 XV+ Standard-Voltage With cUL/UL & NSF-4 Certification
E115292
2 X 3.0 kW
200-240
1
2+G
Terminal Block
4.6-6.1
22.4-25.8
15.3 gal/58 liters
E115294
2 X 5.0 kW
200-240
1
2+G
Terminal Block
7.6-10.1
36.9-42.5
25.3 gal/97 liters
E115296
3 X 4.0 kW
240/415
3
4+G
Terminal Block
12.2
15.7-17.1
29.5 gal/112liters
E115290 3 X 3.0 kW
220/380
or
240/415
3 4+G Terminal Block 9.1 11.8-12.9 22.5 gal/85 liters
E115291 3 X 5.0 kW
220/380
or
240/415
3 4+G Terminal Block 15.1 19.5-21.4 38.3 gal/145
liters
Export CBS-1152 XV+ With cUL/UL & NSF-4 Certification
E115280
3 X 3.0 kW
200
3
3+G
Terminal Block
6.5
18.6
17 gal/64 liters
CE With Internal EMI Filter. CBS-1152 XV+ With CE & NSF-4 Certification. Not cUL or UL Listed
(CE) E115261
3 X 3.0 kW
230/400
3
3L,N,PE
Terminal Block
8.6
12.4
22.5 gal/85 liters
(CE) E115262
3 X 5.0 kW
230/400
3
3L,N,PE
Terminal Block
14.1
20.4
38.3 gal/145 liters
