TABLE OF CONTENTS
Weights and Capacities ............................................... 2
Rough-In Drawings ...................................................... 2
Fast Start Brewing ....................................................... 5
Brew Recipes ............................................................... 6
Settings ........................................................................ 7
Inputs ........................................................................... 8
Service ......................................................................... 8
Error Codes .................................................................. 9
Hot Water Portions ..................................................... 10
Calibration .................................................................. 11
How to calibrate the flow rate ..................................... 11
Outputs ....................................................................... 12
Counters ..................................................................... 13
Brewer Setup .............................................................. 14
Installation Guide........................................................ 15
Operator Training ....................................................... 16
Parts diagrams ........................................................... 18
Wiring Diagrams ......................................................... 25
User’s Guide and Operator Instructions
CBS-2251, CBS-2252 & CBS-2253 Next Generation Brewing System
FETCO Next Generation-NG® Commercial Beverage Equipment
CBS-2251 CBS-2252
(Dispensers not included) (Plastic brew baskets are standard, brewers avalible with optional stainless steel brew baskets)
CONTACT INFORMATION
FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
Product made in USA
INTERNET: www.fetco.com
PATENTS:https://www.fetco.com/pl,pages,patents,74.html
©2020-2023 FOOD EQUIPMENT TECHNOLOGIES COMPANY
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries and International)
FAX:(847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
techsupport@fetco.com (all service queries)
P195 February 2023
COFFEE BREWER CBS-2250NG Series
fetco.com
Go to fetco.com for the latest versions of all information Page 2 P195 January 2023
Weights and Capacities
Model Height Width Depth
Water tank
capacity
Empty
Weight
Filled
Weight
Shipping
Weight
Shipping
Dimensions
CBS-2251
1½ gal
36 7/8 in
940 mm
12 3/4 in
320 mm
22 1/2 in
570 mm
6.5 gallon
24.4 L
53 lbs
24 kg
107 lbs
48.3kg
63 lbs
28.6 kg
38” x 18” x 24”
96.5 x 45.7 x 61 cm
CBS-2252
1½ gal
36 7/8 in
940 mm
21 7/8 in
550 mm
22 1/2 in
570 mm
11.1 gallon
42.1 L
77 lbs
35.0 kg
174 lbs
78.9 kg
97 lbs
44 kg
38” x 24” x 27”
96.5 x 61 x 68.6 cm
CBS-2253
2 gal
39 in
99.1 mm
21 7/8 in
550 mm
22 1/2 in
570 mm
11.1 gallon
42.1 L
82 lbs
37.2 kg
180 lbs
81.6 kg
97 lbs
44 kg
40” x 24” x 27”
102 x 61 x 68.6 cm
CBS-2251 & CBS-2252
Calibrated for
1½ gallons/ 6 liters
CBS-2253
Calibrated for
2 gallons/ 8 liters
Filter Paper all models
15” X 5 ½ ”– standard
Or use FETCO # F001
Brewers ship with plastic brew baskets.
See page 25 for optional brew baskets

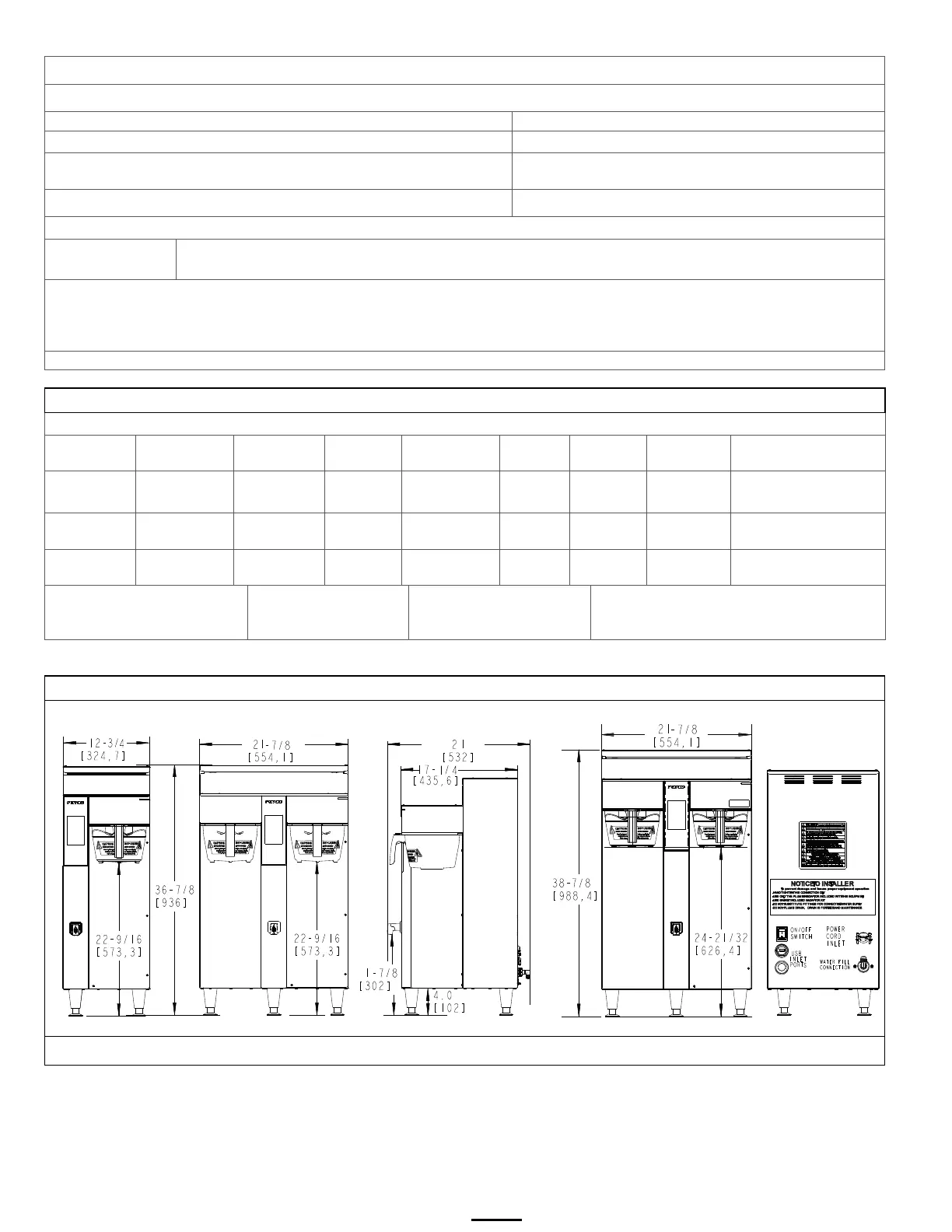

Rough-In Drawings
CBS-2251 Front CBS-2252 Front CBS-2251, CBS-2252, CBS-2153 Side CBS-2252 Front Back (ALL)
Specifications and Requirements
FETCO CBS-2250 Brewers have unique construction only available for these models.
Water Requirements:
Coffee Filter Size:
CBS-2250 20-75 psig, (138-517kPa) 1½ gpm/(5.7 lpm)
15” X 5 ½ ”– standard FETCO # F001
Optimal water hardness between 125-250 TDS (6-13 grain)
Important! Please use a water filter for all beverage equipment
Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Water inlet fitting: 3/8 inch male flare. Electrical: See electrical configuration chart Pg 3.
Brew Volume: Full Batch CBS-2250: 1 ½ gallon/ 5.6 liters CBS-2252-2: 2 gallons 7.5 liters
Brew Capacity
(approximate)
CBS-2251 7-10 brews per hour
CBS-2252 7-22 brews per hour
Output is controlled by heater power and water temperature
Total Brew Cycle: Factory setting: 6 minutes consisting of 4 min. brew time and 2.0 min. drip delay
Individual menu brew-process parameters are user controllable for:
Basic user controls for brew volume, brew time, units of measure, recipe name
Advanced user controls for pulse count, prewet percent and prewet delay, drip delay, programmable energy saving
See pages 4-5 for how to adjust controls for temperature, brew volume, units - and all other settings
Go to fetco.com for the latest versions of all information Page 3 P195 January 2023
Electrical and Output Specifications for CBS-2251Next Generation Single 1½ Gallon-6 Liter Coffee Brewers
CBS-2251 Domestic USA and Canada models Single-Voltage. With cUL/UL & NSF-4 Certification
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required
SKU Number
Phase
Voltage
Heater
Configuration
Wires KW
Maximum Amp
Draw
Brew-Volume
Per Hour
E2251US-1B230-PA110
1
200-240
2 X 3.0 kW
2+G
4.6-6.1
22.4-25.8
15.3 gal/58 liters
E2251US-1B230-MA110
1
200-240
2 X 3.0 kW
2+G
4.6-6.1
22.4-25.8
15.3 gal/58 liters
CBS-2251 Domestic and International models Single-Voltage. With cUL/UL & NSF-4 Certification
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required
E2251IN-1B140-PA110
1
200-240
1 X 4.0 kW
2+G
4.1
14.2-17.1
9.3 gal/35 liters
E2251IN-1B150-PA110
1
200-240
1 X 5.0 kW
2+G
5.1
17.7-21.3
12.7 gal/48 liters
E2251IN-1B230-PA110
1
200-240
2 X 3.0 kW
2+G
6.1
21.3-25.5
15.3 gal/58 liters
CBS-2251 NOM (Mexico In Spanish) Single-Voltage. With cUL/UL & NSF-4 Certification
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required
E2251NM-1B230-PA110
1
200
2 X 3.0 kW
2+G
4.2
21.2
14.5 gal/54 liters
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide
CBS-2251 Export CE CE listed models with NSF-4 Certification. Internal EMI Filter Not cUL or UL Listed
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required
E2251CE-2B230- PA110
2
2 X 2.3 kW
230/400
2L,N,PE
4.9
11.8
14.0 gal/53 liters
E2251CE-1B230-PA110
2
2 X 3.0 kW
230/400
2L,N,PE
5.6
12.4
15.3 gal/58 liters
Electrical and Output Specifications for CBS-2252Next Generation Dual 1½ Gallon-6 Liter Coffee Brewers
CBS-2252 Domestic USA and Canada Field Selectable-Voltage. With cUL/UL & NSF-4 Certification
Electrical and Output Specifications
All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required.
SKU Number
Phase
Voltage
Heater
Configuration
Wires KW
Maximum Amp
Draw
Brew-Volume
Per Hour
E2252US-UB230-MA110
Field
Selectable 1 or 3 phase
Sold as 3 phase
1 200-240 2 X 3.0 kW 2+G 4.6-6.1 22.4-25.8 15.3 gal/58 liters
3
200-240
3 X 3.0 kW
3+G
6.9-9.1
19.5-22.5
22.5 gal/85 liters
E2252US-UB230-PA110
Field
Selectable 1 or 3 phase
Sold as 3 phase
1
200-240
2 X 3.0 kW
2+G
4.6-6.1
22.4-25.8
15.3 gal/58 liters
3
200-240
3 X 3.0 kW
3+G
6.9-9.1
19.5-22.5
22.5 gal/85 liters
E2252US-UB250-PA110
Field Selectable 1 or 3 phase
Sold as 3 phase
1
200-240
2 X 5.0 kW
2+G
7.6-10.1
36.9-42.5
25.3 gal/97 liters
3 200-240 3 X 5.0 kW 3+G 11.4-15.1 32.0-36.9 38.3 gal/145 liters
CBS-2252 Domestic and International models Single-Voltage. With cUL/UL & NSF-4 Certification
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required.
E2252IN-1B230-PA110
1
200-240
2 X 3.0 kW
2+G
4.6-6.1
22.4-25.8
15.3 gal/58 liters
E2252IN-1B250-PA110
1
200-240
2 X 5.0 kW
2+G
7.6-10.1
36.9-42.5
25.3 gal/97 liters
E2252IN-3B340-PA110 3
220/380 or
240/415
3 X 4.0 kW 4+G 12.2 15.7-17.1 29.5 gal/112 liters
E2252IN-3B330-PA110 3
220/380 or
240/415
3 X 3.0 kW 4+G 9.1 11.8-12.9 22.5 gal/85 liters
E2252IN-3B350-PA110 3
220/380 or
240/415
3 X 5.0 kW 4+G 15.1 19.5-21.4 38.3 gal/145 liters
CBS-2252 NOM (Mexico In Spanish) Field Selectable-Voltage. With cUL/UL & NSF-4 Certification
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required
E2252NM-UB250-PA110
Field Selectable 1 or 3 phase
Sold as 3 phase
1
200-240
2 X 5.0 kW
2+G
7.6-10.1
36.9-42.5
25.3 gal/97 liters
3 200-240 3 X 5.0 kW 3+G 11.4-15.1 32.0-36.9 38.3 gal/145 liters
E2252NM-1B250-PA110
1
200-240
2 X 5.0 kW
2+G
7.6-10.1
36.9-42.5
25.3 gal/97 liters
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide
CBS-2252 Export CE CE listed models with NSF-4 Certification. Internal EMI Filter Not cUL or UL Listed
Electrical and Output Specifications All brewers use terminal block electrical connection for 50Hz or 60Hz Professional installation is required
E2252CE-3B350-PM110
3
230/400
3 X 5.0 kW
3L,N,PE
14.1
20.4
38.3 gal/145 liters
E2252CE-3B350-PA110
3
230/400
3 X 5.0 kW
3L,N,PE
14.1
20.4
38.3 gal/145 liters
E2252CE-3B330-PA110
3
230/400
3 X 3.0 kW
3L,N,PE
8.6
12.4
22.5 gal/85 liters
