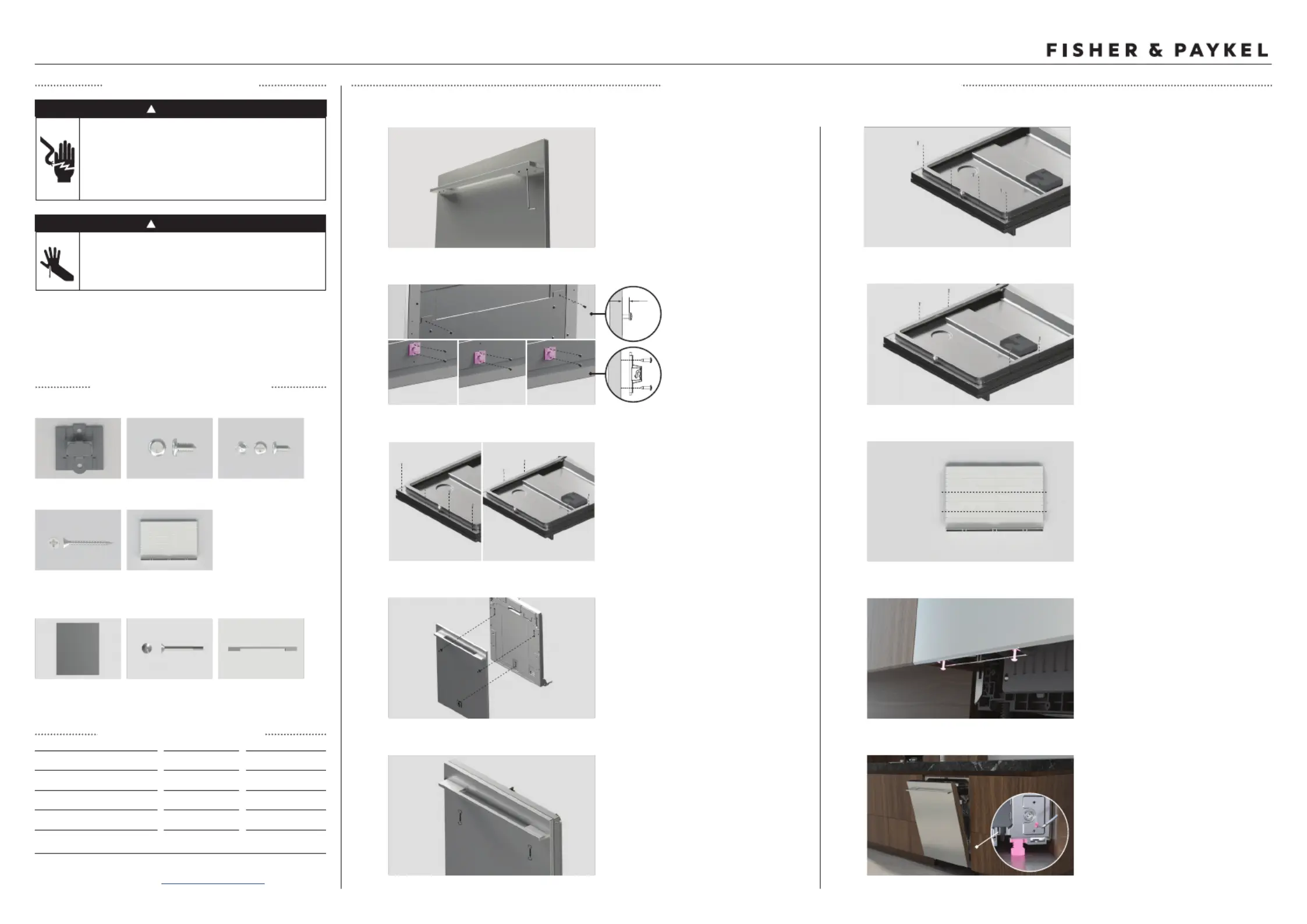

INSTALLATION GUIDE | Accessory door panels
DISHWASHER DOOR PANEL INSTALLATION
433206A 08.25 US CA
SAFETY & WARNINGS
For more information, visit www.fisherpaykel.com
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
•
Read and follow the safety and warnings before
operating this appliance.
COMPONENTS REQUIRED
Slider (1) 4 x 13mm screws
(4)
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges may be sharp.
1. Install handle as per handle
installation guidance.
Supplied with appliance
3.9 x 38mm
screws (4)
3.5 x 11mm screws
(2)
Exit vent (1)
Supplied with door kit
Accessory panel
(1)
M3 x 31mm
screws (4)
Not supplied
9. Slot the exit vent into the
product and secure using two 3.5
x 11mm screws.
Handle (1)
4. Hang door panel.
6. Secure door panel by replacing
4 screws along the top edge of
inner door with M3 x 31mm screws.
7. Secure door panel by replacing
4 screws along the sides with 3.9 x
38mm screws.
10. Check door balance. Refer to
installation guide for details.
8. Cut the exit vent as shown.
A tall product with a standard size
door panel should be cut at line .
All other configurations can be cut
at line 7.
TALL DISHWASHER / STANDARD DOOR
STANDARD DISHWASHER /
STANDARD DOOR
TALL DISHWASHER / TALL DOOR
2
7
5. Align door panel by sliding the
accessory door until the top of the
door panel sits above the top of the
control panel.
3. Remove the four screws along the
top of the inner door.
Remove the four screws on the sides
of the inner door.
2. Secure the sliding bracket
and top as shown with 4 x
13mm screws.
Ensure ratchet is correctly
oriented, allowing the door
to be adjusted freely.
STANDARD DOOR
STANDARD DISHWASHER
STANDARD DOOR
TALL DISHWASHER
TALL DOOR
PRODUCT DIMENSIONS
Height (inch) Height (mm)
Standard door panel 28 1/4 717
Standard dishwasher 32 1/4 820
Tall door panel 29 7/8 759
Tall dishwasher 33 3/4 857
• Ensure a 1/16 (2mm) minimum ventilation
gap below the door is maintained.
• Ensure all packaging is removed and dis-
posed of responsibly.
