LinkRunner Duo

Network MultiMeter

Quick Reference Guide

Welcome

Thank you for purchasing Fluke Networks LinkRunner Duo! This test tool enables you to quickly verify Ethernet

copper/fiber cables, network connectivity and availability. In addition, the instrument provides multiple tools for

identifying the network device to which it is connected, identifies PoE ports, provides a Report generating function,

and can serve as a reflector (optional feature) for Fluke Networks performance tests. You can use the included

LinkRunner Connect PC application to quickly configure and update the instrument, download and view reports, and

other useful functions.

Safety

To register your LinkRunner Duo or to obtain a keycode for a purchased option, go to

www.flukenetworks.com/register

. You can also register by sending e-mail to support@flukenetworks.com.

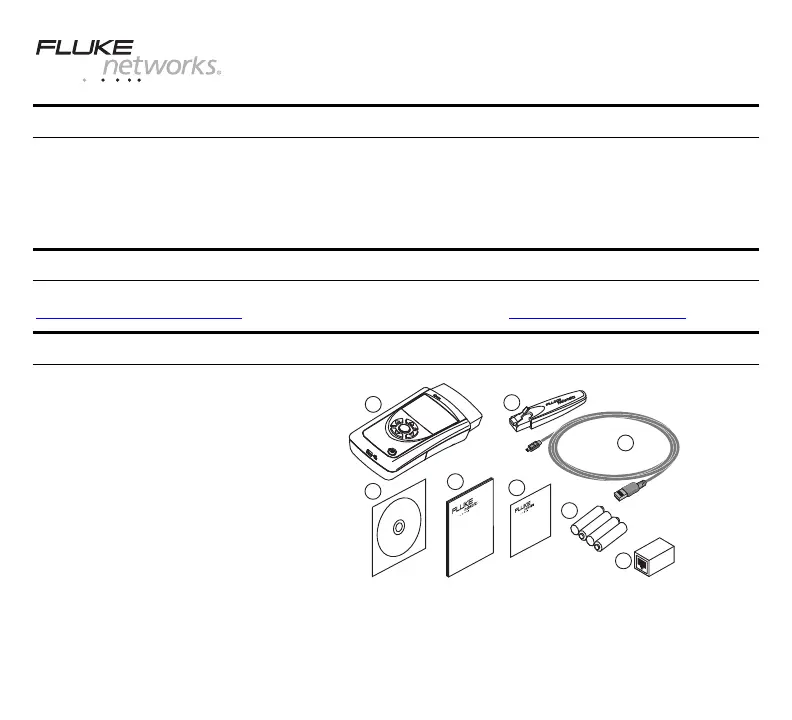

What’s in the box?

Item

1. LinkRunner Duo

2. LinkRunner Connect CD

3. Quick Reference Guide

4. Wireview

Office Locator #1

(not supplied with LRDUO-CE)

5. USB-A – USB-B Mini Cable

6. Registration Card

7. Batteries (4 AA)

8. RJ-45 Coupler

(not supplied with LRDUO-CE)

PN 3468966, April 2009

All product names are trademarks of their respective companies

Cleaning

To prevent moisture from entering the LinkRunner Duo, clean it with a moist cloth only. Do not use organic solvents,

acid, or alkali solutions.

Safety Information

The following symbols are used on the product and in this document:

j NOT FOR CONNECTION TO PUBLIC TELEPHONE SYSTEMS

W PLEASE READ MANUAL FOR SAFETY

) CANADIAN STANDARDS ASSOCIATION CERTIFIED TO CANADIAN AND US STANDARDS

CLASS 1 LASER PRODUCT. DO NOT LOOK INTO LASER

WWarnings

To avoid possible electric shock or personal injury, follow these guidelines:

• Do not use this product if it is damaged. Before using the product, inspect the case. Look for cracked or

missing plastic.

• Do not operate the product around explosive gas, vapor or dust.

• No serviceable parts. Do not try to service.

• If this product is used in a manner not specified by the manufacturer, the protection provided by the product

may be impaired.

Warning Class 1 Laser Product

With an optional SFP fiber adapter installed, this product will contain a Class 1 laser. Do not look into the

laser port because this may cause eye injury.

WCautions

Use the proper terminals and cable for all connections.

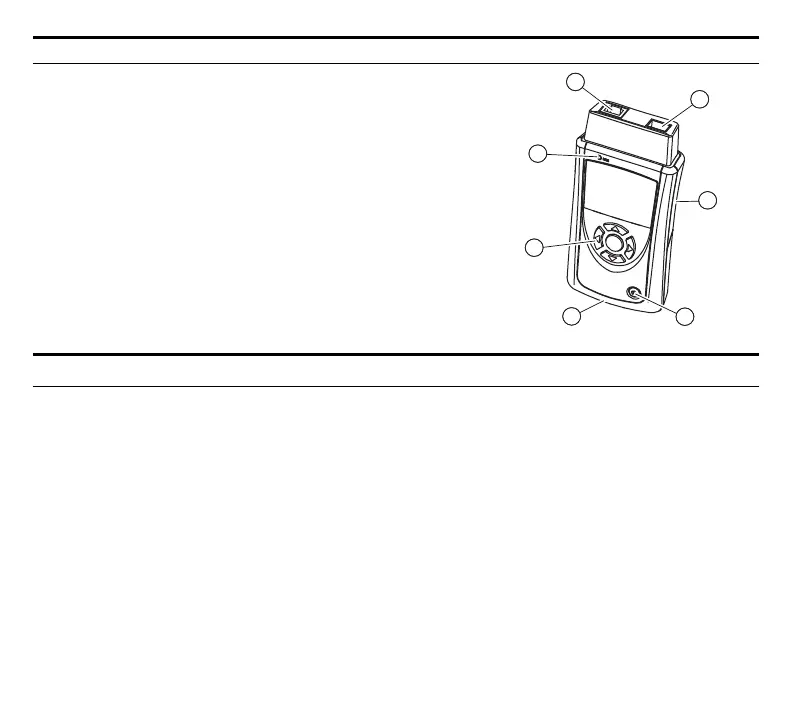

External Features - Connections, Buttons, and the LED

1. RJ-45 LAN port

2. SFP 1000BASE-X fiber adapter port

3. Power Button

Power on – press

Power off – press and hold

4. USB port

5. Selection buttons

- Up/Down arrows navigate the selections and adjust values

- Left/Right arrows show additional information and choices

- Select center button to edit a selection or toggle a value

6. Link indicator LED

7. Kensington lock (location on back of LinkRunner Duo)

Count on LinkRunner Duo for Answers!

First connect an RJ-45 or fiber cable from the network hub or wall plate to the LinkRunner Duo RJ-45 LAN or

1000BASE-X fiber port. Check the following list of questions and associated answers to see how LinkRunner Duo can

help you get the job done.

Common Questions

¾ Is this a good RJ45 Ethernet cable? - use open cable testing and a Wireview

Office Locator

¾ Am I receiving a good fiber signal? - use Home screen dBm measurement

¾ Where does this RJ45 cable go? - use toner function or Wireview

Office Locator

¾ Is this cable hooked up to anything? - use Home screen

¾ Is this an active Ethernet port? - use Home screen, check for Link and frame utilization

¾ What speed/duplex is this device configured for? - use Home screen, check speed/duplex

¾ Can I establish Gigabit link to the network? - use Home screen, check for speed

¾ Can I get a DHCP address? - configure LinkRunner Duo for DHCP, check for link and PING

¾ Can I see traffic from this connection? - use Home screen

¾ Is the PC NIC OK? - use Home screen, check for Link

¾ Can I PING? - use PING screen

¾ Do I have network connectivity? - use PING (Router, DNS, DHCP and custom list)

¾ What slot and port am I on? - use LLDP, CDP, EDP

¾ Can I use it for throughput testing? - use Reflector screen

¾ Can I connect to an 802.1X port? - use Configuration screen and LinkRunner Connect application
