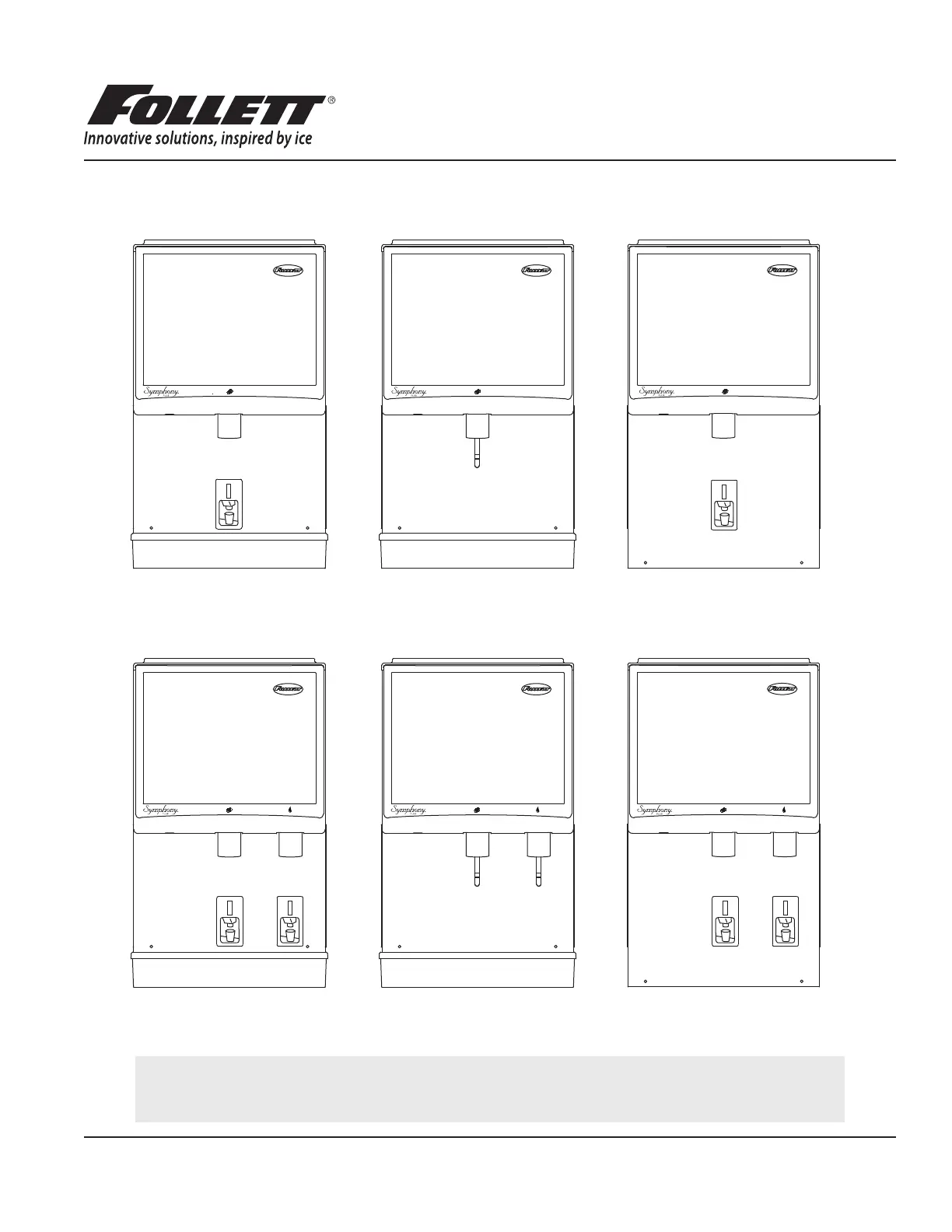

Installation, Operation and Service Manual
Symphony Plus
™
25 and 50 Series
Ice and Water Dispensers
25CI425A/W, 25HI425A, 50CI425A/W, 50HI425A
25/50HI425A-S Wall Mount Dispenser
with SensorSAFE Dispensing
25/50CI425A/W-L Countertop Dispenser
with Lever Dispensing
25/50CI425A/W-S Countertop Dispenser
with SensorSAFE™ Dispensing
25/50HI425A-SI Wall Mount
Ice-only Dispenser with
SensorSAFE Dispensing
25/50CI425A/W-LI Countertop Ice-only
Dispenser with Lever Dispensing
25/50CI425A/W-SI Countertop
Ice-only Dispenser with
SensorSAFE™ Dispensing
2 25CI425A/W, 25HI425A, 50CI425A/W, 50HI425A
Contents
Welcome to Follett. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before you begin .......................................................................... 3
Specications .............................................................................. 4
Electrical ................................................................................ 5
Ambient ................................................................................. 5
Plumbing ................................................................................ 5
Ventilation clearances ...................................................................... 5
Uncrated weight .......................................................................... 5
Installation ................................................................................. 6
Before you begin .......................................................................... 6
Installing countertop dispensers with rear exiting utilities (no legs) ................................... 6
Installing countertop dispensers with bottom exiting utilities ........................................ 7
Installing wall mount dispensers .............................................................. 8
User information ........................................................................... 11
How the dispenser works ...................................................................11
Cleaning/descaling and sanitizing ............................................................ 11
Weekly ................................................................................ 12
Monthly ................................................................................ 12
Semi-Annually (more often if conditions dictate) ................................................ 12
Service ................................................................................... 15
Ice machine Operation (all models) .......................................................... 15
The icemaking process .................................................................... 15
Water system ........................................................................... 16
Wiring diagram .......................................................................... 18
Ice machine operational and diagnostic sequences ............................................. 20
Diagnostic Stages ........................................................................ 25
Refrigeration system ...................................................................... 30
Dispenser troubleshooting .................................................................. 32
Lever model troubleshooting guide .......................................................... 32
SensorSAFE model troubleshooting guide .................................................... 32
Ice machine removal instructions ............................................................. 33
Evaporator disassembly ................................................................... 36
Evaporator reassembly .................................................................... 37
Gearmotor replacement ................................................................... 37
Replacement parts ......................................................................... 38
Dispenser exterior ........................................................................ 38
Wheel motor and drive system .............................................................. 39
Dispense chute and splash panel (models with SensorSAFE infrared dispensing) ..................... 40
Dispense chute and splash panel (models with lever dispensing) .................................. 41
Dispenser electrical box – SensorSAFE models ................................................ 42
Dispenser electrical box – lever models ....................................................... 43
Water and drain ......................................................................... 44
Water treatment accessories for Symphony Plus ice and water dispensers ........................... 45
Air-cooled ice machines ................................................................... 46
Water-cooled ice machines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Evaporator replacement parts .............................................................. 50
Ice machine electrical components .......................................................... 52
25CI425A/W, 25HI425A, 50CI425A/W, 50HI425A 3
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, we ask that you take
a moment to review the installation portion of this manual before beginning to install the unit. Our installation
instructions are designed to help you achieve a trouble-free installation. Should you have any questions or require
technical help at any point, please call our technical service group at (877) 612-5086 or
(610) 252-7301.
Note: To expedite assistance, all correspondence or communication MUST include the model number, serial
number and complete and detailed explanation of the problem.
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling
of a claim, if necessary.
Check your paperwork to determine which model you have. Follett model numbers are designed to provide
information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the
different model numbers.

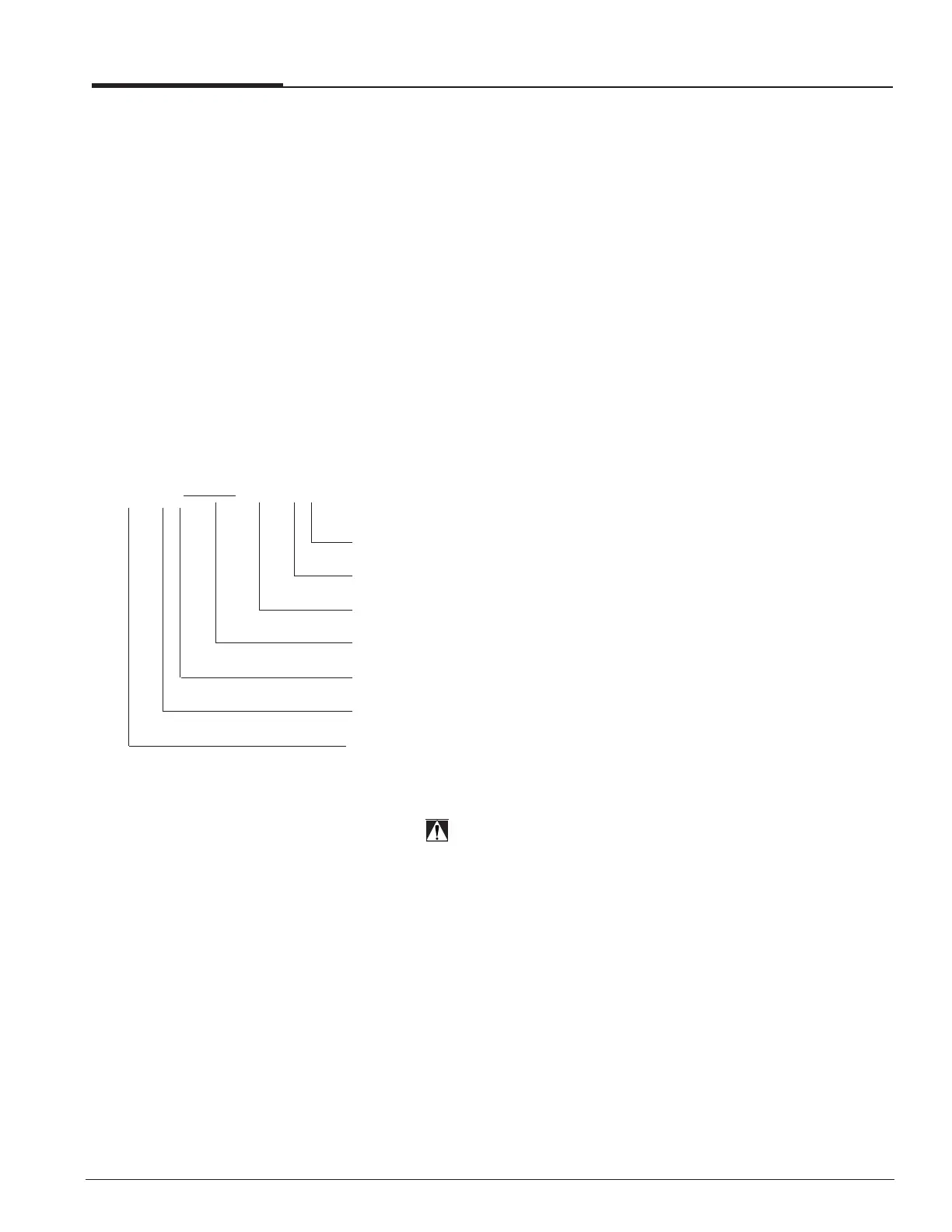

25CI425A-LI
I = ice-only; no water
Dispense actuation, L = lever, S = SensorSAFE
Condenser type, A = air-cooled, water-cooled
Ice machine capacity in lbs per day
Ice machine location, I = integral
Dispenser conguration, C = countertop, H = wall mount
Approximate storage capacity in lbs
CAUTION!
§ Do not tilt any unit further than 30° off vertical during uncrating or installation.
§ Dispenser bin area contains mechanical, moving parts. Keep hands and arms clear of this area at all times. If
access to this area is required, power to unit must be disconnected rst.
§ Follett recommends a Follett water lter system be installed in the ice machine inlet water line (standard capacity
#00130299, high capacity #00978957, carbonless high capacity #01050442).
§ Prior to operation clean and sanitize the dispenser in accordance with instructions found in this manual.
§ Ice is slippery. Be sure counters and oors around dispenser are clean, dry and free of ice.
§ Do not block right side air intake or top air exhaust.
