Installation, Operation and Service Manual
Serial numbers above D25455
Countertop and Freestanding Ice and Water
Dispenser with Chewblet
®
Ice Icemaker
7CI100A, 7FS100A, 15CI100A, 15FS100A
Following installation, please forward this manual
to the appropriate operations person.
7FS100A
7CI100A
15FS100A
15CI100A
2 Dispenser and Icemaker 7CI100A/7FS100A, 15CI100A/15FS100A
Contents
Welcome ...................................................................................... 3
Before You Begin ............................................................................... 3
Important Safety Information ..................................................................... 4
Specications ................................................................................. 4
Dimensions ................................................................................. 4
Ambient Information .......................................................................... 4
Plumbing ................................................................................... 4
Specications ................................................................................. 5
Water ..................................................................................... 5
Clearances ................................................................................. 5
Electrical ................................................................................... 5
Refrigeration ................................................................................ 5
Heat Rejection .............................................................................. 5
7 Series Detailed Drawing ..................................................................... 6
15 Series Detailed Drawing .................................................................... 7
Installation .................................................................................... 8
Countertop Installation ........................................................................ 8
Freestanding Installation ....................................................................... 9
Maintenance/Cleaning Mode .................................................................... 12
Accessing Internal Components ................................................................. 12
Filter Display Indicator Activation ................................................................ 13
NSF-approved Cleaning and Sanitizing Procedure .................................................. 14
Service ...................................................................................... 15
LED Indicator Description ..................................................................... 15
Evaporator Disassembly ...................................................................... 16
Evaporator Assembly ........................................................................ 19
Water Feed Schematic ....................................................................... 23
Bin Melt Water/Evaporator Feed/Clean Out System Schematic ....................................... 24
Vent System Schematic ...................................................................... 24
Refrigeration Schematic ...................................................................... 25
Condenser Fan Motor Removal (7 Series Shown) ................................................. 26
User Interface Display Identication ............................................................. 27
Electrical Wiring Diagram ..................................................................... 29
Parts ........................................................................................ 30
7 Series Exterior ............................................................................ 30
7 Series Interior ............................................................................ 32
Parts ........................................................................................ 34
15 Series Exterior ........................................................................... 34
15 Series Interior ........................................................................... 36
7 Series Bin Assembly ....................................................................... 38
15 Series Bin Assembly ...................................................................... 40
Evaporator Assembly ........................................................................ 42
Base Stand ................................................................................ 44
Dispenser and Icemaker 7CI100A/7FS100A, 15CI100A/15FS100A 3
Welcome ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability, and outstanding
after-the-sale support. To ensure that this product delivers that same degree of service, we ask that you take a
moment to review this manual before beginning the installation. Should you have any questions or require technical
help at any point, please call our technical service group at (877) 612-5086 or +1 (610) 252-7301.
Before You Begin –––––––––––––––––––––––––––––––––––––––––––––––––––
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, immediately notify the shipper and contact Follett Corporation so that we can help in the ling of a claim,

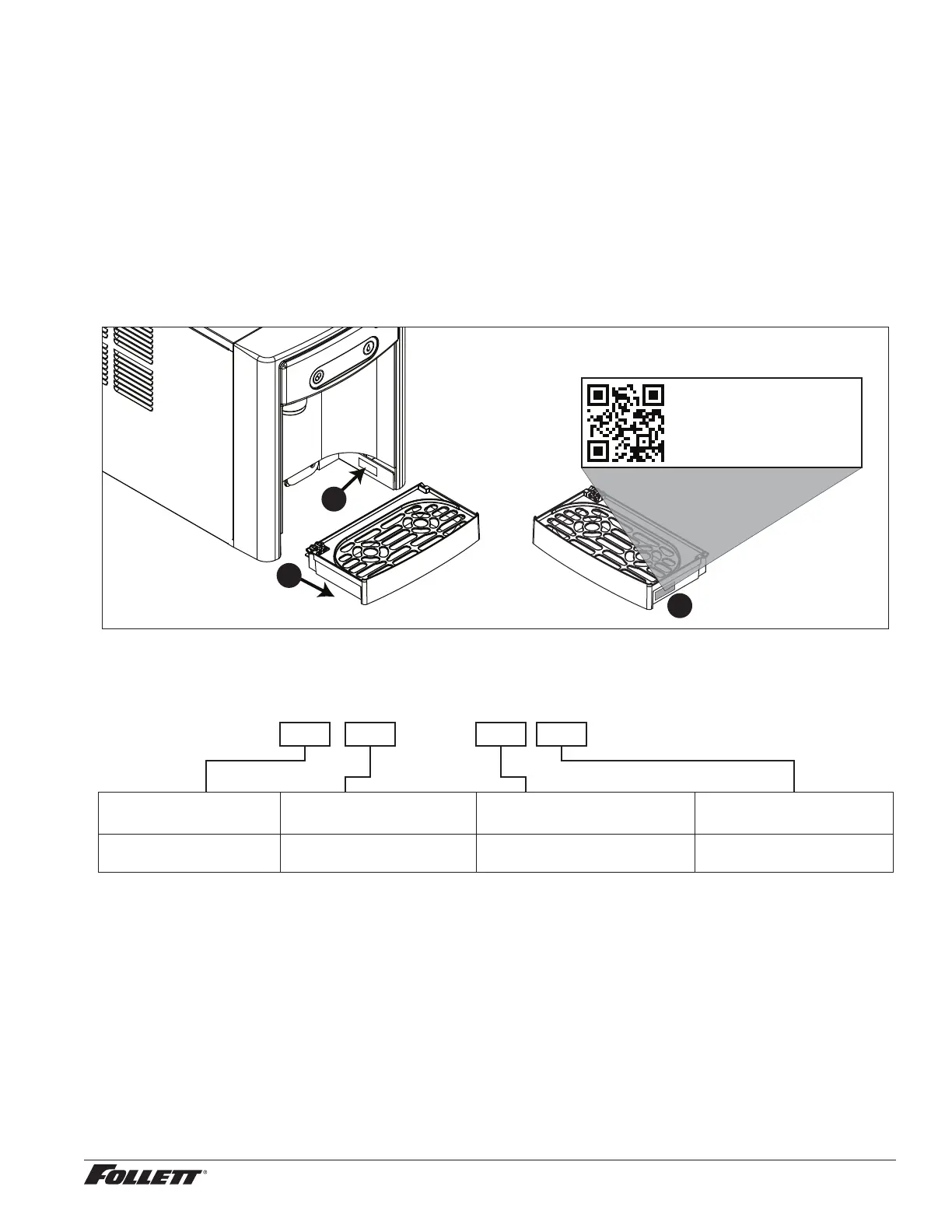

if necessary. If needed, the serial number of your dispenser can be found by removing the drip tray ❶ and locating
the serial number label ❷. A QR Code is located on the right hand side of the drip tray ❸. This code allows you to
access manuals, technical bulletins, and on-line training related to the 7 Series and 15 Series dispensers.
2
1
Scan to access technical
documentation or visit
www.follettice.com/7and15seriesdocs
00981100R01
3
Check your paperwork to verify that you received the correct dispenser. Follett conguration numbers are designed
to provide information about the type of dispenser you are receiving. The following is an explanation of the different
model numbers.
7 CI 100 A
Dispenser Storage
Capacity
Conguration Icemaker Capacity Condenser
7 lb (3.1 kg)
15 lb (6.8 kg)
CI Countertop
FS Freestanding
100 lbs (45.3 kg) per day A Air-cooled
