FULL RANGE SPEAKERS

 CS-FR4020 CS-FR5020 CS-FR6020 CS-FR6930

PeakPower(Watts) 160 190 210 310

RatedPower(Watts) 30 35 40 55

FrequencyResponse 44Hz-24kHz 41Hz-24kHz 35Hz-24kHz 28Hz-25kHz

Impedance 4Ohms 4Ohms 4Ohms 4Ohms

Sensitivity 83dB 84dB 85dB 87dB

ConeMaterial Polypropylene Polypropylene Polypropylene Polypropylene

Tweeter PEI PEI PEI PEI

MountingDepth 45mm(1-3/4”) 43mm(1-11/16”) 41.5mm(1-11/16”) 71.5mm(2-14/16”)

MountingDiameter 103mm 118mm 126mm 222x156mm

 (4-1/16”) (4-21/32”) (5”) (8-24/32x6-3/16”)

CS-FR4020 CS-FR5020 CS-FR6020 CS-FR6930

WARNING:Donotdrillmountingholeswithspeakerinplaceasthiscouldallowdrillshavingstodamagethe

voicecoilandvoidyourwarranty.

SPEAKER PARAMETERS

INSTALLATION GUIDELINES

Ensuretheaudiosystemisturnedoffbeforemakinganyconnectionstothe

amplier,speakersorsourceunit.Failuretodosocouldresultinpermanent

damagetotheaudiosystem.

Whenwiringthespeakersensurethatthewireisprotectedfromsharp

objectsandalwaysuserubbergrommetswhenwiringthroughmetalpanels.

Ensureallterminalsandconnectionsareprotectedfromthevehiclechassis

andfromeachotherasfailuretodosocouldresultinpermanentdamageto

theaudiosystem.

Whenconnectingthesourceunitandspeakersensureyouconnectthe

positiveandnegativeoutputwirefromthesourceunittothecorresponding

speakerterminals.Thiswillensuretheaudiosystemwillbeinphase.

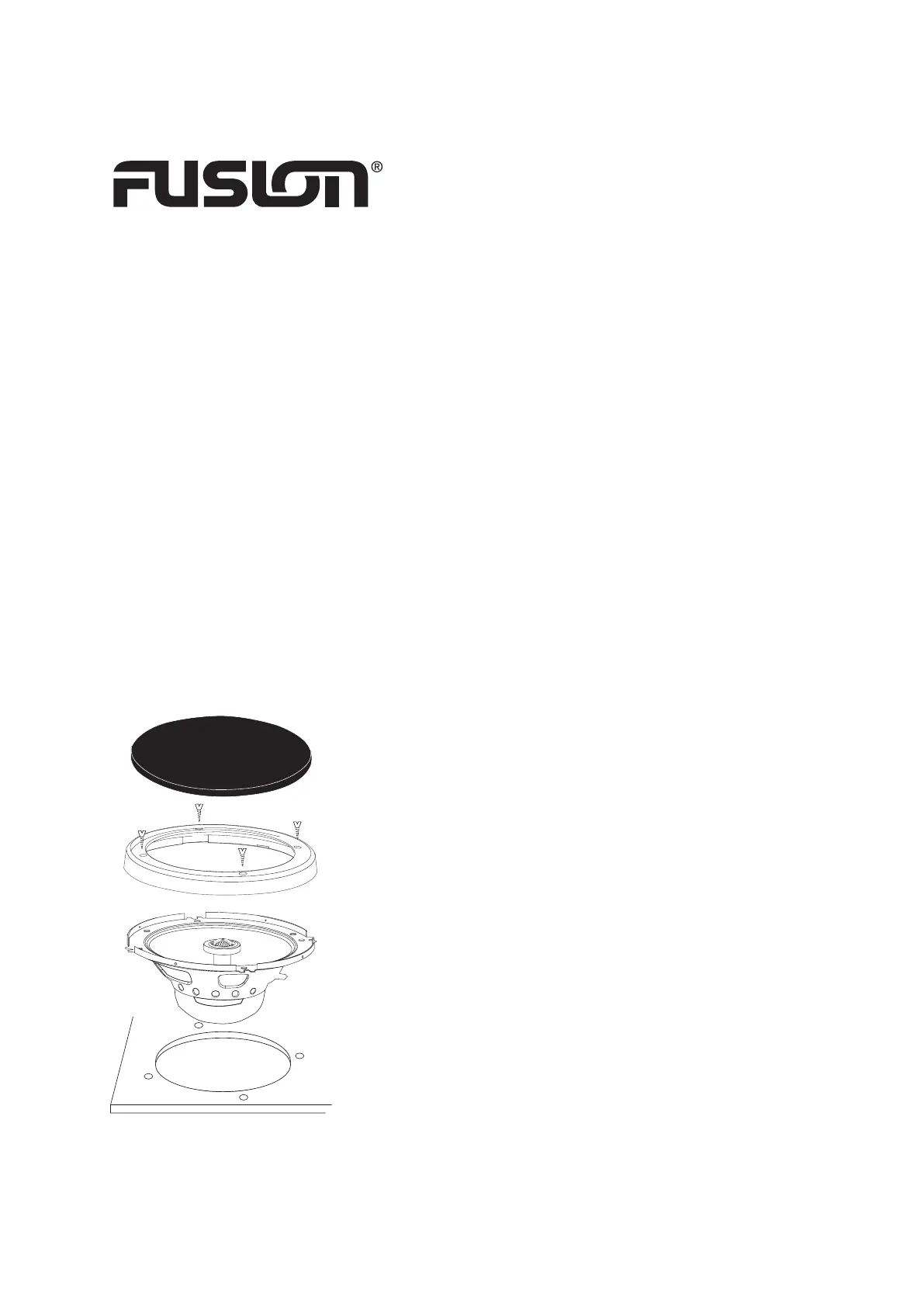

1) Ensurethereisadequateclearanceanddepthforthespeakertobe

 mounted.

2) Usethesuppliedtemplatetomarkout&cutthecorrectdiameterhole.

3) Drillfourholesforthemountingscrews.

4) Seperatethegrillefromtheframe.

5) Insertthespeakerandgrilleframeandafxwiththescrewsprovided.

6) Completeinstallationbyreplacingthegrilleintothegrilleframe.
